Fischer 558547 Pipe clamp Massive PIPE CLAMP FRSM 305-316 M12/M16 fvz 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

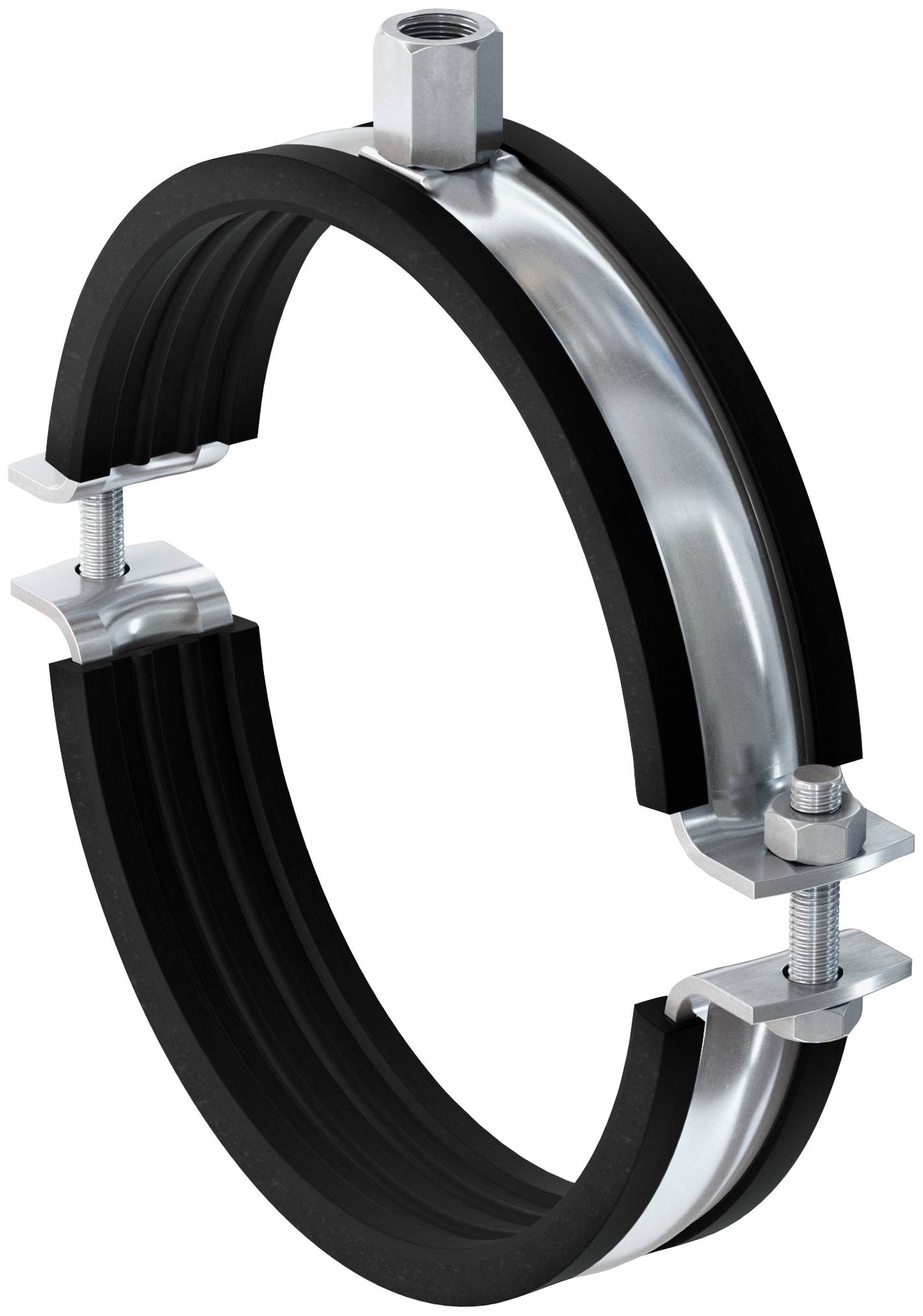

Massive PIPE CLAMP FRSM 305-316 M12/M16 fvz
- Two-screw design for optimized adaptation to the outer diameter of the pipe
- Loss protection of the screw
- Connection nut with combination thread M12/M16
- Sound-absorbing insert
Technical specifications
- Load level: Heavy
- Height Z 157 mm
- Max. recv. Static load (central train): 12.00 (12.00) kN
- Screw plug: M12
- Insulation: Sound insulation
- Product type
Pipe clamp
- Content
10 pc(s)
- Material
Steel
- Clamping range
305 up to 316 mm
- Thread
M12 - M16
- Material properties
hot-dip galvanized
- Width
397 mm
- Height
314 mm
- Range (max.)
316 mm
- Clamping range (min.)
305 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472312 Fischer 558547 Pipe clamp Massive PIPE CLAMP FRSM 305-316 M12/M16 fvz 10 pc(s)
Description

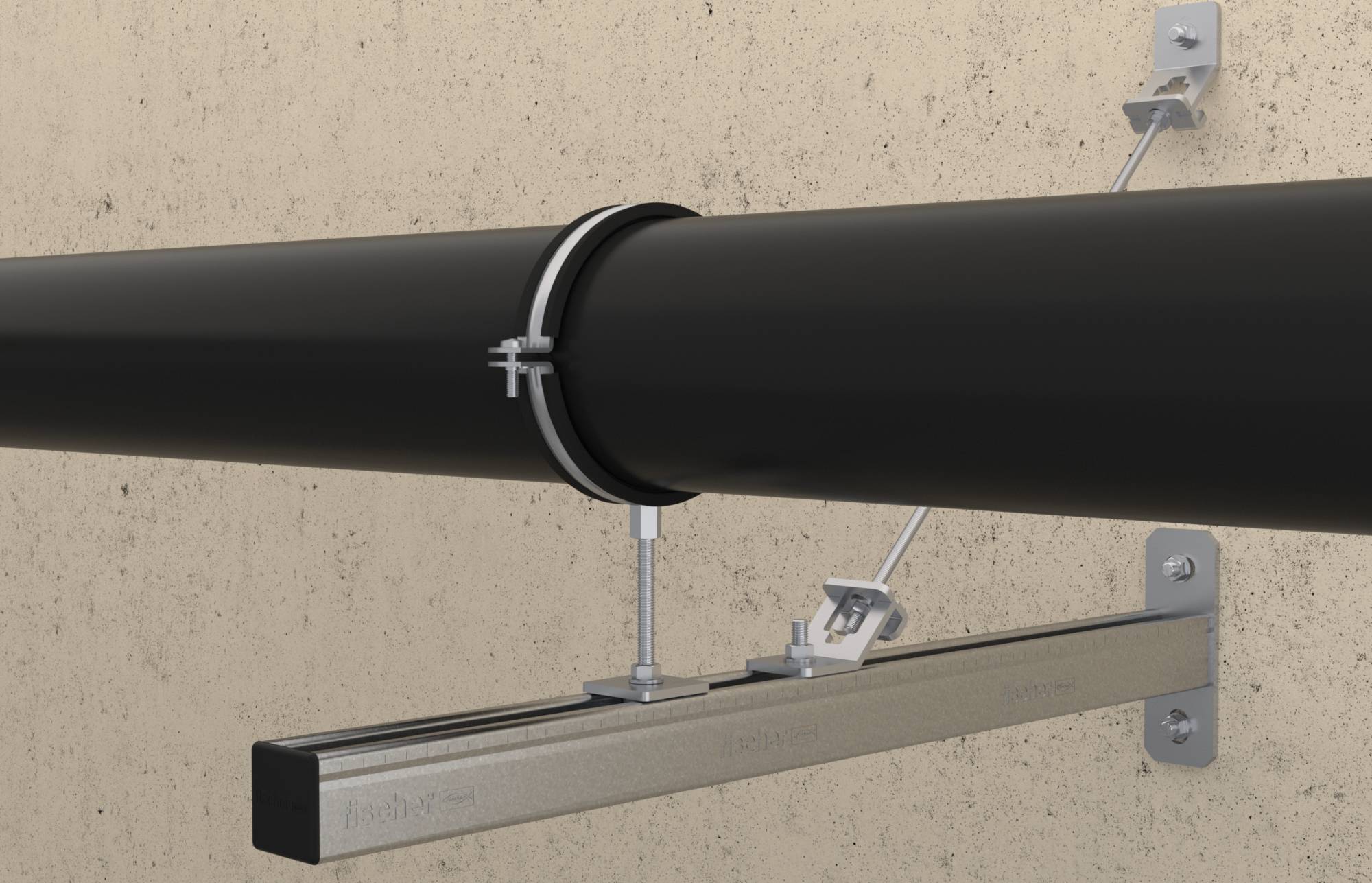

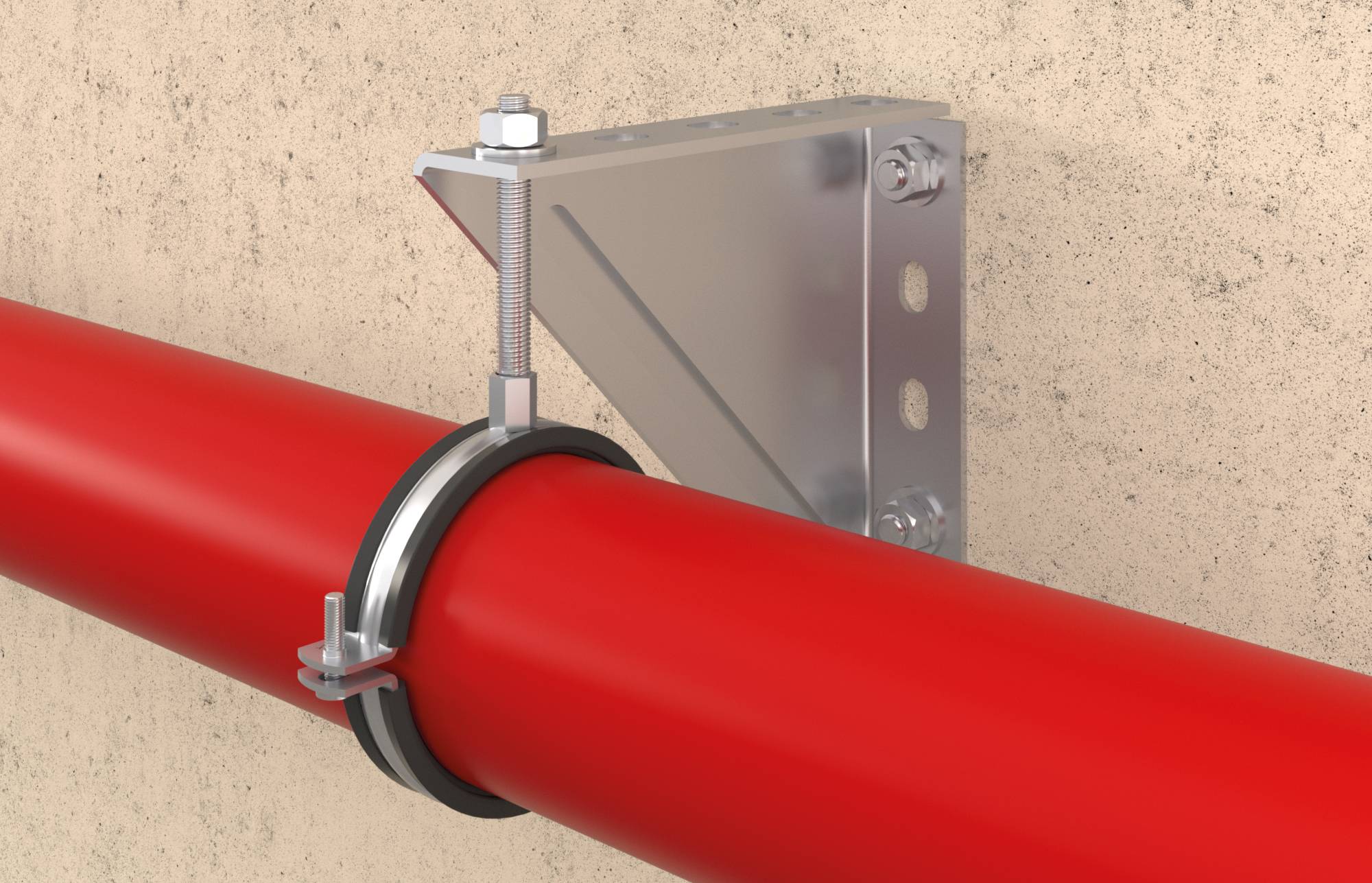

the fischer FSM 305-316 M12/M16 fvz solid pipe clamp with sound insulation insert for fixing medium to heavy pipes with threaded rods or stock screws. The two-screw design allows optimized adaptation to the outer diameter of the pipe. Connection nut with combination thread M12/M16 for holding threaded rods or stock screws. Pipe clamp screws with loss protection.
This text is machine translated.
This text is machine translated.
Features
- High tested loads guarantee the safe function of the FRSM
- the connecting nut with combination thread M10/M12, M12/M16 or M16 enables an optimized storage
- the perforated clamp tape enables mounting with 2 threaded rods starting from Ø 124mm, e.g. for fixing cast roof drainage lines
- the two-screw design allows optimized adaptation to the outer diameter of the pipe
- The loss protection of the screws ensures a problem-free installation
- the surface coating provides for a high corrosion protection against environmental influences such as moisture, water, salt water
