Fischer 558606 Pipe clamp Massive PIPE CLAMP FRSM 4" M10/M12 fvz 20 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

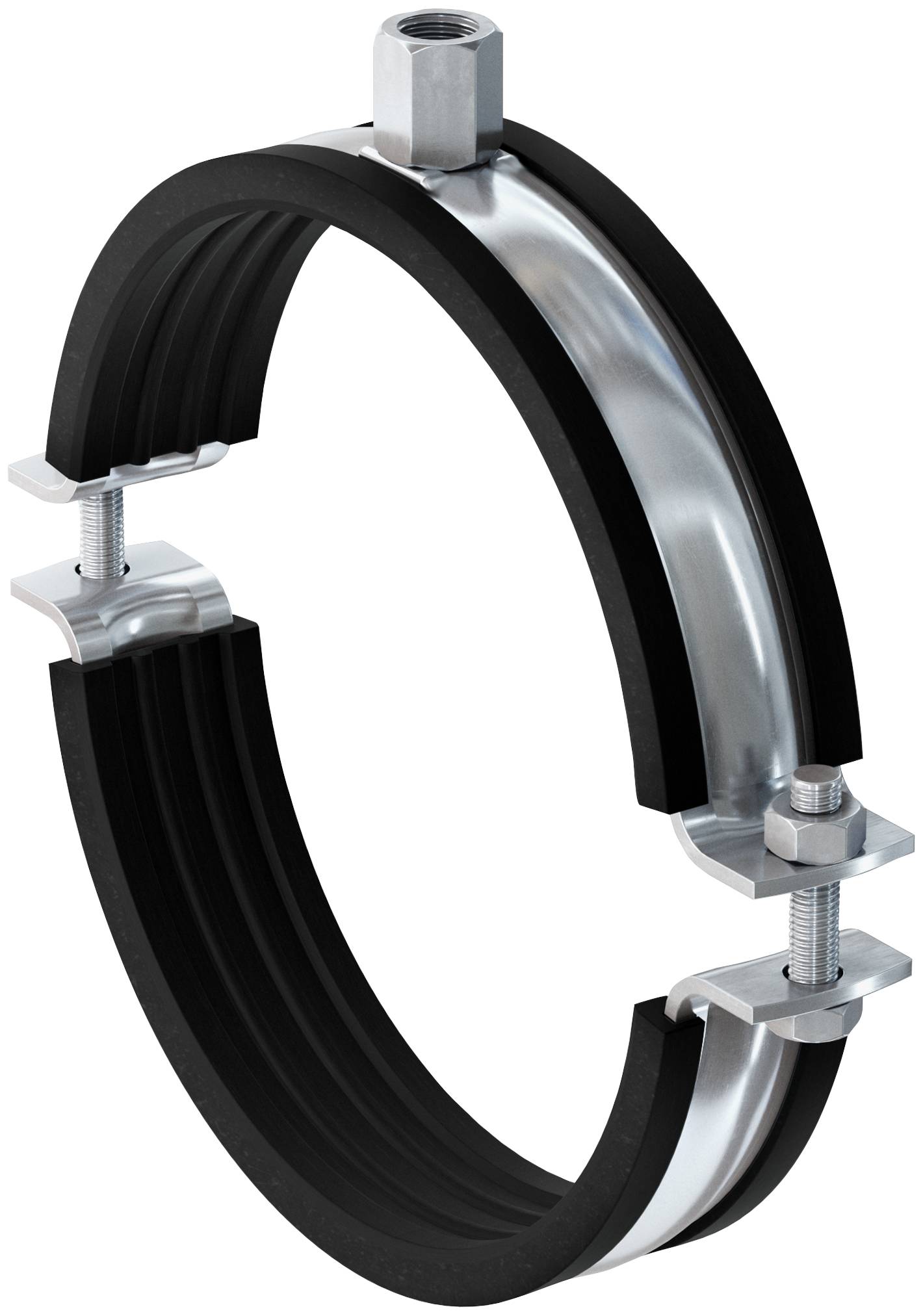

Massive PIPE CLAMP FRSM 4" M10/M12 fvz
- Two-screw design for optimized adaptation to the outer diameter of the pipe
- Loss protection of the screw
- Connection nut with combination thread M10/M12
- Sound-absorbing insert
Technical specifications
- Load level: Heavy
- Height Z 87 mm
- Max. recv. Static load (central train): 3.00 kN
- Screw plug: M8
- Insulation: Sound insulation
- Product type
Pipe clamp
- Content
20 pc(s)
- Material
Steel
- Clamping range
108 up to 116 mm
- Thread size
4"
- Thread
M10 - M12
- Material properties
hot-dip galvanized
- Width
176 mm
- Height
153 mm
- Range (max.)
116 mm
- Clamping range (min.)
108 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472057 Fischer 558606 Pipe clamp Massive PIPE CLAMP FRSM 4" M10/M12 fvz 20 pc(s)
Description

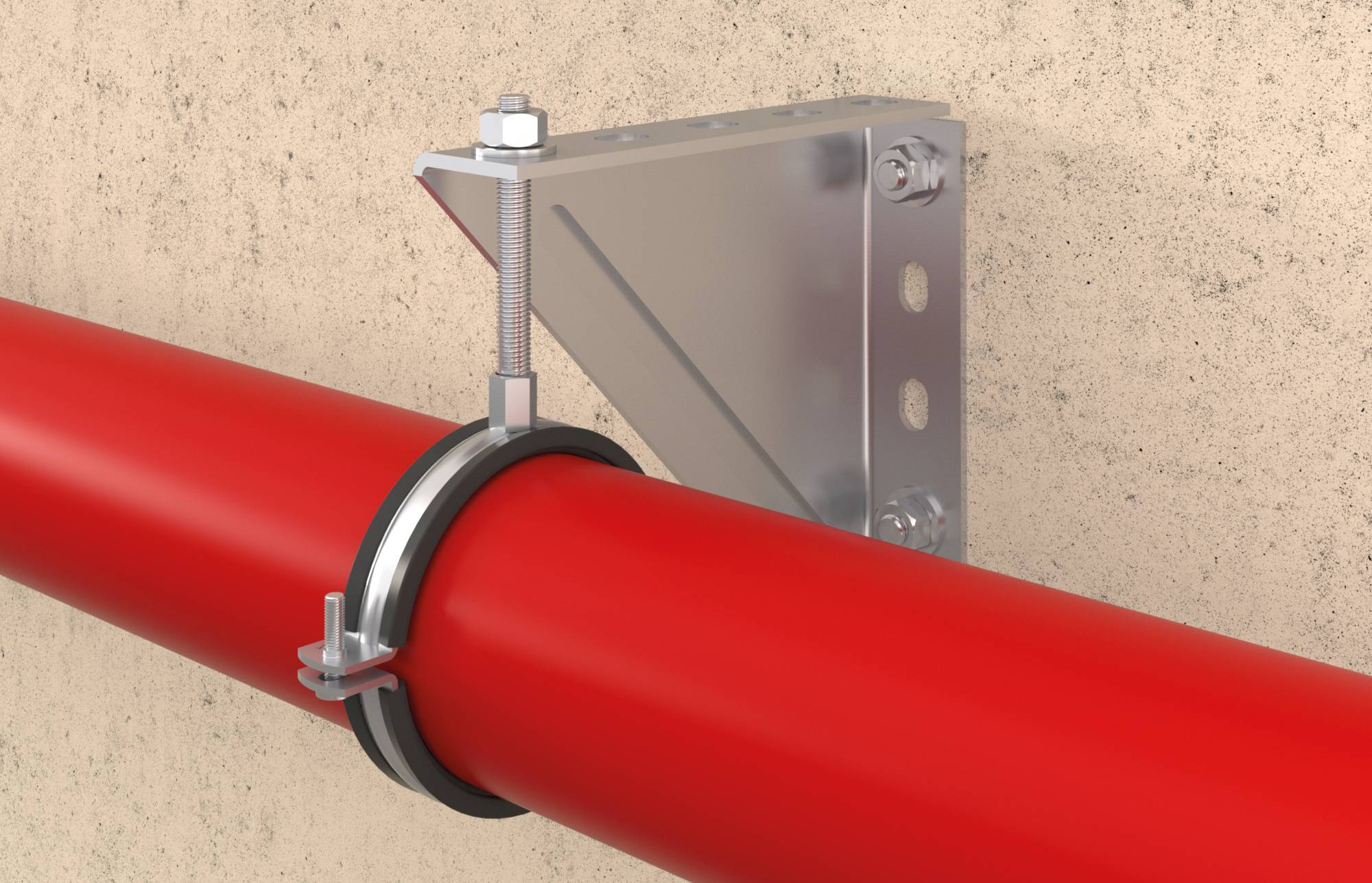

the fischer FSM 4" M10/M12 fvz solid pipe clamp with sound insulation insert for fixing medium to heavy pipes with threaded rods or stock screws. The two-screw design allows optimized adaptation to the outer diameter of the pipe. Connection nut with combination thread M10/M12 for holding threaded rods or stock screws. Pipe clamp screws with loss protection.
This text is machine translated.
This text is machine translated.
Features
- High tested loads guarantee the safe function of the FRSM
- the connecting nut with combination thread M10/M12, M12/M16 or M16 enables an optimized storage

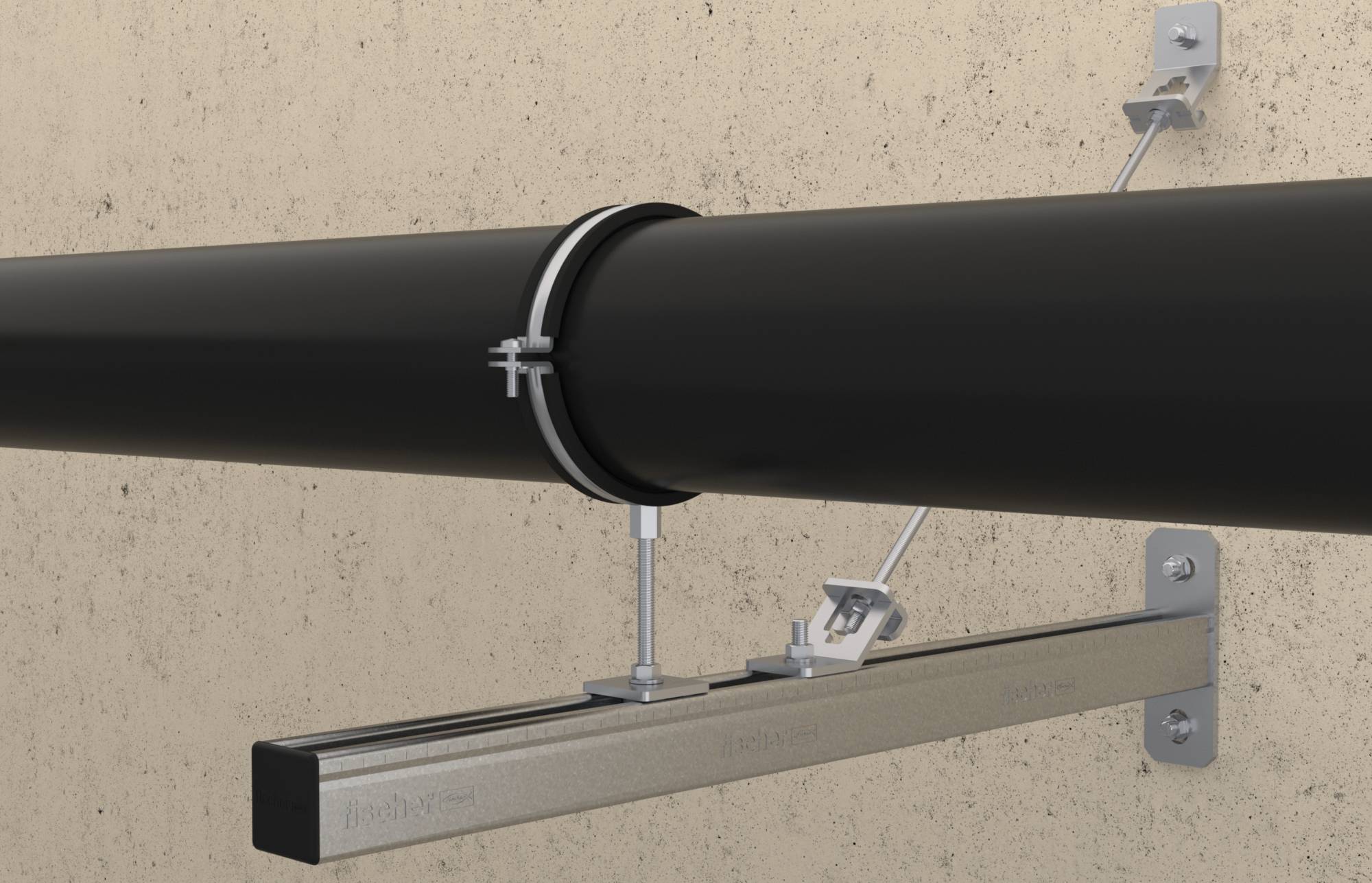

- the perforated clamp tape enables mounting with 2 threaded rods starting from Ø 124mm, e.g. for fixing cast roof drainage lines
- the two-screw design allows optimized adaptation to the outer diameter of the pipe
- The loss protection of the screws ensures a problem-free installation
- the surface coating provides for a high corrosion protection against environmental influences such as moisture, water, salt water
