Name: Fischer 559627 FIS A M 20 x 350 Anchor rod 10 pc(s)
Brand: Fischer
SKU: 2760608

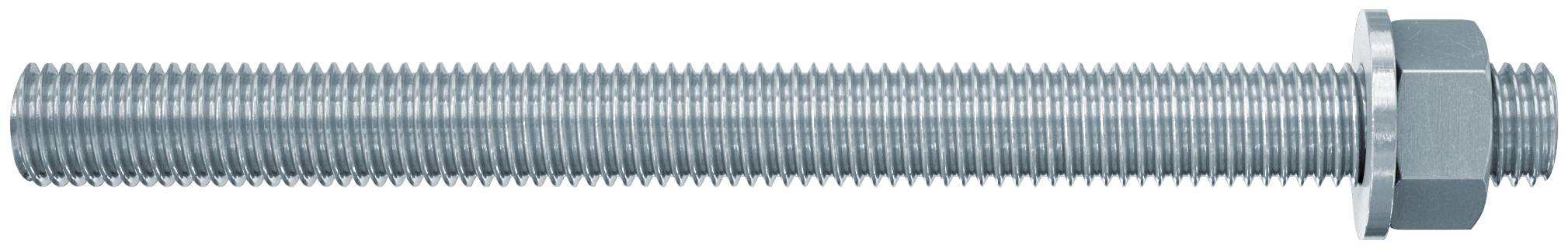

A long threaded metal bolt with a washer and hex nut on the right end, shown horizontally on a white background.

Close-up of a wooden roof truss framing structure with diagonal and vertical beams against a blue sky.

Exterior of a modern white building with blue steel support beams and three small dark windows, viewed straight on.

Close-up of a red steel column base plate bolted to a concrete floor with four anchor bolts.

Side view of a threaded bolt anchored through a concrete slab into a metal bracket, showing the fastening assembly.

Cutaway of a masonry anchor bolt inserted through a brick wall, showing the expansion sleeve gripping the hole with a nut and washer outside.

Threaded anchor bolt embedded in concrete, extending horizontally through a metal bracket and secured with a nut and washer.

Threaded anchor bolt passing through a wall and secured with a washer and nut on a metal bracket.

1/8

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Fischer FIS A M 20 x 350 galvanized galvanized steel quality 8.8 anchor rod

The universal solution for various types of Fischer injection mortar. For a manageable range and simplified storage.
In combination with the various fischer injection mortar approved for anchoring in cracked and untorn concrete, solid stone masonry, pebble stone masonry and porous concrete.
Optimum load adjustment thanks to variable anchoring depth. This reduces installation and material costs.

Technical specifications

(Ø): 20 mm

Product type: Anchor rod

Material: Steel

Length: 350 mm

Screw diameter: 22 mm

Dim: (Ø x L) 20 mm x 350 mm

Suitable for: Concrete
Solid stone
Foamed concrete wall
Hollow bricks

Content: 10 pc(s)

Outside Ø: 20 mm

Material properties: zinc galvanized

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2760608 Fischer 559627 FIS A M 20 x 350 Anchor rod 10 pc(s)

Description

The Fischer FIS A anchor rod is made of galvanized steel of grade 8.8. The anchor rod is a system component for the various types of Fischer injection mortar. In combination with the injection mortar, the fischer anchor rod is suitable or approved for all surfaces. For the maximum load capacity of the system, thorough drill hole cleaning is recommended. The system, made of electroplated anchor rod in combination with fischer injection mortar, is suitable or approved for mounting in dry interiors.

This text is machine translated.

Features

The FIS A anchor rod can be used with almost all the fisher injection mortar (not with special high-bond mortar FIS HB) and can be selected individually according to your requirements. This enables a wide range of applications.
The wide range of approved anchor rods FIS A from M6 to M30 opens up variable application possibilities.
Please observe the approvals for each mortar.
First dynamic load data in a ETA for anchoring light dynamic loads with threaded rods in cracked and untorn concrete in combination with FIS SB injection mortar and RSB reaction cartridge.
