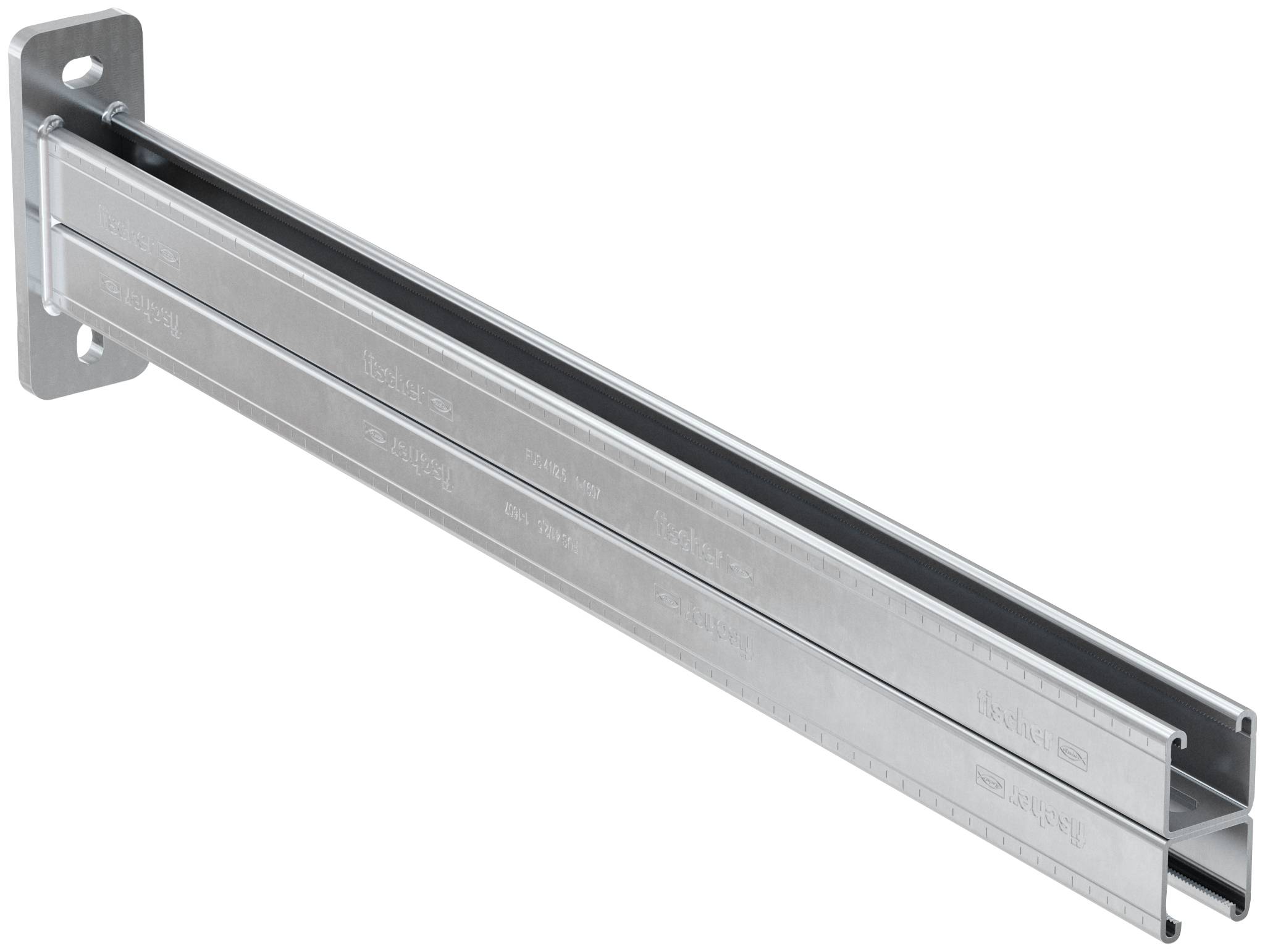

Fischer 559921 Extension rail 1000 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
fischer FCA 41D/2.0 - 1000 boom console
- Quick and easy mounting of e.g. Pipe paths along the wall
Technical specifications
- Load level: medium
- Max. Recommended load in case of load 1: 1.90 kN
- Max. Recommended load in case of load 2: 0.93 kN
- Max. Recommended load in case of load 3: 1.90 kN
- Profile: 41D / 2.0
- Product type
Extension rail
- Material
Steel
- Length
1000 mm
- Content
1 pc(s)
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472004 Fischer 559921 Extension rail 1000 mm 1 pc(s)
Description

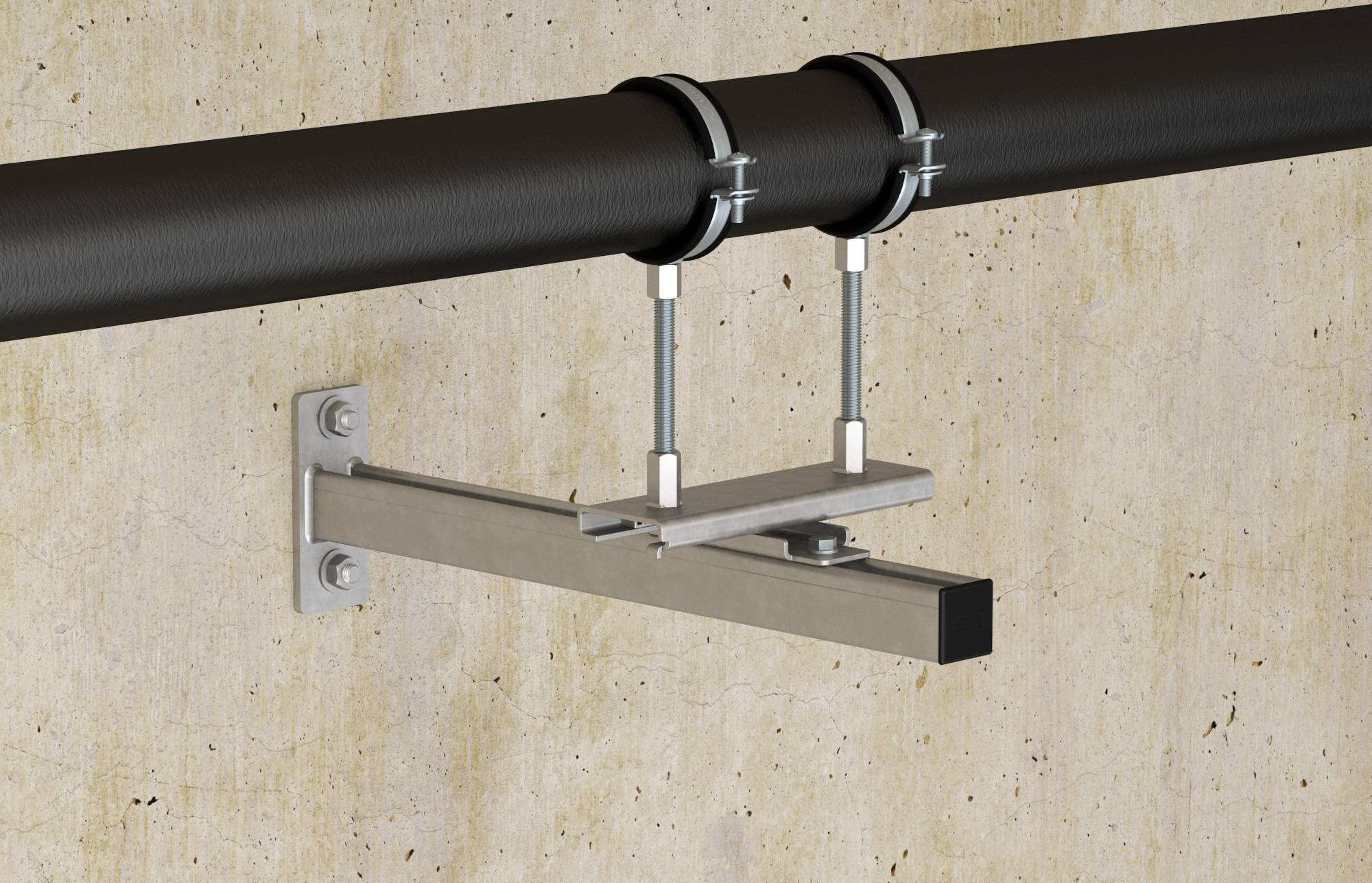

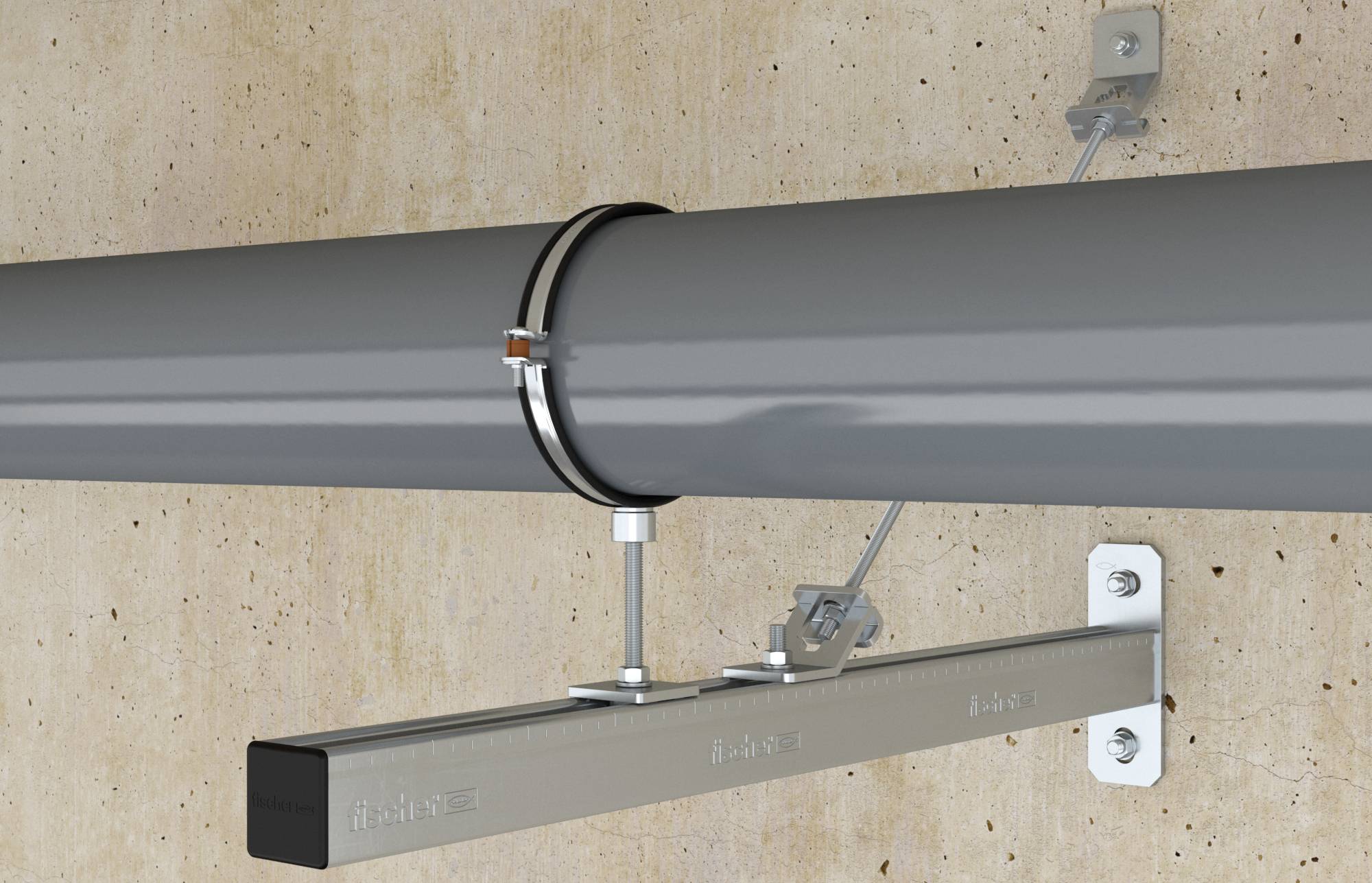

the fischer FCA boom console allows quick and easy mounting of pipe trays along the wall. Easy alignment of the console through slotted holes in the base plate, which are rotated by 90° to each other.
This text is machine translated.
This text is machine translated.
Features
- The fire test report according to MLAR/EN13501 guarantees objectively tested functional safety
- the graduated length range allows an optimum adaptation to the application
- The stable base plate of the console offers a firm construction secure hold
- the slotted holes of the base plate rotated by 90° to each other allow an easy alignment of the console
- the pronounced gearing in the rail offers the sliding nut for holding high transverse loads secure hold, e.g. during vertical mounting
