Fischer 560583 Pipe clamp Pipe clamp FRS 2" stainless steel A2 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

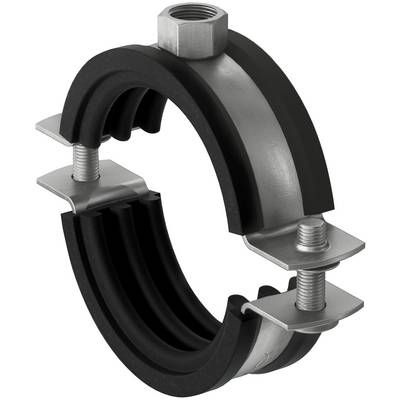

Pipe clamp FRS 2" stainless steel A2
- Stainless steel A2
- Two-screw design for optimized adaptation to the outer diameter of the pipe
- Loss protection of the screw
- Sound-absorbing insert
- Connection nut with M8 thread
Technical specifications
- Width x thickness of clamp band 20 x 1.2 mm
- Height Z 46 mm
- Max. recv. Static load (central train): 1.00 kN
- Screw plug: M6
- Product type
Pipe clamp
- Content
10 pc(s)
- Material
Stainless steel
- Clamping range
60 up to 64 mm
- Thread size
2"
- Thread
M8
- Material properties
A2
- Width
110 mm
- Height
85 mm
- Range (max.)
64 mm
- Clamping range (min.)
60 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2471995 Fischer 560583 Pipe clamp Pipe clamp FRS 2" stainless steel A2 10 pc(s)
Description
the fischer FRS 2" A2 pipe clamp for nominal size 2" with sound insulation insert for fixing pipes with threaded rods or stock screws. The two-screw design allows optimized adaptation to the outer diameter of the pipe. Connecting nut with M8 thread for holding threaded rods or stock screws. Pipe clamp screws with loss protection.
This text is machine translated.
This text is machine translated.
Features
- The two-screw design allows optimized adaptation to the outer diameter of the pipe
- The connecting nut with combination thread M8/M10 ensures flexibility on the construction site
- the sound insulation lining ensures noise reduction and prevents contact corrosion
- The loss protection of the screws ensures a problem-free installation
