Fischer 560607 Pipe clamp Pipe clamp FRS 121 - 127 stainless steel A4 5 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

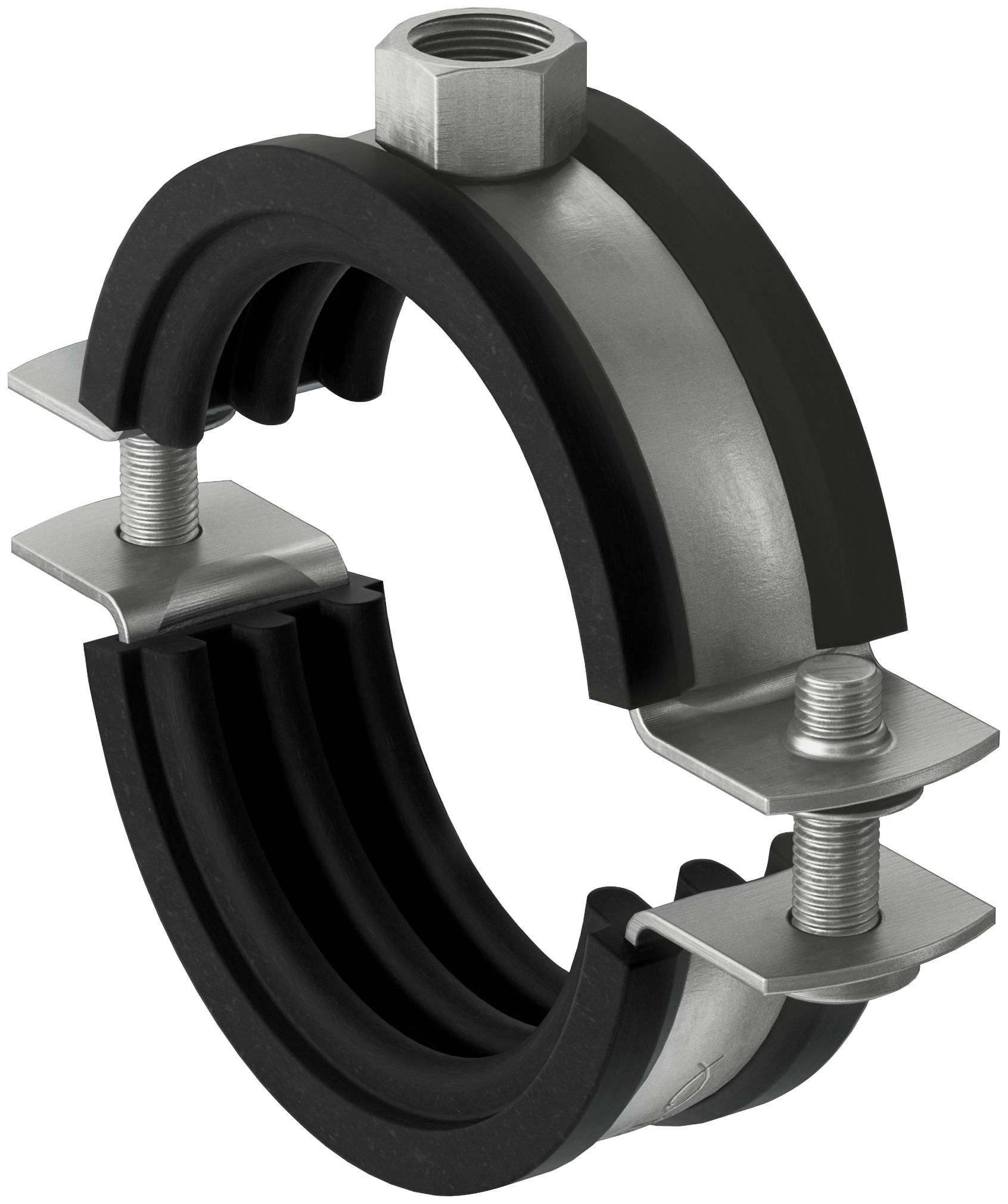

Pipe clamp FRS 121 - 127 stainless steel A4
- Stainless steel A4
- Two-screw design for optimized adaptation to the outer diameter of the pipe
- Loss protection of the screw
- Sound-absorbing insert
- Connection nut with M10 thread
Technical specifications
- Width x thickness of clamp band 25 x 2.0 mm
- Height Z 79 mm
- Max. recv. Static load (central train): 2.00 kN
- Screw plug: M8
- Product type
Pipe clamp
- Content
5 pc(s)
- Material
Stainless steel
- Clamping range
121 up to 127 mm
- Thread size
M10
- Thread
M10
- Material properties
A4
- Width
192 mm
- Height
149 mm
- Range (max.)
127 mm
- Clamping range (min.)
121 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2471972 Fischer 560607 Pipe clamp Pipe clamp FRS 121 - 127 stainless steel A4 5 pc(s)
Description
the fischer FRS 121-127 A4 pipe clamp with sound insulation insert for fixing pipes with threaded rods or stock screws. The two-screw design allows optimized adaptation to the outer diameter of the pipe. Connecting nut with M10 thread for holding threaded rods or stock screws. Pipe clamp screws with loss protection.
This text is machine translated.
This text is machine translated.
Features
- The two-screw design allows optimized adaptation to the outer diameter of the pipe
- The connecting nut with combination thread M8/M10 ensures flexibility on the construction site
- the sound insulation lining ensures noise reduction and prevents contact corrosion
- The loss protection of the screws ensures a problem-free installation
