Fischer 561726 FHB-A dyn 12 x 100/25 HCR Highbond anchor rod 155 mm 4 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

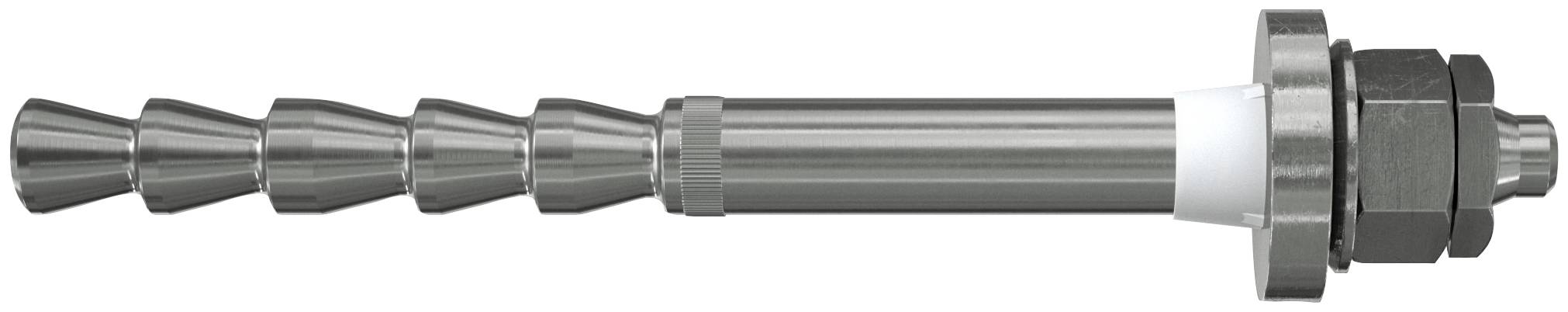

Fischer dynamic HHB-A dyn 12 x 100/25 HCR Highbond anchor
- Safe repecting under dynamic load due to cone geometryAbsorption of dynamic threshold and change loads through optimal load distributionApproved for use on cracked concreteMade of highly corrosion-resistant steel for a highly corrosive atmosphere
Technical specifications
- Connector thread M12 14 mm drill nominal diameterThread dimension (metric): 12Thread M12 mmMin Hole depth during through-hole installation 130 mmMin - Max. working length: 8 - 25 mmWrench width: 19 mmAnchoring depth: 100 mm
- (Ø)
14 mm
- Product type
Highbond anchor rod
- Material
Steel
- Length
155 mm
- Screw diameter
12 mm
- Dim
(Ø x L) 14 mm x 155 mm
- Suitable for
Concrete
- Content
4 pc(s)
- Material properties
highly anti-corrosive
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2699340 Fischer 561726 FHB-A dyn 12 x 100/25 HCR Highbond anchor rod 155 mm 4 pc(s)
Description
The Fischer Dynamic HHB-A dyn Highbond anchor is made from high corrosion-resistant steel. The force-controlled spreading composite anchor is processed with the special high-bond mortar FIS HB. When tightening the hexagon nut, the cones of the anchor rod are pulled into the mortar shell, which tightens against the hole wall. The injection mortar FIS HB closes the ring gap in the attachment part during the setting process and guarantees an optimum load distribution. This allows dynamic threshold and alternating loads to be absorbed. The Fischer dynamic FHB-A dyn Highbond anchor is Ideal suitable for use in tunnels such as bridge shields or jet fans.
