Fischer 561791 PowerFast II Elevator bolts 5 mm 80 mm Spline drive Steel zinc galvanized 200 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

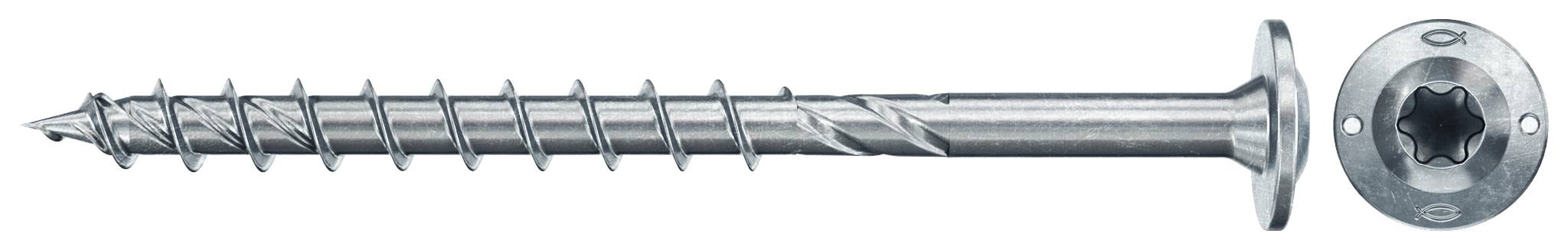

Fischer SilverFast FPF II WT25P 5.0 x 80 BC 200 head with inner star TX25 partial thread galvanic zinc-plated, blue passivated
- The screw geometry of the PowerFast II provides for a fast, comfortable and flexible mounting.
- The chipboard screw has a much smaller crack behavior compared to standard screws.
- The galvanic zinc, blue passivated, does not contain any chromium VI components and is therefore very environmentally friendly.
Technical specifications
- Drive: TX25
- Approvals ETA-19/0175, DOP No. W0020
- Thread length: 45 mm
- Product type
Elevator bolts
- Drive
Spline drive
- Material
Steel
- (Ø)
5 mm
- Length
80 mm
- Head shape
Elevator head
- Dim
(Ø x L) 5 mm x 80 mm
- Content
200 pc(s)
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2760613 Fischer 561791 PowerFast II Elevator bolts 5 mm 80 mm Spline drive Steel zinc galvanized 200 pc(s)
Description
The Fischer Powerfast FPF II WT BC is a galvanized blue passivated screw with partial thread and inner star mounting. The plate head with the inner star TX-drive guarantees a larger contraction effect as well as a much higher head pull resistance. The design with partial thread makes it possible to securely tighten wooden elements.
This text is machine translated.
This text is machine translated.
Features
- With plate head for a larger contraction effect and a much higher head pull resistance.
- The increased thread pitch of the screw reduces the screw-in time considerably.
- The screw tip with the three ribs ensures quick bite action and pre milling.
- The shaft milling ribs in combination with the core milling cutter geometry noticeably reduce the screw-in resistance.
- The PowerFast II is a screw with tested loads in the fischer plug (e.g. DuoPower or UX).
