Fischer 562060 FIS E 11 x 85 M 8 R Plug with internal thread 85 mm 14 mm 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

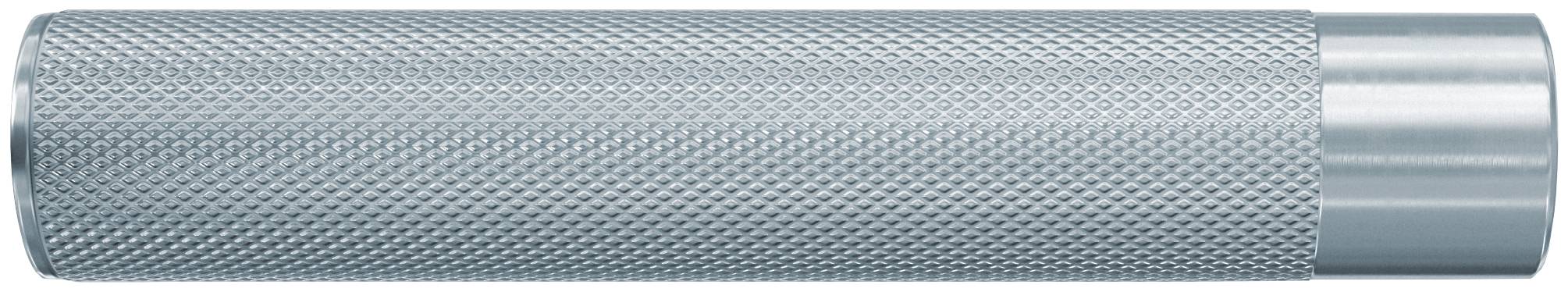

Fischer FIS E 11 x 85 M 8 R injection plug
- Commercially available metric screws and threaded rods can be used. This reduces costs and complexitySurface-flush dismantling possible. Attachment point can be reusedETA approval for maximum security
Technical specifications
- Connector thread M8 14 mm drill nominal diameterApplication conditions: Fire protection classification Design: With inner thread Max. Screw-in depth 60 mmMin Drill depth 90 mmMin Screw-in depth 8 mmMin Anchoring depth 85 mmSuitable for FIS H 16 x 85 K, FIS H 20 x 85 K
- (Ø)
14 mm
- Product type
Plug with internal thread
- Material
Steel
- Length
85 mm
- Dim
(Ø x L) 14 mm x 85 mm
- Suitable for
Flintlime bricks
Flintlime hollow bricks
Solid brick
Cored bricks
Structural lightweight concrete
Bricks
Pumice
- Content
10 pc(s)
- Material properties
rust-proof
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2699348 Fischer 562060 FIS E 11 x 85 M 8 R Plug with internal thread 85 mm 14 mm 10 pc(s)
Description

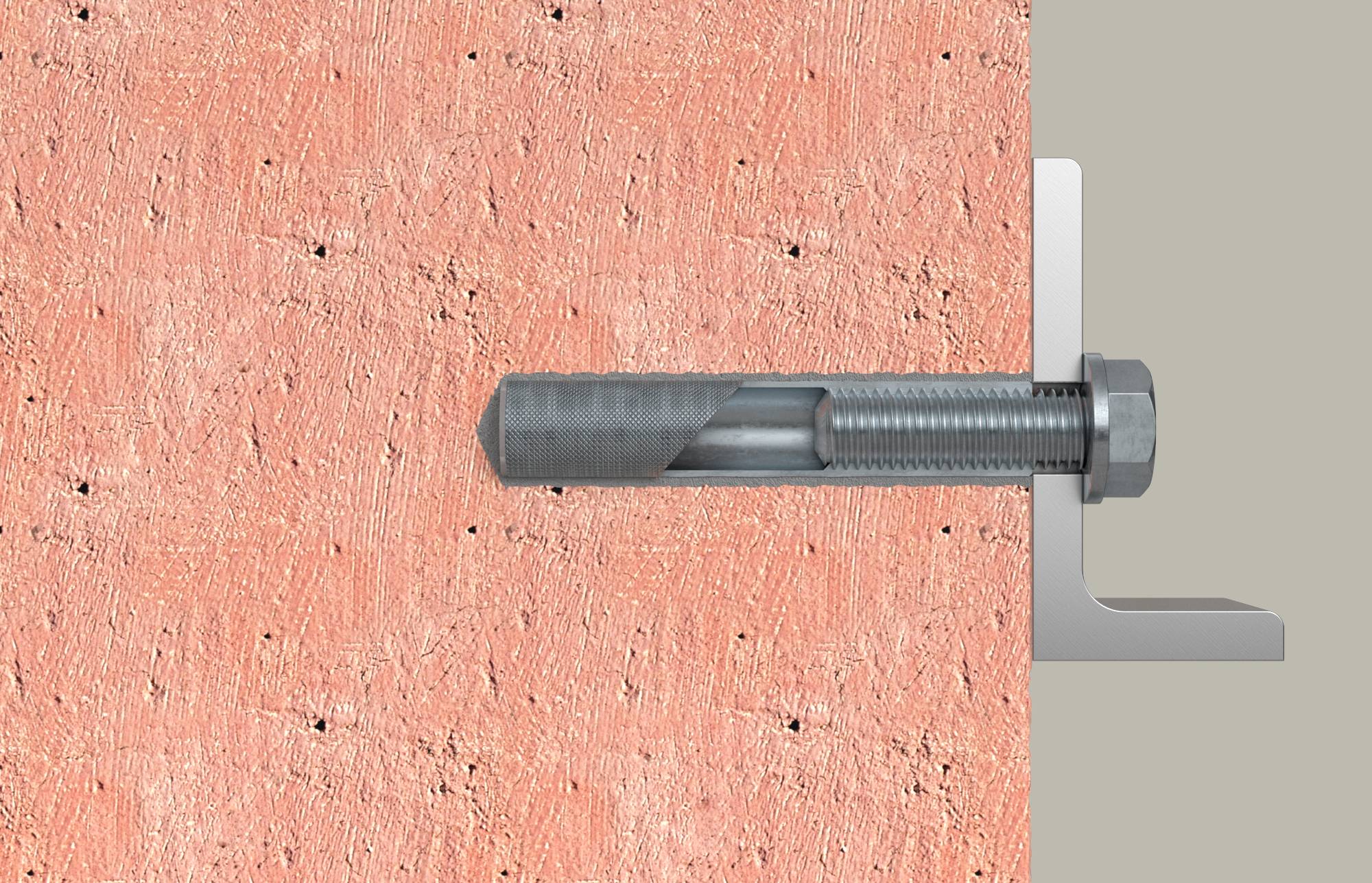

The Fischer FIS E internal injection plug made of stainless steel is the system component for the use of the Fischer injection mortar in masonry. Set the internal thread anchor manually under slight twisting movements. In solid stone, the injection mortar sticks the internal thread sleeve completely to the bore hole wall. In perforated building materials, the mortar is pressed by the grid of the anchor sleeve and connects itself to the perforated stone in the form of the finished product. This will route the load into the building material. Using the FIS E injection internal thread anchor enables the surface-flush removal of the attachment.
