Buy Fischer 562150 DuoXpand T Plug (long) 100 mm 8 mm 50 pc(s)

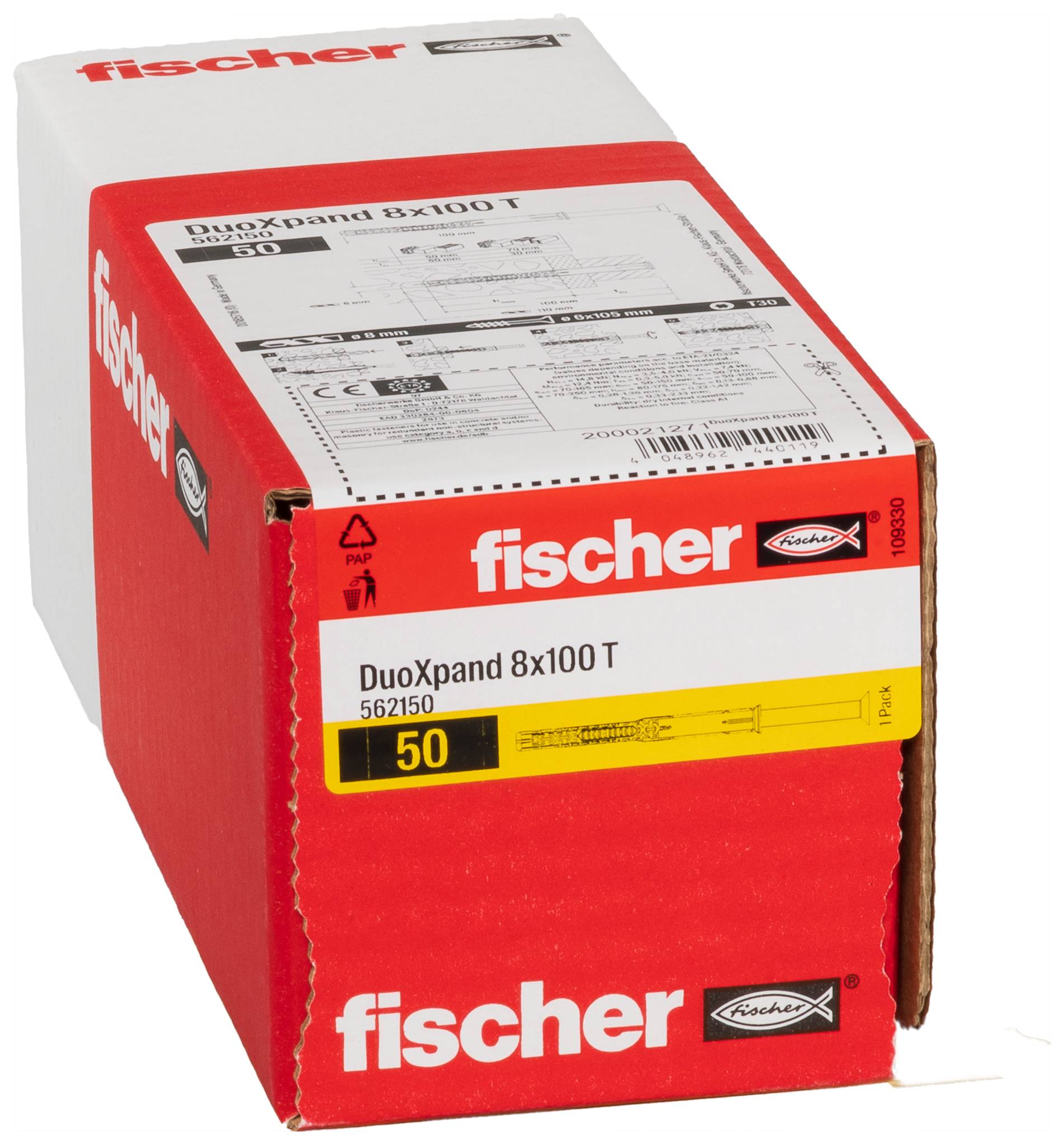

Red Fischer box of DuoXpand 8x100 T wall anchors, labeled '50' pieces.

Illustration of a metallic syringe with a red-and-black textured grip and a long silver needle, shown side view on a white background.

White double-pane window in a brick wall, with one casement open outward and a view of grass and trees outside.

Wooden patio roof canopy with posts and diagonal braces attached to a wall, casting shadows on the white facade.

Wooden fence frame over red brick wall, showing horizontal and vertical light wood slats attached with metal screws.<br>

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

fischer DuoXpand long shaft plug 8 x 100 T countersunk screw

Bites perfectly into all building materials and enables universal use
The special lamellar geometry spreads in the respective building material gently
The pre-assembled safety screw is perfectly matched to the dowel and saves time during installation
Approved multiple mounting of non-load-bearing systems in concrete and masonry
Side ribs prevent twisting in the drill hole for reliable mounting
Pre-assembled safety screw with countersunk head

Technical specifications

Drive: Tx30

(Ø): 8 mm

Product type: Plug (long)

Material: Steel (galvanized)

Length: 100 mm

Dim: (Ø x L) 8 mm x 100 mm

Suitable for: Concrete
Solid brick
Flintlime bricks
Structural lightweight concrete
Cored bricks
Flintlime hollow bricks
Foamed concrete wall
Natural stone
Drywall sheet

Content: 50 pc(s)

Features: incl. screw

Material properties: zinc galvanized

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2526891 Fischer 562150 DuoXpand T Plug (long) 100 mm 8 mm 50 pc(s)

Description

the fischer DuoXpand long shaft dowel with two anchor depths is approved with the fischer countersunk screw for multiple attachments of non-load-bearing systems in concrete, masonry and aerated concrete. Due to its special lamellar geometry and the material combination, the dowel spreads optimally and in a material-friendly way in the respective building material. The range includes diameters 8 and 10 and dowel lengths up to 230 mm. The DuoXpand with the countersunk screw is particularly suitable for fixing wooden constructions.

This text is machine translated.
