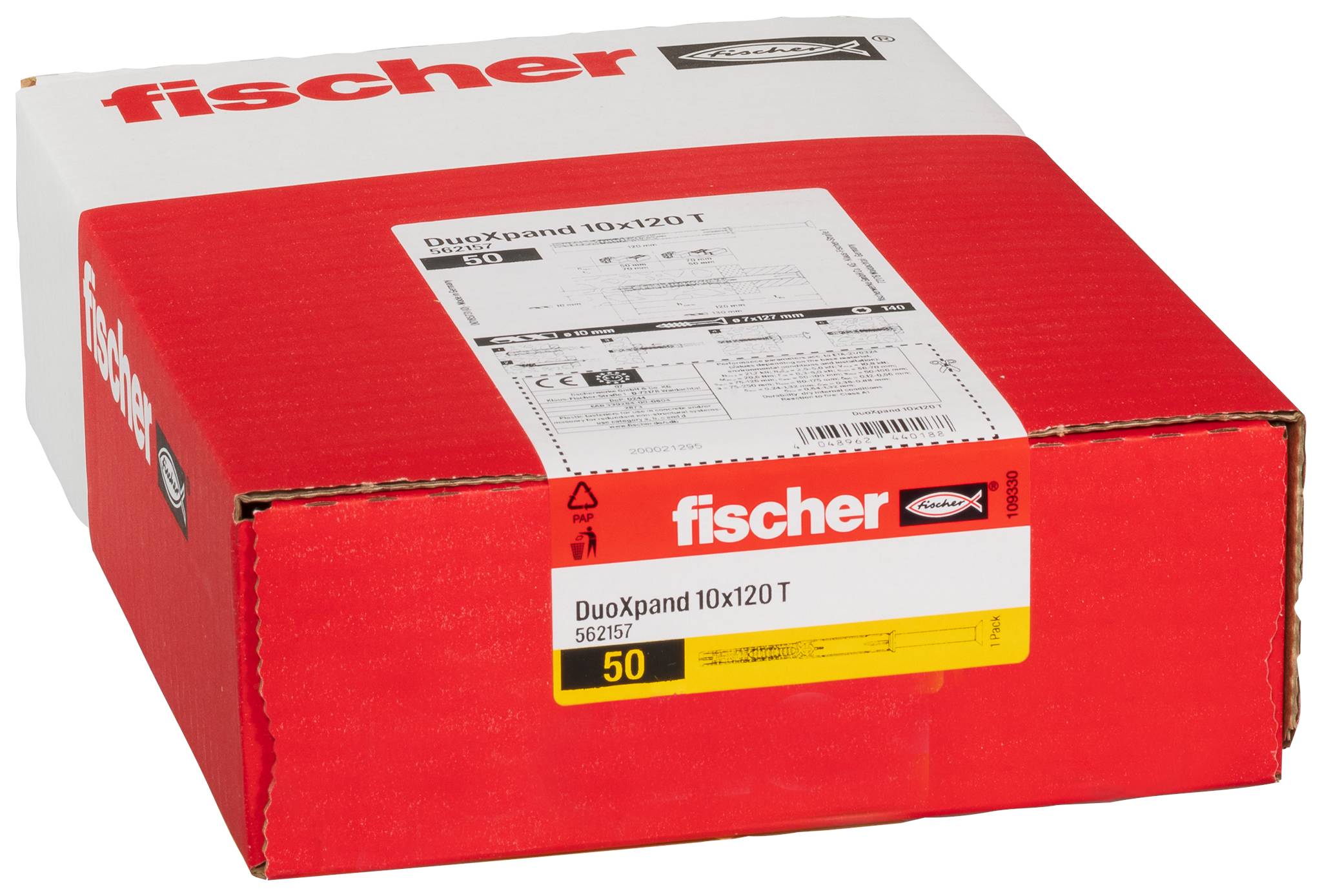

Red Fischer DuoXpand 10x120 T box of wall anchors, labeled with product details and quantity 50.

Metal syringe-like device labeled with red text and a long gray plunger, shown side view on a white background.

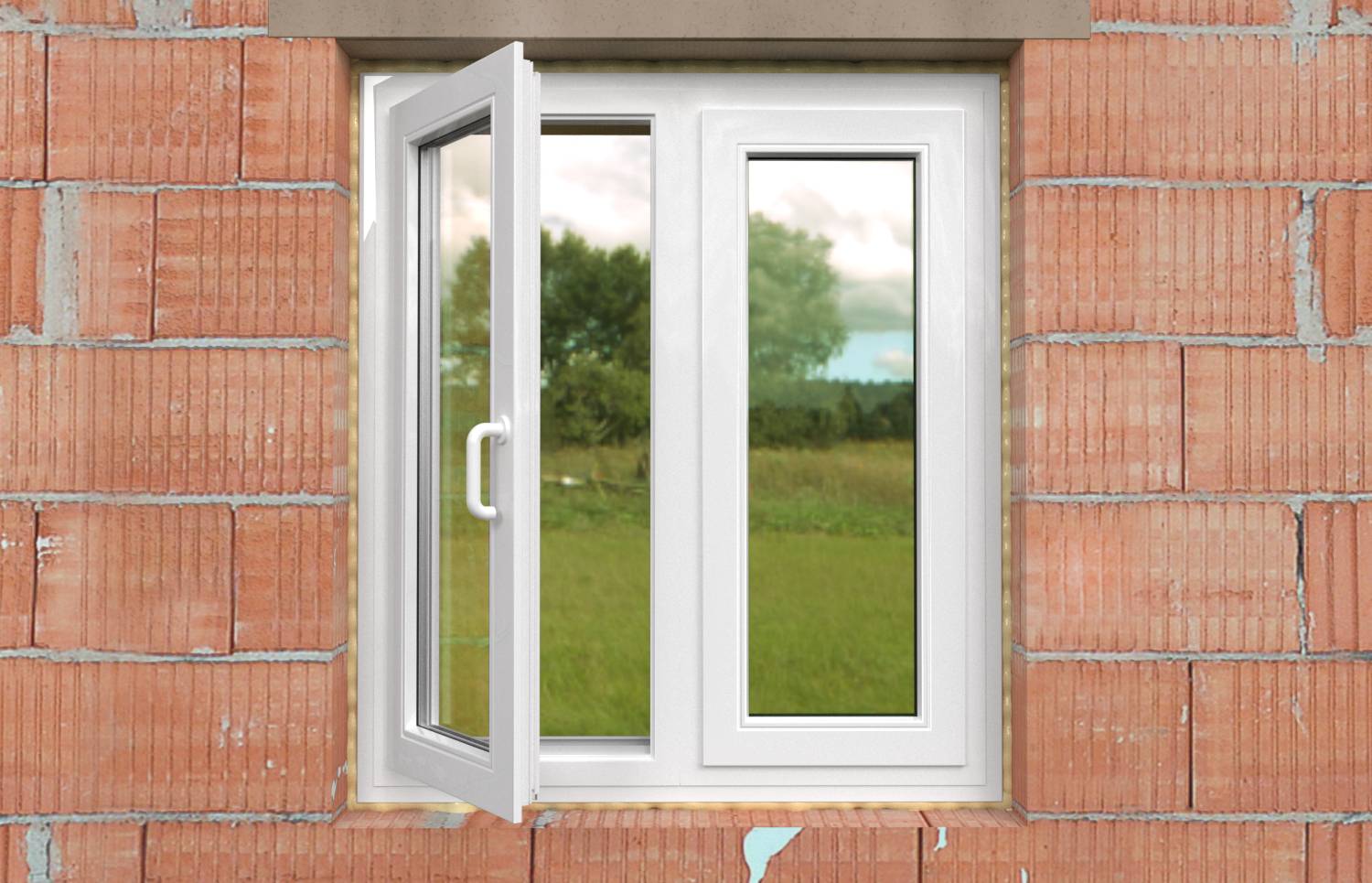

Open white casement window set into a brick wall, showing green field and trees outside.<br>

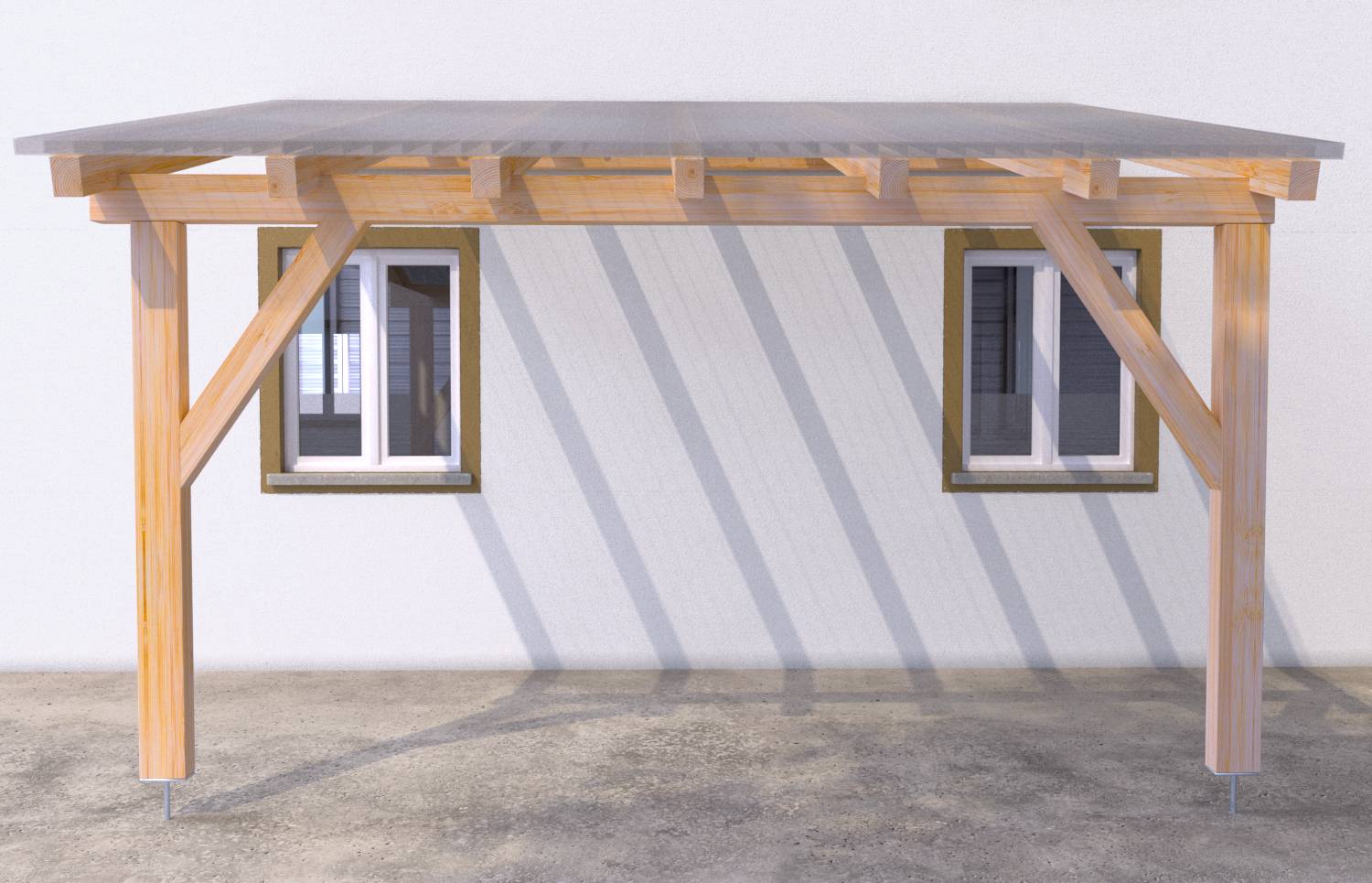

Wooden pergola or patio shelter with a flat translucent roof, two support posts, and two windows on the back wall, casting diagonal shadows on the wall and floor.

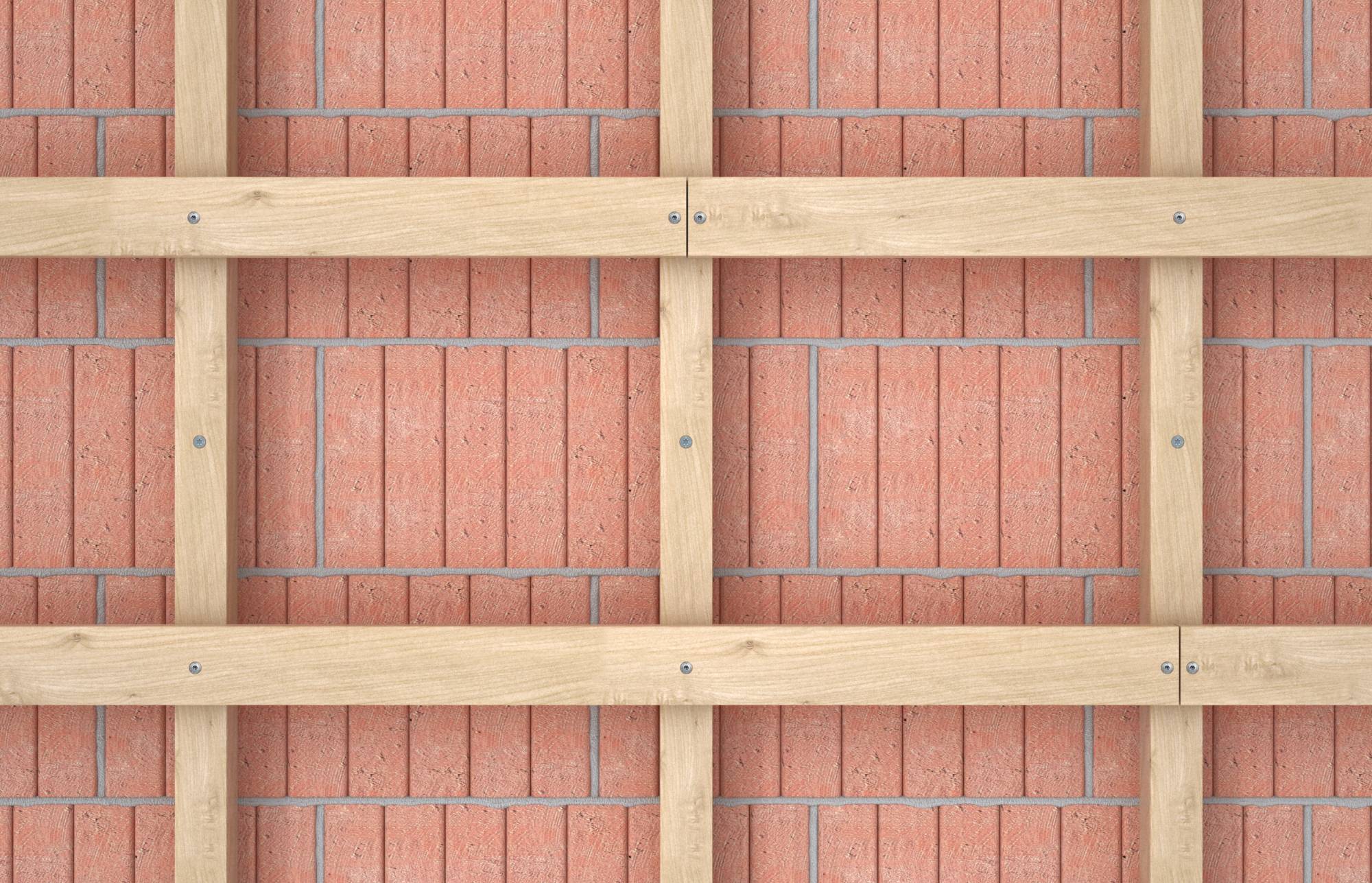

Wooden framing grid mounted against a red brick wall, showing a partially built support structure.<br>

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

fischer DuoXpand 10 x 120 T long shaft plug countersunk screw

Bites perfectly into all building materials and enables universal use
The special lamellar geometry spreads in the respective building material gently
The pre-assembled safety screw is perfectly matched to the dowel and saves time during installation
Approved multiple mounting of non-load-bearing systems in concrete and masonry
Side ribs prevent twisting in the drill hole for reliable mounting
Pre-assembled safety screw with countersunk head

Technical specifications

Drive: Tx40

(Ø): 10 mm

Product type: Plug (long)

Material: Steel (galvanized)

Length: 120 mm

Dim: (Ø x L) 10 mm x 120 mm

Suitable for: Concrete
Solid brick
Flintlime bricks
Structural lightweight concrete
Cored bricks
Flintlime hollow bricks
Foamed concrete wall
Natural stone
Drywall sheet

Content: 50 pc(s)

Features: incl. screw

Material properties: zinc galvanized

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2526898 Fischer 562157 DuoXpand T Plug (long) 120 mm 10 mm 50 pc(s)

Description

the fischer DuoXpand long shaft dowel with two anchor depths is approved with the fischer countersunk screw for multiple attachments of non-load-bearing systems in concrete, masonry and aerated concrete. Due to its special lamellar geometry and the material combination, the dowel spreads optimally and in a material-friendly way in the respective building material. The range includes diameters 8 and 10 and dowel lengths up to 230 mm. The DuoXpand with the countersunk screw is particularly suitable for fixing wooden constructions.
