Name: Fischer 562160 DuoXpand T Plug (long) 180 mm 10 mm 50 pc(s)
Brand: Fischer
SKU: 2526901

Red Fischer product box labeled 'DuoXpand 10x180 T' with a '50' count on the front.

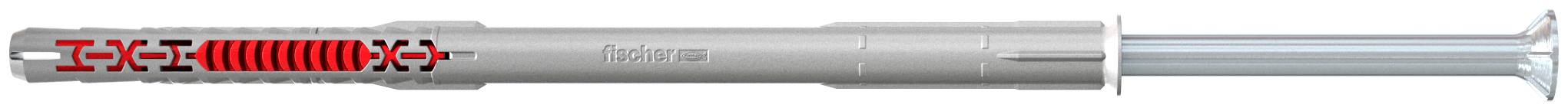

Close-up of a gray and red syringe-like device with a clear plunger and printed markings along the barrel.

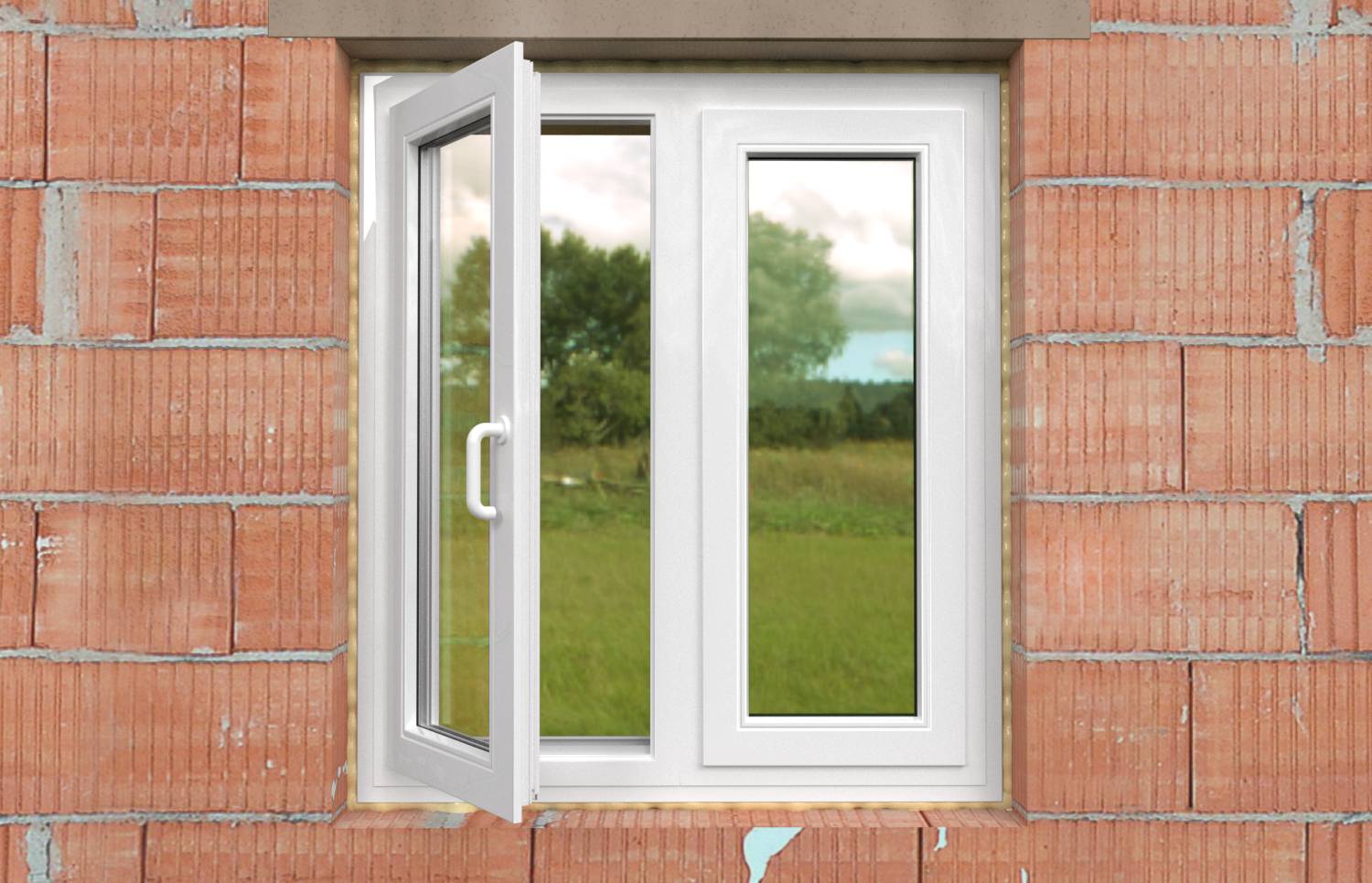

White double-glazed window in a brick wall, with the left casement open outward and green landscape visible through the glass.<br>

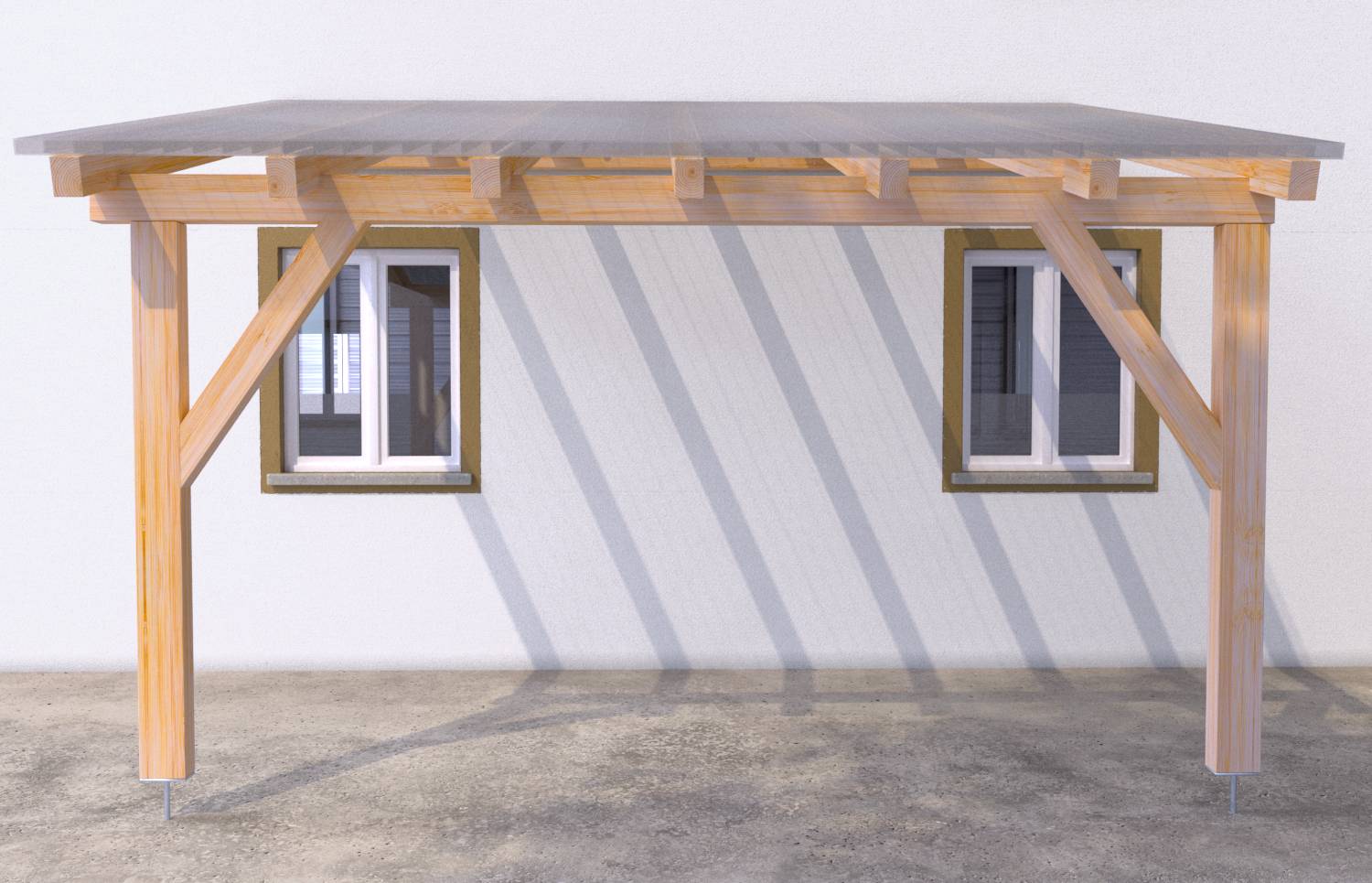

Front view of a small wooden patio roof/pergola with two support posts and diagonal braces beside two windows, casting shadows on a white wall.

Wooden fence with horizontal rails and vertical posts in front of a red brick wall.<br>

Advertising graphic for the Fischer plug 'DuoXpand' with product image and benefits: universally applicable, gentle on materials, strong hold, ETA-approved.

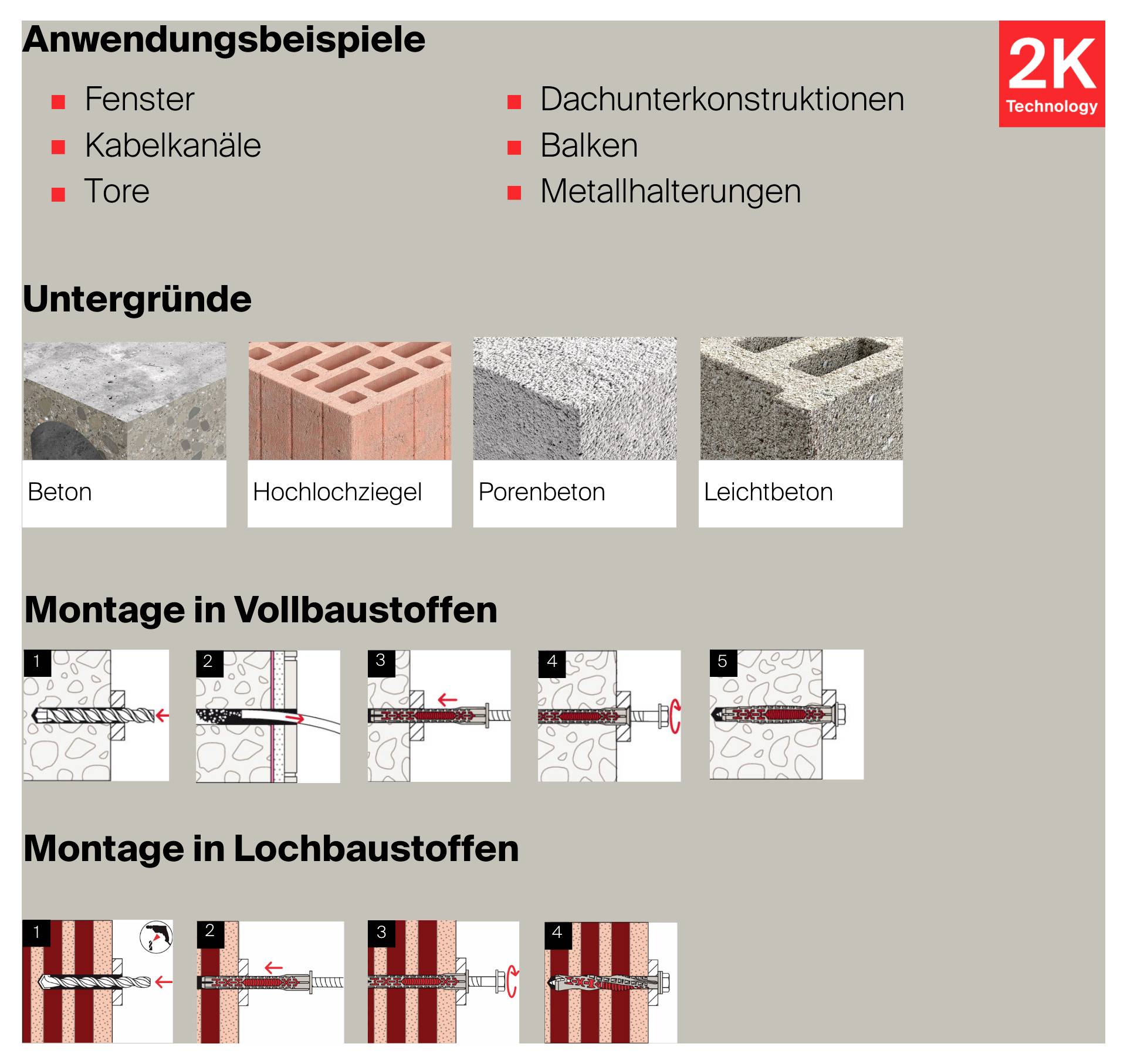

Assembly Instructions for Plugs/Screws with Application Examples, Substrates and Steps for Solid and Perforated Building Materials.

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

fischer DuoXpand 10 x 180 T long shaft plug countersunk screw

Bites perfectly into all building materials and enables universal use
The special lamellar geometry spreads in the respective building material gently
The pre-assembled safety screw is perfectly matched to the dowel and saves time during installation
Approved multiple mounting of non-load-bearing systems in concrete and masonry
Side ribs prevent twisting in the drill hole for reliable mounting
Pre-assembled safety screw with countersunk head

Technical specifications

Drive: Tx40

(Ø): 10 mm

Product type: Plug (long)

Material: Steel (galvanized)

Length: 180 mm

Dim: (Ø x L) 10 mm x 180 mm

Suitable for: Concrete
Solid brick
Flintlime bricks
Structural lightweight concrete
Cored bricks
Flintlime hollow bricks
Foamed concrete wall
Natural stone
Drywall sheet

Content: 50 pc(s)

Features: incl. screw

Material properties: zinc galvanized

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2526901 Fischer 562160 DuoXpand T Plug (long) 180 mm 10 mm 50 pc(s)

Description

the fischer DuoXpand long shaft dowel with two anchor depths is approved with the fischer countersunk screw for multiple attachments of non-load-bearing systems in concrete, masonry and aerated concrete. Due to its special lamellar geometry and the material combination, the dowel spreads optimally and in a material-friendly way in the respective building material. The range includes diameters 8 and 10 and dowel lengths up to 230 mm. The DuoXpand with the countersunk screw is particularly suitable for fixing wooden constructions.
