Buy Fischer 562161 DuoXpand T Plug (long) 200 mm 10 mm 50 pc(s)

A silver telescoping baton with a textured handle and red accent markings, shown extended on a white background.

Open white casement window set in an unfinished brick wall, showing green grass and trees outside.

3D rendering of a simple wooden porch canopy with two support posts, diagonal braces, and a flat roof attached to a white wall.<br>

Wooden lattice framework mounted over a red brick wall, forming a simple structural grid.<br>

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

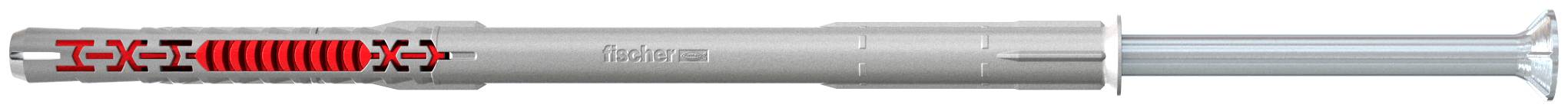

fischer DuoXpand 10 x 200 T long shaft plug countersunk screw

Bites perfectly into all building materials and enables universal use
The special lamellar geometry spreads in the respective building material gently
The pre-assembled safety screw is perfectly matched to the dowel and saves time during installation
Approved multiple mounting of non-load-bearing systems in concrete and masonry
Side ribs prevent twisting in the drill hole for reliable mounting
Pre-assembled safety screw with countersunk head

Technical specifications

Drive: Tx40

(Ø): 10 mm

Product type: Plug (long)

Material: Steel (galvanized)

Length: 200 mm

Dim: (Ø x L) 10 mm x 200 mm

Suitable for: Concrete
Solid brick
Flintlime bricks
Structural lightweight concrete
Cored bricks
Flintlime hollow bricks
Foamed concrete wall
Natural stone
Drywall sheet

Content: 50 pc(s)

Features: incl. screw

Material properties: zinc galvanized

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2526902 Fischer 562161 DuoXpand T Plug (long) 200 mm 10 mm 50 pc(s)

Description

the fischer DuoXpand long shaft dowel with two anchor depths is approved with the fischer countersunk screw for multiple attachments of non-load-bearing systems in concrete, masonry and aerated concrete. Due to its special lamellar geometry and the material combination, the dowel spreads optimally and in a material-friendly way in the respective building material. The range includes diameters 8 and 10 and dowel lengths up to 230 mm. The DuoXpand with the countersunk screw is particularly suitable for fixing wooden constructions.

This text is machine translated.
