Buy Fischer 562167 DuoXpand FUS Plug (long) 80 mm 10 mm 50 pc(s)

Cross-section of a red cable with inner wire on the left and a long gray metallic fastener or bolt extending to the right.

Close-up of a metal wall mounting frame with horizontal rails and brackets attached to a beige concrete or stucco wall.

Kitchen cabinet with glass door showing neatly stacked pastel bowls, plates, and mugs on three shelves

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

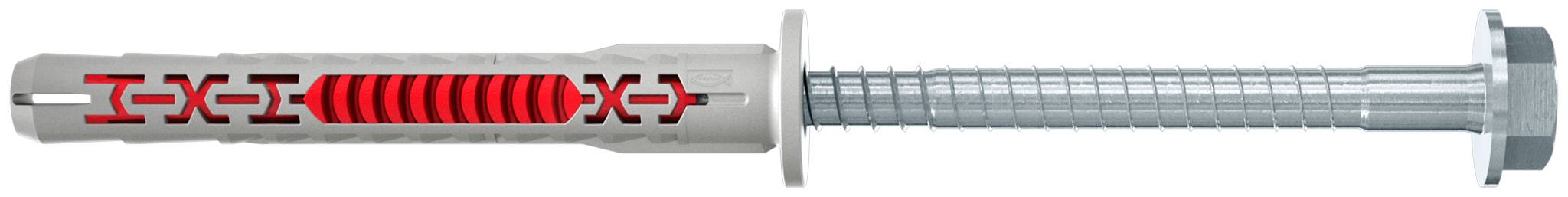

fischer DuoXpand 10 x 80 FUS long shaft plug with washer

Bites perfectly into all building materials and enables universal use
The special lamellar geometry spreads in the respective building material gently
The pre-assembled safety screw is perfectly matched to the dowel and saves time during installation
Approved multiple mounting of non-load-bearing systems in concrete and masonry
Side ribs prevent twisting in the drill hole for reliable mounting
Pre-assembled safety screw with countersunk head

Technical specifications

Drive: Tx40 / SW13

(Ø): 10 mm

Product type: Plug (long)

Material: Steel (galvanized)

Length: 80 mm

Dim: (Ø x L) 10 mm x 80 mm

Suitable for: Concrete
Solid brick
Flintlime bricks
Structural lightweight concrete
Cored bricks
Flintlime hollow bricks
Foamed concrete wall
Natural stone
Drywall sheet

Content: 50 pc(s)

Features: incl. screw
incl. washer

Material properties: zinc galvanized

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2526908 Fischer 562167 DuoXpand FUS Plug (long) 80 mm 10 mm 50 pc(s)

Description

the fischer DuoXpand long shaft dowel with two anchor depths is approved with the fischer hexagonal safety screw for multiple attachments of non-load-bearing systems in concrete, masonry and aerated concrete. Due to its special lamellar geometry and the material combination, the dowel spreads optimally and in a material-friendly way in the respective building material. The range includes the diameters of 8 and 10 and dowel lengths up to 230 mm. The DuoXpand with the cap screw and molded washer is especially suitable for fixing metal structures.

This text is machine translated.
