Fischer 562764 Heavy duty pipe clamp Fischer FRSM 165-171 M12 A4 solid pipe clamp 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

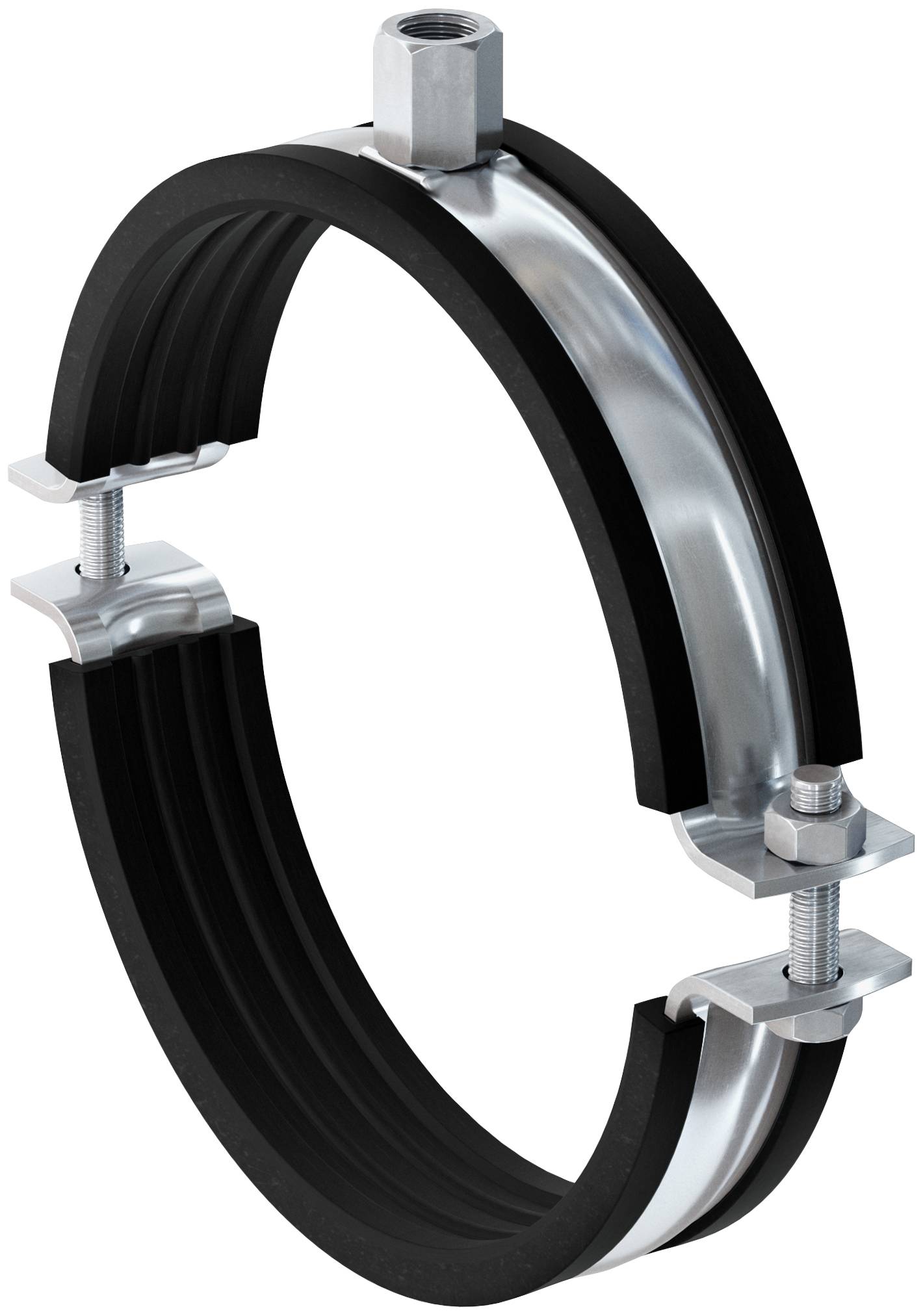

Fischer FRSM 165-171 M12 A4 solid pipe clamp
- Two-screw for optimized adaptation to the outer diameter of the pipeLoss prevention of the screwSoundproofingApplication-friendly corrosion protection by stainless steel designFor indoor and outdoor use
Technical specifications
- Connector thread M12 Width B 232 mmWidth x thickness of snap band 30 x 3.0 mmHeight H: 206 mmHeight Z: 113 mmMax. Static load (central train): 3.00 kNNominal size: 6" inScrew plug M8
- Product type
Heavy duty pipe clamp
- Content
10 pc(s)
- Material
Stainless steel
- Clamping range
165 up to 171 mm
- Thread size
M12
- Material properties
corrosion-protected
- Range (max.)
171 mm
- Clamping range (min.)
165 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2699389 Fischer 562764 Heavy duty pipe clamp Fischer FRSM 165-171 M12 A4 solid pipe clamp 10 pc(s)
Description

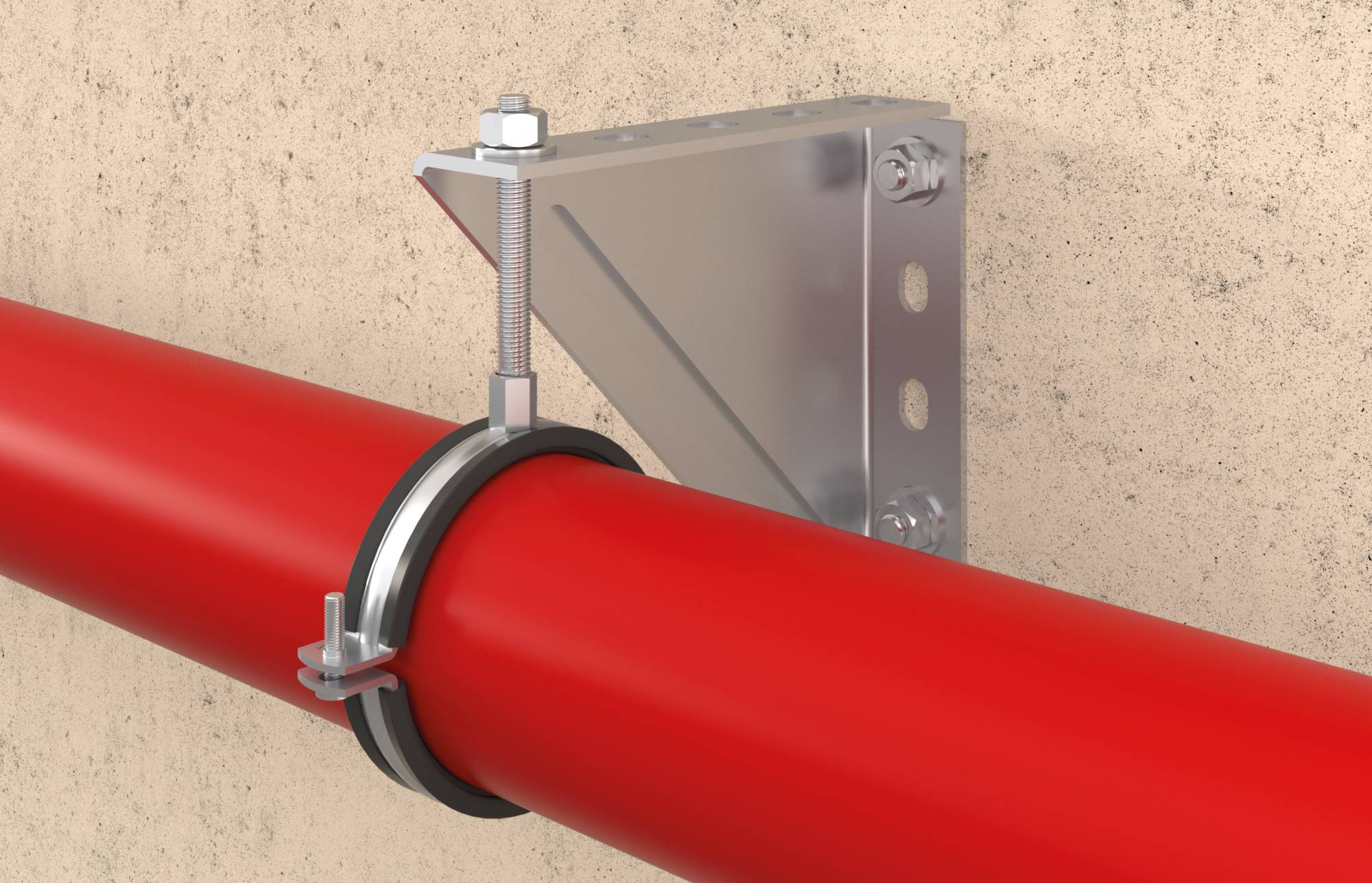

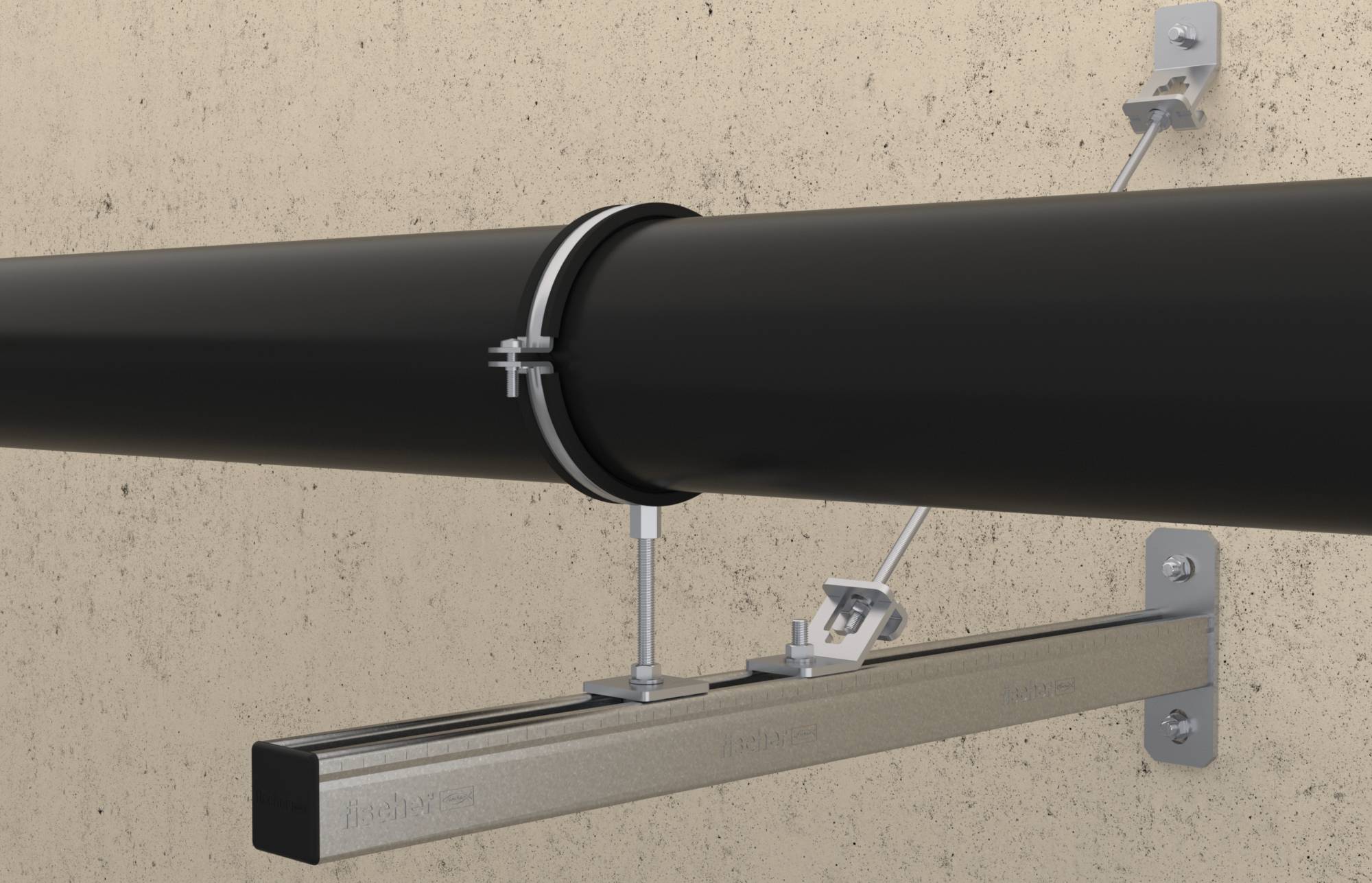

The Fischer FRSM 165-171 M12 A4 solid pipe clamp with sound insulation insert for securing medium to heavy pipes with threaded rods or stock screws. Two-bolt design allows optimum adaptation to the outer diameter of the pipe. Connection nut with M12 thread for accepting threaded rods or stock screws. Pipe clamps with loss prevention.
