Fischer 562768 Heavy duty pipe clamp Fischer FRSM 8" M16 A4 solid pipe clamp 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

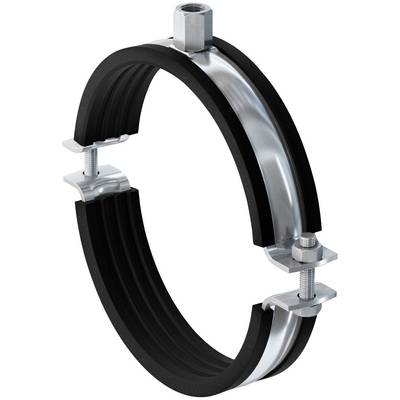

Fischer FRSM 8" M16 A4 solid pipe clamp
- Two-screw for optimized adaptation to the outer diameter of the pipeLoss prevention of the screwSoundproofingApplication-friendly corrosion protection by stainless steel designFor indoor and outdoor use
Technical specifications
- Connector thread M16 Width B 308 mmWidth x thickness of snap band 40 x 4.0 mmHeight H: 275 mmHeight Z: 153 mmMax. Static load (central train): 5.00 kNNominal size: 8" inScrew plug M12
- Product type
Heavy duty pipe clamp
- Content
10 pc(s)
- Material
Stainless steel
- Clamping range
219 up to 225 mm
- Thread size
M12
- Material properties
corrosion-protected
- Range (max.)
225 mm
- Clamping range (min.)
219 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2699393 Fischer 562768 Heavy duty pipe clamp Fischer FRSM 8" M16 A4 solid pipe clamp 10 pc(s)
Description
The fischer FRSM 8" M16 A4 solid pipe clamp with acoustic insulation insert for fixing medium to heavy pipe with threaded rods or stock screws. Two-bolt design allows optimum adaptation to the outer diameter of the pipe. Connection nut with M16 thread to receive threaded rods or stock screws. Pipe clamps with loss prevention.
