Fischer 562769 Heavy duty pipe clamp Fischer FRSM 250 M16 A4 solid pipe clamp 5 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

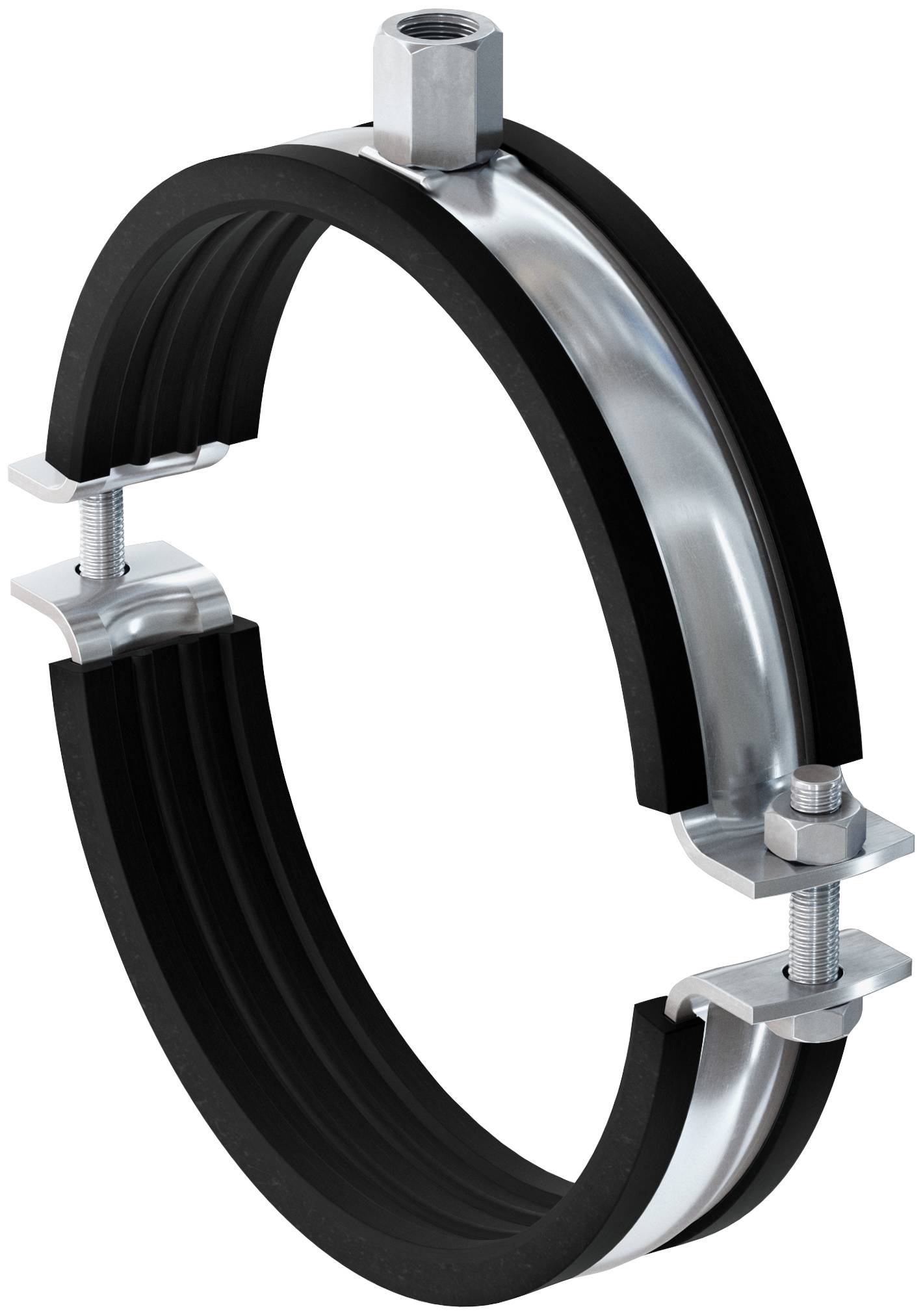

Fischer FRSM 250 M16 A4 solid pipe clamp
- Two-screw for optimized adaptation to the outer diameter of the pipeLoss prevention of the screwSoundproofingApplication-friendly corrosion protection by stainless steel designFor indoor and outdoor use
Technical specifications
- Connector thread M16 Width B 333 mmWidth x thickness of snap band 40 x 4.0 mm Height H: 300 mmHeight Z: 165 mmMax. Static load (central train): 5.00 kNScrew plug M12
- Product type
Heavy duty pipe clamp
- Content
5 pc(s)
- Material
Stainless steel
- Clamping range
244 up to 250 mm
- Thread size
M16
- Material properties
corrosion-protected
- Range (max.)
250 mm
- Clamping range (min.)
244 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2699394 Fischer 562769 Heavy duty pipe clamp Fischer FRSM 250 M16 A4 solid pipe clamp 5 pc(s)
Description

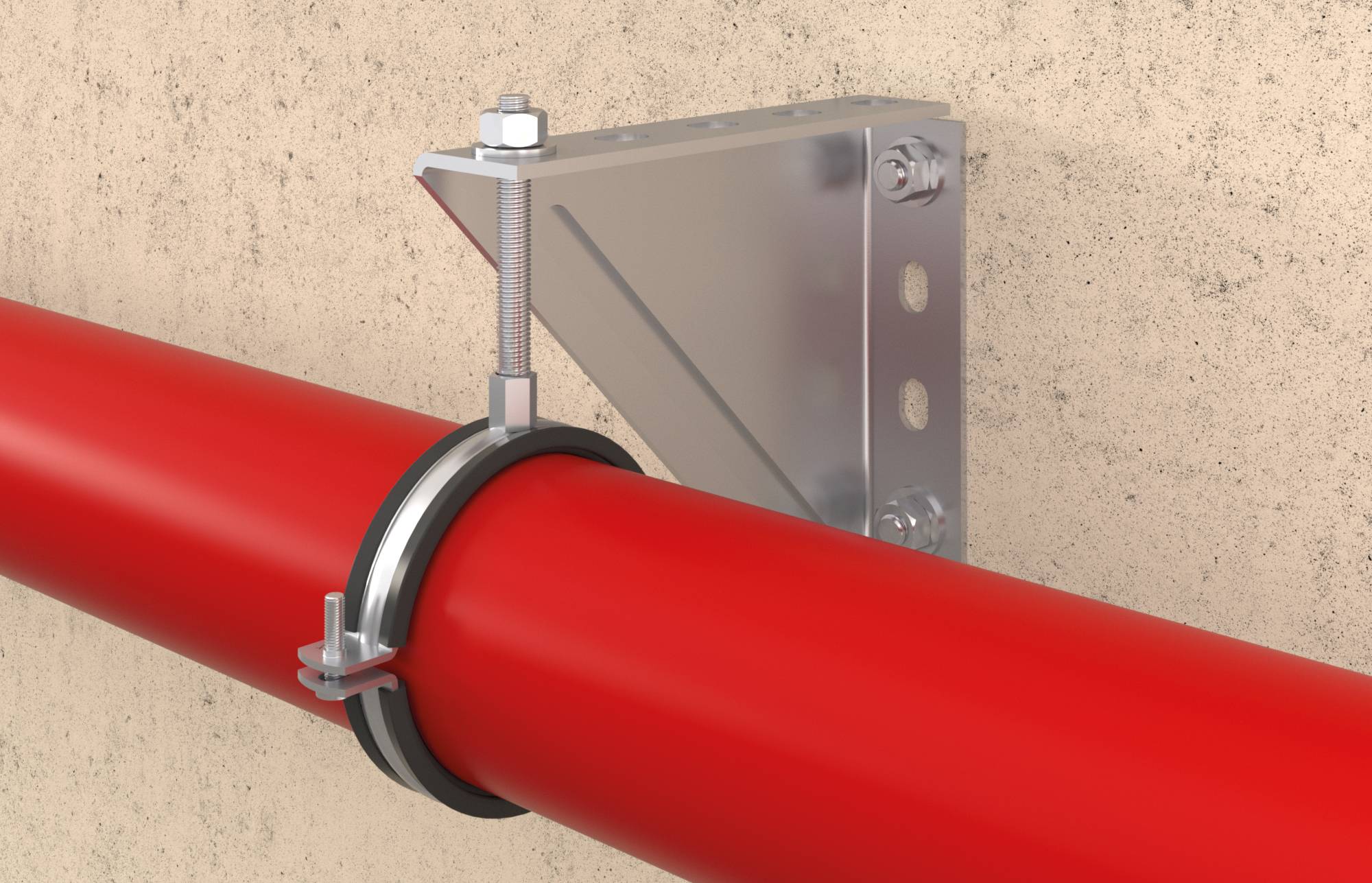

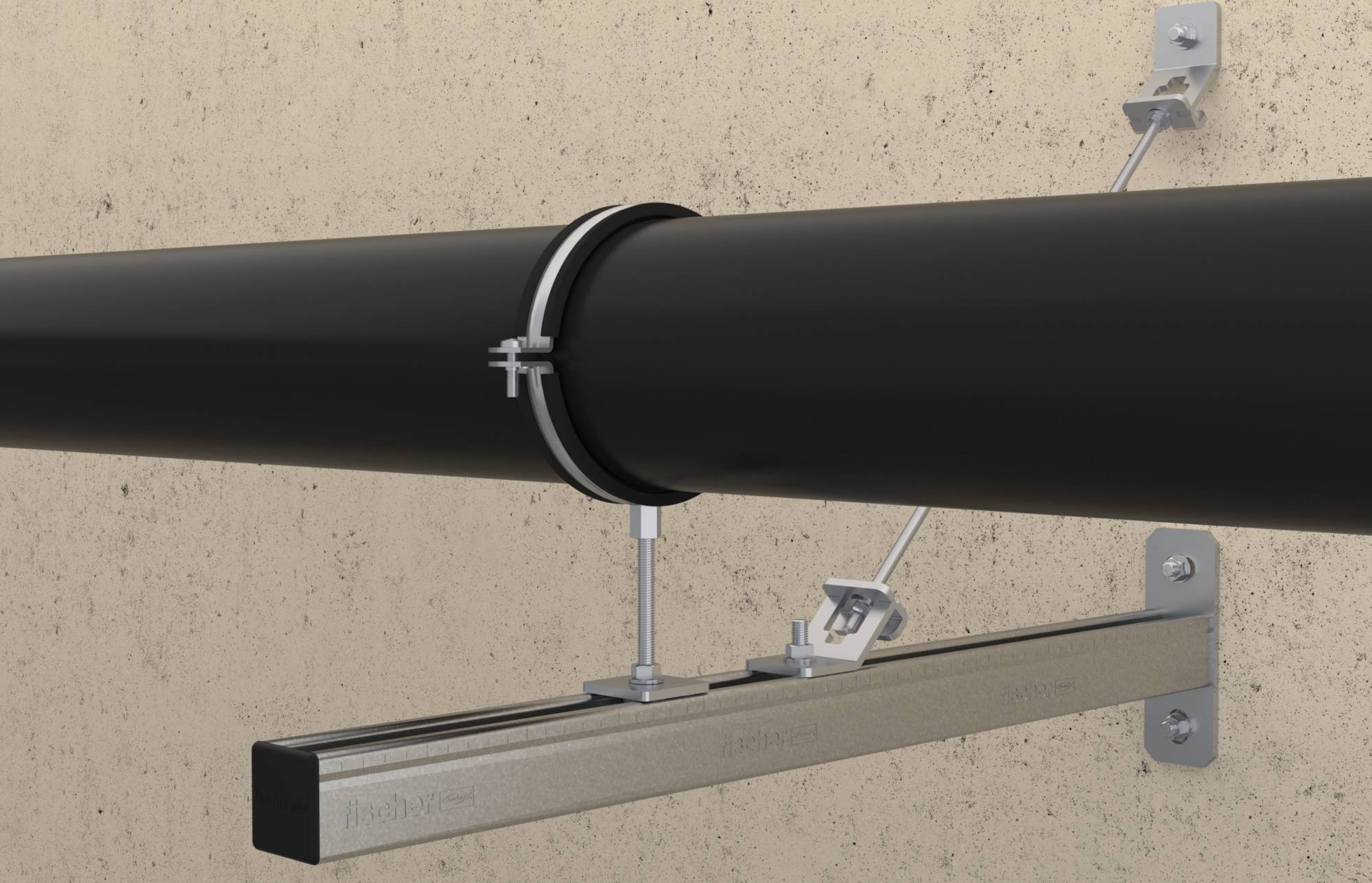

The Fischer FRSM 250 M16 A4 solid-tube clamp with sound insulation insert for fixing medium to heavy pipes with threaded rods or stock screws. Two-bolt design allows optimum adaptation to the outer diameter of the pipe. Connection nut with M16 thread to receive threaded rods or stock screws. Pipe clamps with loss prevention.
