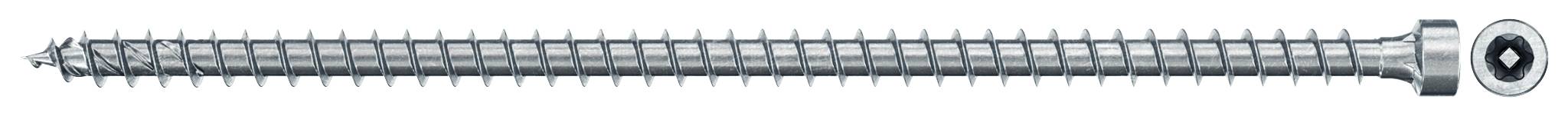

Fischer 562961 FPF II CHTF 8,0 x 180 BC 50 Wood screw 8 mm 180 mm TX Steel zinc galvanized 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
FPF II CHF 8.0 X 180 BC 50
- Drive: TX40Thread length 161 [mm]Head-Ø 10.7 [mm]Length 180 [mm]Type: Fully threaded screw
Technical specifications
- Product type
Wood screw
- Drive
TX
- Material
Steel
- (Ø)
8 mm
- Length
180 mm
- Head shape
Cheese head
- Dim
(Ø x L) 8 mm x 180 mm
- Content
50 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2789505 Fischer 562961 FPF II CHTF 8,0 x 180 BC 50 Wood screw 8 mm 180 mm TX Steel zinc galvanized 50 pc(s)
Description
The fischer Premium full-thread bolt powerfull II is a wood screw which is approved in addition to the usual coniferous wood and also for processing in hardwood. The cylinder head version is equipped with additional routing pockets that allow for a clean lowering on the ground. The European Technical Assessment guarantees an additional level of safety. The geometry of the latest generation provides for a force-saving and battery-protecting mounting. The optimized head geometry makes a perfect finish possible. The full threaded screw powerfull II is Ideal for fixing and strengthening wood joints.
This text is machine translated.
This text is machine translated.
Features

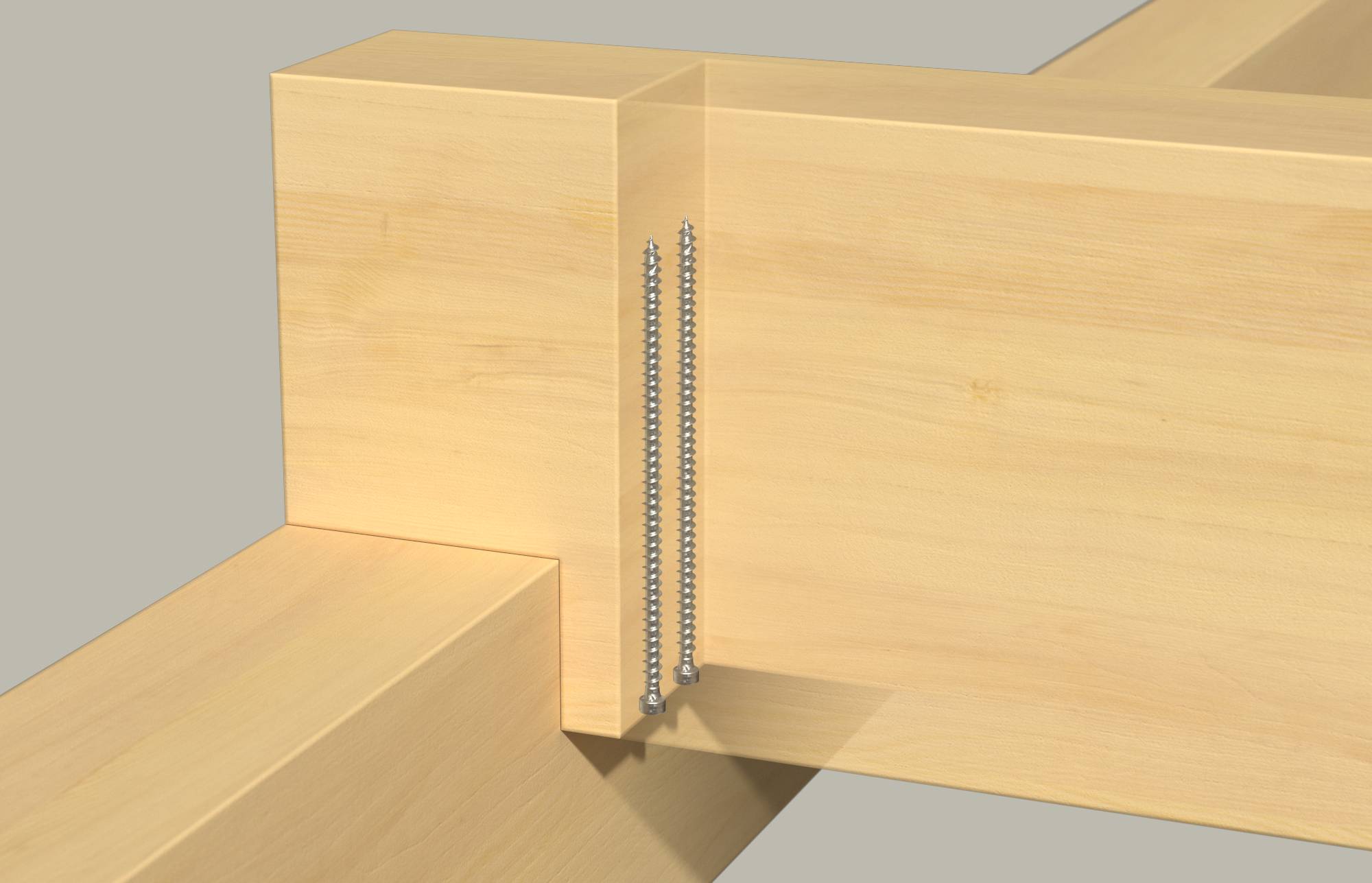

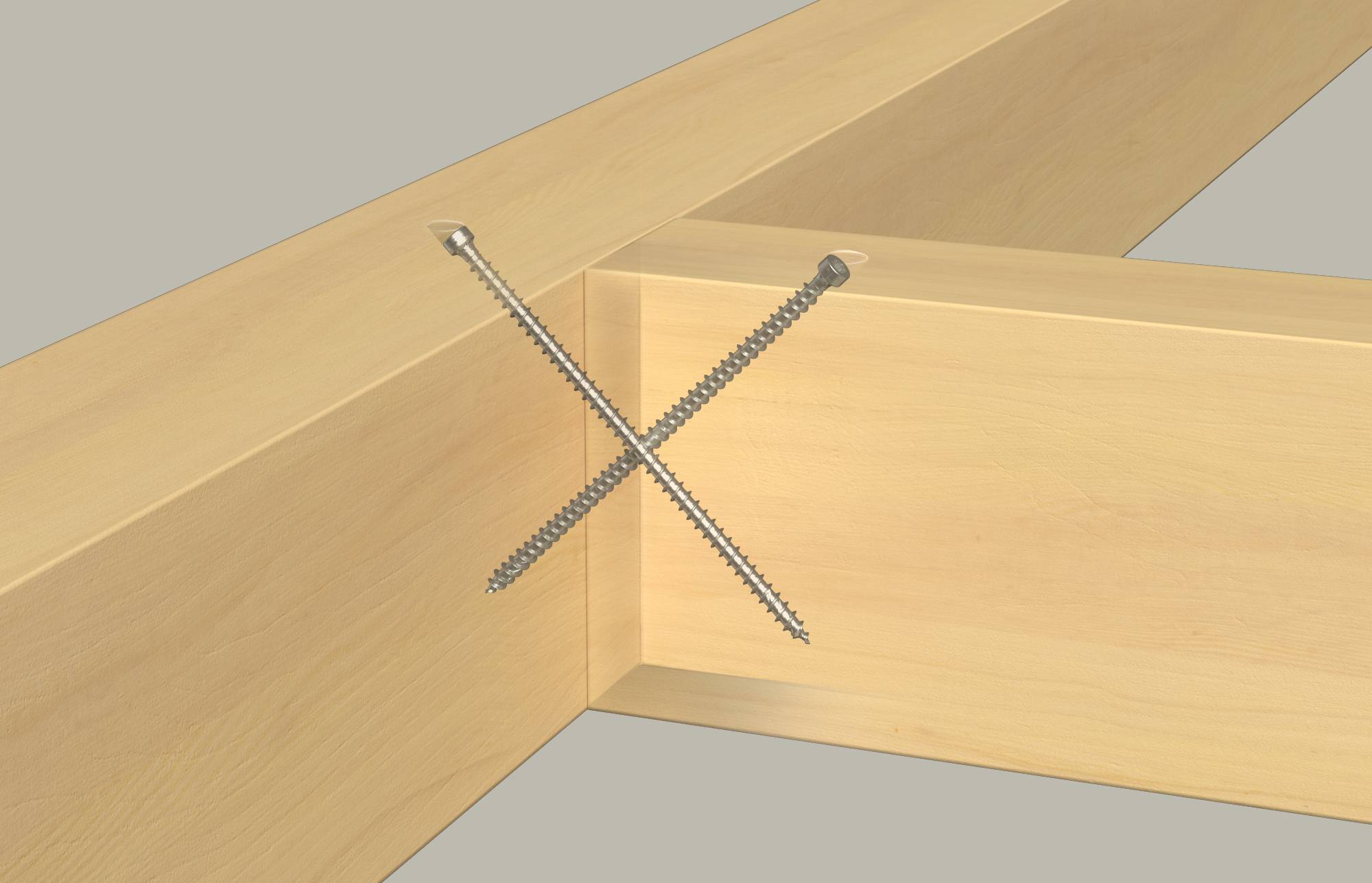

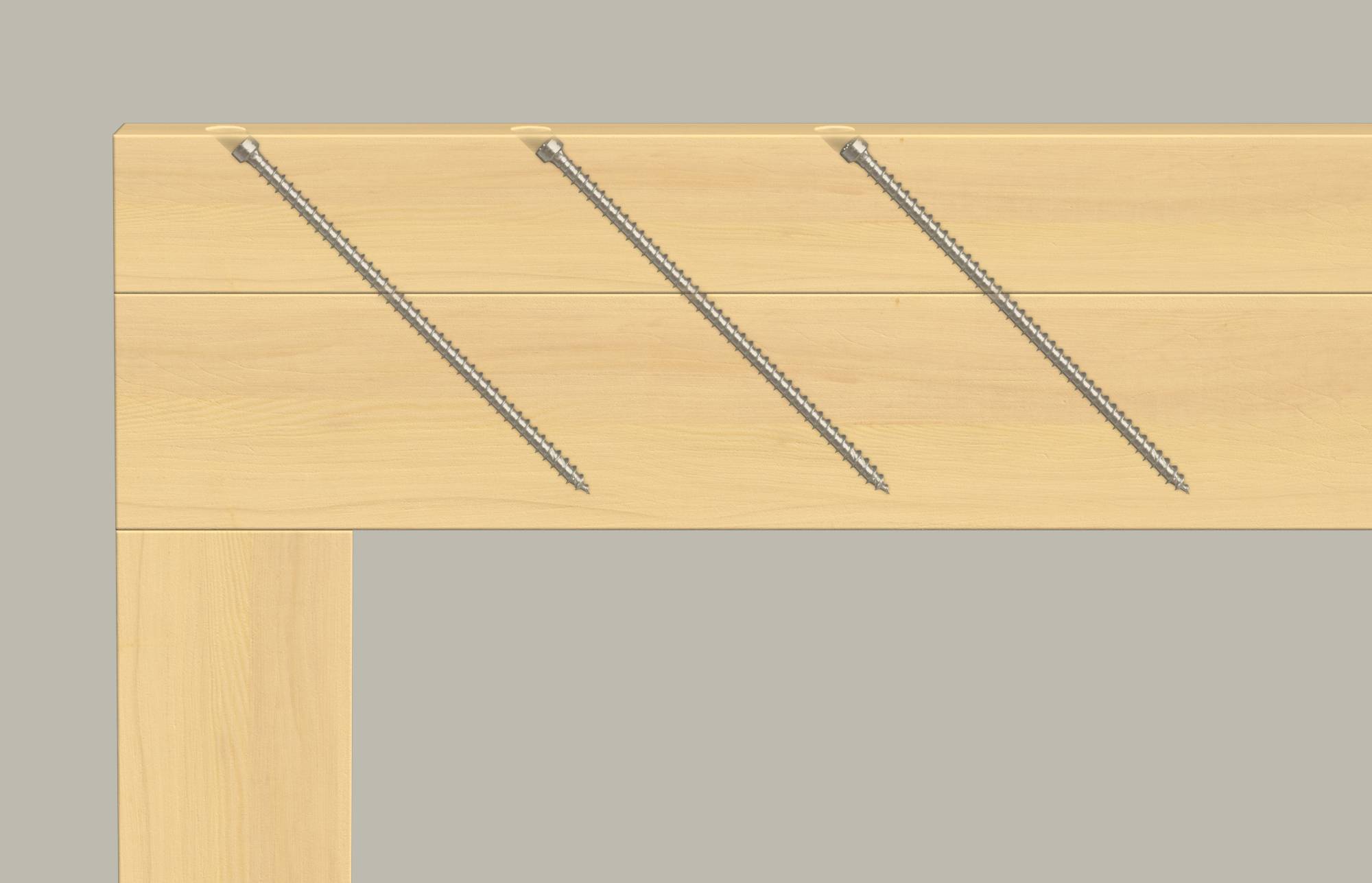

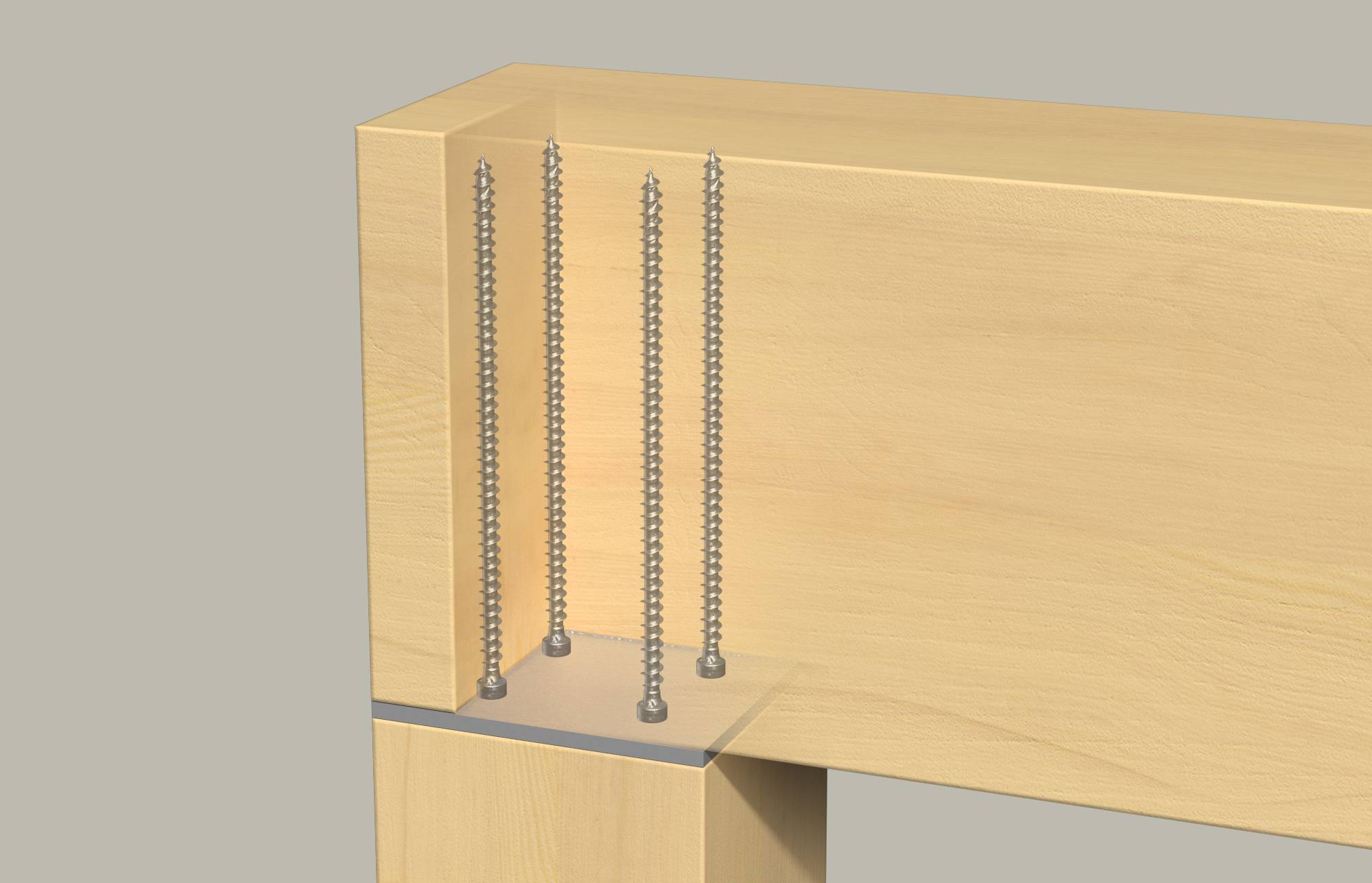

- The unique core milling cutter geometry enables low axle and edge distances as well as high loads. Innovative tip geometry for a fast setting behavior and reduces the gap behavior on the underground. The screw can also be easily placed under extreme situations by the needle tip, e.g. angled screw connections. The cylinder head with additional router pockets ensures a clean lowering of the head. It can be sunk deep into the wood with a long bit. The new screw geometry significantly improves the pull-out capacity and provides for an optimization of the screw-in torque. Fast spin-in and low gap behavior are thanks to the new tip geometry. The unique countersunk head with its pockets can be used optimally for fixing metal parts to wood. No damage to the attachments due to abrasion. Due to the new screw geometry, considerably better technical values such as pull-out capacity, screw-in torque. Due to the geometry of the tip (needle point), the screws can be easily tightened even in extreme situations, e.g. in case of oblique glands.
