Fischer 562972 FPF II CHTF 10,0 x 340 BC 25 Wood screw 10 mm 340 mm TX Steel zinc galvanized 25 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
FPF II CHF 10.0 X 340 BC 25

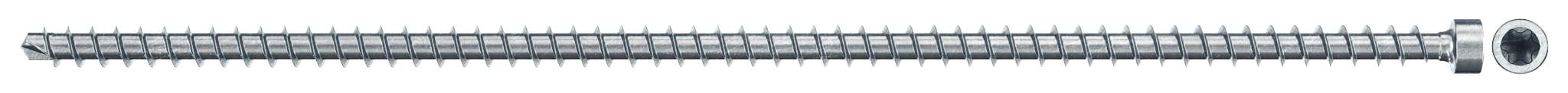

- Drive: TX50Thread length 320 [mm]Head-Ø 12.5 [mm]Length 340 [mm]Type: Fully threaded screw
Technical specifications
- Product type
Wood screw
- Drive
TX
- Material
Steel
- (Ø)
10 mm
- Length
340 mm
- Head shape
Cheese head
- Dim
(Ø x L) 10 mm x 340 mm
- Content
25 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2789516 Fischer 562972 FPF II CHTF 10,0 x 340 BC 25 Wood screw 10 mm 340 mm TX Steel zinc galvanized 25 pc(s)
Description
The fischer Premium full-thread bolt powerfull II is a wood screw which is approved in addition to the usual coniferous wood and also for processing in hardwood. The powerfull II in diameter 10 mm differs from the diameters 6 and 8 mm in geometry. The 10 mm screw has a drill tip that produces a pre-drill effect and does not let the long screws run. The risk of fission is reduced and the tightening torque is reduced. In addition, there are small margin and axle distances. The version with cylinder head enables a clean sinking in the surface. The European Technical Assessment guarantees an additional level of safety.
This text is machine translated.
This text is machine translated.
Features
- The point geometry provides for a quick turning in and reduces the gap behavior on the underground. The powerfull II in diameter 10 mm differs from the diameters 6 and 8 mm in geometry. The 10 mm screw has a drill tip that produces a pre-drill effect and does not let the long screws run. The risk of fission is reduced and the tightening torque is reduced. The cylinder head provides a clean lowering of the head. It can be sunk deep into the wood with a long bit. The screw geometry significantly improves the pull-out capacity and provides for an optimization of the screw-in torque. Peak geometry makes for fast spin-in and low gap behavior. The cylinder head can be sunk deep into the wood with a long bit. Due to the screw geometry, very good technical values such as pull-out capacity, screw-in torque. The 10 mm screw has a drill tip that produces a pre-drill effect and does not let the long screws run.
