Fischer 563860 KSD 8x200 Cavity toggle 200 mm 25 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

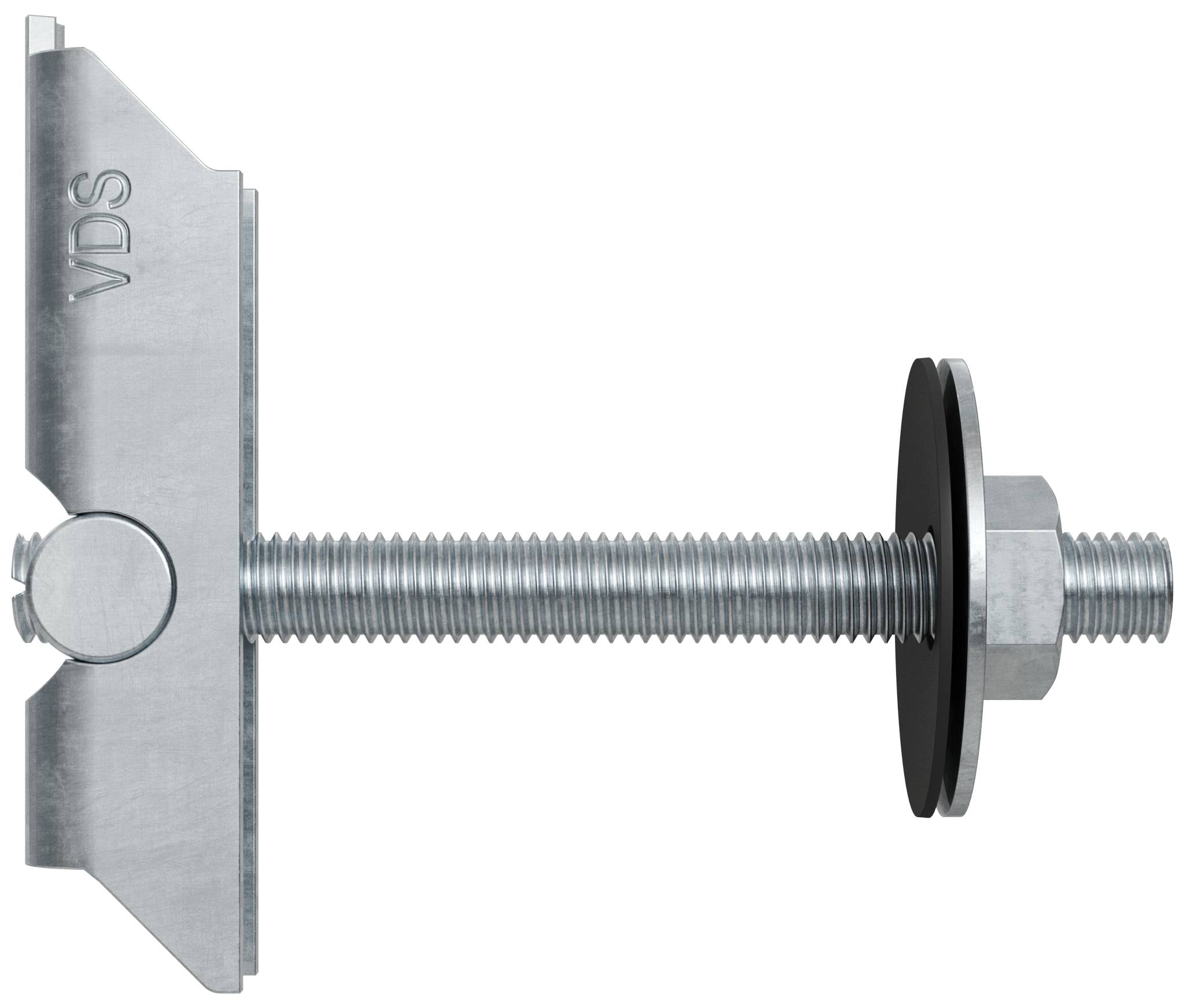

Fischer KDS 8 x 200 toggle plug
- Material: Steel, galvanized, passivated
- Material of sealing washer: Polyolefin elastomer TPE-O
- Galvanically galvanized
Technical specifications
- Thread (A) M8
- 200 mm thread (LG
- Max. Static load according to VdS/FM 0.8 kN
- Max. Static load for other applications in trapezoidal sheet 1 kN
- Max. Recommended static load without taking into account the 8 kN trapezoidal sheet
- (Ø)
8 mm
- Product type
Cavity toggle
- Material
Steel
- Length
200 mm
- Screw diameter
8 mm
- Dim
(Ø x H) 8 mm x 200 mm
- Content
25 pc(s)
- Features
incl. threaded stud
- Material properties
zinc galvanized
- Height
200 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2806272 Fischer 563860 KSD 8x200 Cavity toggle 200 mm 25 pc(s)
Description

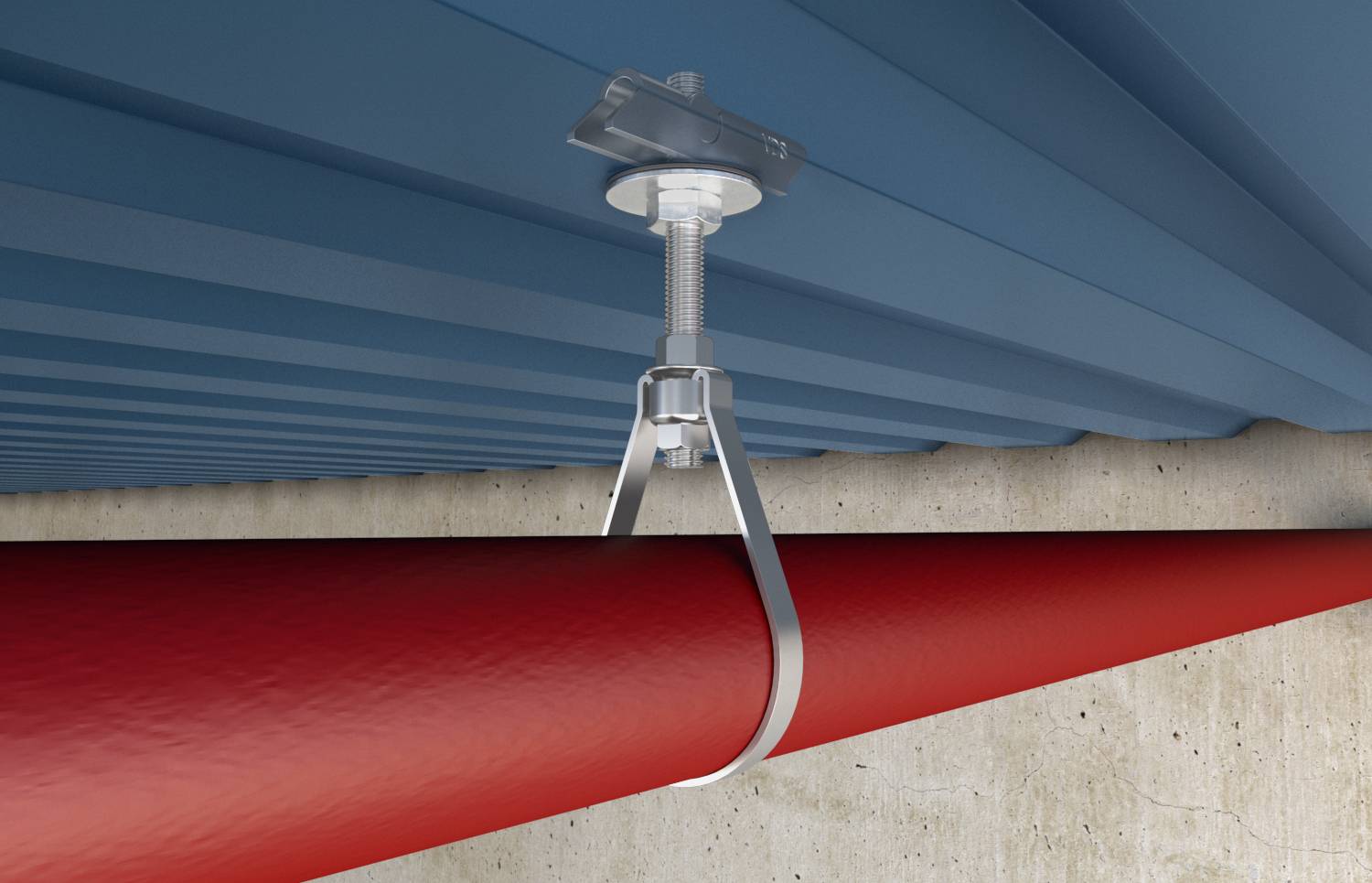

The fischer KDS tilting plug with VdS and FM approval is a mounting element for trapezoidal sheet metal ceilings and offers a safe and objectively tested solution for securing pipes in stationary sprinkler systems. Other components such as mounting rails, ventilation ducts, power strips and lighting systems can also be attached quickly to trapezoidal sheets due to their ease of use. The height-adjustable threaded rod secured against inadvertent removal allows the practical alignment of the components to be mounted on the trapezoidal sheet. The selection at different lengths helps to select the suitable KDS tilting plug for the respective application.
This text is machine translated.
This text is machine translated.
Features
- The entire range of KDS has VdS approval. The KDS 10 also includes FM approval. This ensures the KDS tilting plug an objectively tested functional safety for use in sprinkler systems.
- Available in lengths from 100 to 500 mm (KDS 8) and 100 to 200 mm (KDS 10) .
- The rotating threaded rod allows easy height adjustment within the trapezoidal sheet. The threaded rod is secured against accidental unscrewing.
- Complete with threaded rod, nut, washer, sealing disc and load distribution block. The seal provides reliable sealing on the trapezoidal sheet.
