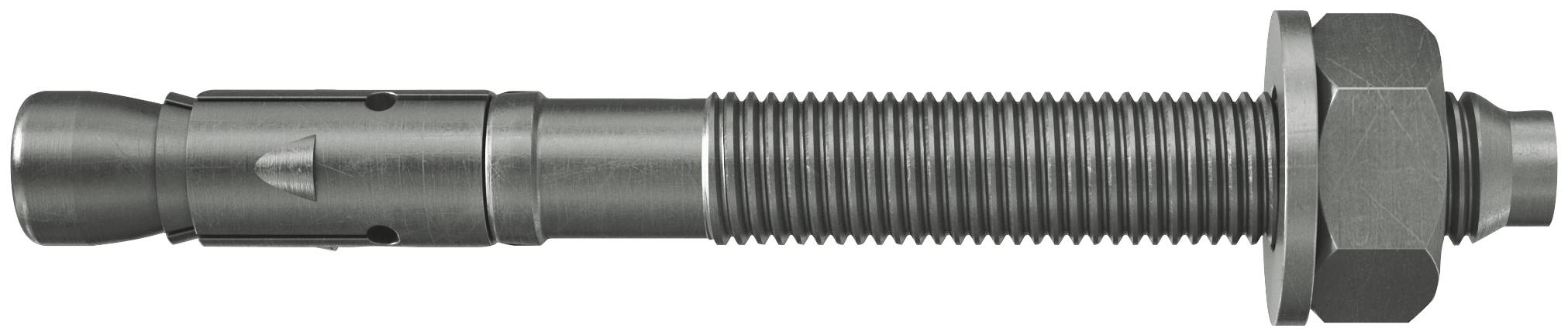

Fischer 564617 FAZ II Plus 10/100 R Cavity fixing 185 mm 10 mm 20 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
10 mm
- Product type
Cavity fixing
- Material
Steel
- Length
185 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 10 mm x 185 mm
- Suitable for
Concrete
Flintlime bricks
- Content
20 pc(s)
- Material properties
rust-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2861016 Fischer 564617 FAZ II Plus 10/100 R Cavity fixing 185 mm 10 mm 20 pc(s)
Description
The Fischer FAZ II Plus bolt anchor is the steel anchor for the highest demands now with even higher transverse loading capacities. The steel anchor secures heavy loads in cracked concrete. The proven expanding clip safely introduces the loads into concrete and allows a high load-carrying capacity immediately. Ideal is a steel anchor for example for anchoring railings, cable trays and consoles.
This text is machine translated.
This text is machine translated.
Features
- Significant increase in the cross-bearing capacity through the new evaluation (ETA) - fewer fixing points and smaller anchor plates save time and costsAdjustment to the loads down to the millimeter using the variable anchorage depthsThe first M6 stud anchor with a ETA rating option 1: For safe and approved anchoragesThe proven spreading clip provides the highest carrying capacity even with the size M6
