Fischer 564656 FAZ II Plus Cavity fixing 210 mm 12 mm 20 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

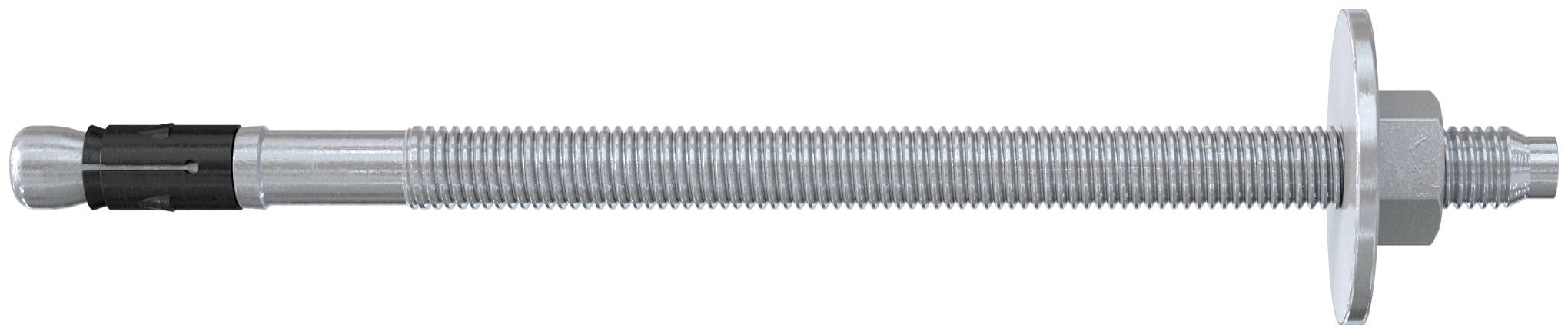

Fischer FAZ II Plus 12/120 GS (30x3) GVZ bolt drill, galvanized
- Pre-assembled washer for components with long holes. This makes alignment easier and saves time when mounting.
- Quick and easy installation without cleaning drill holes (M8-M24)
- Significant increase in the cross-bearing capacity through the new evaluation (ETA) - fewer fixing points and smaller anchor plates save time and costs.
- Adjustment to the loads down to the millimeter using the variable anchorage depths.
- Highest seismic loads of the power category C1 with and without the use of the fill disc FFD.
Technical specifications
- (Ø)
12 mm
- Product type
Cavity fixing
- Material
Steel
- Length
210 mm
- Screw diameter
19 mm
- Dim
(Ø x L) 12 mm x 210 mm
- Suitable for
Concrete
Flintlime bricks
- Content
20 pc(s)
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2844144 Fischer 564656 FAZ II Plus Cavity fixing 210 mm 12 mm 20 pc(s)
Description

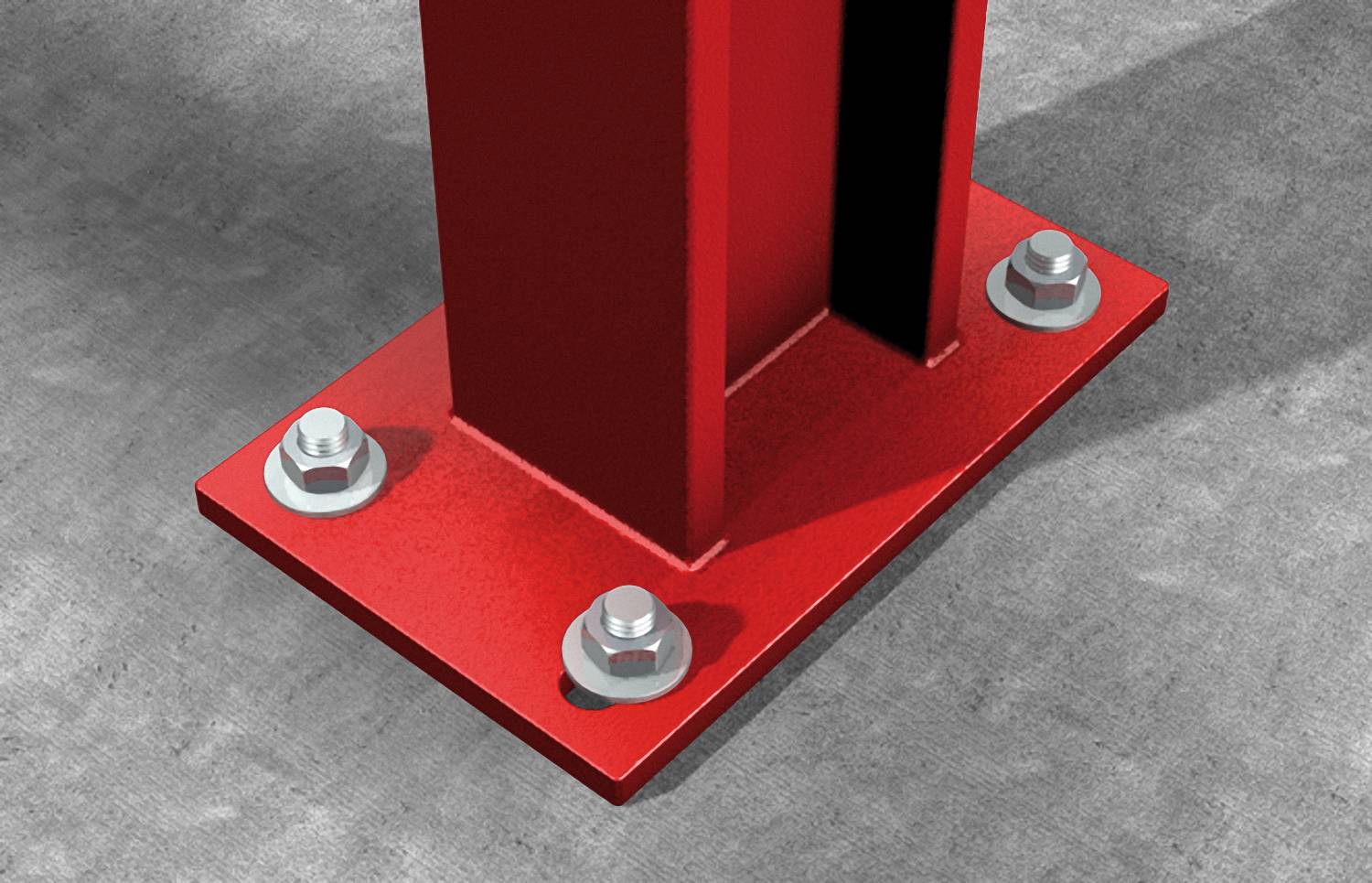

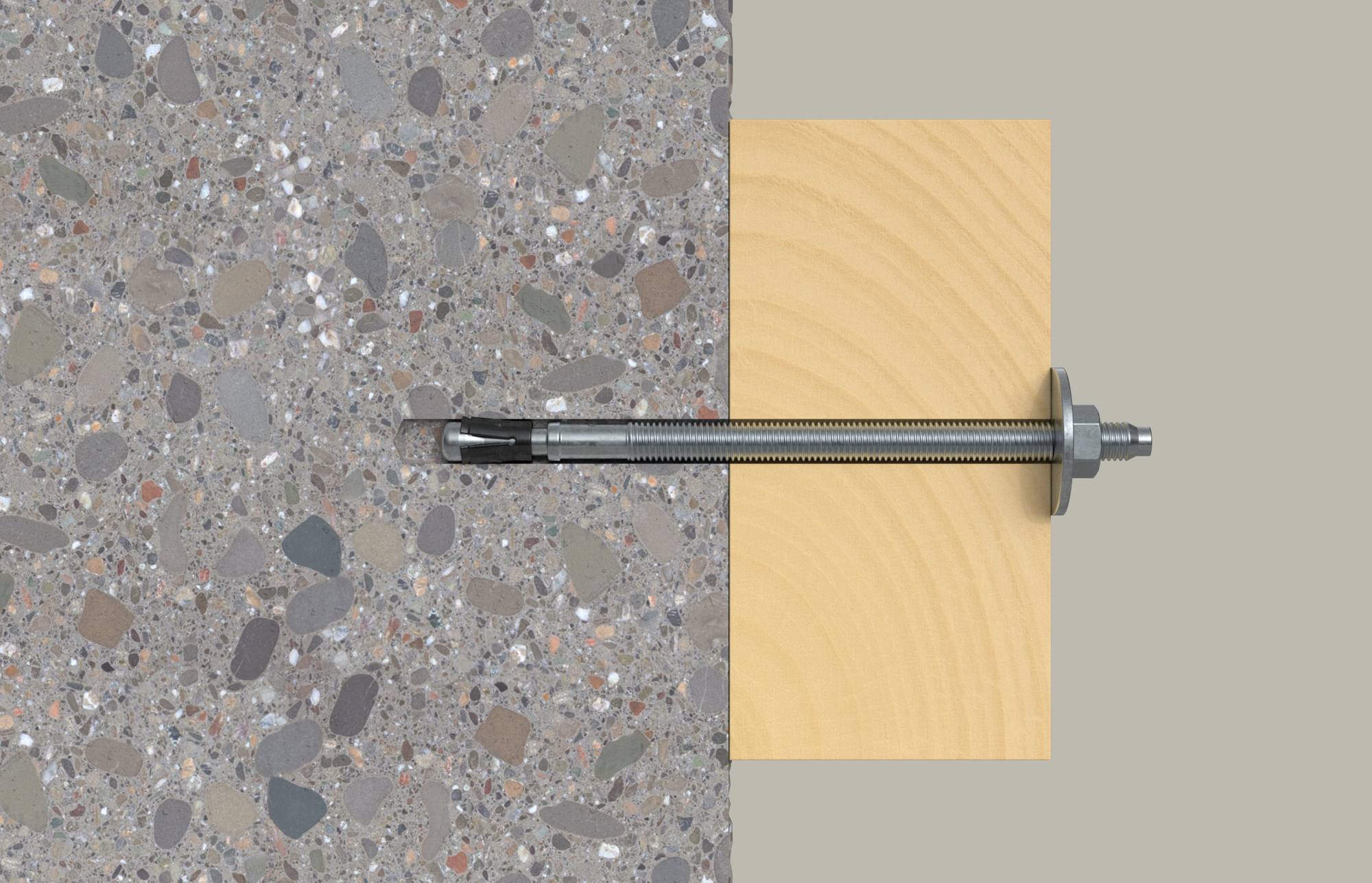

The Fischer FAZ II Plus GS bolt anchor with large disk is the steel anchor for the highest demands. The steel anchor made of electrogalvanized steel secures heavy loads in cracked concrete. The FAZ II Plus GS can be used in a very flexible way, thanks to the variable anchoring depths and the easy installation. The proven expanding clip securely introduces the loads into concrete and allows the highest load capacity.
This text is machine translated.
This text is machine translated.
Features

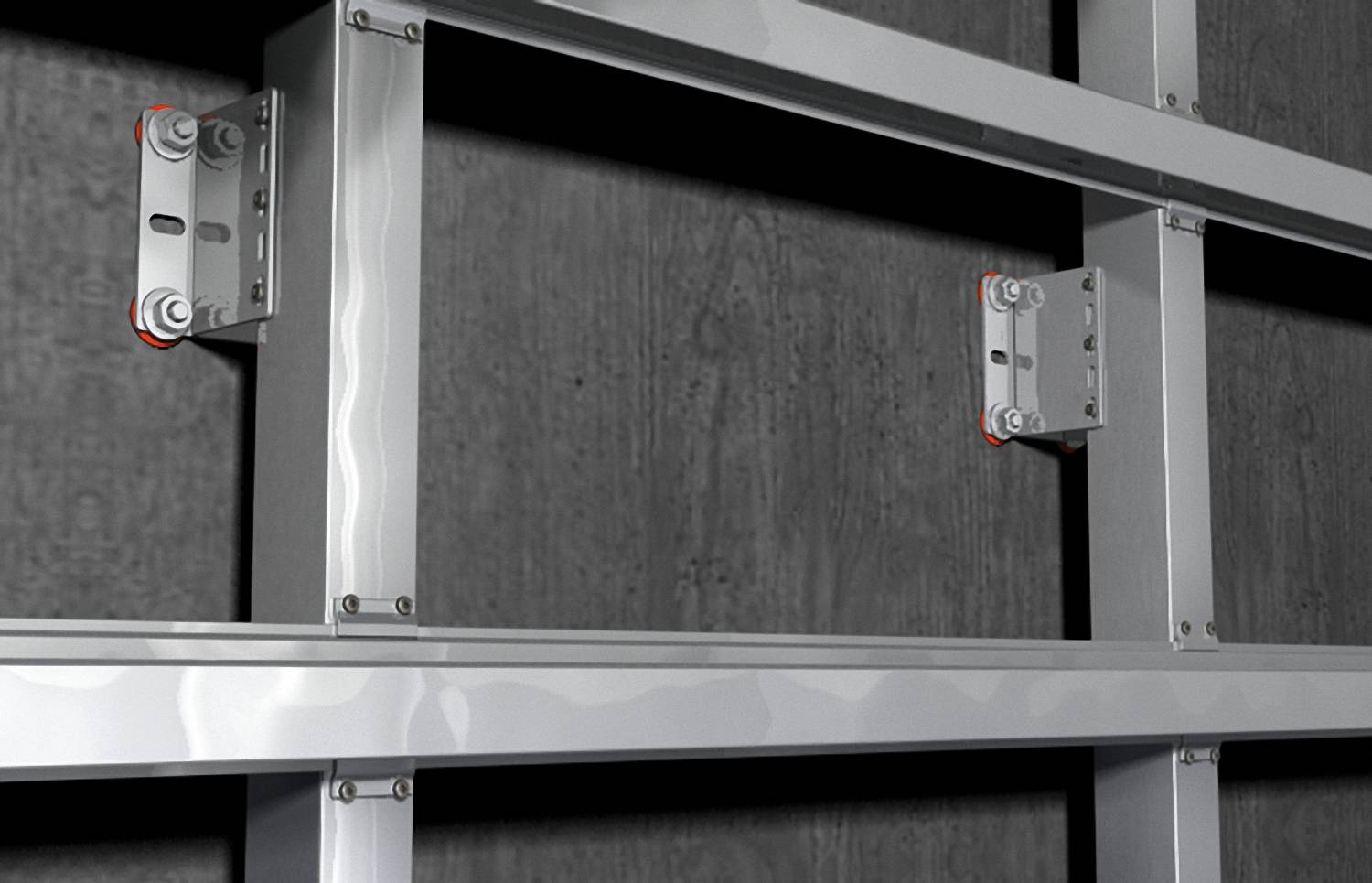

- The FAZ II Plus GS are suitable for the attachment of steel mounting parts with oblong holes because the large U-disk are pre-assembled and thus enable a still better alignment and thus take care of reduced installation work.
- Quick and easy installation without cleaning drill holes (M8-M24)
- Numerous test reports for different base materials (concrete C12/15-C80/90, reinforced concrete (ABG), sand-lime brick) increase the number of applications and applications.
- The new rating (ETA) significantly increases the cross-bearing capacity. This means fewer fixing points and anchors are needed.
- The ETA evaluation together with further test reports (RWS, ZTV, ETK) ensures high loads in the event of a fire.
- An external independent expert opinion confirms the useful life of anchorages up to 120 years. The FAZ II Plus runs through a whole century and is perfectly suited to large, long-lasting building projects (M10-M16).
- The variable anchorage depths make it possible to adjust to the loads with millimeter precision.
