Fischer 564659 FAZ II Plus 12/180 GS Cavity fixing 280 mm 12 mm 20 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
12 mm
- Product type
Cavity fixing
- Material
Steel
- Length
280 mm
- Screw diameter
12 mm
- Dim
(Ø x L) 12 mm x 280 mm
- Suitable for
Concrete
Flintlime bricks
- Content
20 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2861057 Fischer 564659 FAZ II Plus 12/180 GS Cavity fixing 280 mm 12 mm 20 pc(s)
Description

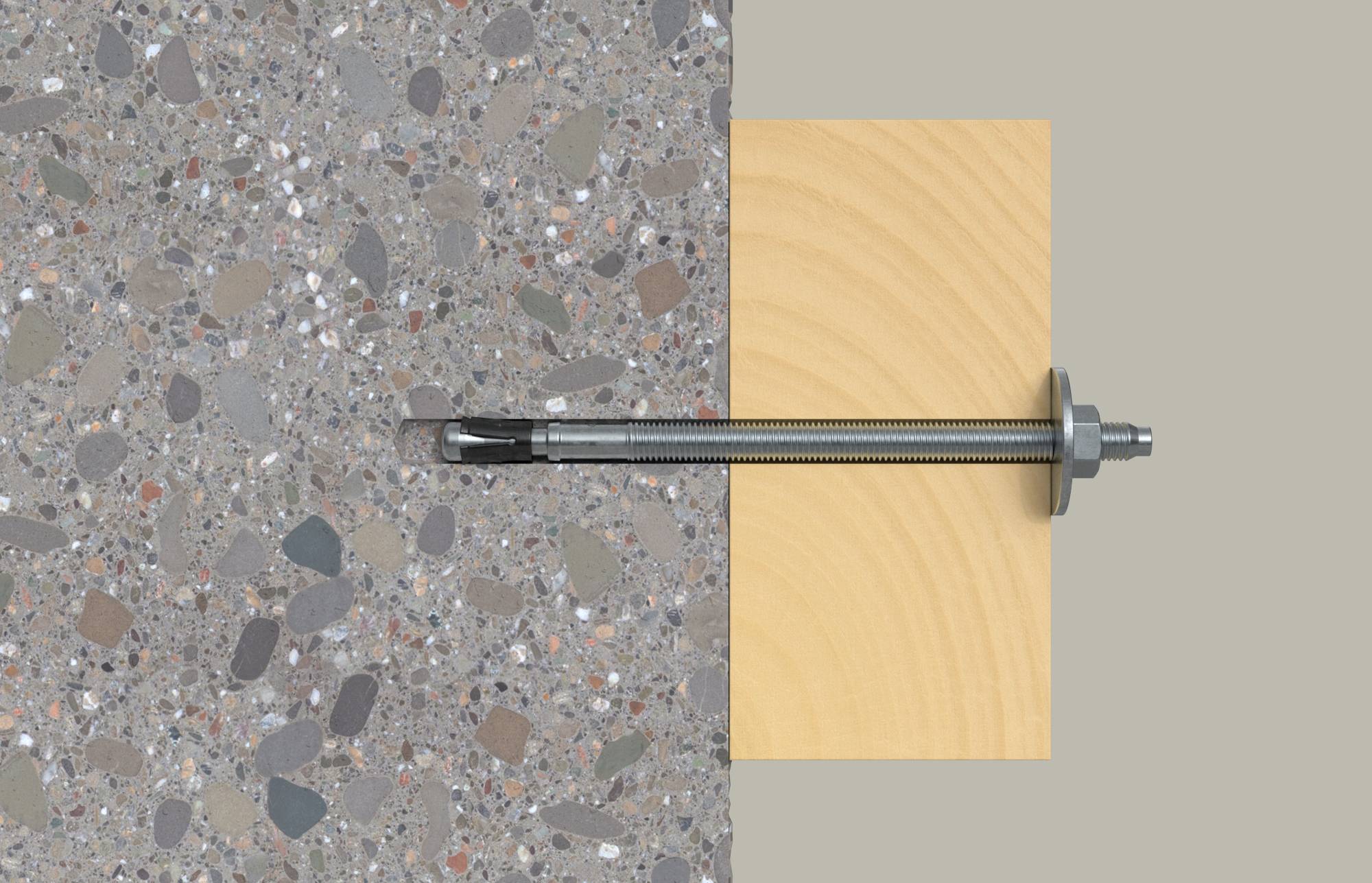

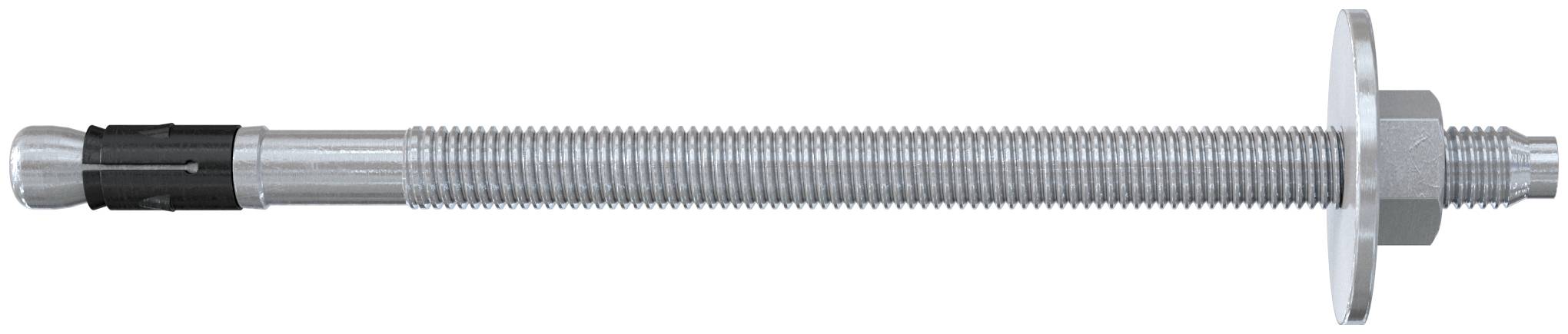

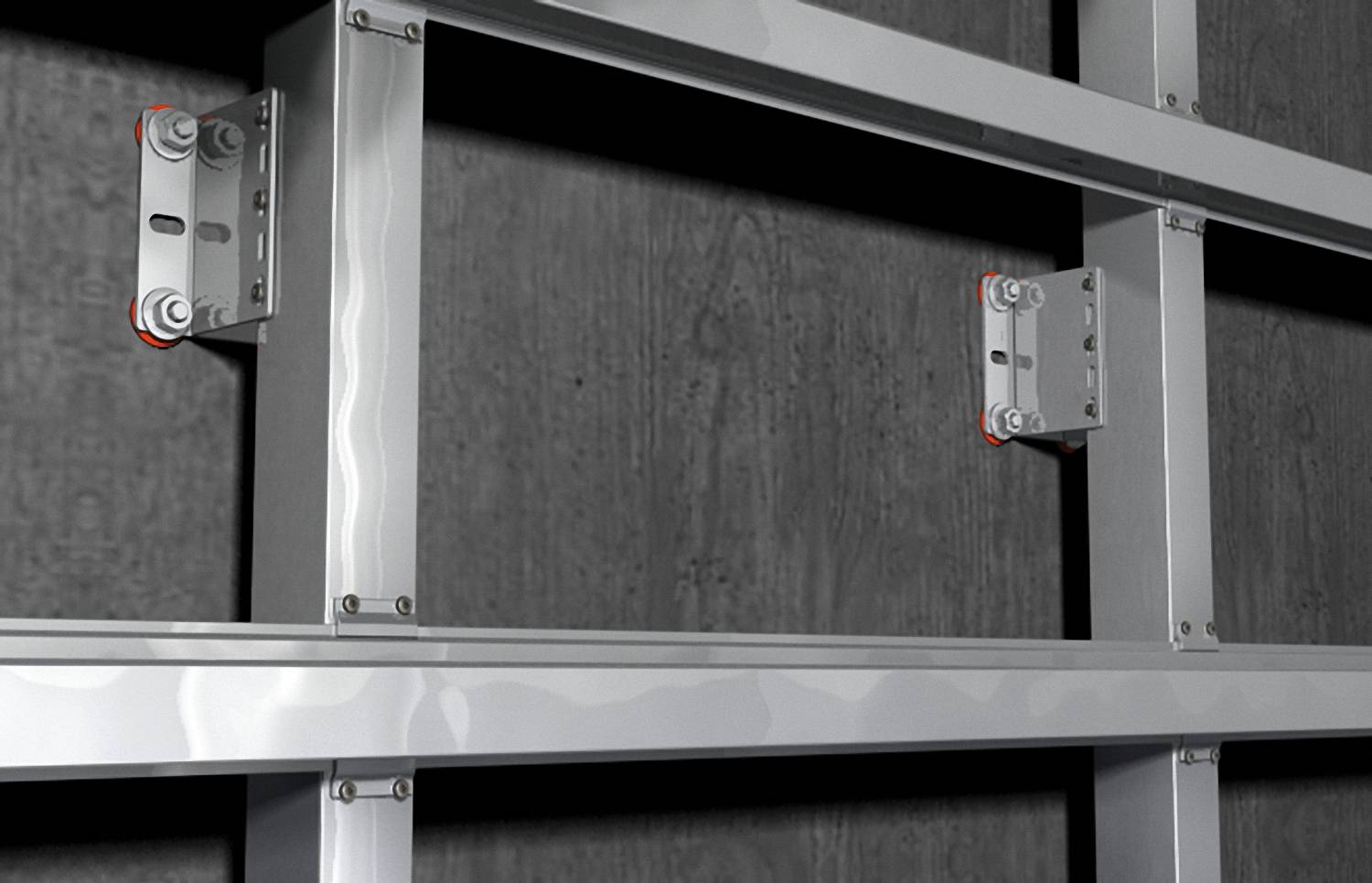

The Fischer FAZ II Plus bolt anchor is the steel anchor for the highest demands now with even higher transverse loading capacities. The steel anchor secures heavy loads in cracked concrete. The proven expanding clip safely introduces the loads into concrete and allows a high load-carrying capacity immediately. Ideal is a steel anchor for example for anchoring railings, cable trays and consoles.
This text is machine translated.
This text is machine translated.
Features
- Significant increase in the cross-bearing capacity through the new evaluation (ETA) - fewer fixing points and smaller anchor plates save time and costsAdjustment to the loads down to the millimeter using the variable anchorage depthsThe first M6 stud anchor with a ETA rating option 1: For safe and approved anchoragesThe proven spreading clip provides the highest carrying capacity even with the size M6
