Fischer 564792 DuoPower ETA 10 x 50 Duopower plug 50 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

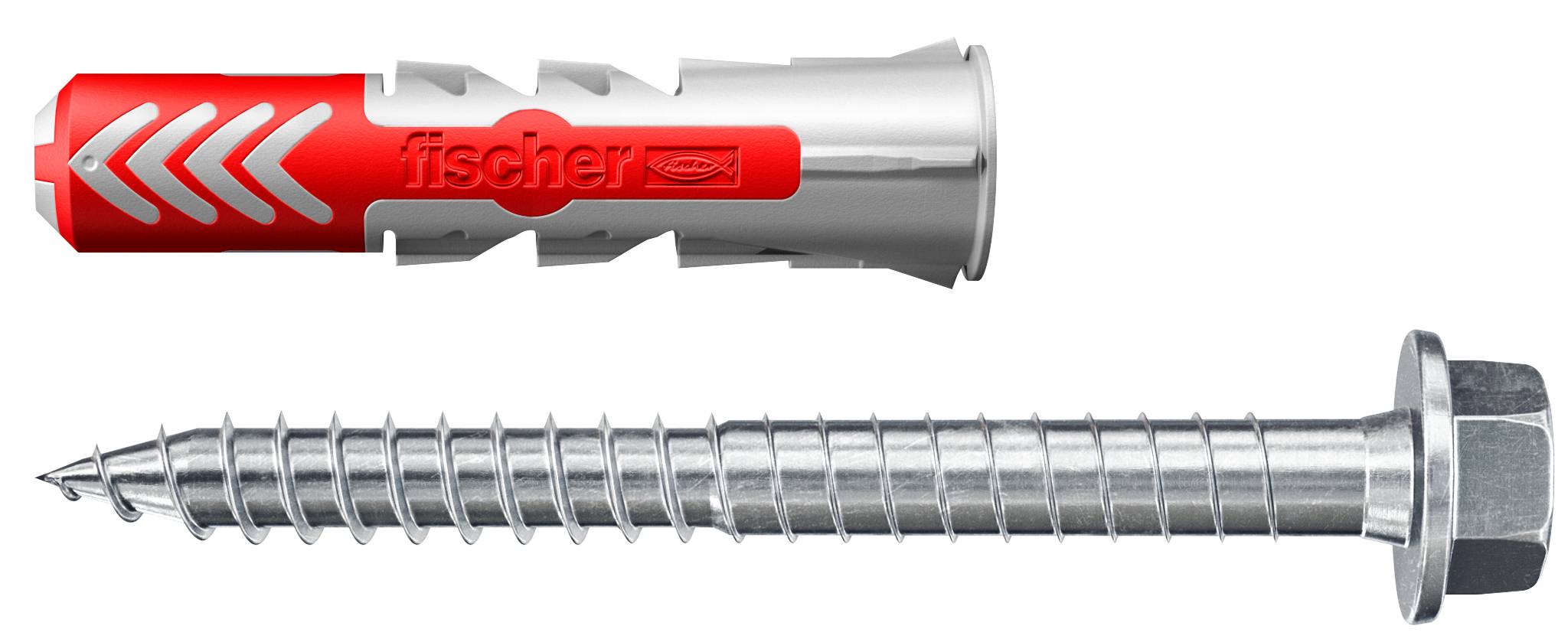

Fischer DuoPower ETA 10 x 50 with safety screw
- Combination of two material components for more performance.
- Safe functions for full (spreading) and perforated and panel materials (flaps/knots).
- Easy to install: A small dowel edge prevents the slipping into the borehole.
- The best possible feedback of the dowel - you can feel that the plug is fitted perfectly.
Technical specifications
- Max. Thickness of the mounting part 12 mm
- Screw dimensions 7.0 x 69 mm
- TX40 drive / black 13
- (Ø)
10 mm
- Product type
Duopower plug
- Material
Polyamide
- Length
50 mm
- Screw diameter
7 mm
- Dim
(Ø x L) 10 mm x 50 mm
- Content
50 pc(s)
- Features
incl. hex screw
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2844147 Fischer 564792 DuoPower ETA 10 x 50 Duopower plug 50 mm 10 mm 50 pc(s)
Description
The Fischer DuoPower is an intelligent 2-component plug with three functional principles. The intelligent universal dowel is suitable for mountings in all building materials. This allows various applications with just one plug. The fischer DuoPower adapts itself independently to the building material and guides through the three functional principles folding, spreading and knots highest load values. The excellent feedback of the plug when the screw is screwed in provides additional safety. The European Technical Rating (ETA) for certain DuoPower dimensions also guarantees tested safety for safety-related applications in concrete and masonry (see load table).
This text is machine translated.
This text is machine translated.
Features
- Two material components for the best load values and intelligent functions depending upon the underground.
- The dowel provides the best feedback (felt good factor). You can feel like the dowel is fitted perfectly.
- The small dowel edge prevents it from slipping into the drill hole.
- The distinctive corotation lock prevents the dowel from turning.
- The European Technical Rating (ETA) for certain DuoPower dimensions guarantees tested safety in concrete and masonry safety applications (see load table)
