Fischer 566353 PowerFast II Elevator bolts 10 mm 380 mm Spline drive Steel zinc galvanized 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Drive: TX40
- Approvals ETA-19/0175
- Thread length: 115 mm
- Head diameter: 25.5 mm
- Product type
Elevator bolts
- Drive
Spline drive
- Material
Steel
- (Ø)
10 mm
- Length
380 mm
- Head shape
Elevator head
- Dim
(Ø x L) 10 mm x 380 mm
- Content
50 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2995395 Fischer 566353 PowerFast II Elevator bolts 10 mm 380 mm Spline drive Steel zinc galvanized 50 pc(s)
Description

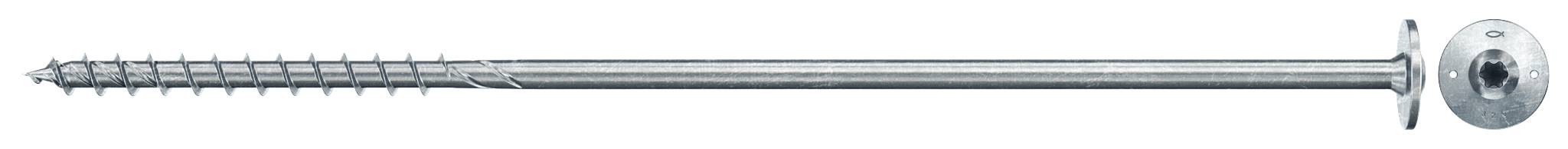

The Fischer wood-screw Powerfast II FPF II-WTP BC is the powerful wood-screw with head plate, inner star support and partial thread for structural timber construction. The plate head with the inner star TX-drive guarantees a larger contraction effect as well as a much higher head pull resistance. The partial thread also enables the firm drawing together of wooden elements. The European Technical Assessment guarantees an additional level of safety. Due to the thread form the PowerFast II is very easy to screw in without pre-drilling. Powerfast II thread reaches into the tip of the screw and ensures a quick bite. The shank milling ribs reduce the turning resistance and thus ensure a force- and battery-careful mounting.
This text is machine translated.
This text is machine translated.
Features
- The new patented core milling geometry makes a precise finish milling and a good working out of the wood grain. This allows minimum distance between edges and axes and makes possible different wooden structures.
- The screw tip with the three ribs ensures quick bite action and at the same time for pre-milling. A fast start is ensured, the gap behavior is significantly reduced for the user.
- The increased thread pitch reduces the screw-in time, enabling the user to handle economic projects.
- The high performance sliding coating reduces the screw-in torque. For a longer battery life and for a uniform and gentle screw-in feeling.
- The newly designed shank milling ribs are optimally matched to the core milling thread geometry and reduce the screw-in torque in combination.
- Compared to countersunk screws, higher pull-out resistances can be made due to the larger head diameter. This has a significantly positive effect when components are tightened.
