Buy Fischer 567811 SX Plus Green Spring toggle 50 mm 10 mm 45 pc(s)

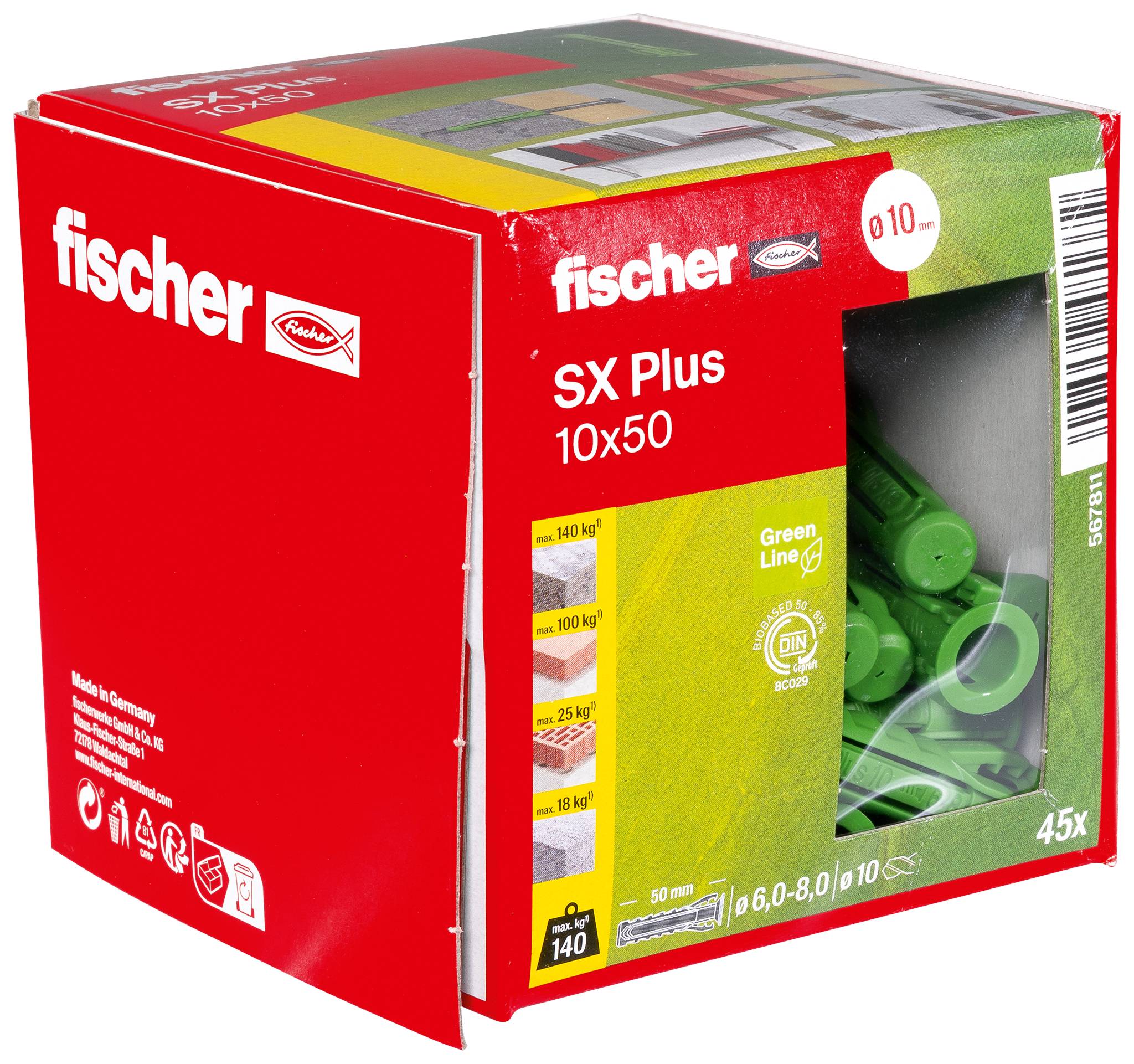

Red Fischer SX Plus 10x50 wall plug box with green anchors visible through the front window, labeled '45x' and '10 mm'.<br>

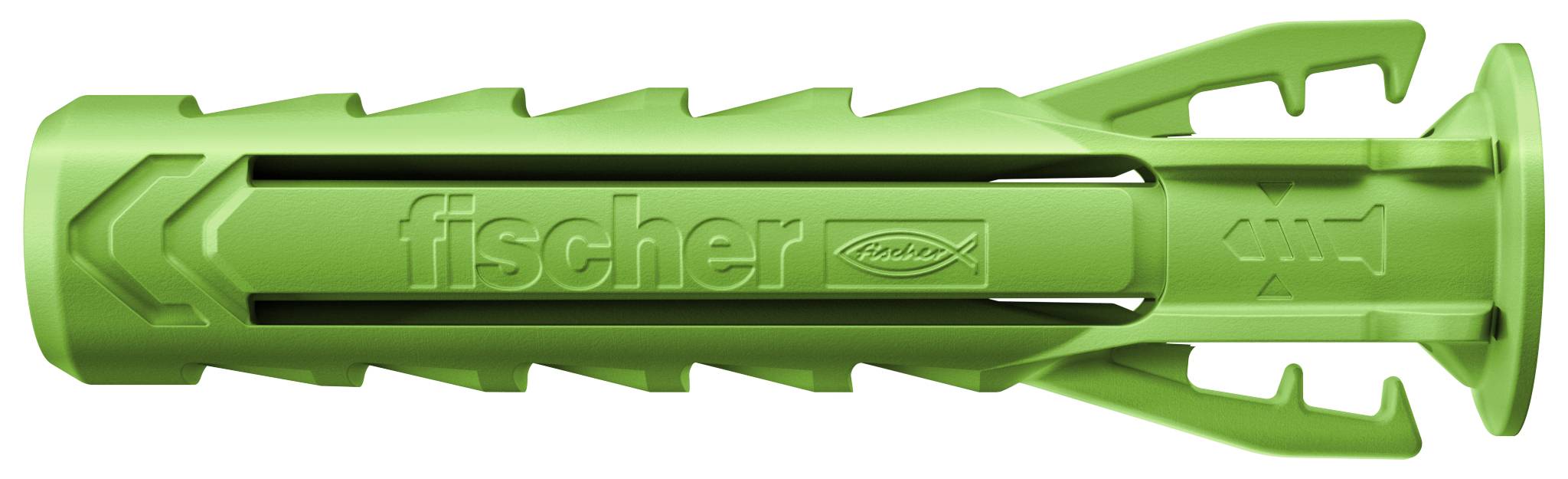

Green Fischer wall plug anchor with a long screw slot, shown in side view on a white background.

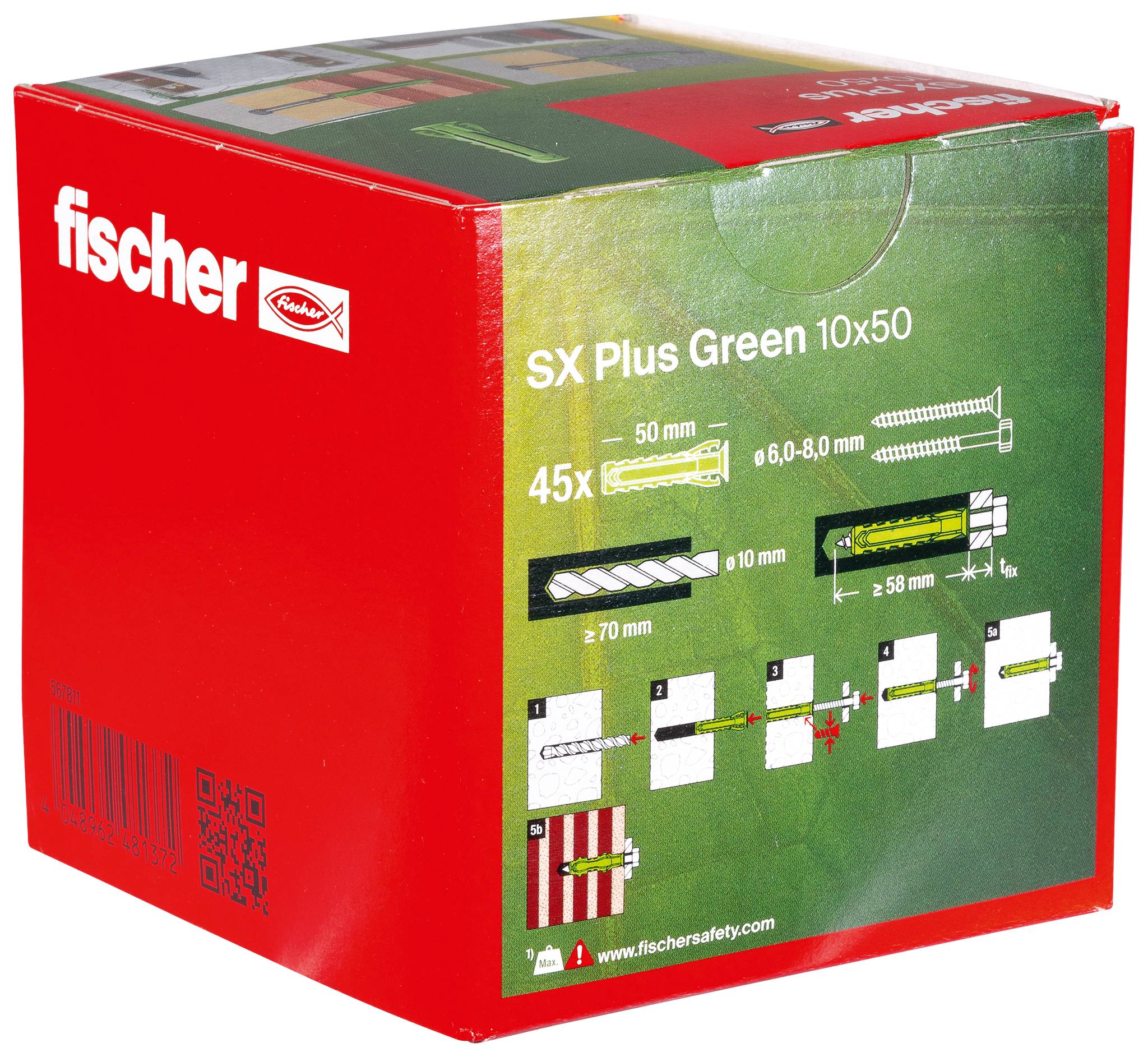

Red Fischer fischer hardware box labeled 'SX Plus Green 10x50', showing 45 anchors and installation diagrams.

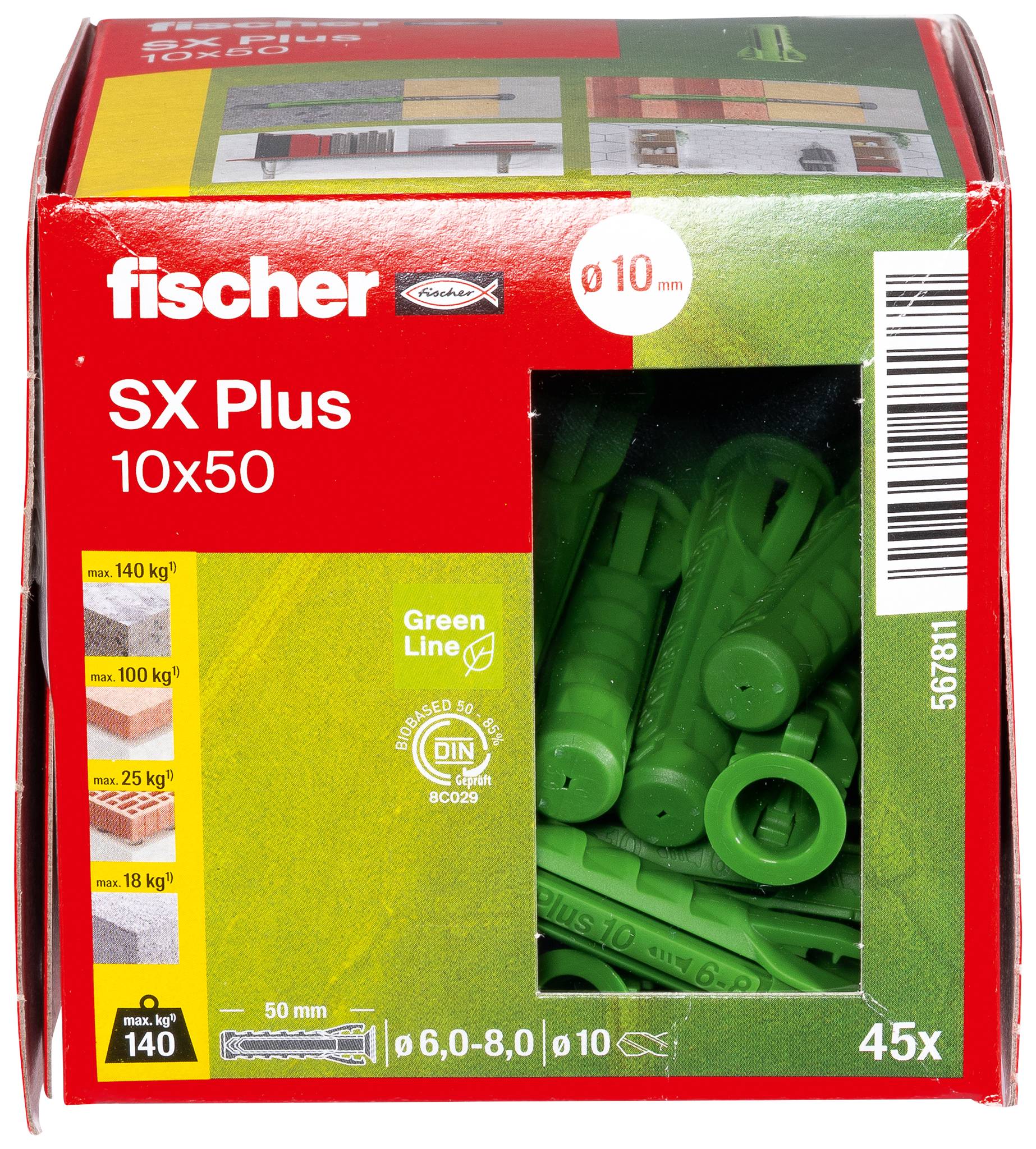

Front of a Fischer SX Plus 10x50 wall plug box, showing a window of green plastic anchors, size Ø10 mm, 45 pieces.

A wall-mounted mirror reflects a bright tiled room with a potted plant, beside a dark cabinet with decorative vases.

Close-up of a silver curtain rod with ring clips holding sheer white curtains against a plain light wall.

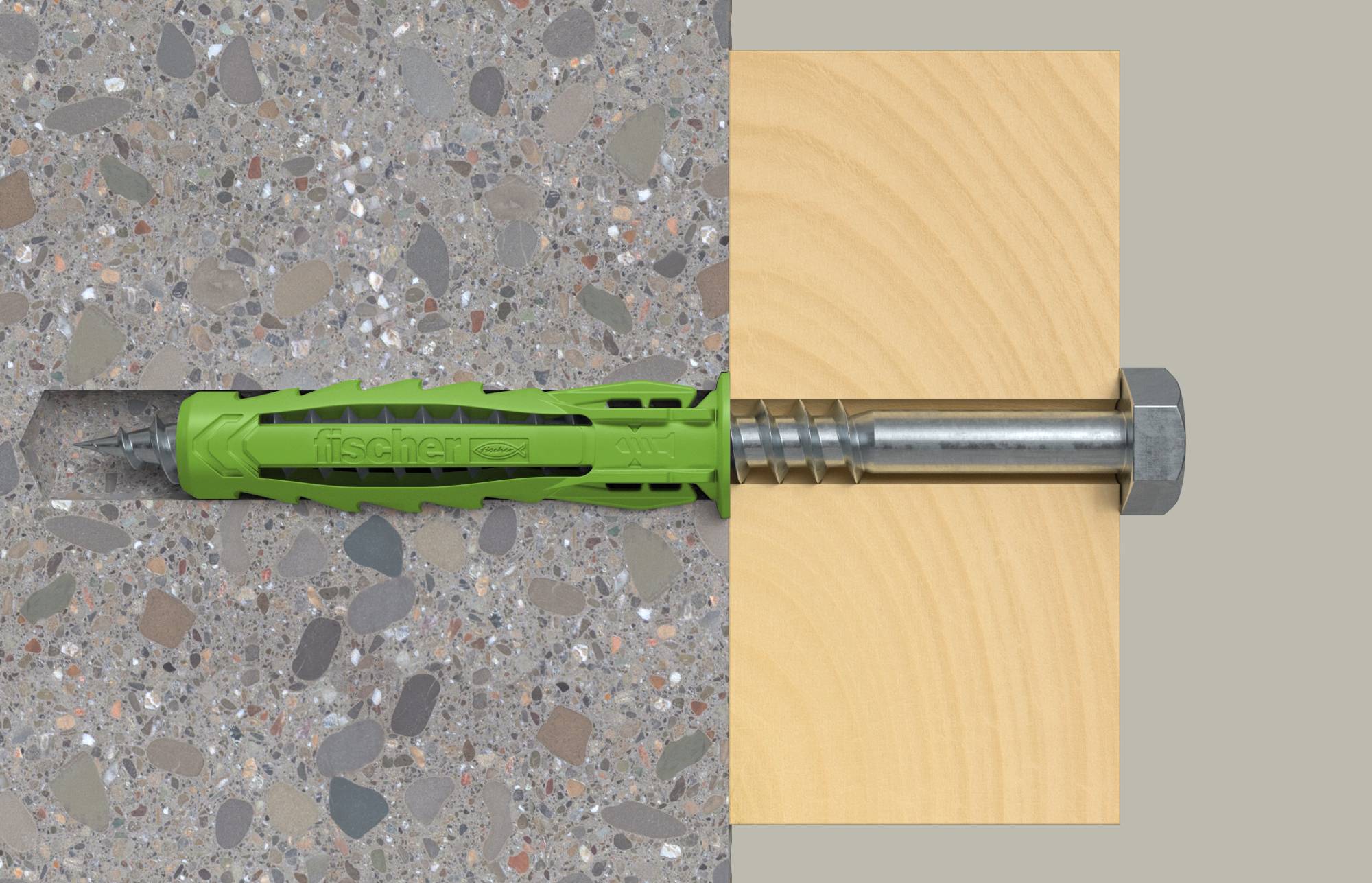

Cutaway showing a green Fischer wall anchor partly embedded in concrete and a screw passing through a wooden board into the wall.

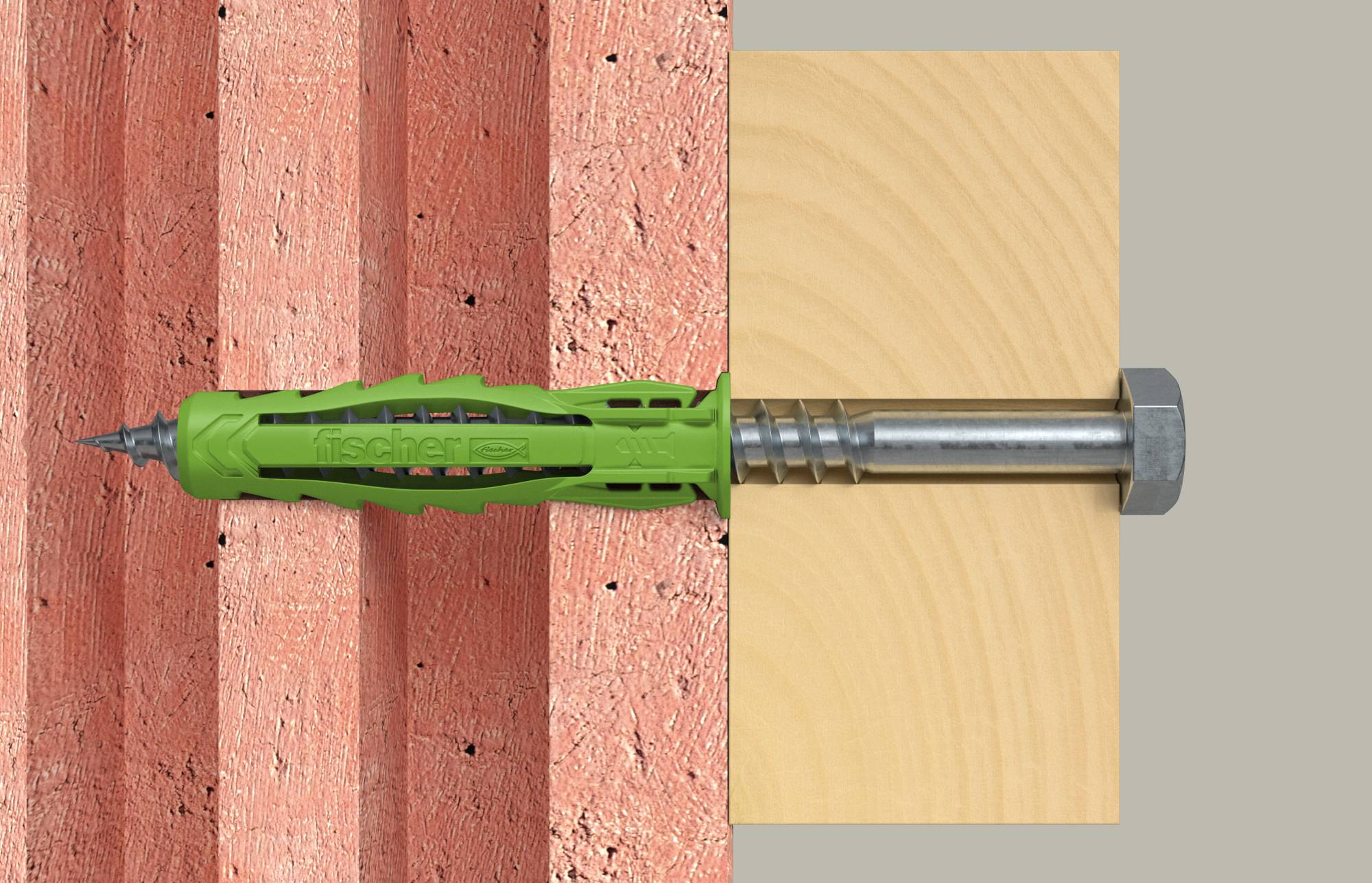

Cutaway showing a Fischer wall plug and screw anchored through a red brick wall into a wooden board.<br>

1/8

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer SX Plus Green 10 x 50 plug

Manufactured with at least 50% renewable raw materials4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingDowel border prevents deep sliding into the bore holeA noticeable tightening torque prevents the screw from being overturned

Technical specifications

Min Drill depth 70 mm

(Ø): 10 mm

Product type: Spring toggle

Material: Plastic

Length: 50 mm

Dim: (Ø x L) 10 mm x 50 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 45 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2858409 Fischer 567811 SX Plus Green Spring toggle 50 mm 10 mm 45 pc(s)

Description

The Fischer SX Plus Green plug is made from at least 50% renewable raw materials. Due to its 4-fold spread, it is the specialist for solid building materials such as concrete, sand-lime brick and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting.

This text is machine translated.

Features

The SX Plus Green is produced with at least 50% renewable resources and is thus especially environment-friendly
The 4-fold spread ensures optimum force flow into the building material and guarantees high holding values in solid and perforated building materials
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
