Buy Fischer 567820 SX Plus Spring toggle 20 mm 4 mm 50 pc(s)

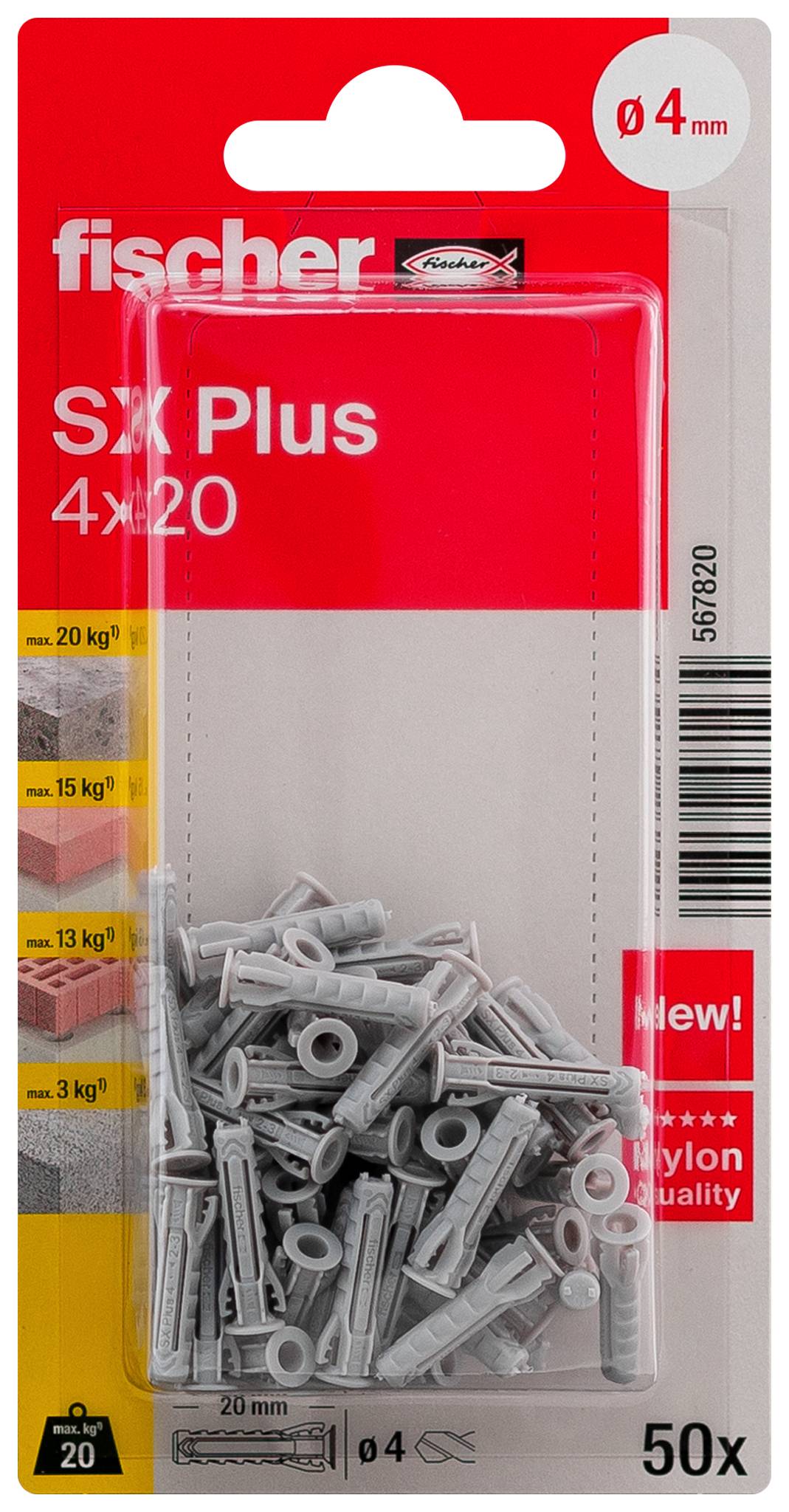

Package of Fischer SX Plus wall plugs, 4x20 mm, 50 pieces, shown in clear blister pack with gray anchors inside and load ratings on the left.<br>

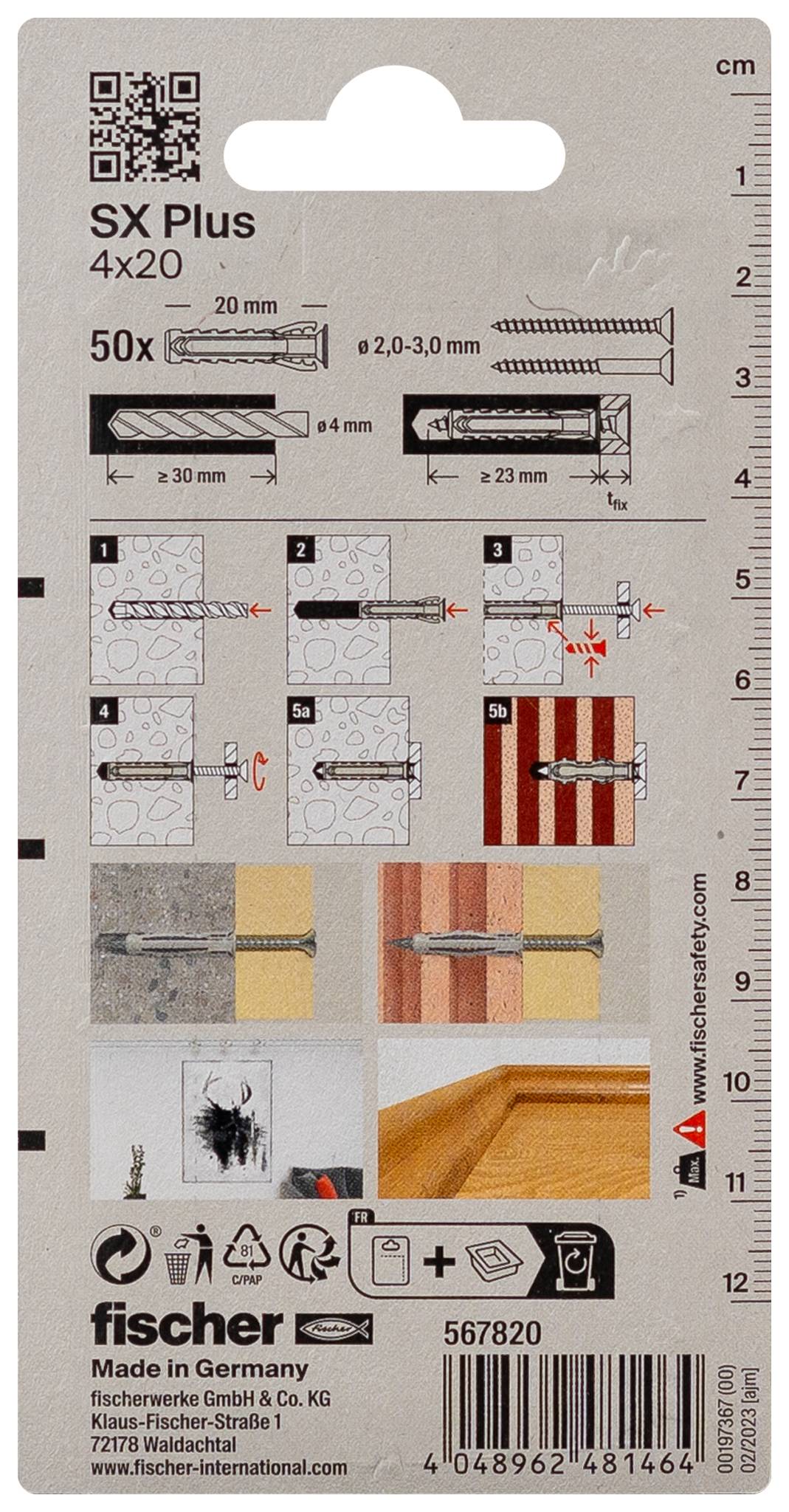

Package label for Fischer SX Plus 4x20 wall plugs, showing installation diagrams, size specifications, and product quantities.

Shelves with organized ring binders in red, white, and gray, arranged in rows against a light wall.

Flat-screen monitor mounted on a wall with an adjustable silver swivel arm, shown in side view.<br>

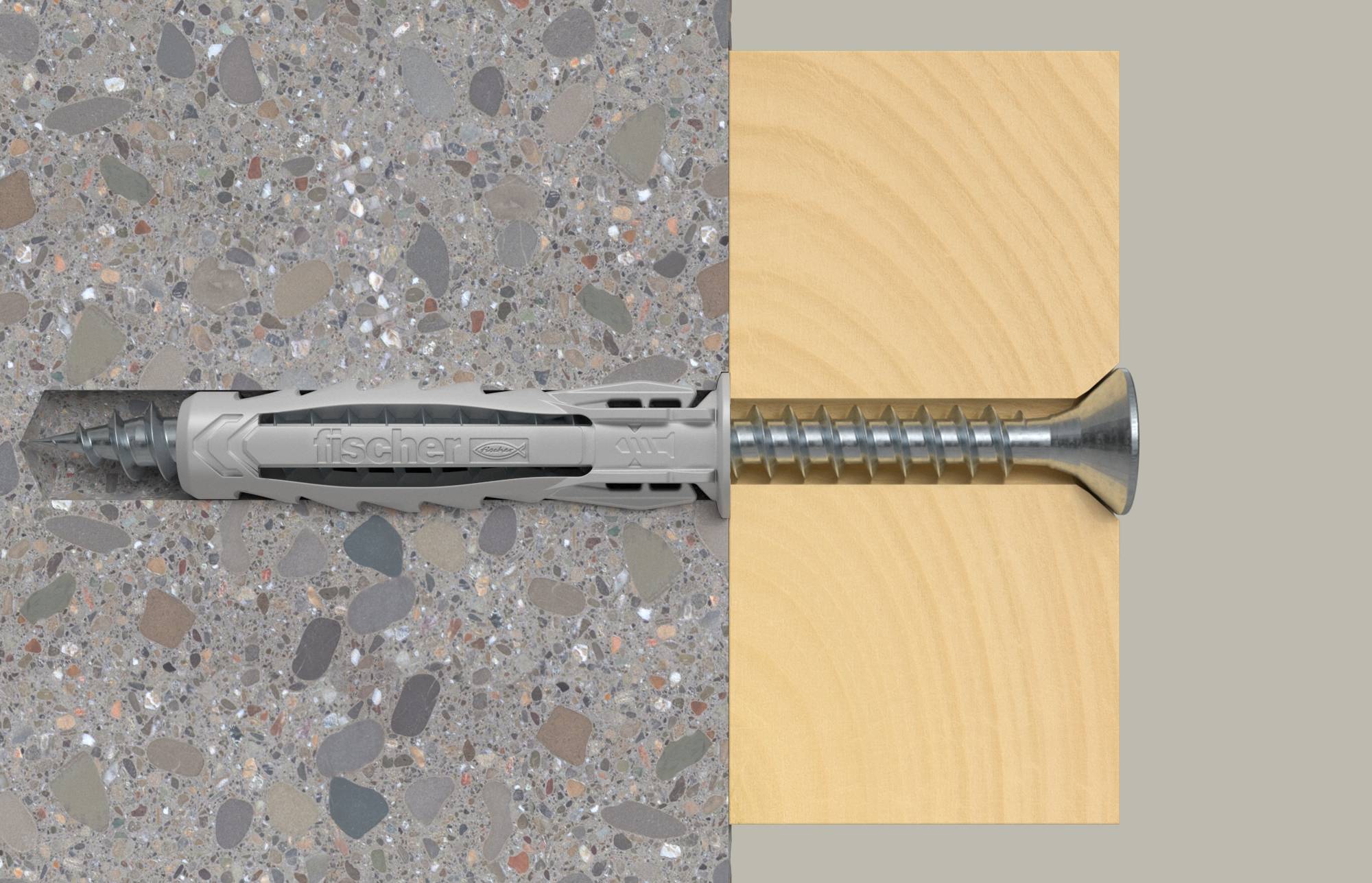

Side-by-side close-up of a wall anchor in concrete and a screw in wood, showing different fastener types for masonry and timber.

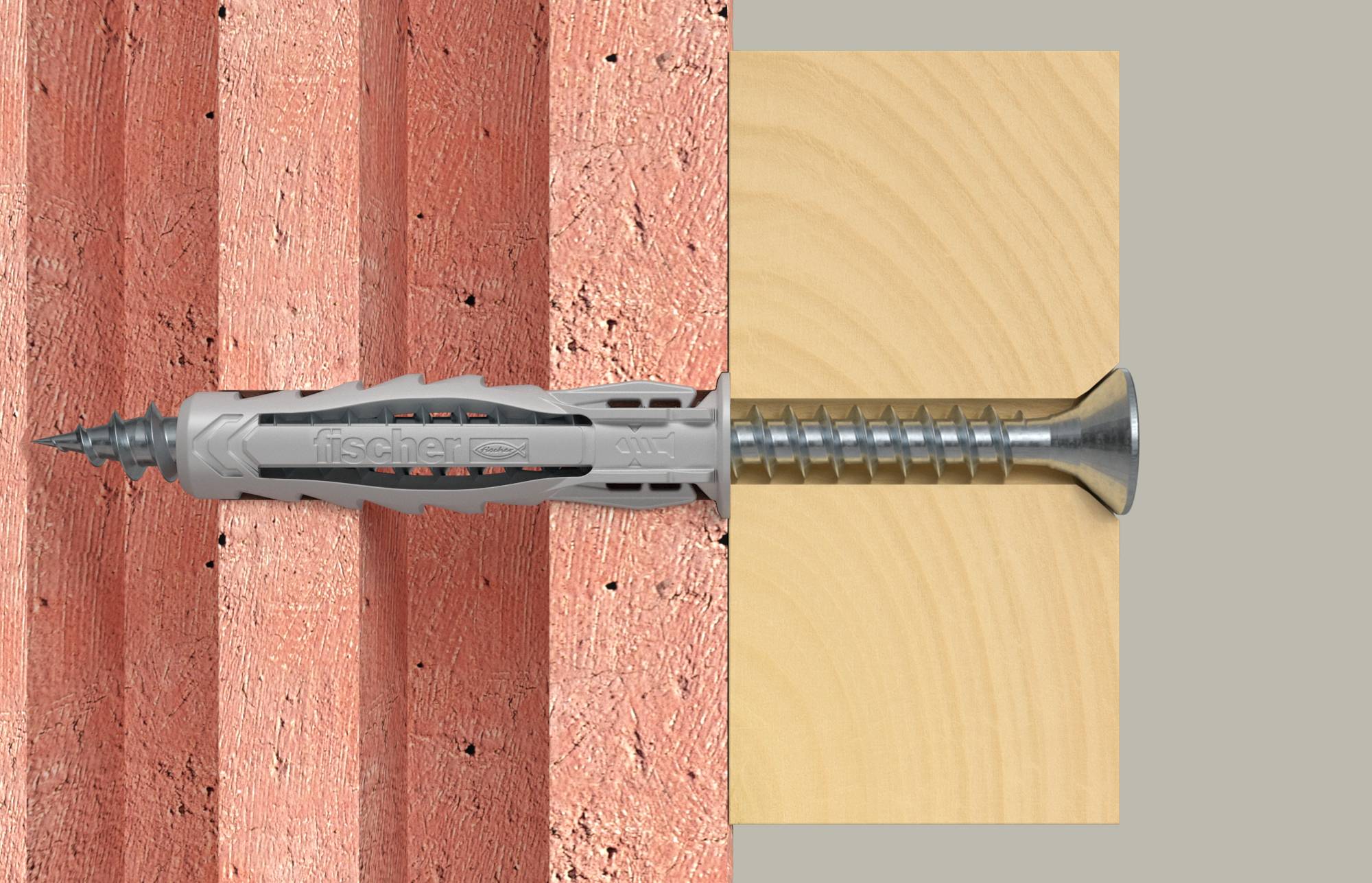

Illustration of a wall anchor and screw securing through masonry on the left into wood on the right, showing installation into different materials.<br>

1/7

Unavailable

17 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

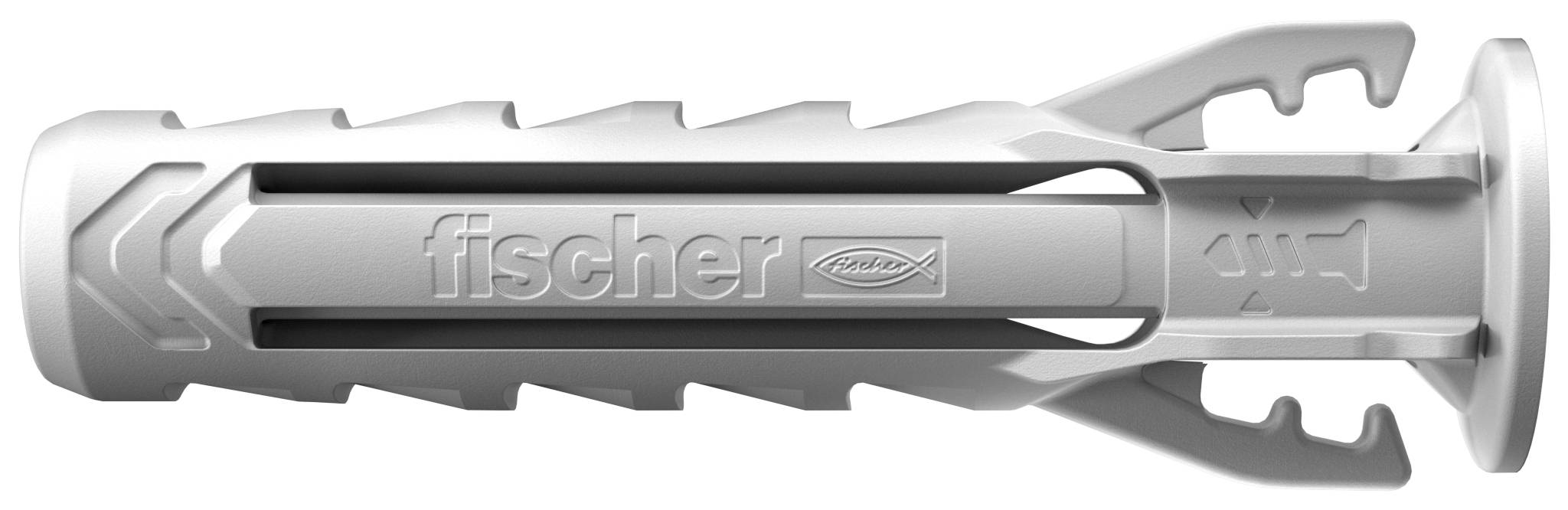

Fischer SX Plus 4 x 20 expanding plug

4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingIt is possible to mount the plug with little forceDowel border prevents deep sliding into the bore holeA noticeable tightening torque prevents the screw from being overturned.

Technical specifications

Min Drill depth 25 mm

(Ø): 4 mm

Product type: Spring toggle

Length: 20 mm

Dim: (Ø x L) 4 mm x 20 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 50 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2858412 Fischer 567820 SX Plus Spring toggle 20 mm 4 mm 50 pc(s)

Description

The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.

This text is machine translated.

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
