Buy Fischer 567821 SX Plus Spring toggle 25 mm 5 mm 50 pc(s)

Package of Fischer SX Plus wall plugs, 50 grey nylon anchors, size 5x25 mm for 5 mm screws, with load ratings shown on the label.

Package label for Fischer SX Plus 5x25 wall plugs, showing screw and drill size diagrams, installation steps, and barcode.

Two wall shelves holding neatly arranged ring binders: red, white, and gray folders lined up in rows.

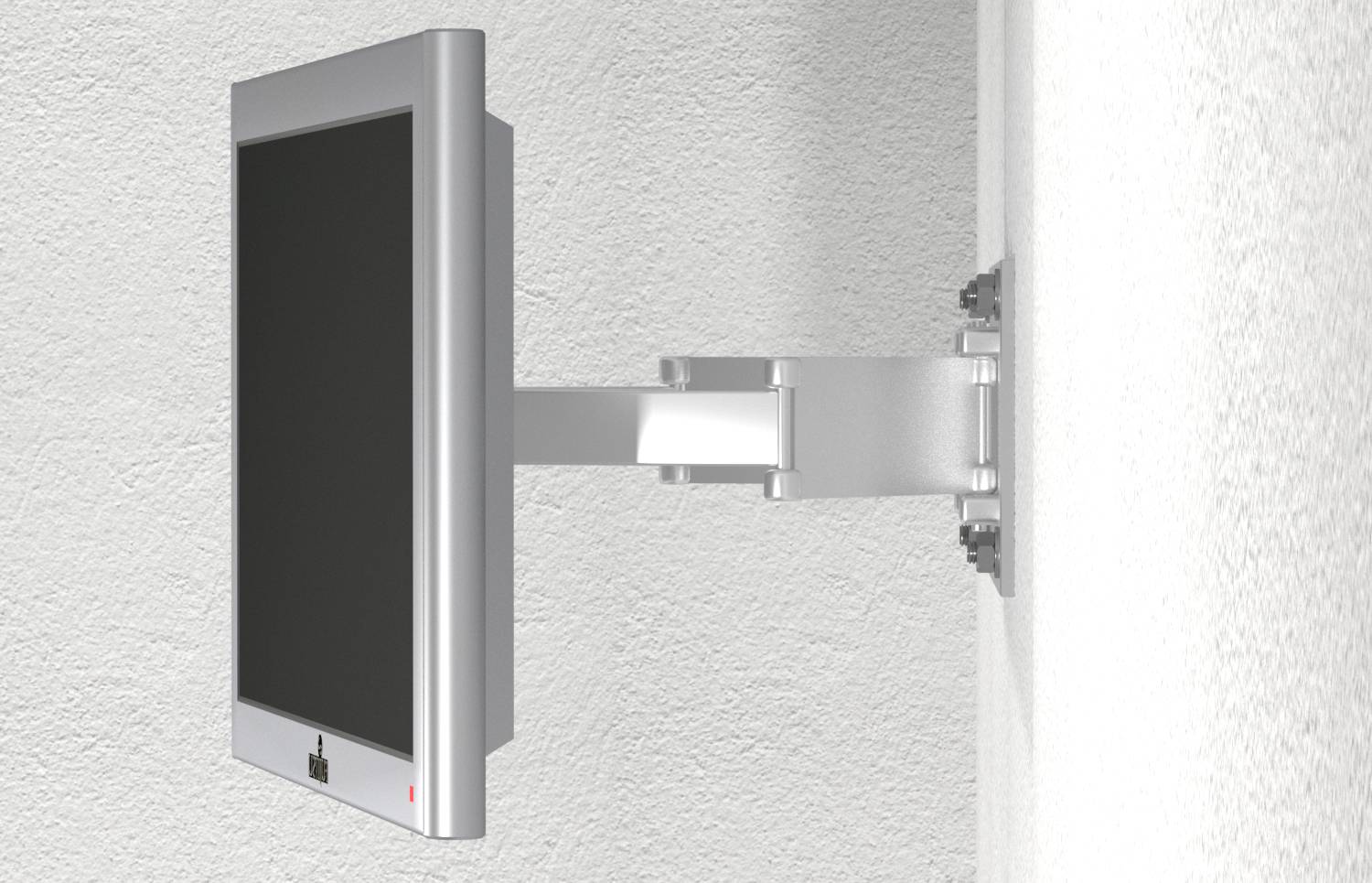

Flat-screen TV mounted on a wall with a metal swivel bracket extending from the right side<br>

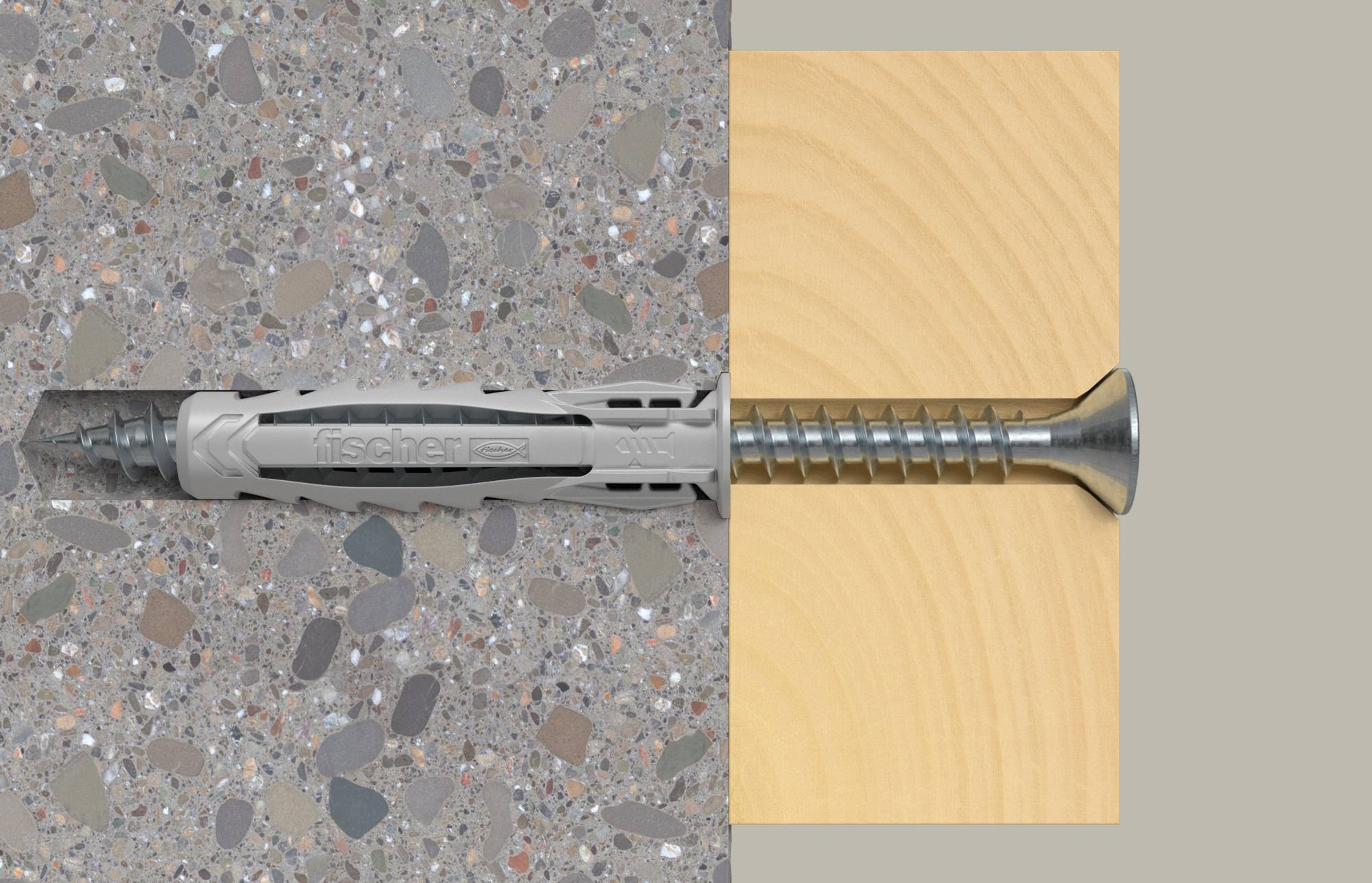

Illustration of a wall plug and screw anchoring into concrete on the left and wood on the right, showing two fastening methods.

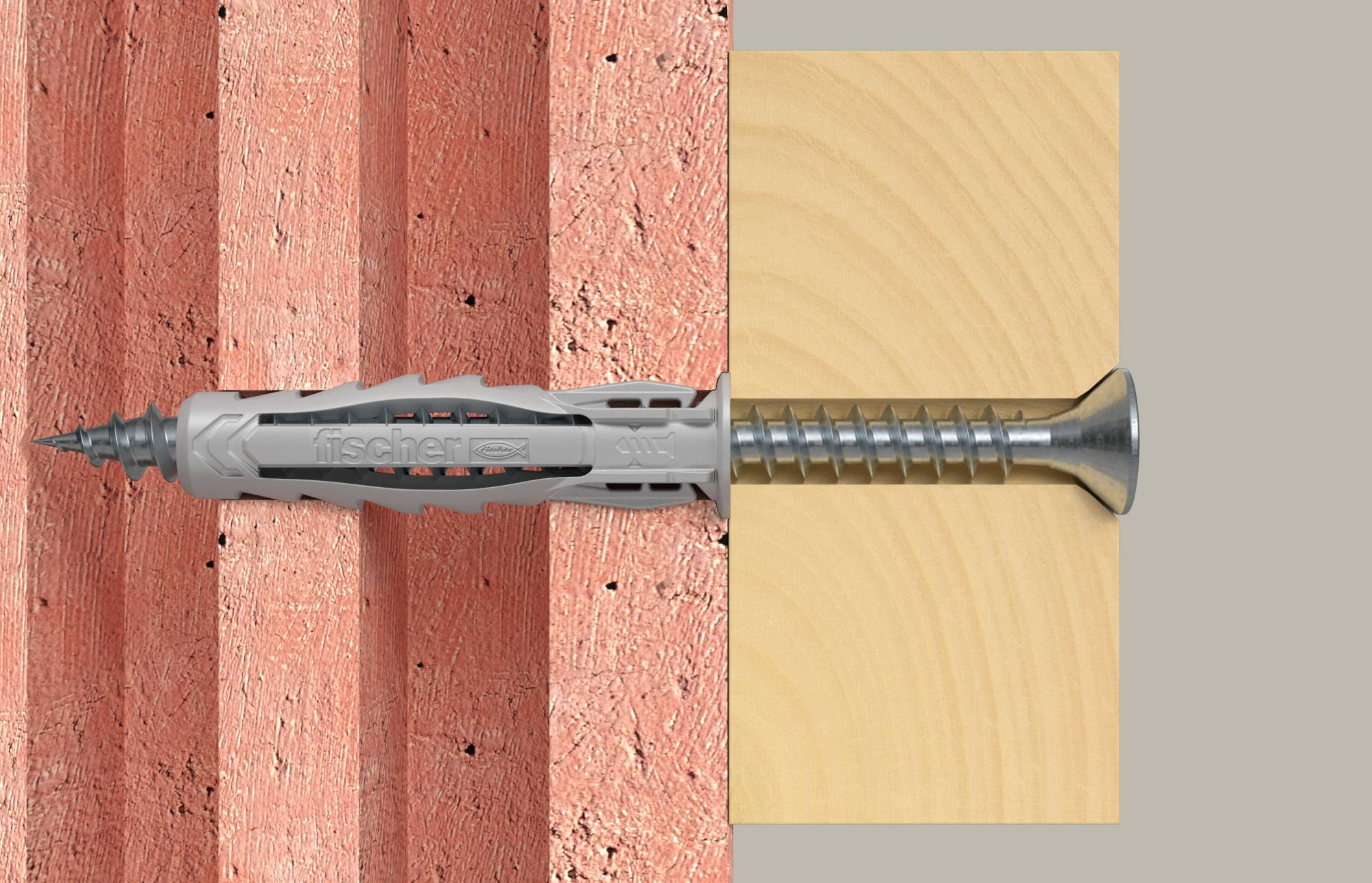

Split-view illustration of a wall anchor and screw installed through a masonry wall into wood, showing the fastener securing both materials.

1/7

Fast track dispatch on Mon, 12 Oct

4 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 50 pc(s))

Set(s)

Total (€ 2.93 / piece)

€ 2.93

plus VAT.

Only 4 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fischer SX Plus 5 x 25 expanding plugs

4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingIt is possible to mount the plug with little forceDowel border prevents deep sliding into the bore holeA noticeable tightening torque prevents the screw from being overturned.

Technical specifications

Min Drill depth 35 mm

(Ø): 5 mm

Product type: Spring toggle

Length: 25 mm

Dim: (Ø x L) 5 mm x 25 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 50 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2858413 Fischer 567821 SX Plus Spring toggle 25 mm 5 mm 50 pc(s)

Description

The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.

This text is machine translated.

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
