Buy Fischer 567855 SX Plus Spring toggle 70 mm 14 mm 4 pc(s)

Package of Fischer DuoPower wall plugs, size 14 x 70 mm, 4-pack, for heavy-duty fixing up to 350 kg.

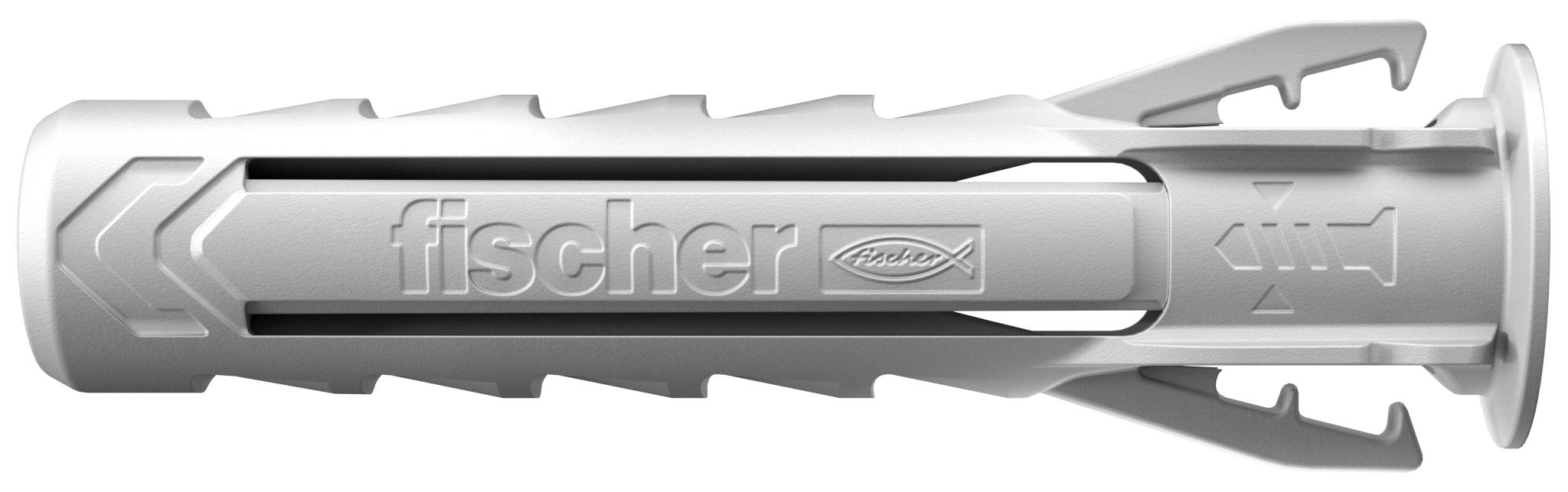

Close-up of a silver Fischer wall plug anchor with barbed sides and expansion fins, shown horizontally on a white background.

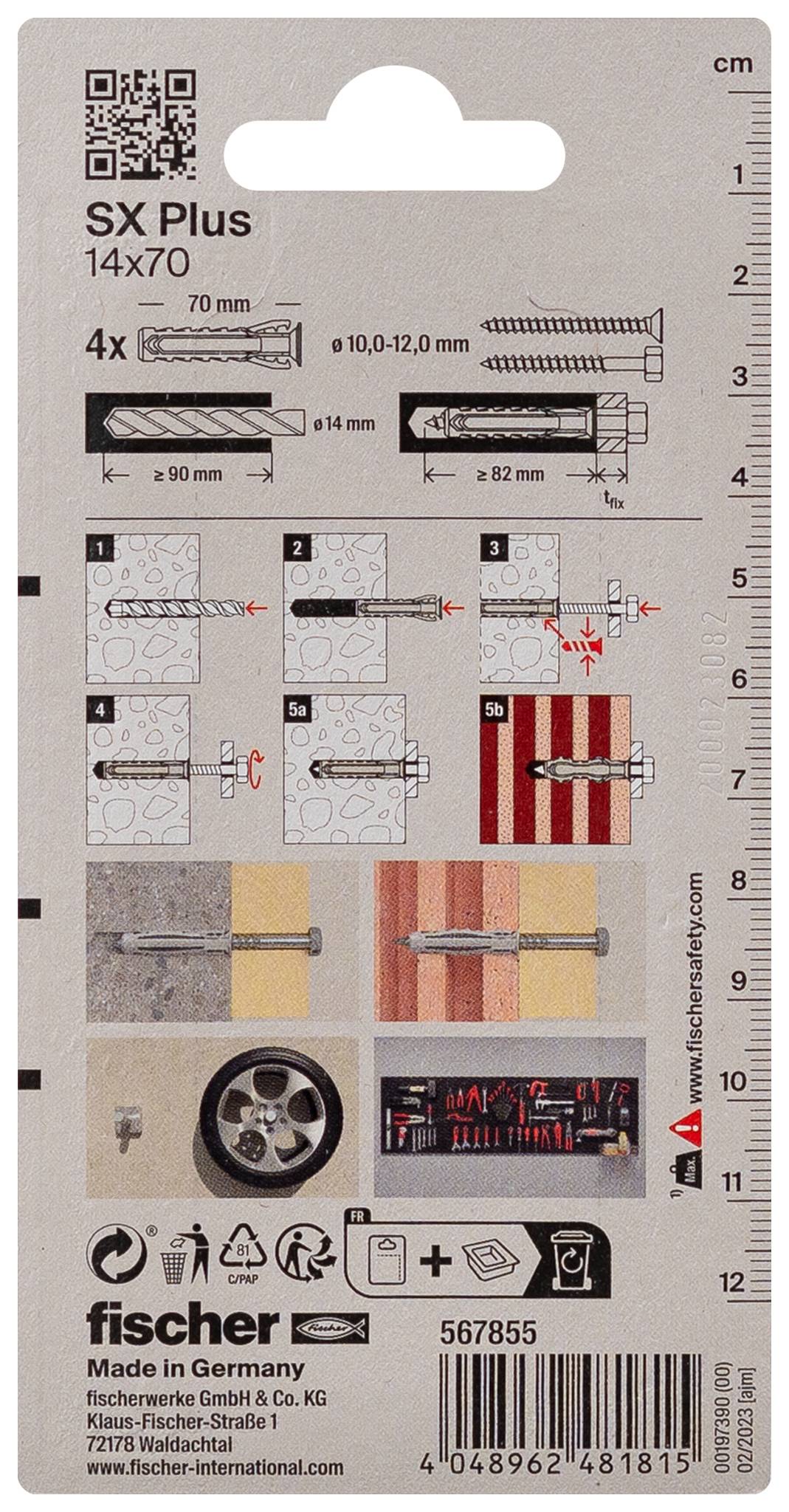

Package label for Fischer SX Plus 14x70 wall plugs, showing installation steps, drill sizes, load range 10,0-12,0 mm, and barcode.

Two white wall shelves holding neatly arranged ring binders: red binders on the left top and right bottom, white binders on the right top, and gray binders across the lower left shelf.

Flat-screen monitor mounted on a wall with an adjustable silver bracket, shown in side view against a light textured wall.

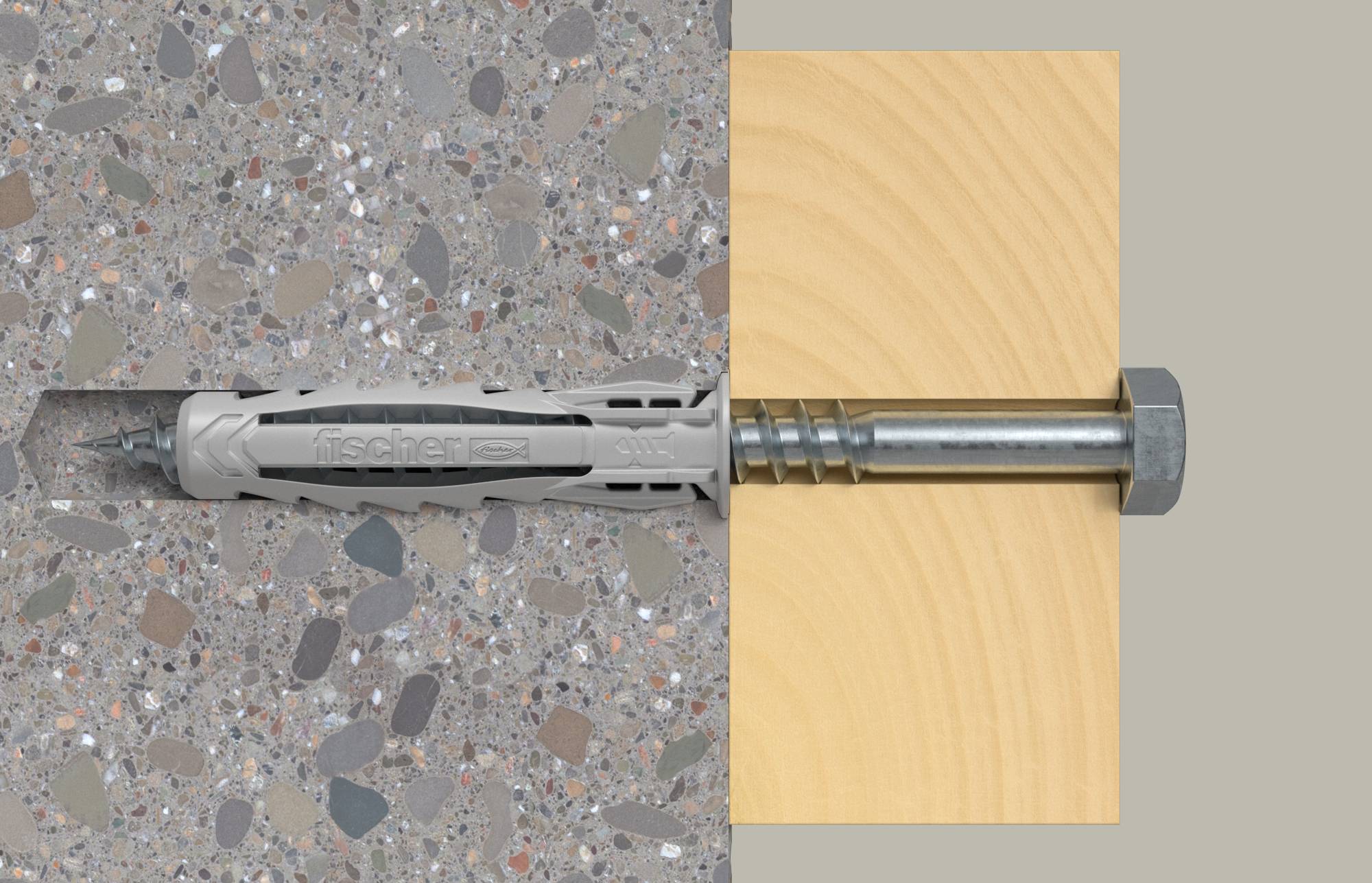

Cross-section of a wall anchor and screw fixed through a wooden board into masonry, showing the anchor expanding in the wall.

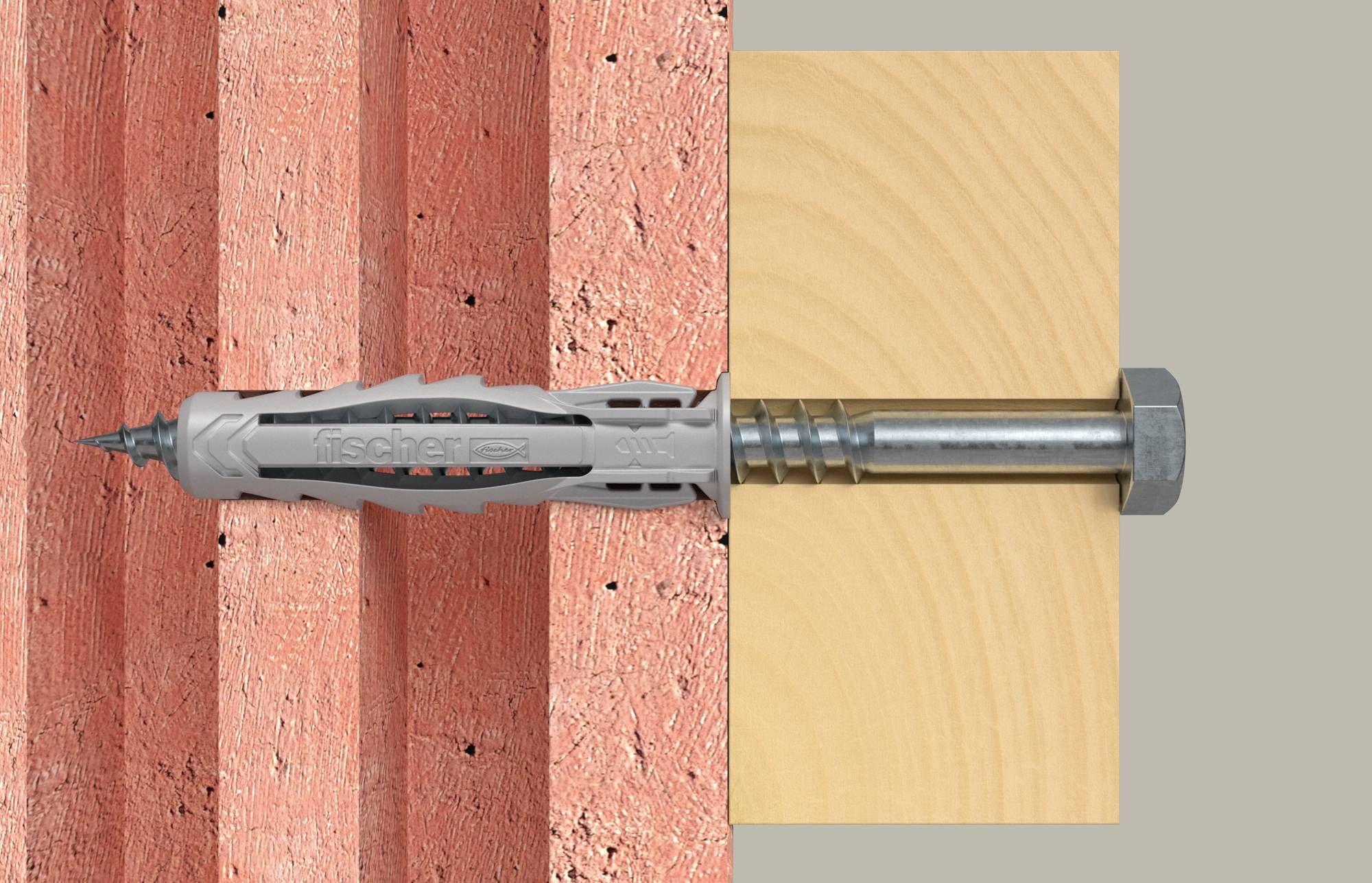

A metal anchor screw secures a wooden board to a red masonry wall, shown in cross-section with the screw passing through both materials.

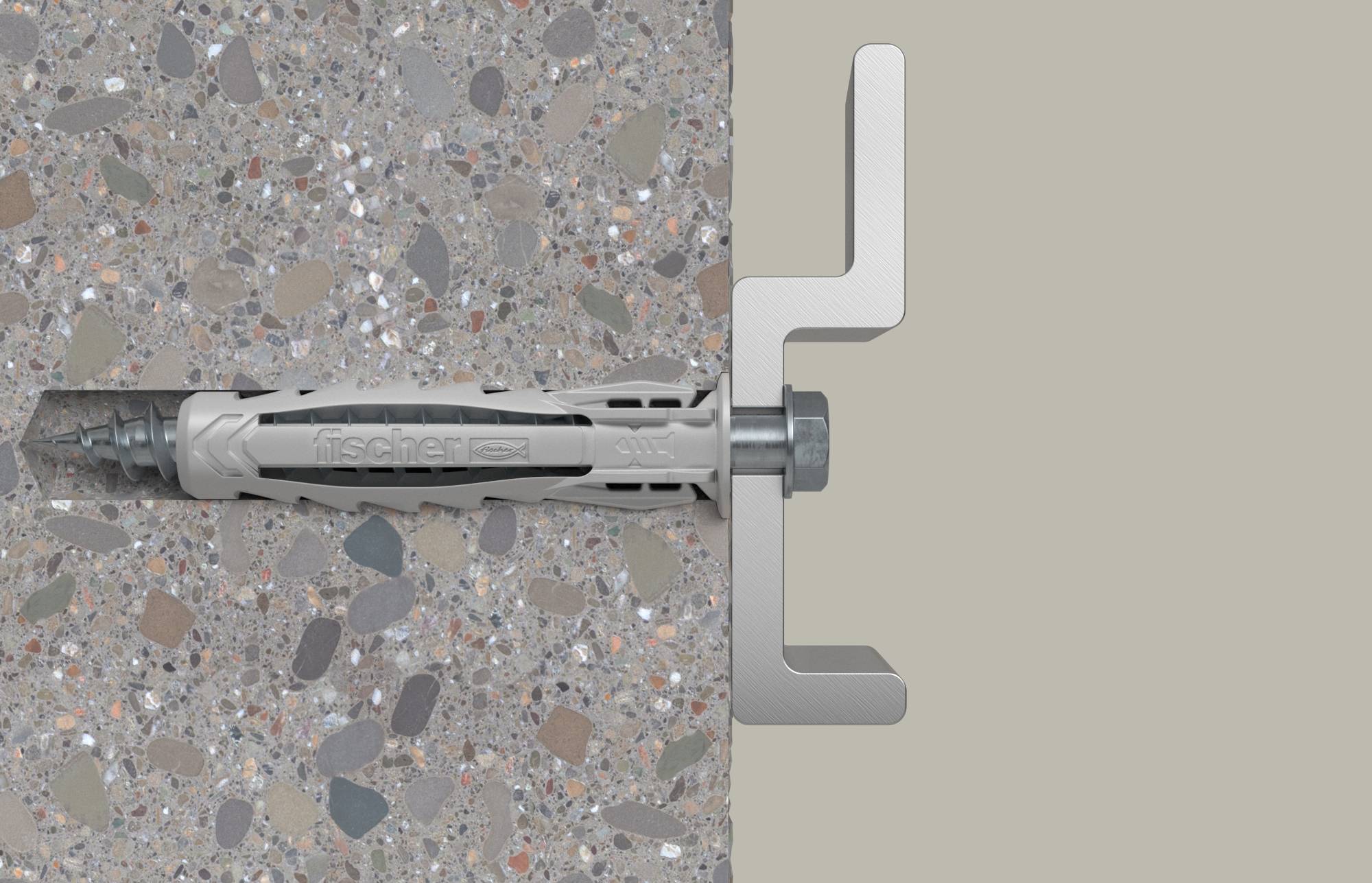

A wall plug with screw and bracket anchoring through concrete into a surface, showing a secure fastening installation.

1/8

Unavailable

12 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer SX Plus 14 x 70 expanding plug

4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingIt is possible to mount the plug with little forceDowel border prevents deep sliding into the bore holeA noticeable tightening torque prevents the screw from being overturned.

Technical specifications

Min Drill depth 90 mm

(Ø): 14 mm

Product type: Spring toggle

Length: 70 mm

Dim: (Ø x L) 14 mm x 70 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 4 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2858450 Fischer 567855 SX Plus Spring toggle 70 mm 14 mm 4 pc(s)

Description

The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.

This text is machine translated.

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
