Buy Fischer 567857 SX Plus Spring toggle 65 mm 8 mm 10 pc(s)

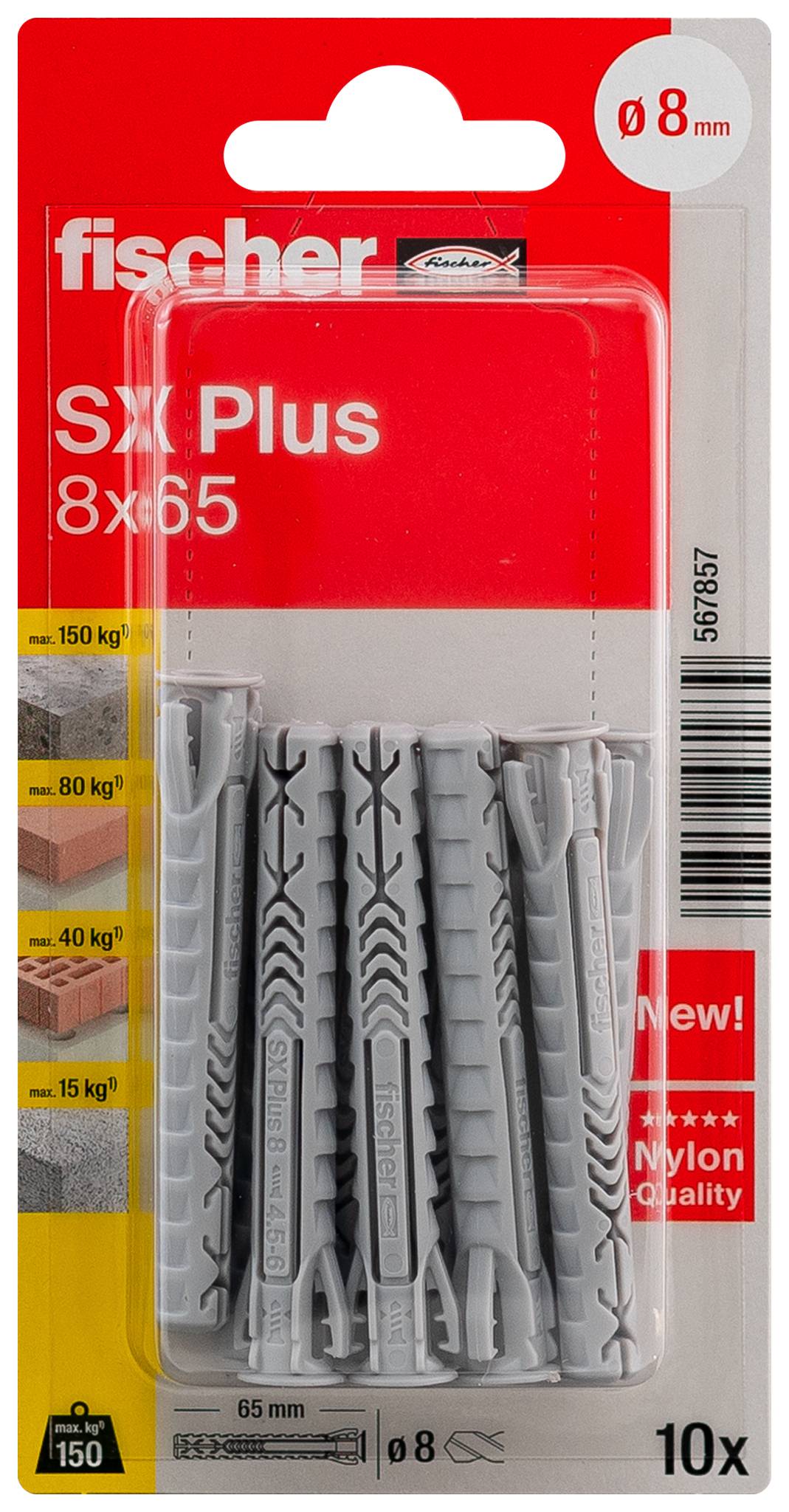

Package of Fischer SX Plus 8x65 wall plugs, 10 pieces, for 8 mm drills, with load ratings shown on the front.<br>

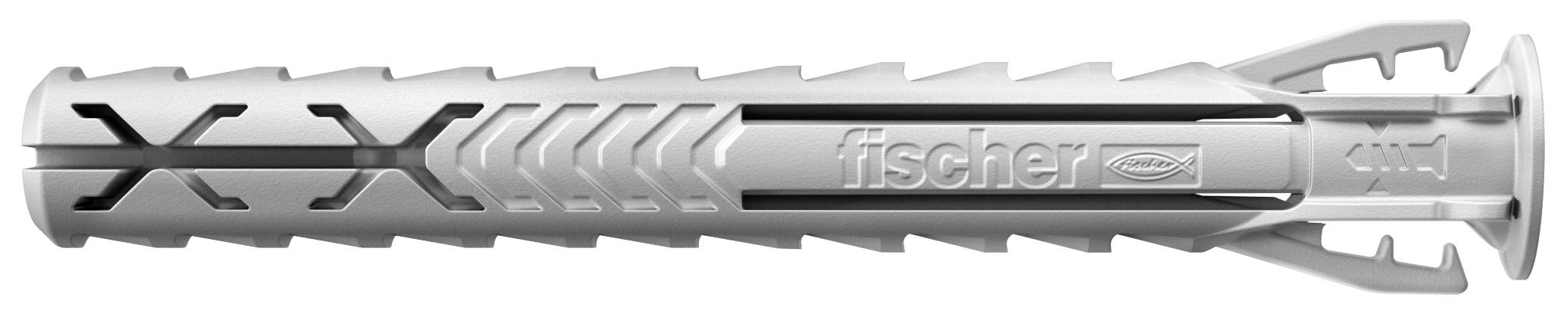

Close-up of a gray Fischer plastic wall anchor with expansion fins and a screw channel, shown horizontally on a white background.

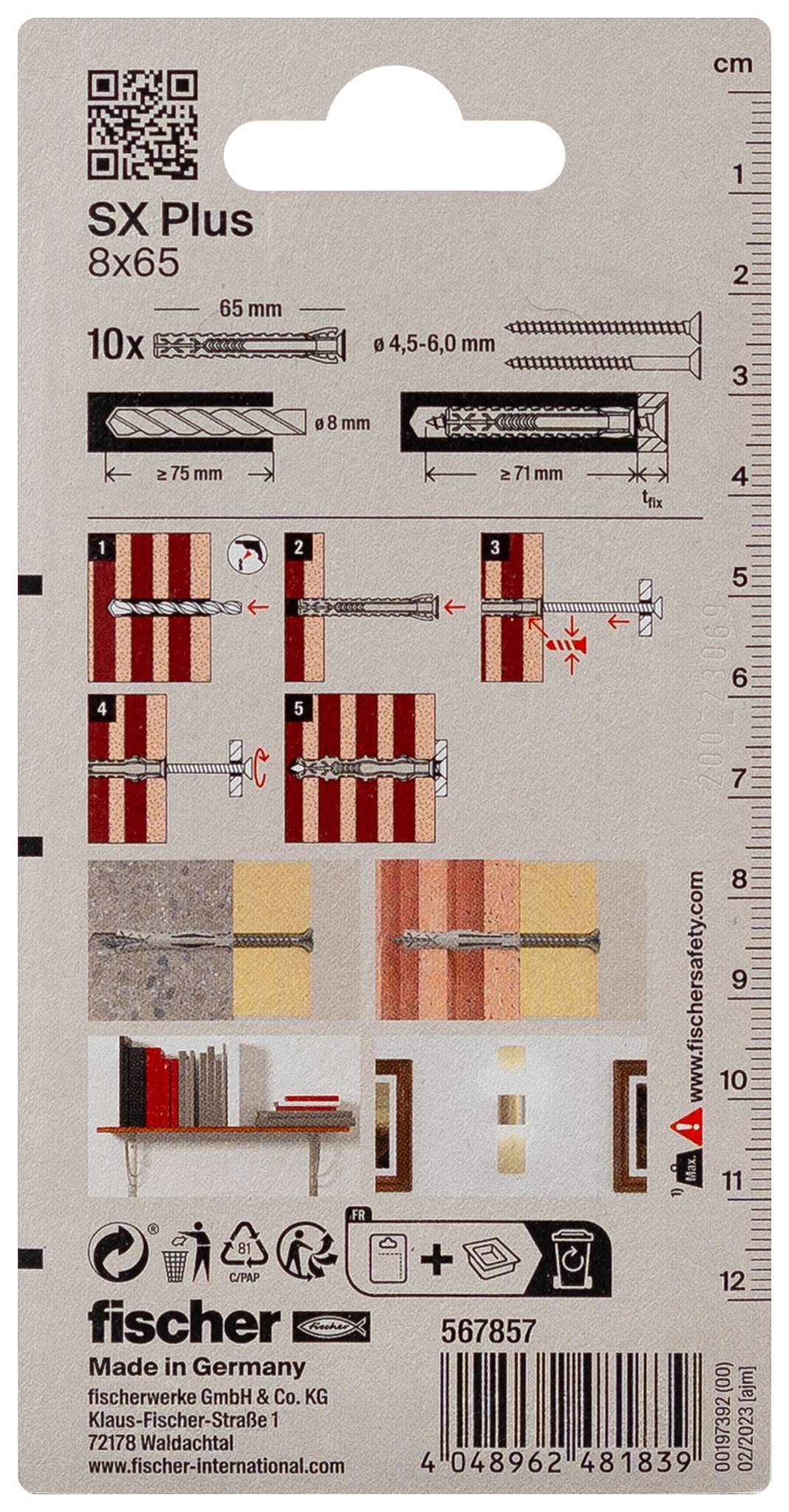

Packaging label for Fischer SX Plus 8x65 wall plugs, showing a QR code, installation diagrams, dimensions, and product details.

Shelves with neatly arranged ring binders in red, white, and gray, suggesting an organized office archive or filing system.

Flat-screen TV mounted on a wall with a silver swivel bracket, shown from the side against a light textured wall.

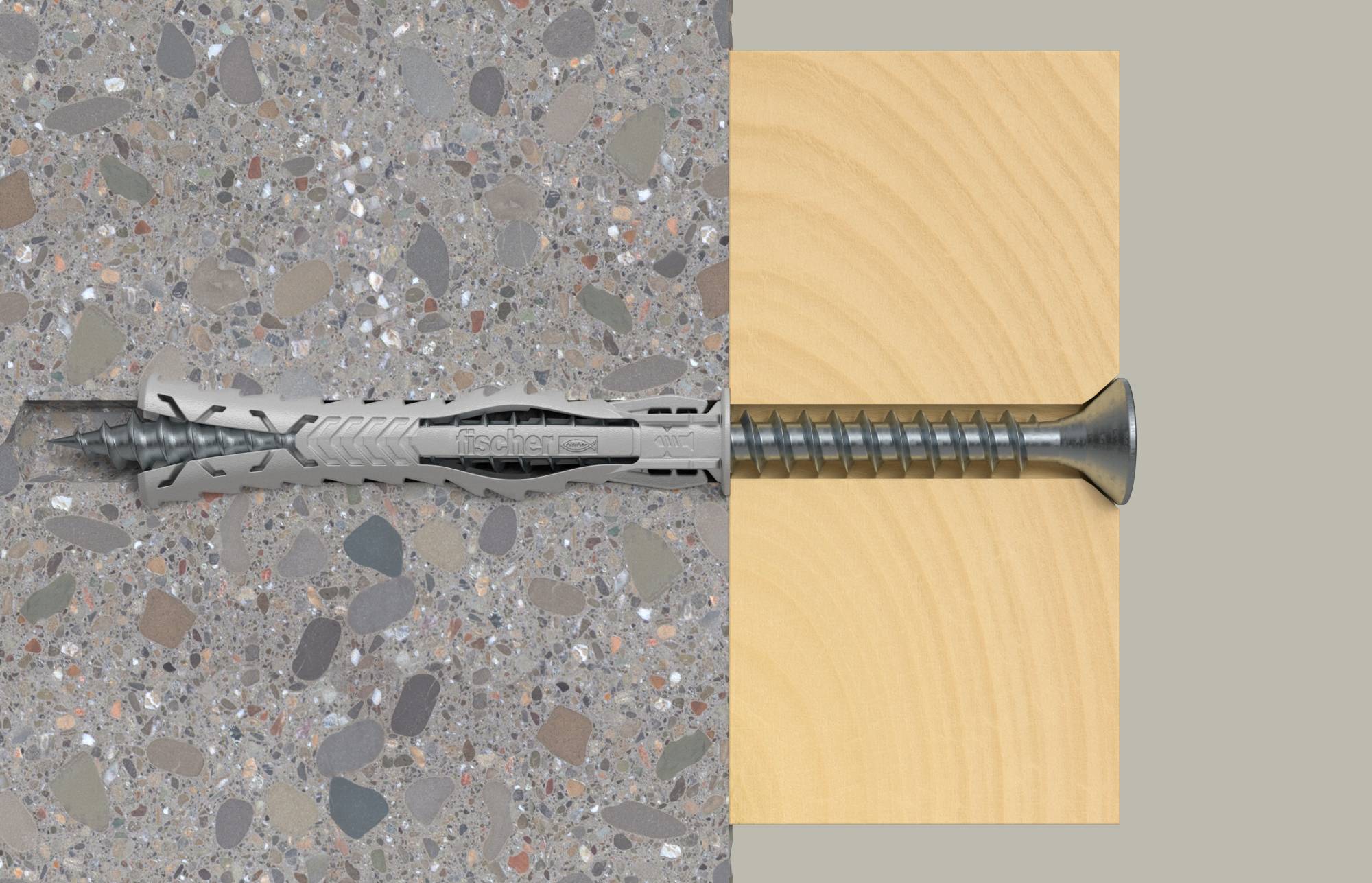

Diagram showing a wall anchor driven into concrete on the left and a screw fastened into wood on the right, illustrating how the fastener works in both materials.

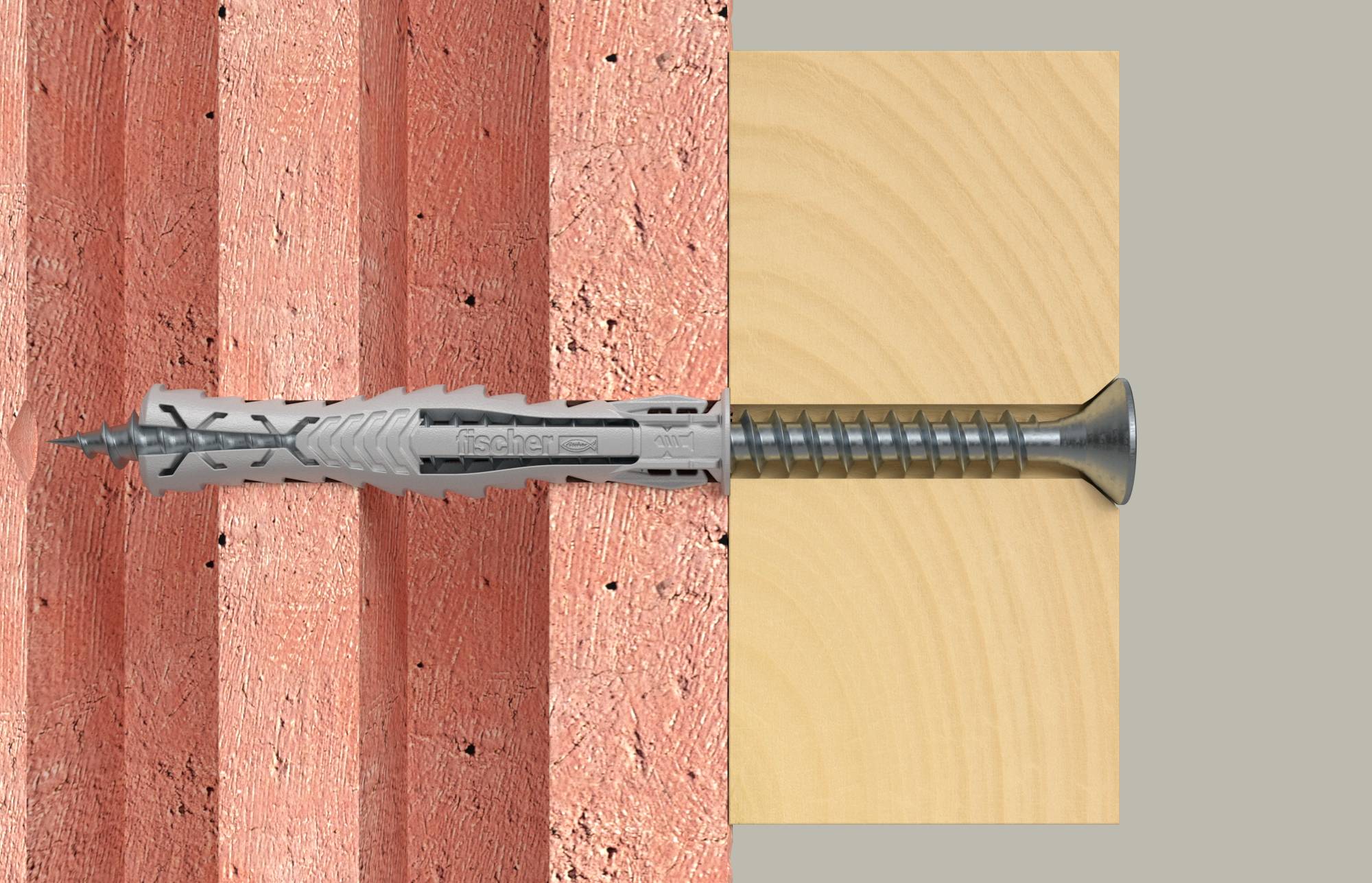

Illustration of a wall plug and screw anchored in masonry on the left and wood on the right, showing how a fastener secures materials.<br>

1/7

Fast track dispatch on Mon, 12 Oct

5 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 2.34 / piece)

€ 2.34

plus VAT.

Only 5 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fischer SX Plus 8 x 65 expanding plug

4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingIt is possible to mount the plug with little forceLarger anchoring depth for better transmission of force in perforated building materials and porous concreteA noticeable tightening torque prevents the screw from being overturned.

Technical specifications

Min Drill depth 75 mm

(Ø): 8 mm

Product type: Spring toggle

Length: 65 mm

Dim: (Ø x L) 8 mm x 65 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 10 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2858502 Fischer 567857 SX Plus Spring toggle 65 mm 8 mm 10 pc(s)

Description

The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials. This version with greater anchoring depth is suitable for Ideal attachments in perforated building materials, porous concrete and for plaster covering.

This text is machine translated.

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
Due to the greater anchorage depth, this SX Plus version is particularly suitable for mounting in perforated building materials, porous concrete and for plaster bridging
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
