Fischer 567869 SX Plus Green Spring toggle 60 mm 12 mm 3 pc(s)
EAN:
Part number:
Item no:
Number (Package size 3 pc(s))
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
Highlights & Details
Fischer SX Plus Green 12 x 60 S expanding plug with screw
- Manufactured with at least 50% renewable raw materials4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingWith suitable screw for maximum supportA noticeable tightening torque prevents the screw from being overturned
Technical specifications
- Min Drill depth 80 mm
- (Ø)
12 mm
- Product type
Spring toggle
- Length
60 mm
- Dim
(Ø x L) 12 mm x 60 mm
- Suitable for
Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks
- Content
3 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2858926 Fischer 567869 SX Plus Green Spring toggle 60 mm 12 mm 3 pc(s)
Description
The Fischer SX Plus Green plug is made from at least 50% renewable resources.Its 4-fold spread makes it the specialist for solid building materials such as concrete, lime sandstone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The screws supplied are perfectly suitable for the Fischer SX Plus expanding plug.
This text is machine translated.
This text is machine translated.
Features
- The SX Plus Green is produced with at least 50% renewable resources and is thus especially environment-friendly
- The 4-fold spread ensures optimum force flow into the building material and guarantees high holding values in solid and perforated building materials
- The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
- The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
- Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
- The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
Scope of delivery

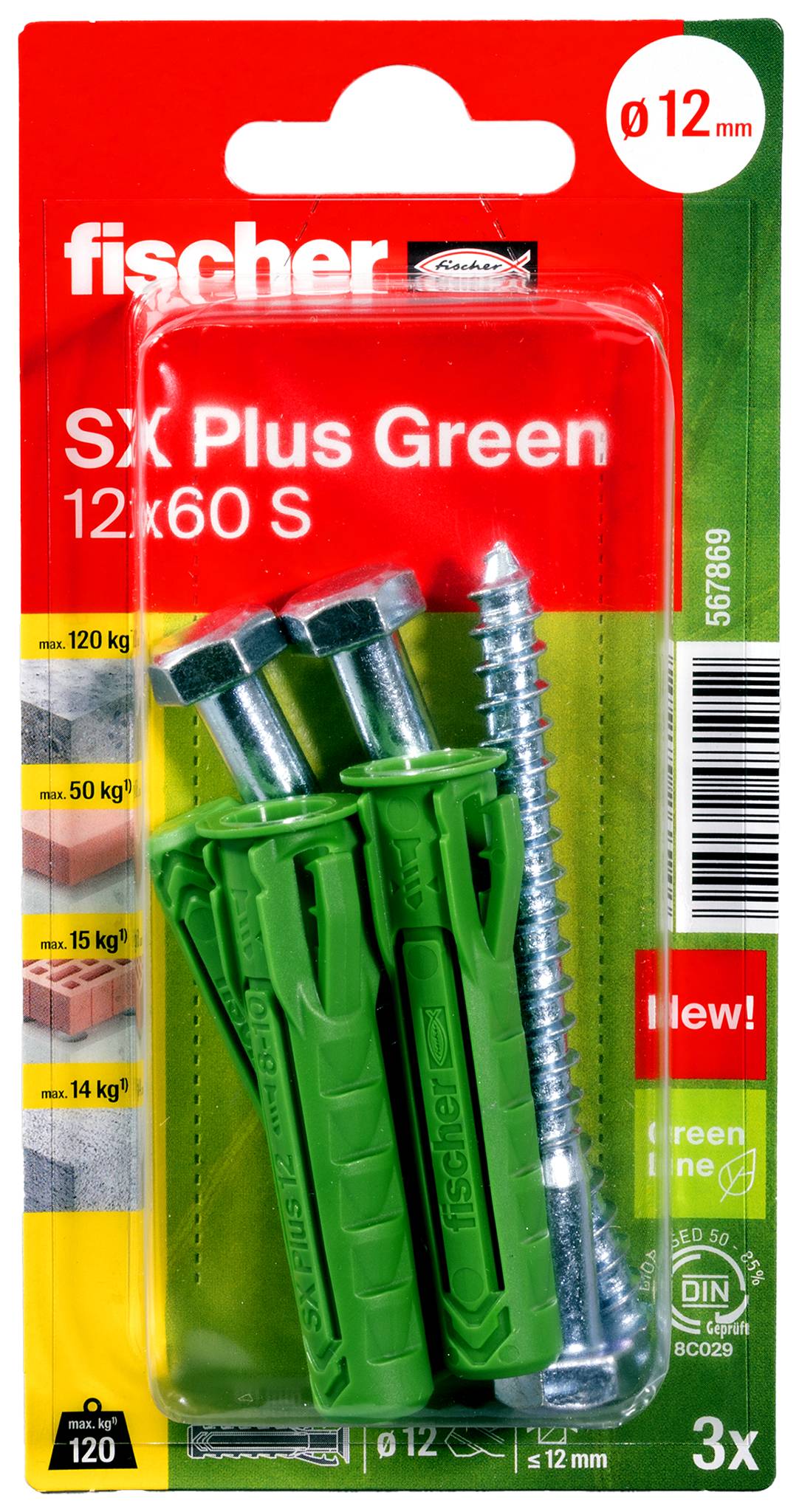

- 3 x SX Plus Green toggle plugs 12 x 603 x Hexagon-wood screw 8.0 x 80
