Fischer 567897 Profibox SX Plus + S Dowel set 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

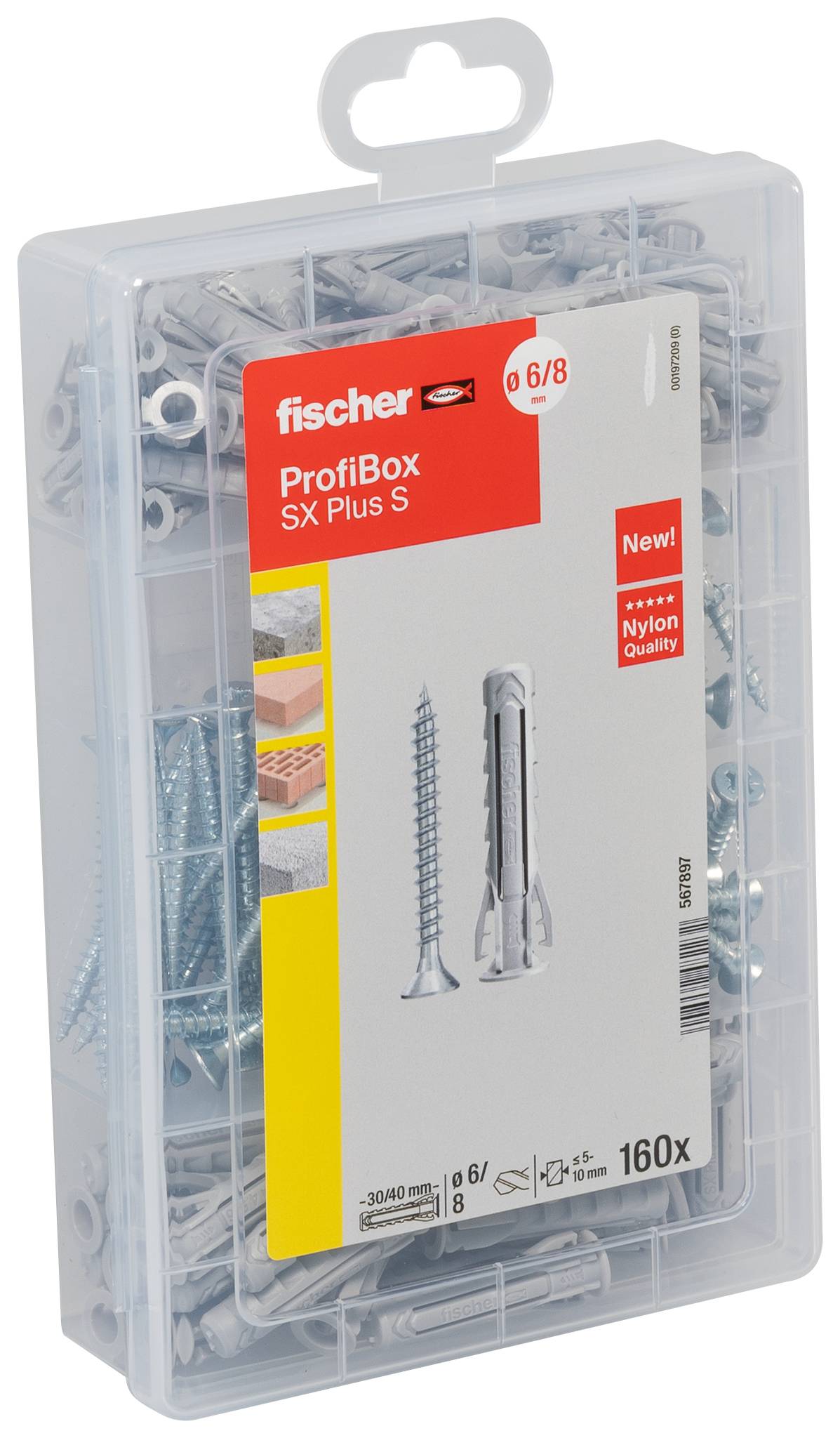

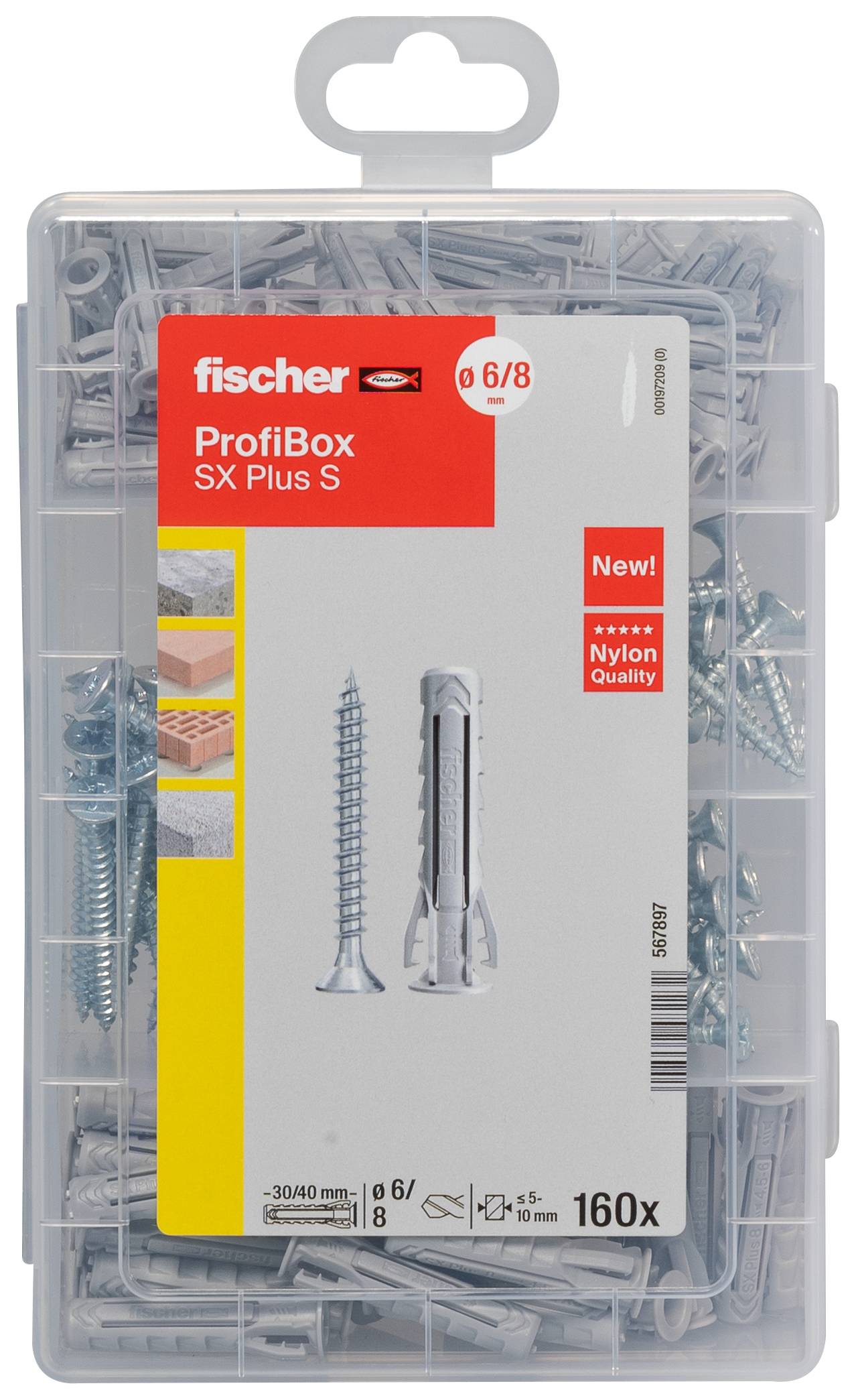

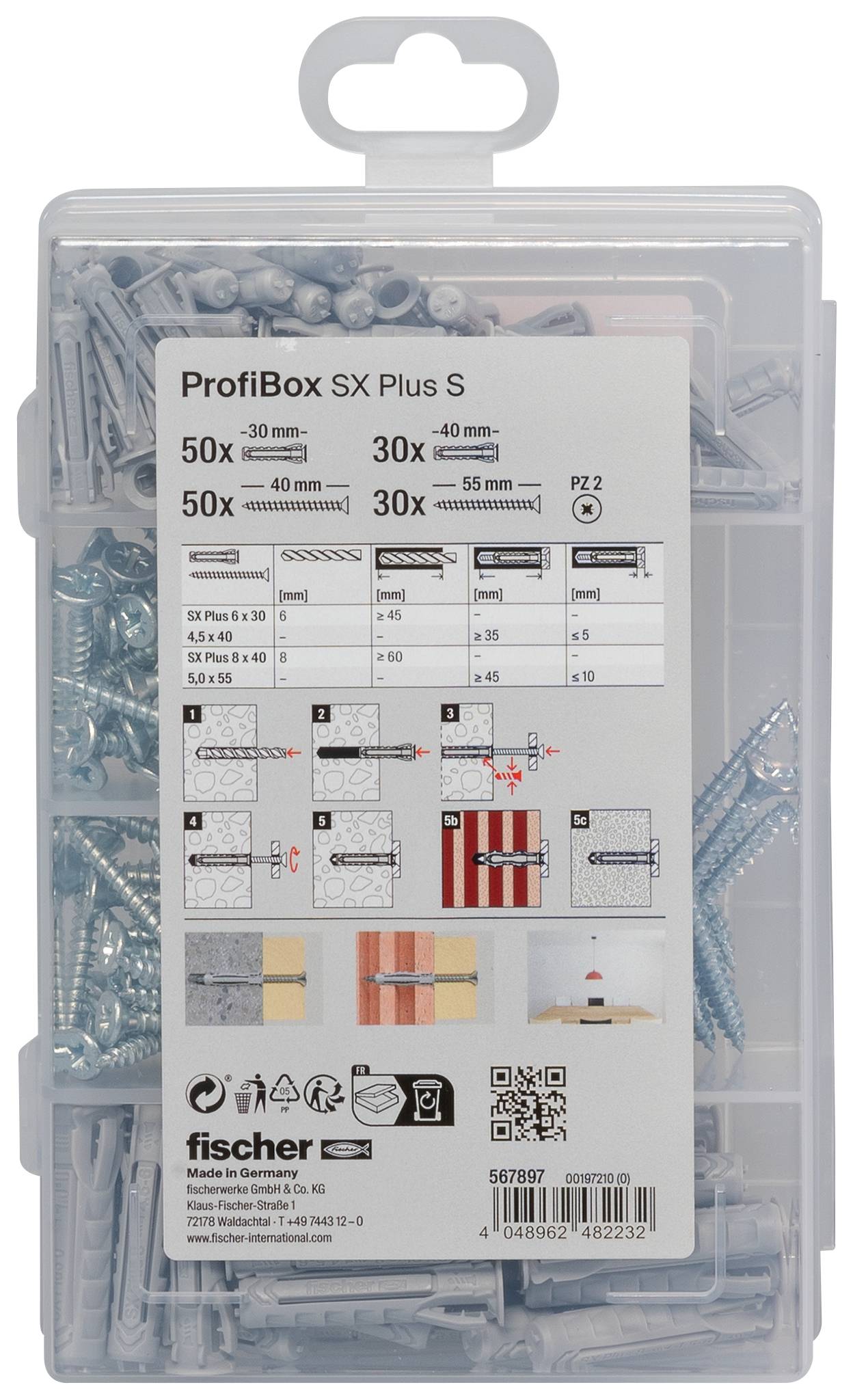

Fischer SX Plus Pro box expanding plug + screw (160 parts)
- 50x SX Plus 6 x 30 + dowel screws 4.5 x 40 and 30x SX Plus 8 x 40 + dowel screws 5 x 55.
- 4-way spread for high withstand values.
- Fixing wings for screw fixing and flexible mounting.
- Dowel border prevents deep sliding into the bore hole.
- A noticeable tightening torque prevents the screw from being overturned.
Technical specifications
- (Ø)
6 mm
- Product type
Dowel set
- Length
30 mm
- Screw diameter
4.5 mm
- Dim
(Ø x L) 6 mm x 30 mm
- Suitable for
Concrete
- Content
1 pc(s)
- Keyboard layout
English, QWERTY
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2844159 Fischer 567897 Profibox SX Plus + S Dowel set 1 pc(s)
Description
The Fischer MasterBox SX Plus plug contains pre-sorted 50 expanding plugs SX Plus 6 x 30 and 30 SX Plus 8 x 40 each with suitable dowel screws 4.5 x 40 and 5 x 55. This master box, made of high-quality and impact-resistant plastic, is Ideal for workshops and construction sites. The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.
This text is machine translated.
This text is machine translated.

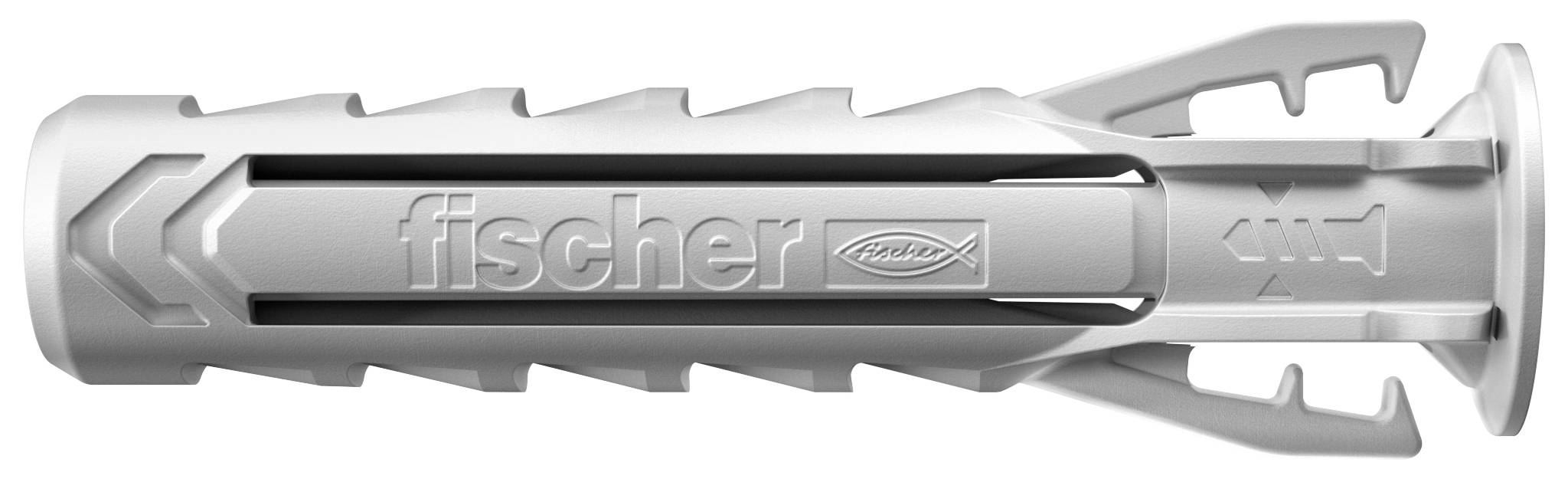

Features
- The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material.
- The special fixing wings provide pre-fixing of the screw, which means that both the hands of the user are free during setting.
- The free of spread pressure dowel prevents the screw from developing strut forces at the surface of the building material. This prevents tiles and plaster from bursting.
- The special shape of the dowel allows it to be easily placed in the borehole with just a few hammer blows.
- The distinctive edge of the dowel prevents it from slipping into the borehole and enables a secure mounting.
- The noticeable torque indicates automatically when the screw is seated correctly and prevents the screw from overtightening.

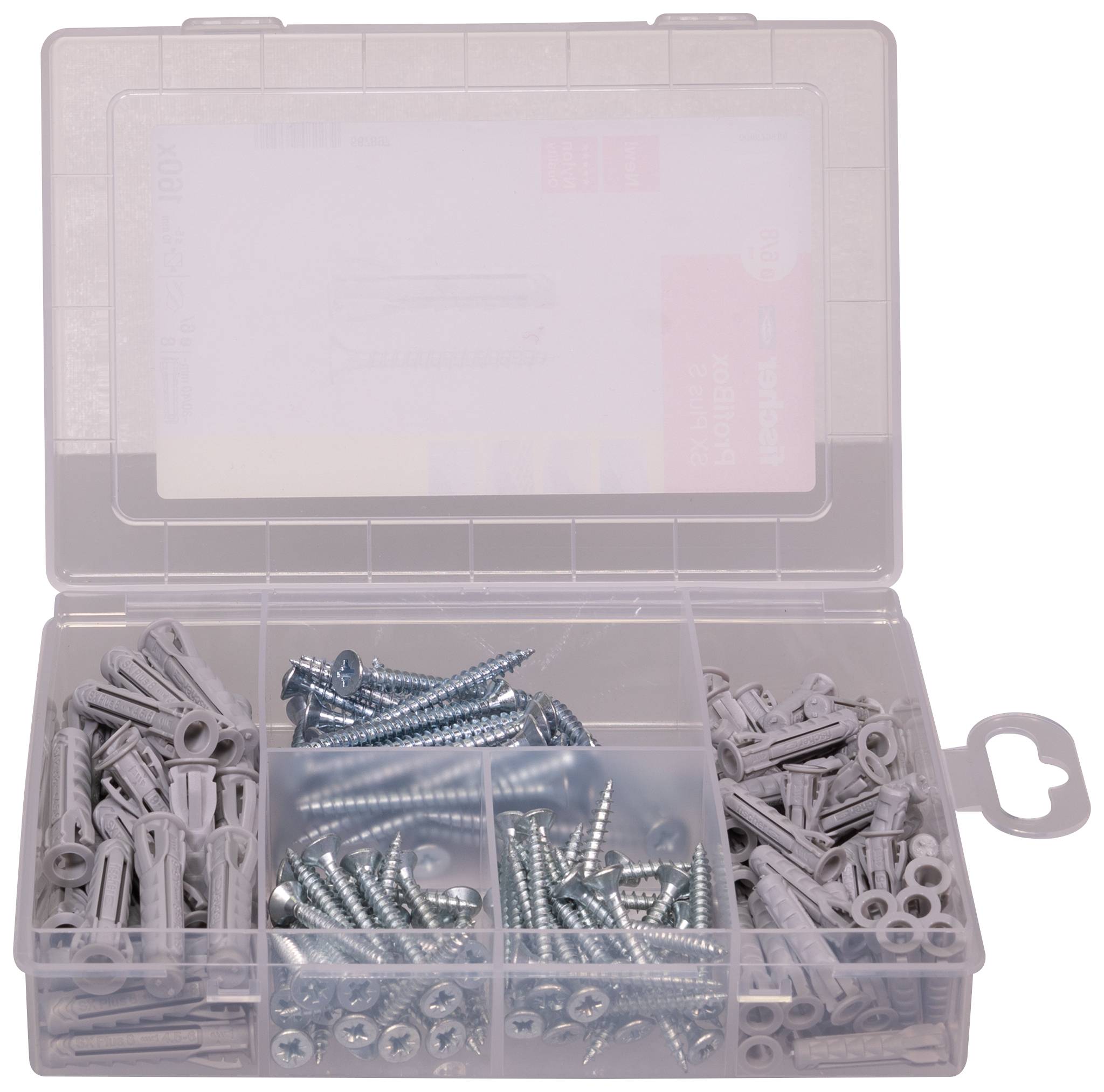

Scope of delivery
- 50 x SX Plus 6 x 30 expanding plugs
- 30 x SX Plus 8 x 40 expanding plugs
- 50 x 4.5 x 40 chipboard screws
- 30 x 5.0 x 55 chipboard screws
