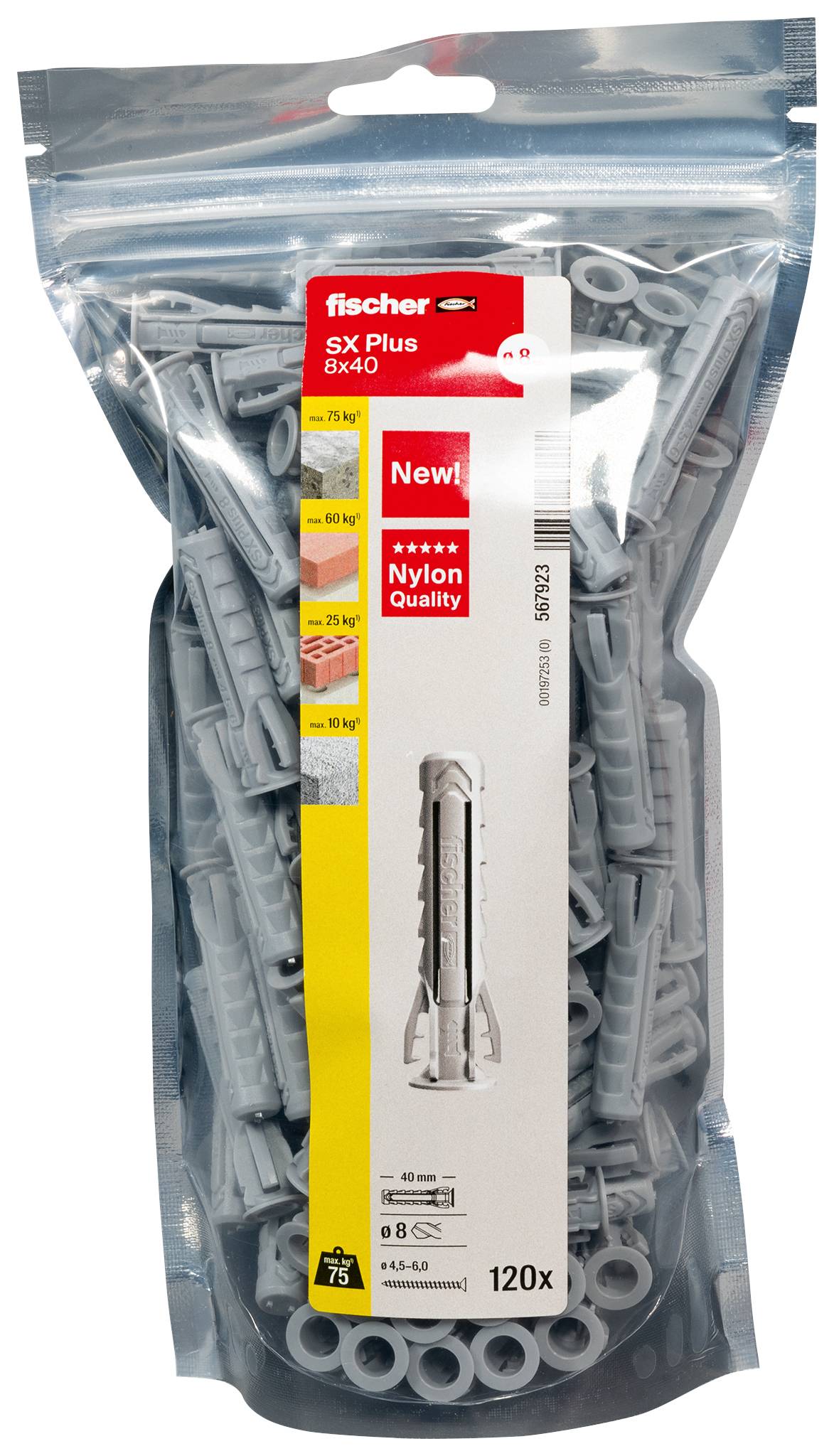

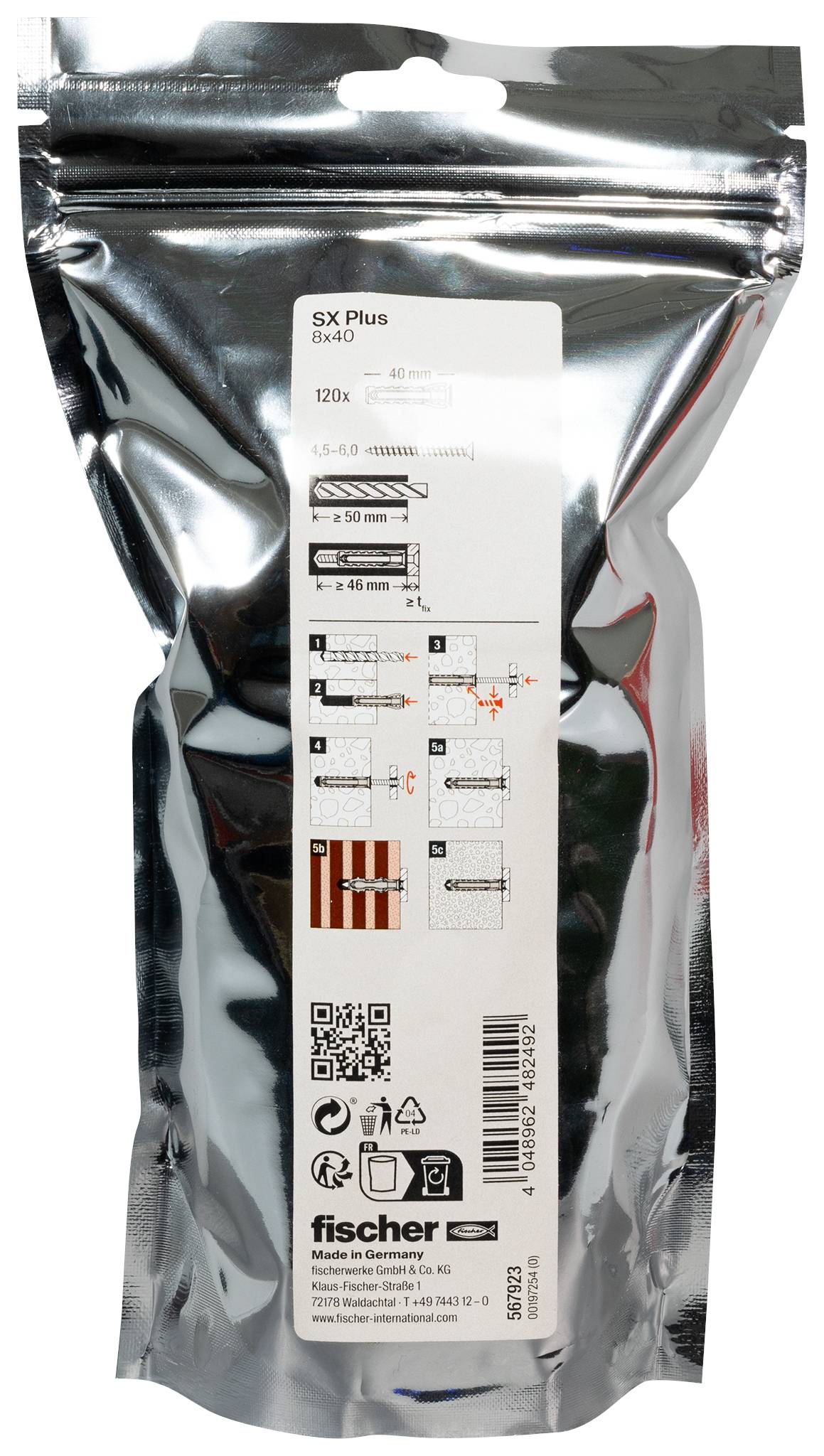

Fischer 567923 SX Plus Dowel set 40 mm 8 mm 120 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

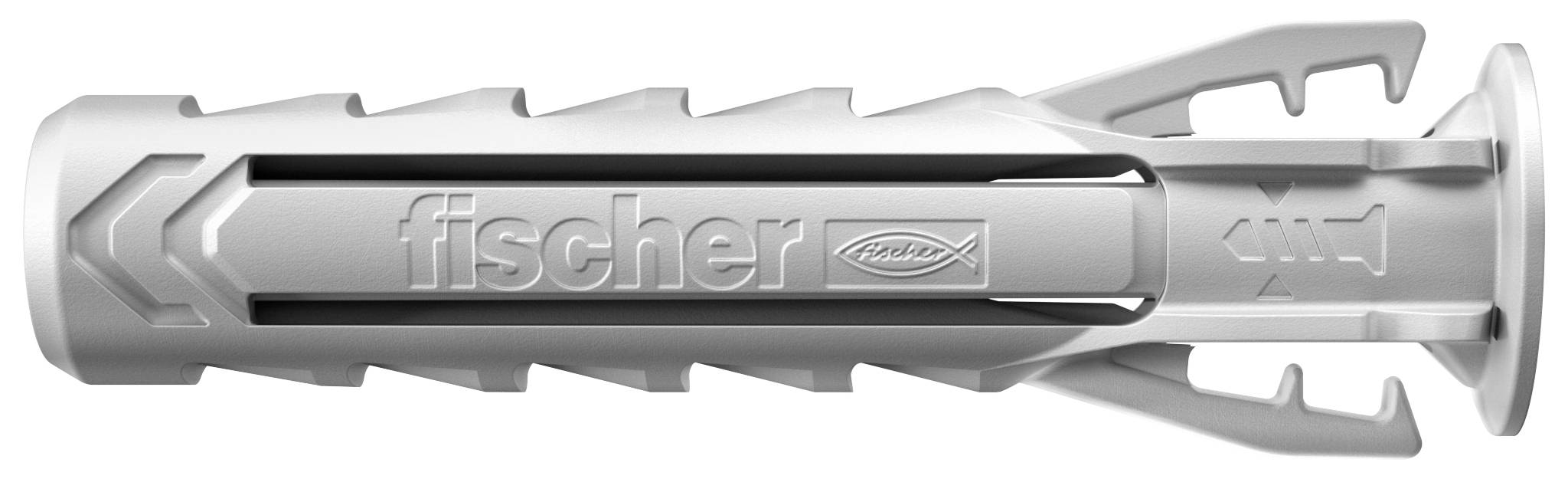

Fischer SX Plus 8 x 40 expanding plug
- 4-way spread for high withstand values.
- Fixing wings for screw fixing and flexible mounting.
- It is possible to mount the plug with little force.
- Dowel border prevents deep sliding into the bore hole.
- A noticeable tightening torque prevents the screw from being overturned.
Technical specifications
- (Ø)
8 mm
- Product type
Dowel set
- Material
Nylon
- Length
40 mm
- Dim
(Ø x H) 8 mm x 40 mm
- Suitable for
Brickwork
Solid stone
Concrete
Hollow bricks
Flintlime bricks
- Content
120 pc(s)
- Outside Ø
8 mm
- Height
40 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2844161 Fischer 567923 SX Plus Dowel set 40 mm 8 mm 120 pc(s)
Description

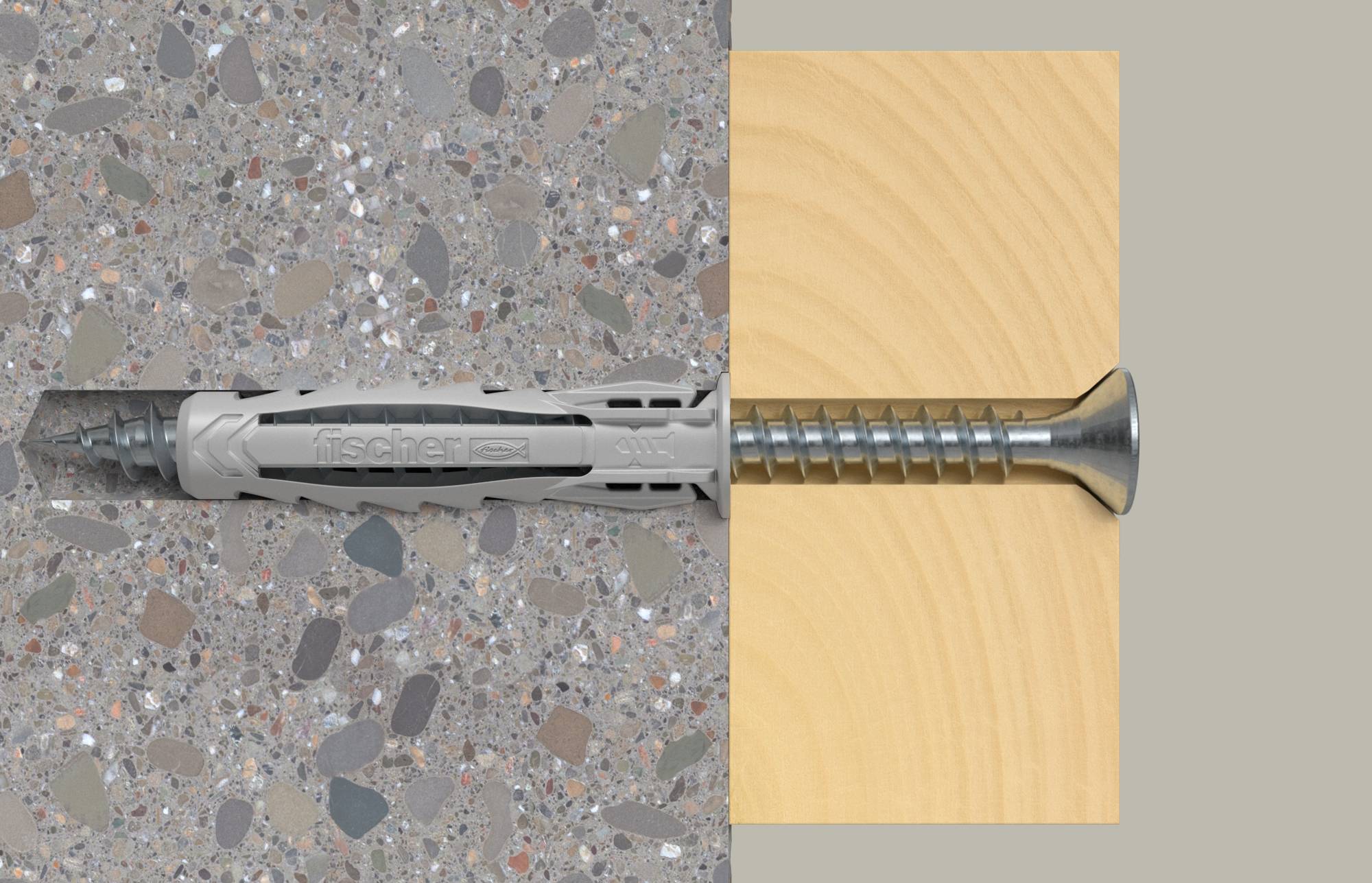

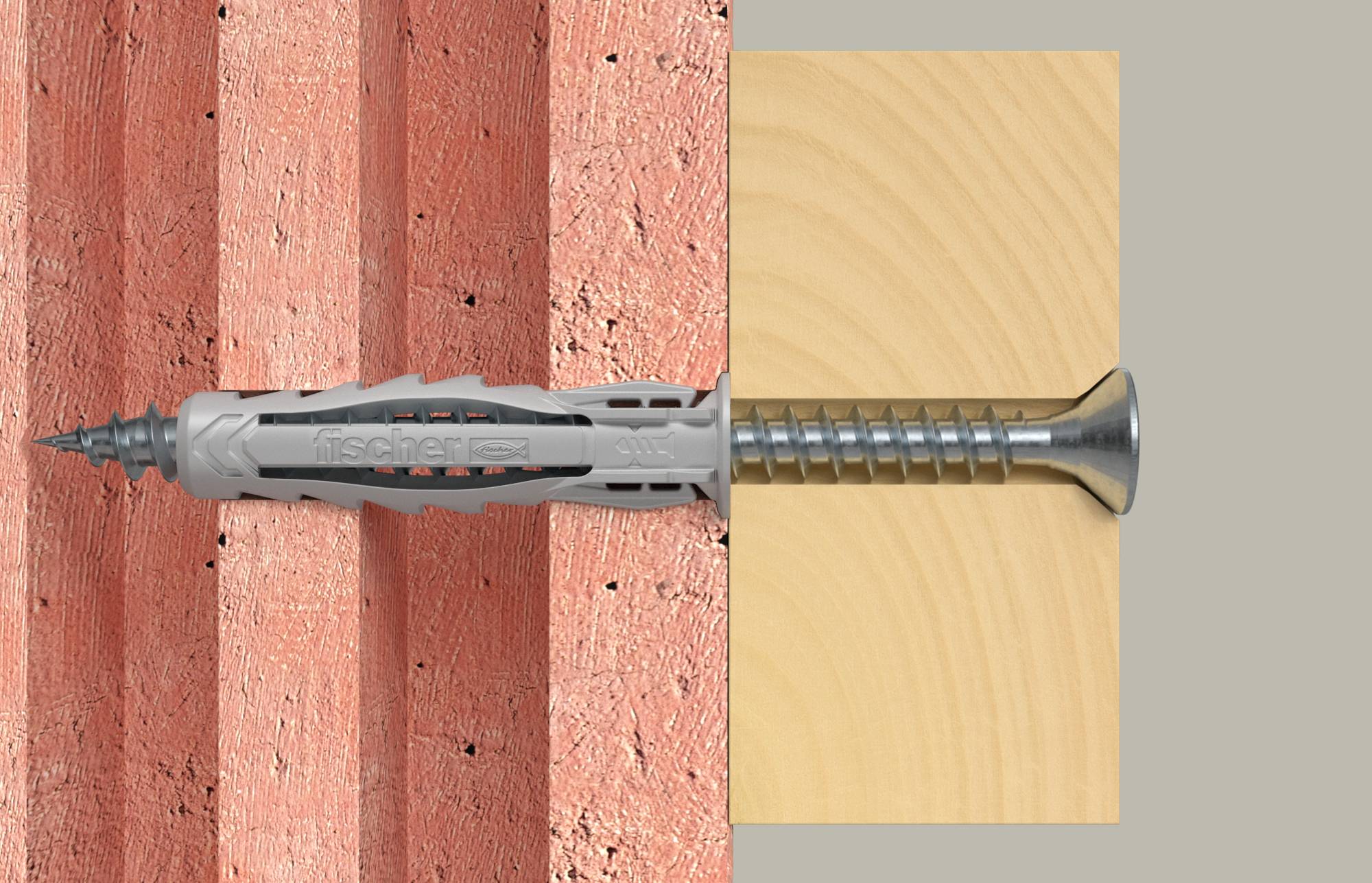

The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.
This text is machine translated.
This text is machine translated.
Features
- The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material.
- The special fixing wings provide pre-fixing of the screw, which means that both the hands of the user are free during setting.
- The free of spread pressure dowel prevents the screw from developing strut forces at the surface of the building material. This prevents tiles and plaster from bursting.
- The special shape of the dowel allows it to be easily placed in the borehole with just a few hammer blows.
- The distinctive edge of the dowel prevents it from slipping into the borehole and enables a secure mounting.
- The noticeable torque indicates automatically when the screw is seated correctly and prevents the screw from overtightening.
