Fischer 567925 Spring toggle 50 mm 10 mm 25 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

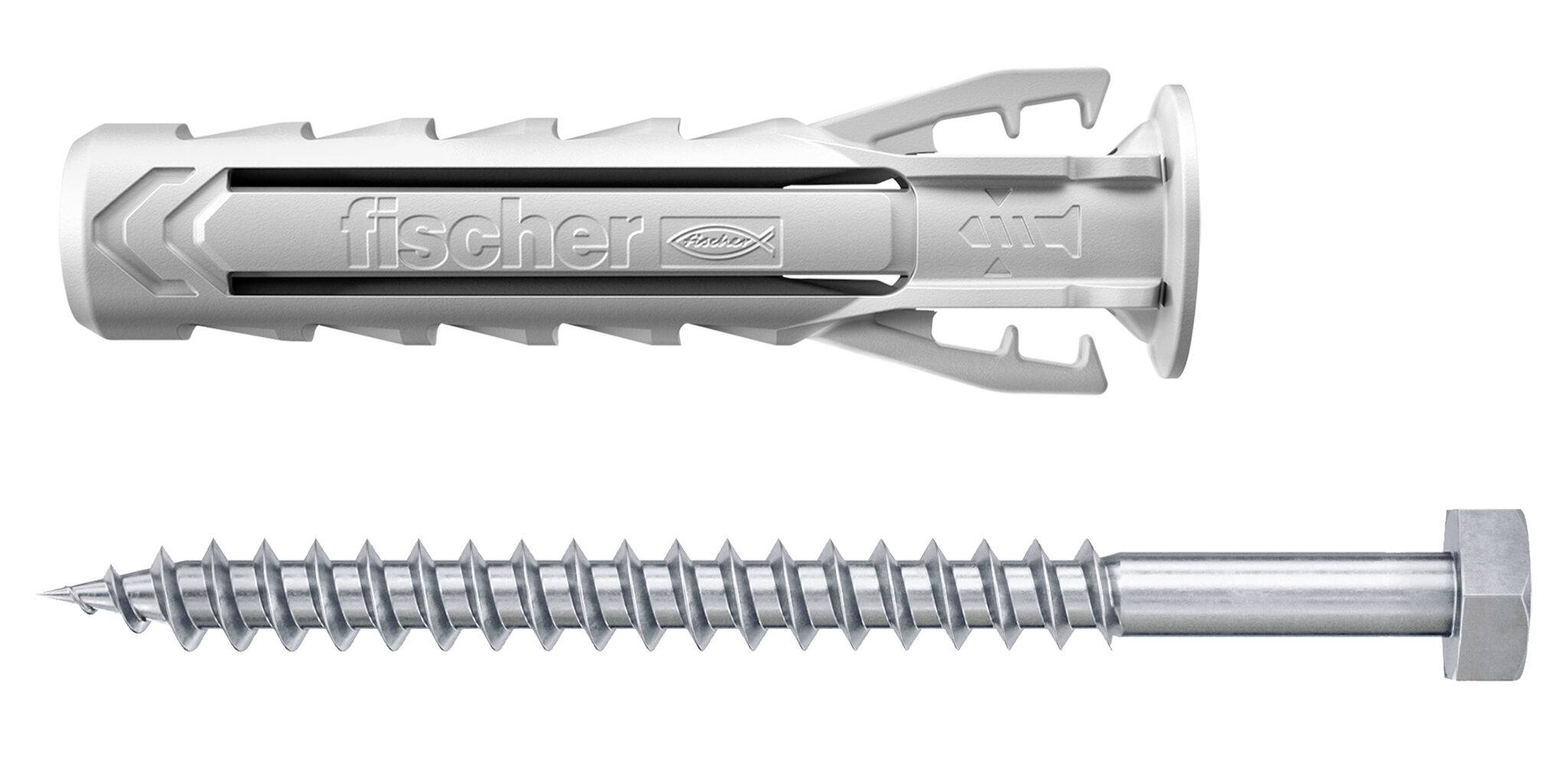

Fischer SX Plus 10 x 50 S expanding plug with screw
- Four-way spread for high withstand values
- Fixing wings for screw fixing and flexible mounting
- With suitable screw for maximum support
- Dowel border prevents deep sliding into the bore hole
- A noticeable tightening torque prevents the screw from being overturned
Technical specifications
- (Ø)
10 mm
- Product type
Spring toggle
- Length
50 mm
- Screw diameter
7 mm
- Dim
(Ø x L) 10 mm x 50 mm
- Suitable for
Concrete
Solid brick
Flintlime bricks
Foamed concrete wall
Cored bricks
Flintlime hollow bricks
Structural lightweight concrete hollow block
Solid stone
Natural stone
Drywall sheet
- Content
25 pc(s)
- Quantity per pack
25 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3835570 Fischer 567925 Spring toggle 50 mm 10 mm 25 pc(s)
Description

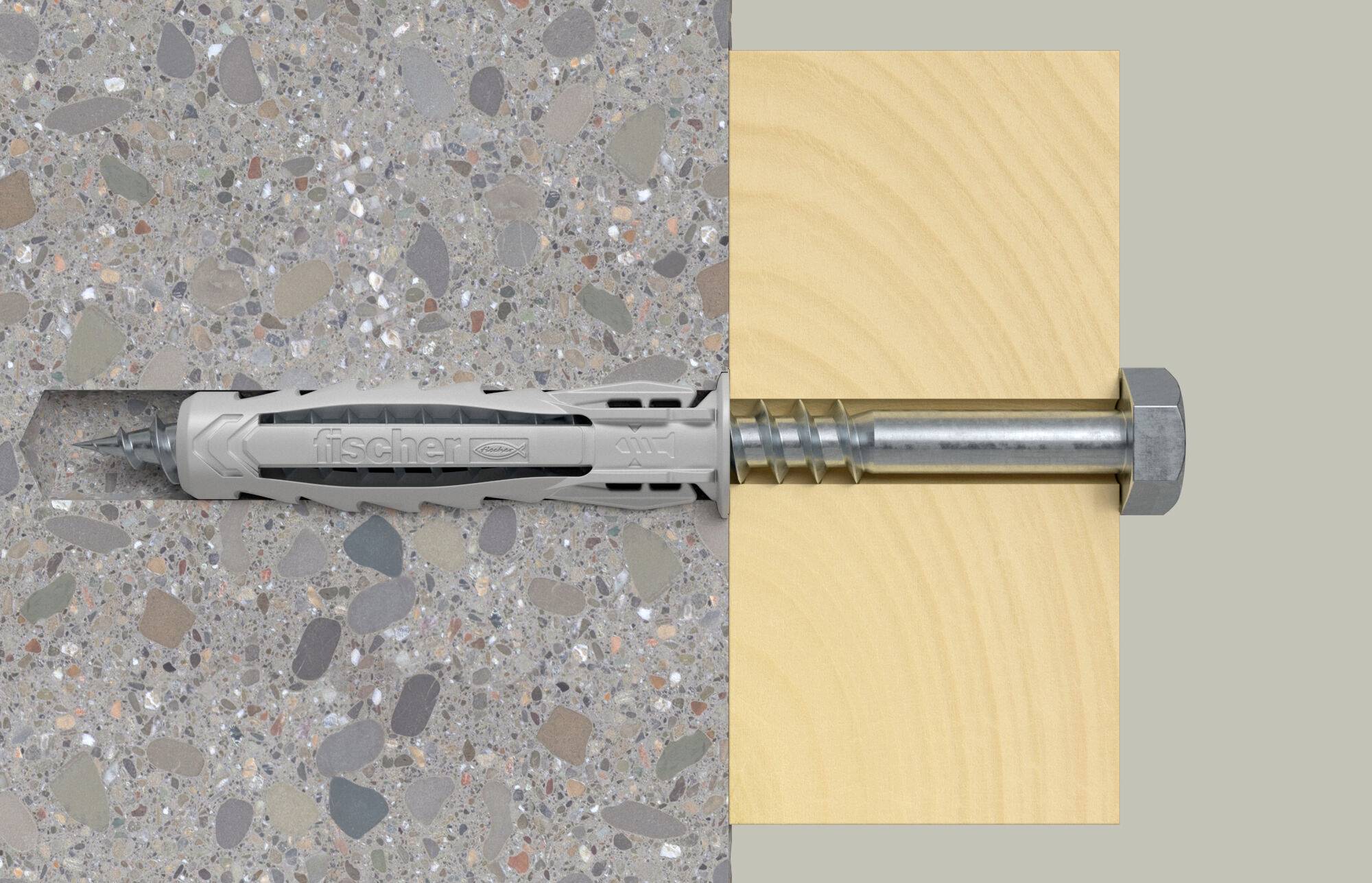

The Fischer SX Plus expanding plug is, thanks to its four-way expansion, the specialist for solid construction materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The screws supplied are perfectly suitable for the Fischer SX Plus expanding plug. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.
This text is machine translated.
This text is machine translated.
Features

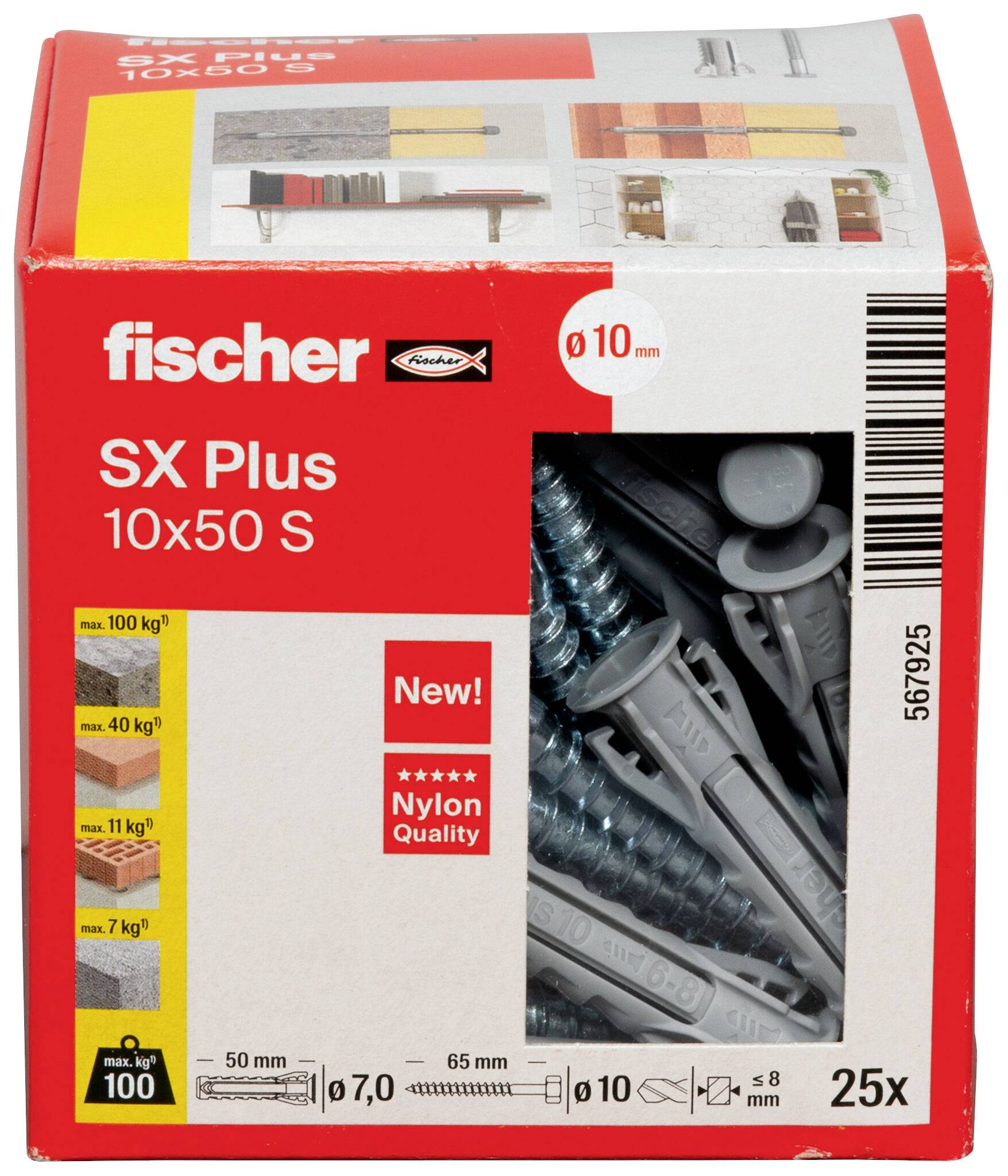

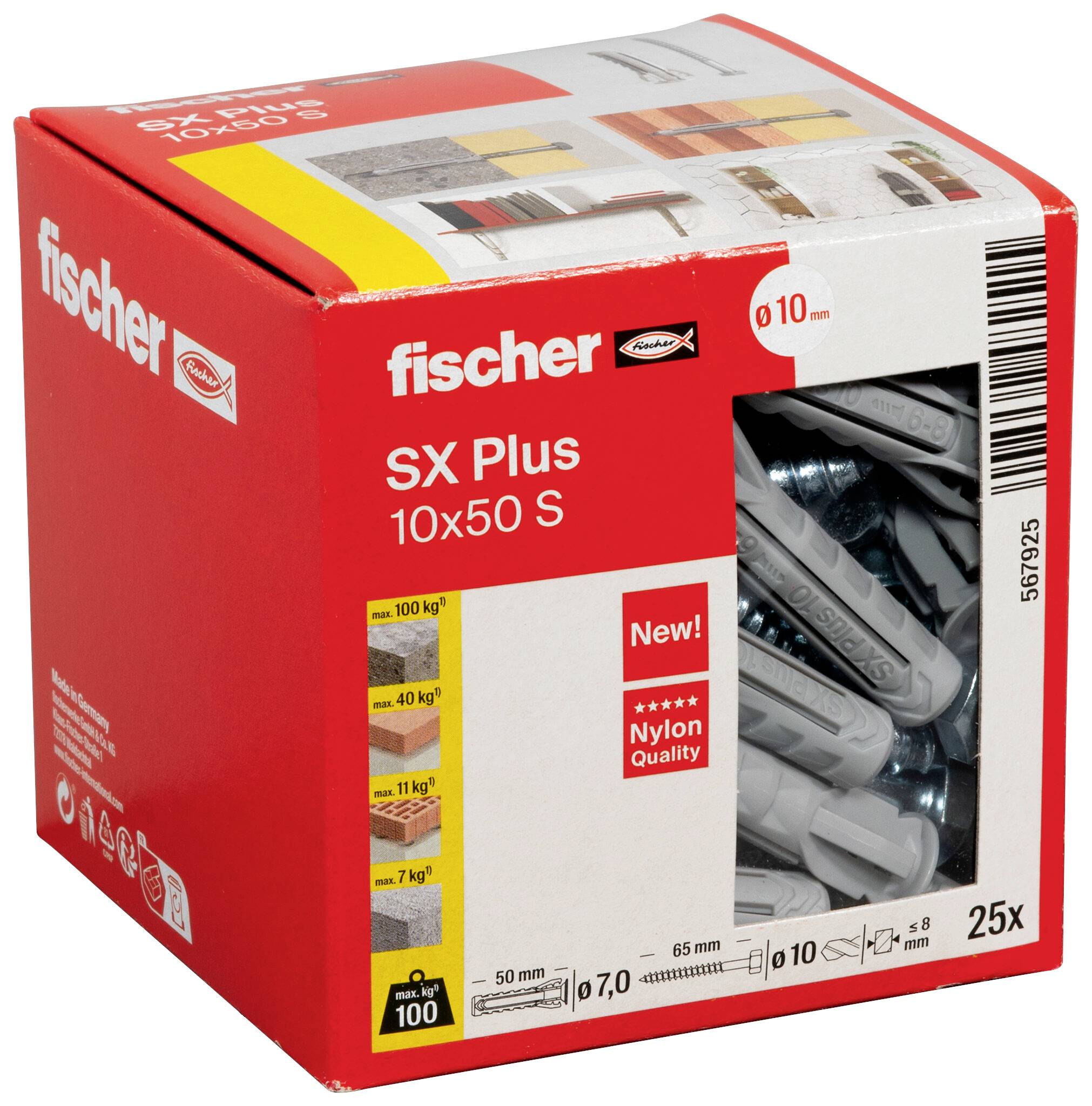

- 25 x SX Plus 10 x 50 expanding plugs
- 25 x hexagonal screws 7.0 x 65
Scope of delivery
- Fischer SX Plus 10 x 50 S expanding plug with screw
