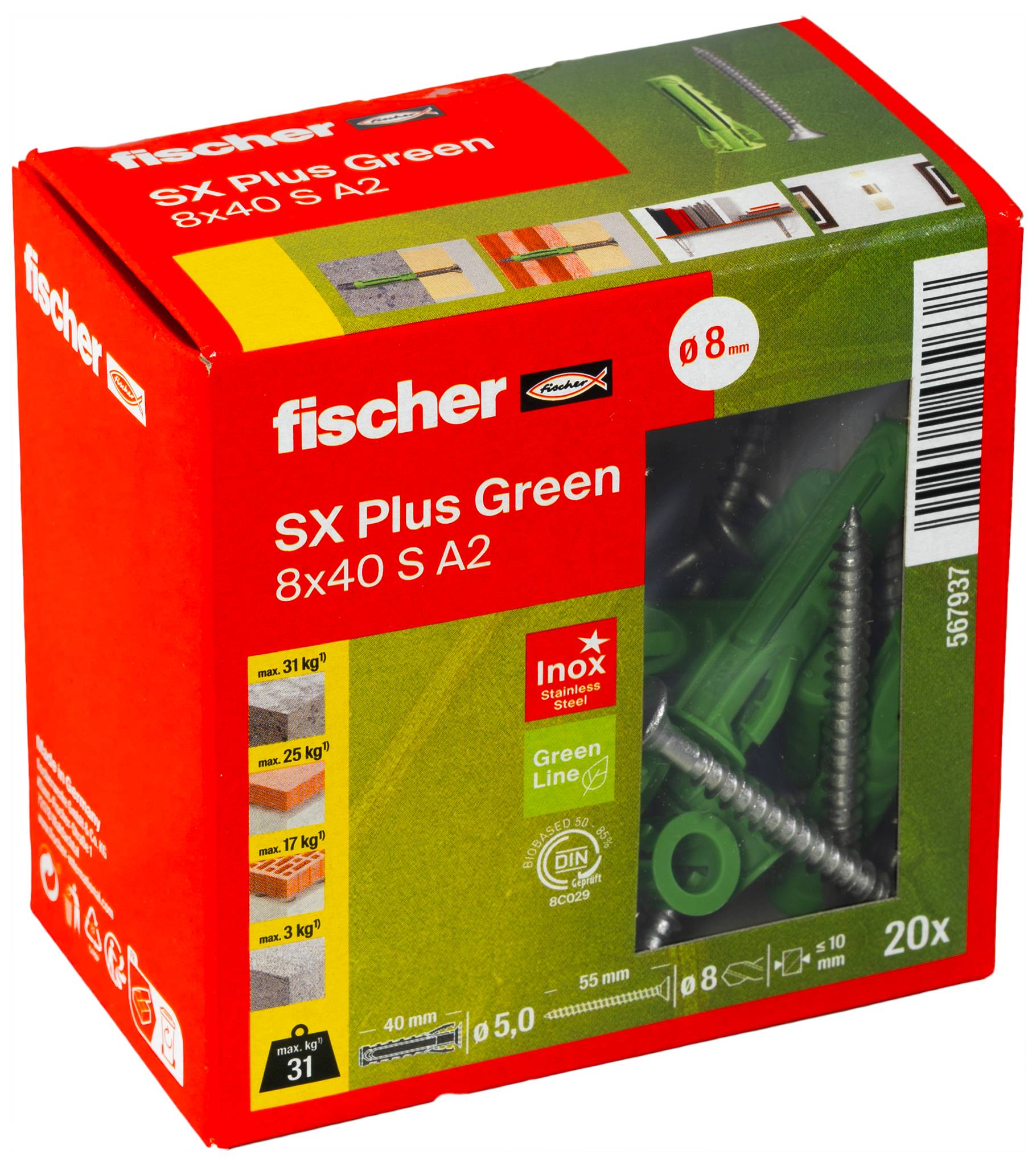

Red Fischer wall plug box labeled 'fischer SX Plus Green 8x40 S A2', showing 20 green anchors and screws through a clear window.

Green plastic wall plug and silver screw shown side by side on a white background.<br>

A Fischer 'SX Plus Green 8x40 S A2' box showing 20 wall plugs and 20 screws, with installation diagrams and dimensions.

Box of Fischer SX Plus Green 8x40 S A2 wall plugs and screws, with product specifications and installation diagram on the package.

Red Fischer SX Plus Green 8x40 S A2 anchor box showing green wall plugs and screws, labeled 8 mm, 20 pieces.

Wall-mounted black-framed mirror reflecting a sparse white room with a potted plant; dresser with two vases sits beside it.

Sheer white shower curtain hanging from silver rings on a black-and-silver curtain rod against a plain light wall.

Green plastic wall anchor and screw shown penetrating a concrete surface and fastening into wood, illustrating a masonry-to-wood connection.

Green wall anchor and screw securing into brick and wood, showing a fastening installation in split view.

1/9

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

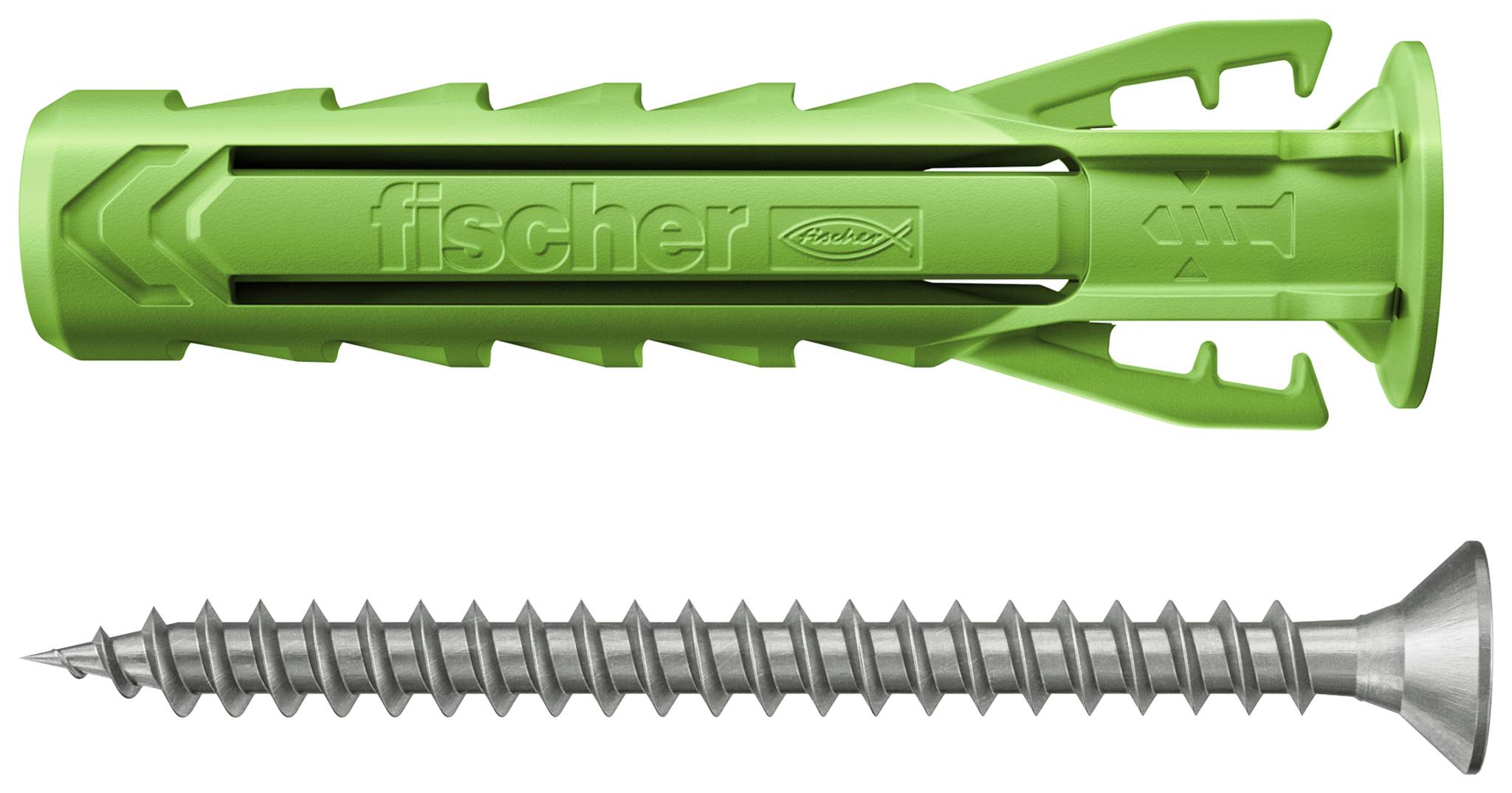

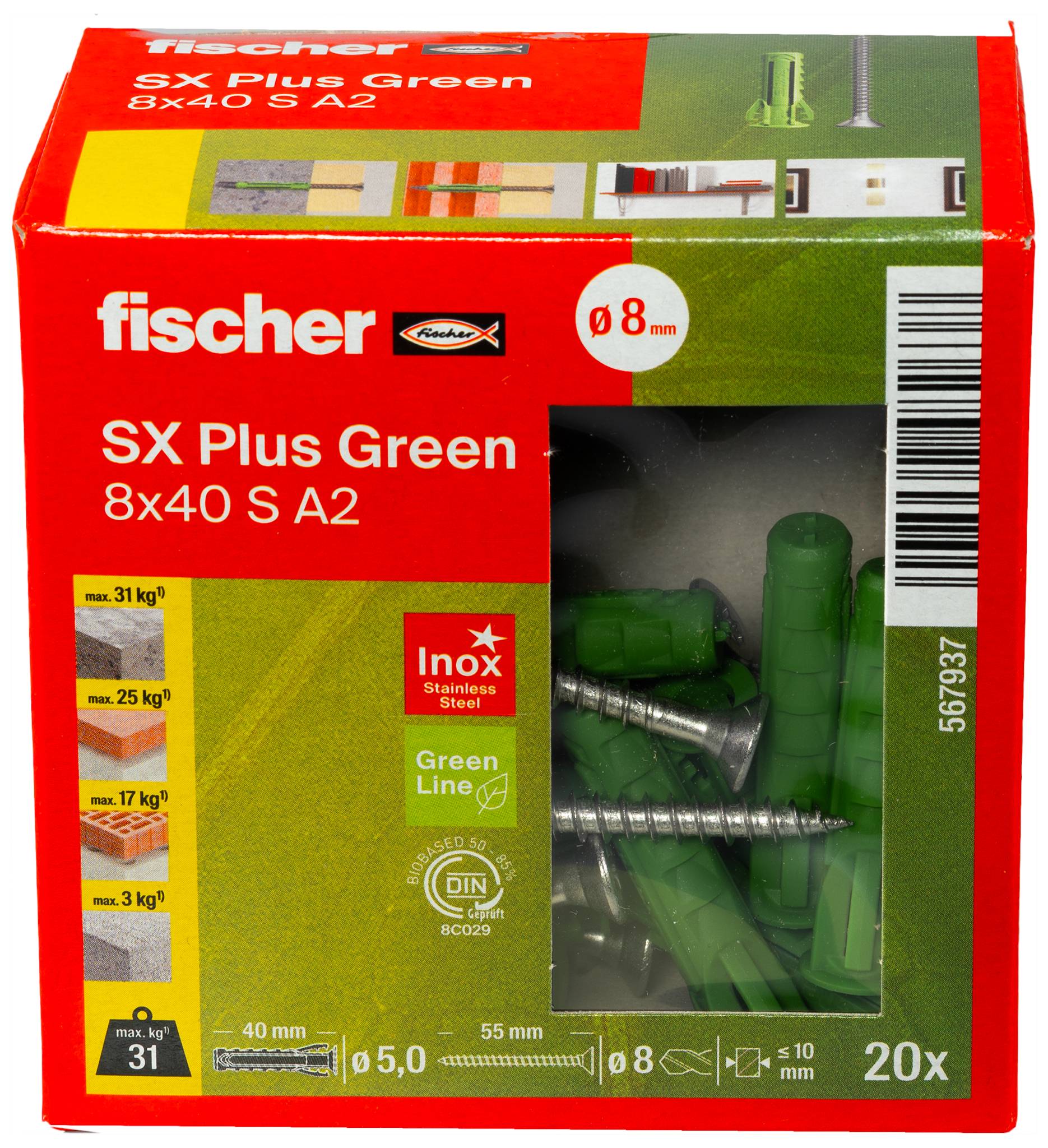

Fischer SX Plus Green 8 x 40 S expanding plug with A2 stainless steel screw

Manufactured with at least 50% renewable raw materials.
4-way spread for high withstand values.
Fixing wings for screw fixing and flexible mounting.
Stainless steel screw for more sustainability
With matching A2 screw for maximum support, also suitable for wet and outdoor areas.
A noticeable tightening torque prevents the screw from being overturned

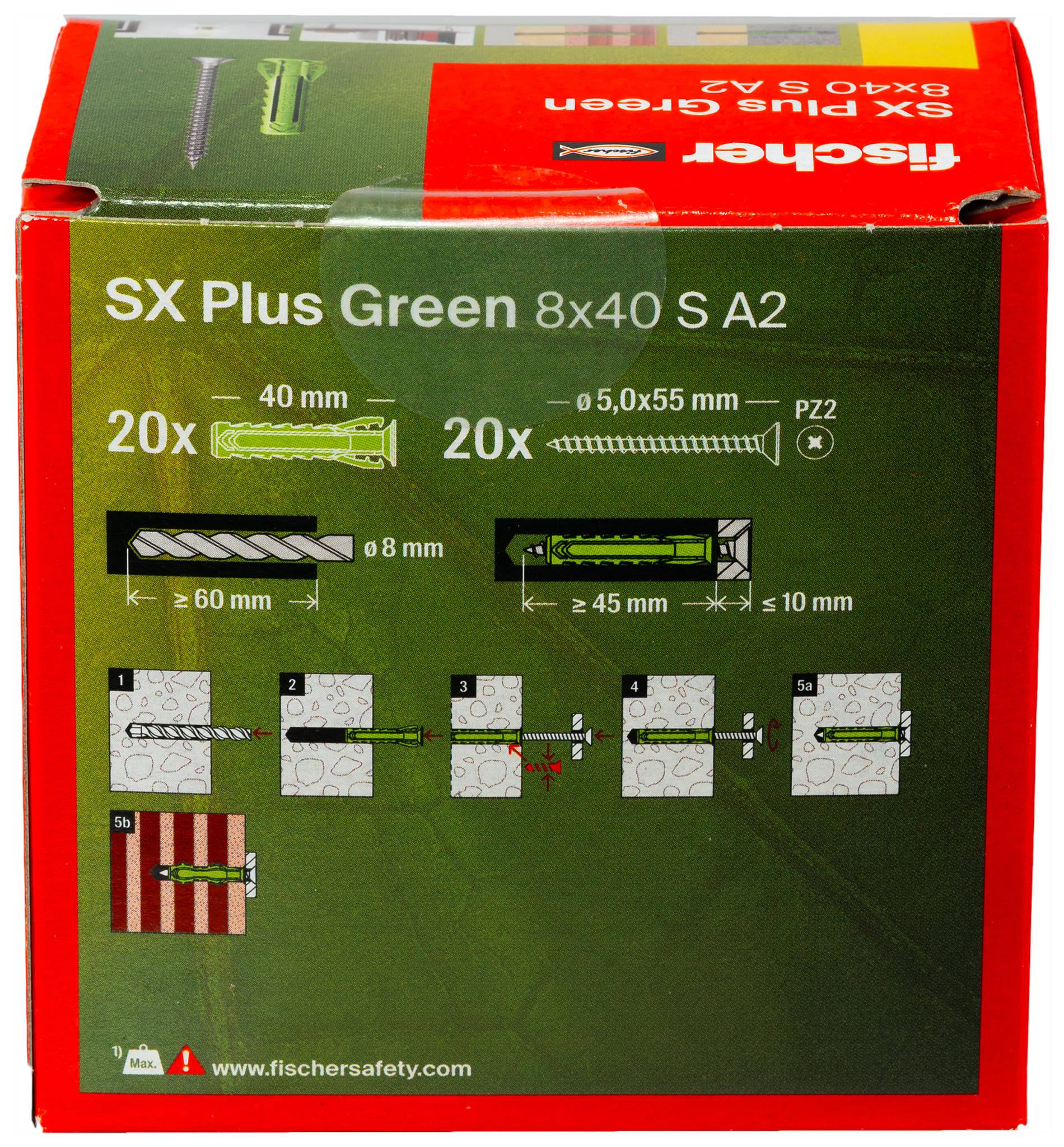

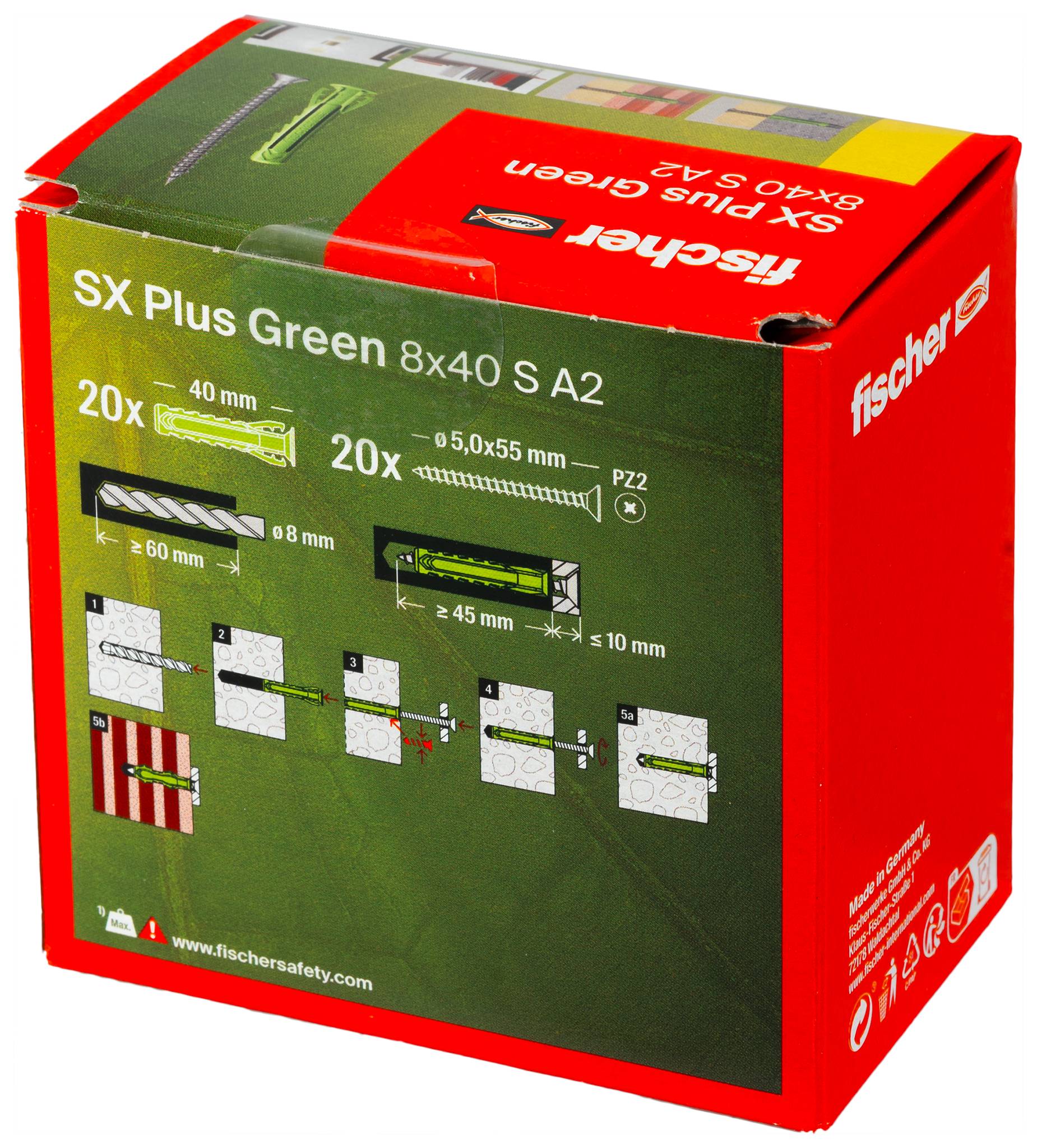

Technical specifications

8 mm drill nominal diameter
Min Drill depth 50 mm
Dowel length 40 mm
Chipboard/wood screws 5 x 55 mm

Product type: Dowel

Suitable for: Concrete
Solid brick
Flintlime hollow bricks
Foamed concrete wall
Cored bricks
Flintlime bricks
Structural lightweight concrete hollow block
Solid stone
Hollow ceiling panels
Drywall sheet

Content: 20 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3439096 Fischer 567937 SX Plus Green Dowel 20 pc(s)

Description

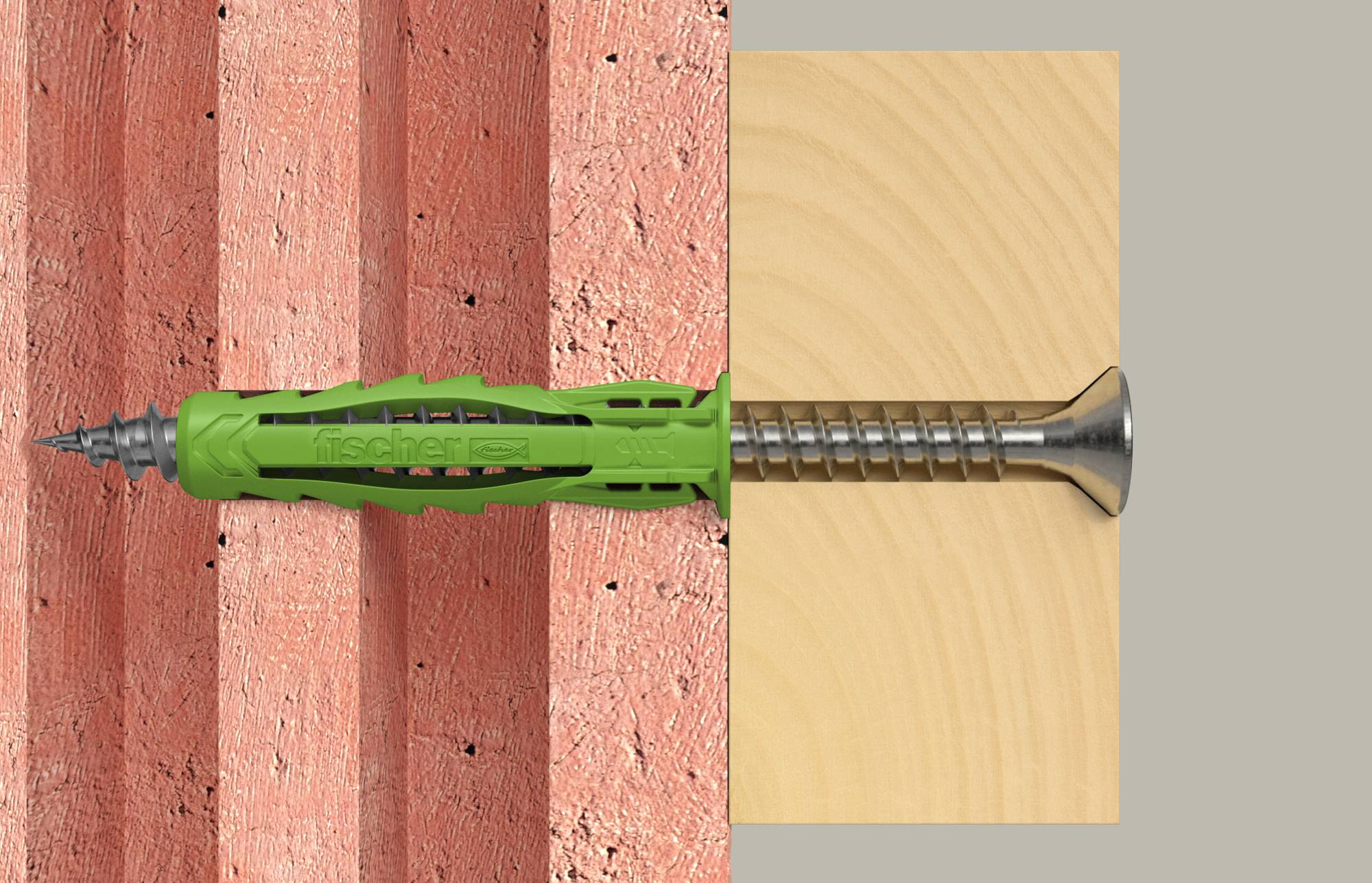

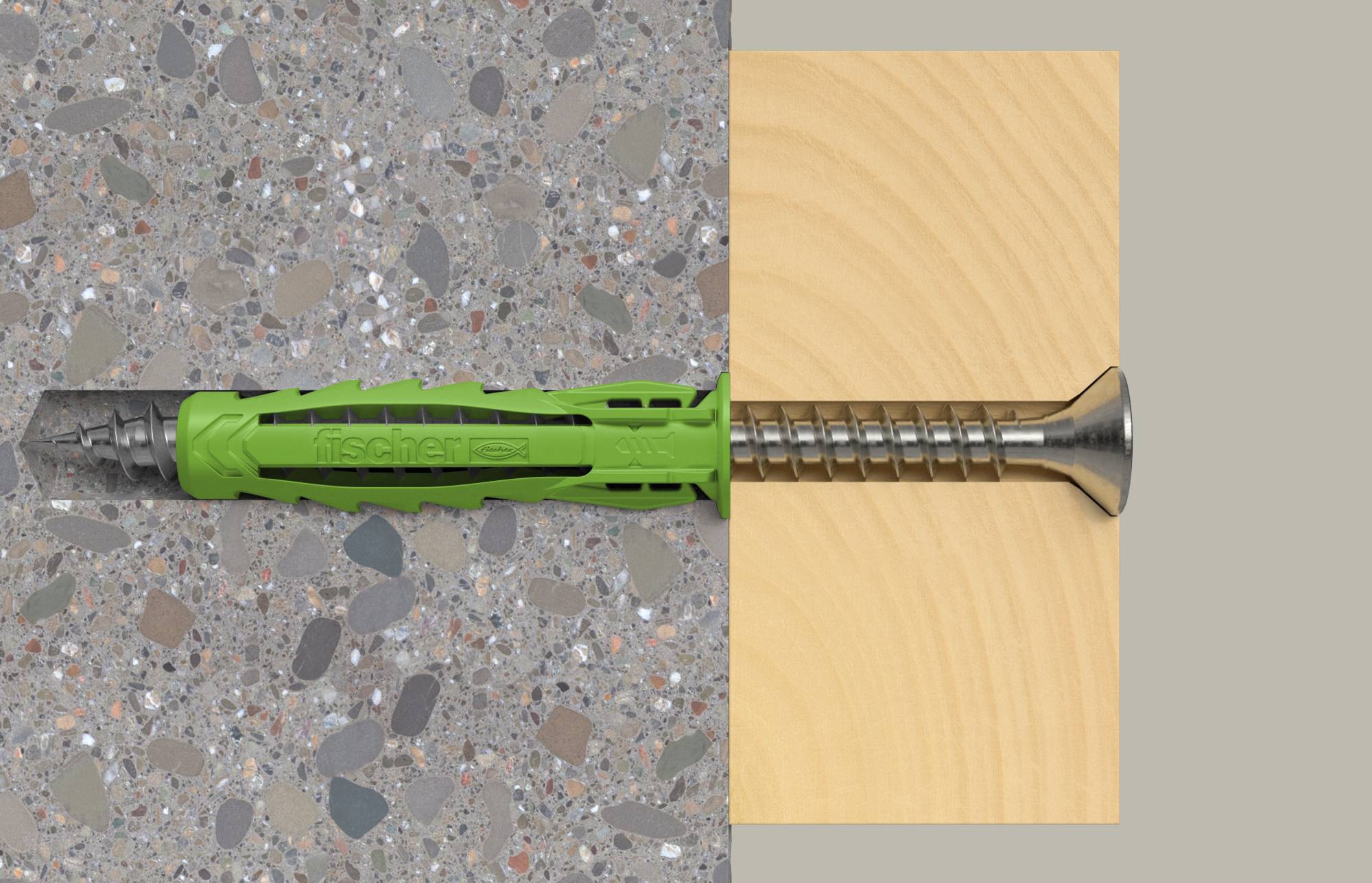

The Fischer SX Plus Green plug is made from at least 50% renewable raw materials. Due to its 4-fold spread, it is the specialist for solid building materials such as concrete, sand-lime brick and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The A2 screws supplied are perfectly suitable for the Fischer SX Plus Green expansion plug.

This text is machine translated.

Features

The SX Plus Green is produced with at least 50% renewable resources and is thus especially environment-friendly.
The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material.
The special fixing wings provide pre-fixing of the screw, which means that both the hands of the user are free during setting.
The free of spread pressure dowel prevents the screw from developing strut forces at the surface of the building material. This prevents tiles and plaster from bursting.
The special shape of the dowel allows it to be easily placed in the borehole with just a few hammer blows.
The noticeable torque indicates automatically when the screw is seated correctly and prevents the screw from overtightening.
