Fischer 568006 Spring toggle 30 mm 6 mm 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

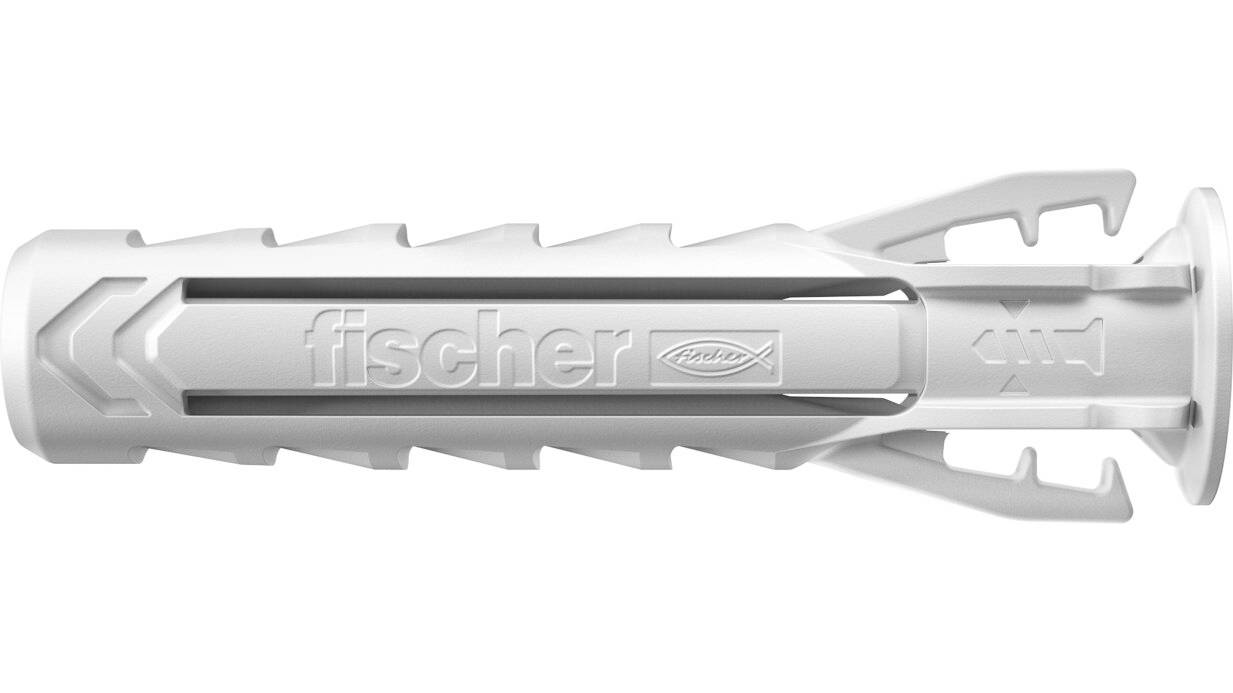

Fischer SX Plus 6 x 30 expanding plug
- Four-way spread for high withstand values
- Fixing wings for screw fixing and flexible mounting
- It is possible to mount the plug with little force
- Dowel border prevents deep sliding into the bore hole
- A noticeable tightening torque prevents the screw from being overturned
Technical specifications
- Minimum hole depth 4 cm
- (Ø)
6 mm
- Product type
Spring toggle
- Material
Nylon
- Length
30 mm
- Dim
(Ø x L) 6 mm x 30 mm
- Content
100 pc(s)
- Quantity per pack
100 Stück(e)
- Screw diameter (min)
4 mm
- Drill hole diameter
6 mm
- Screw diameter (max)
5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3835551 Fischer 568006 Spring toggle 30 mm 6 mm 100 pc(s)
Description

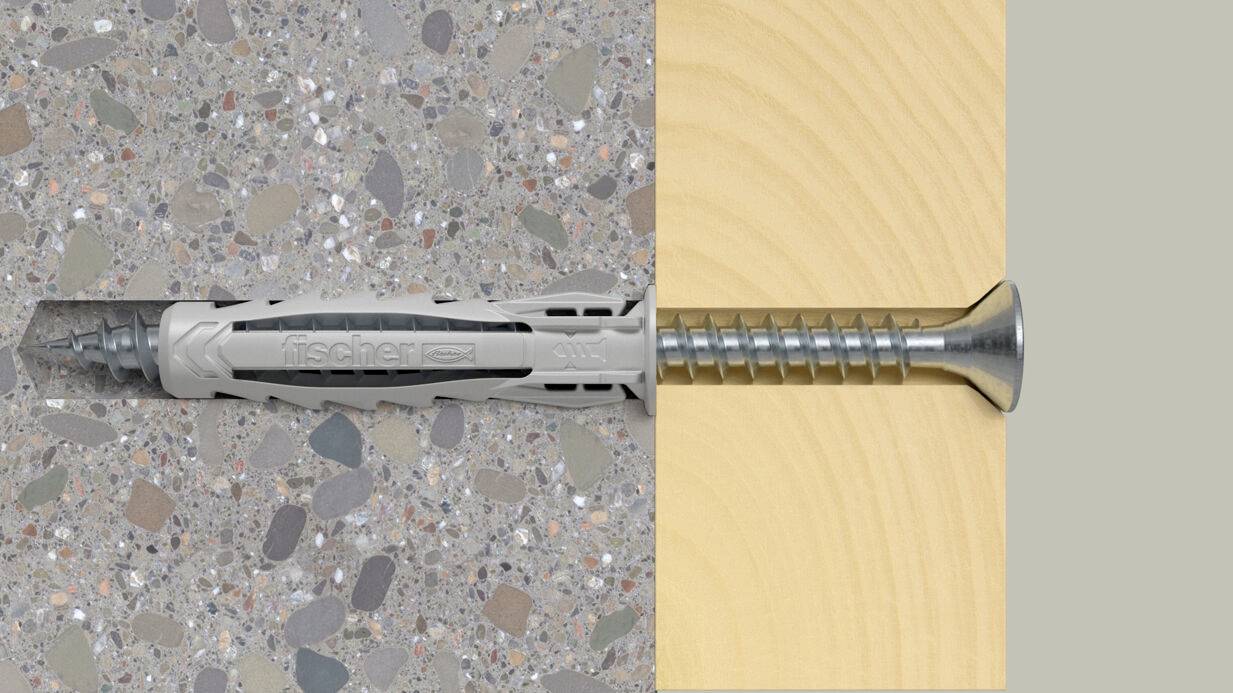

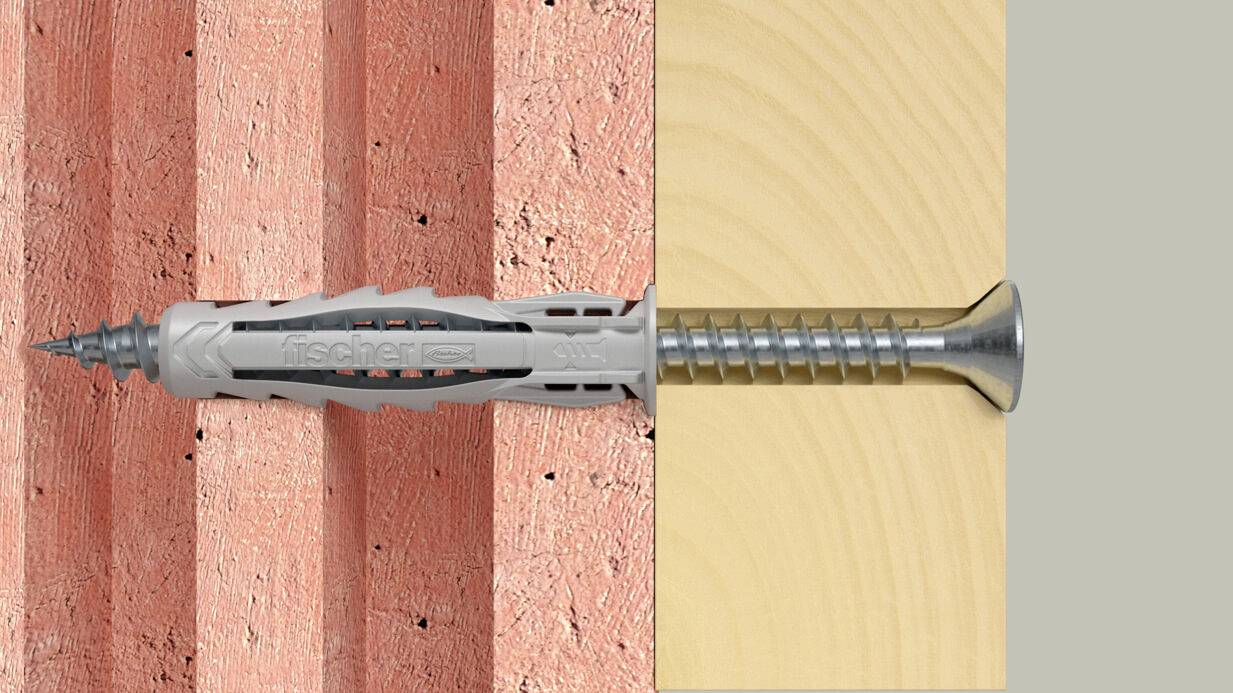

The Fischer SX Plus expanding plug is, thanks to its four-way expansion, the specialist for solid construction materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.
This text is machine translated.
This text is machine translated.
Features

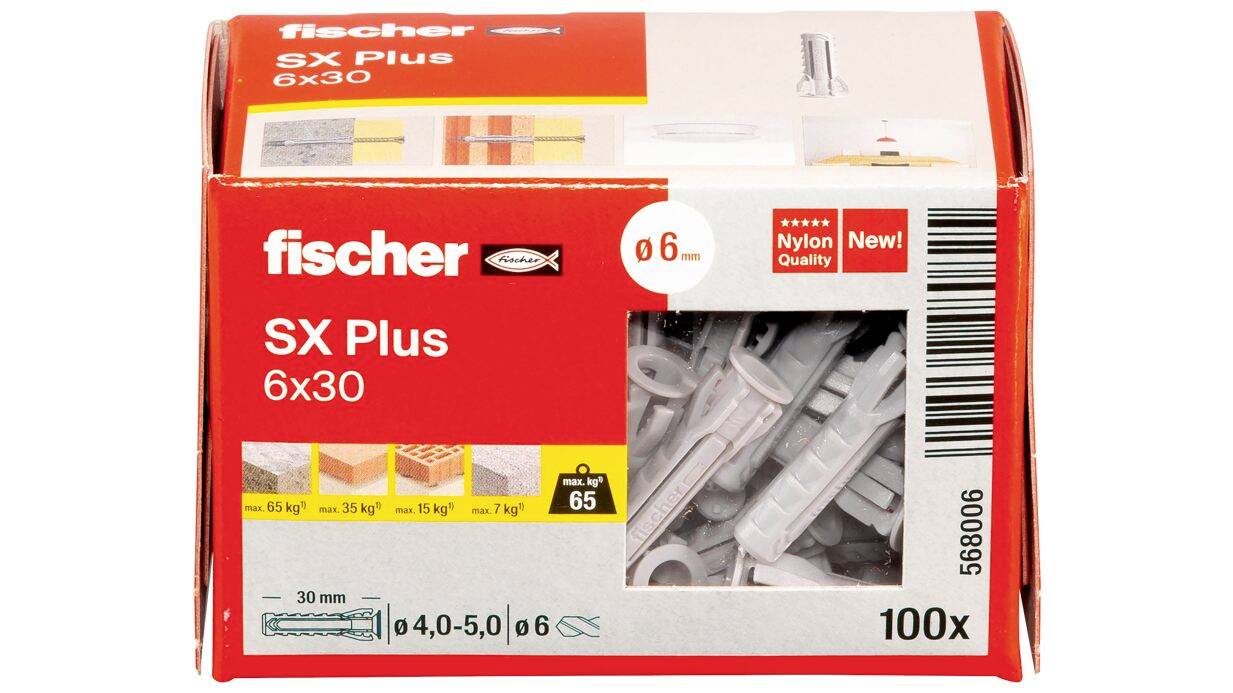

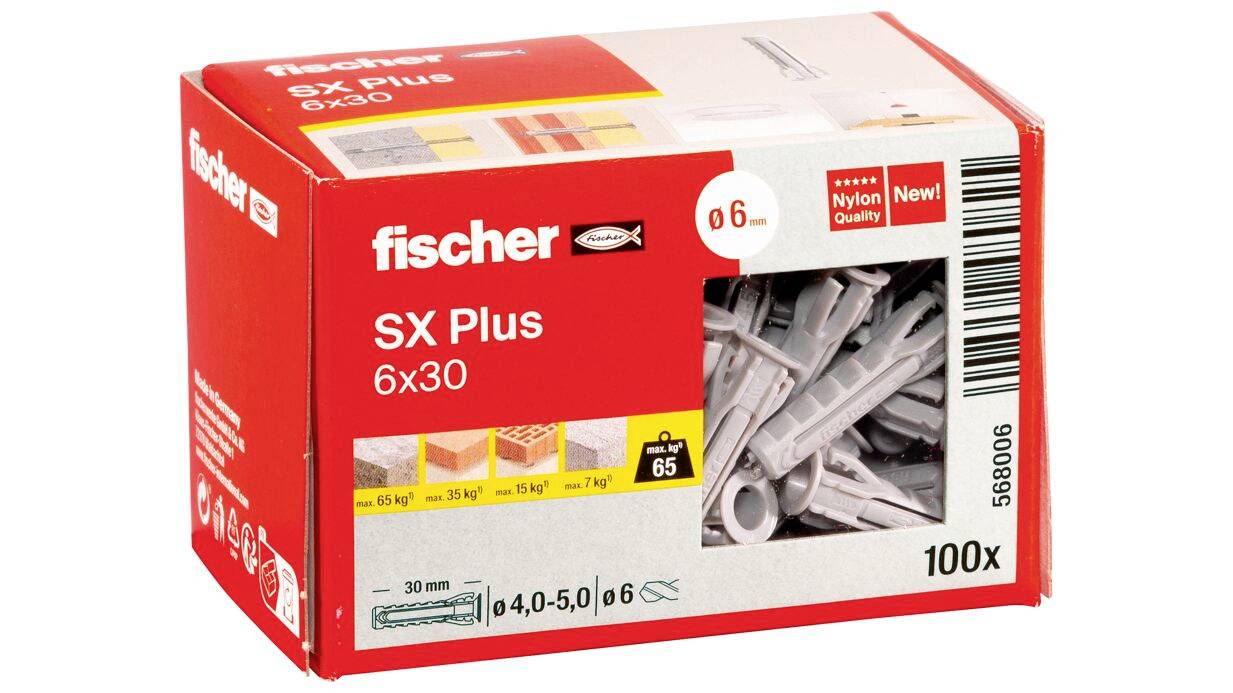

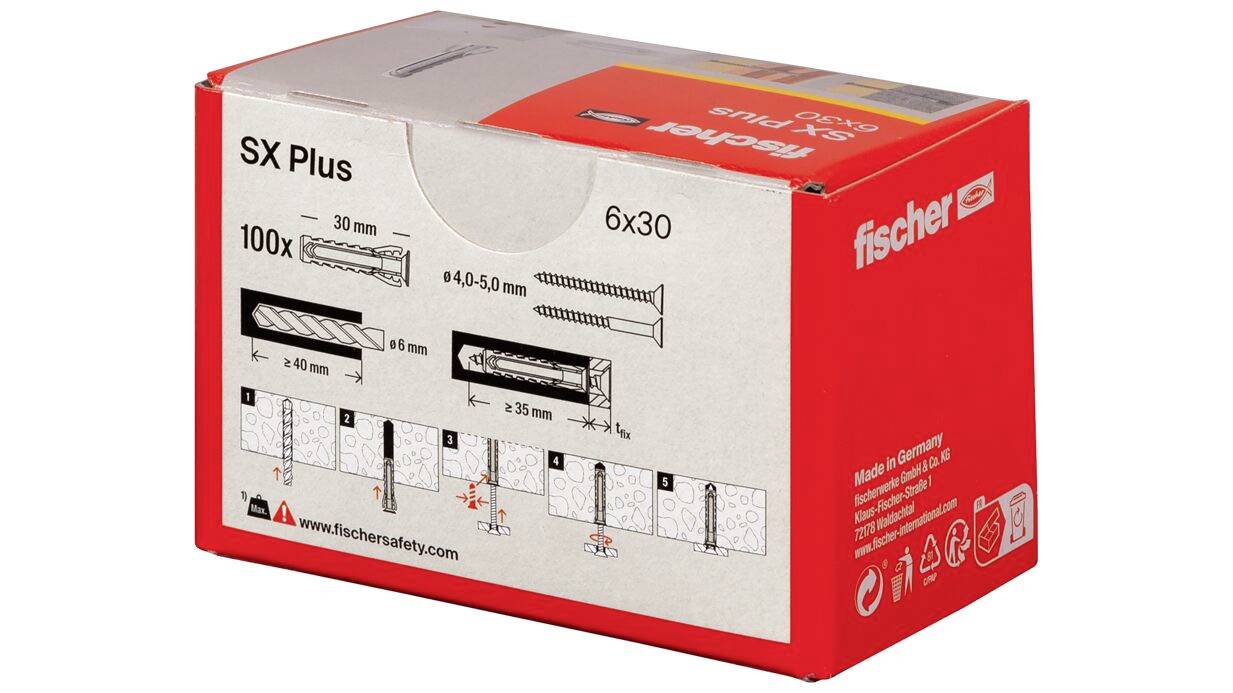

- 100 x SX Plus 6 x 30 expanding plugs
Scope of delivery
- Fischer SX Plus 6 x 30 expanding plug
