Fischer 571745 RH 40-52 HB AL Roofing bracket
EAN:
Part number:
Item no:
Highlights & Details

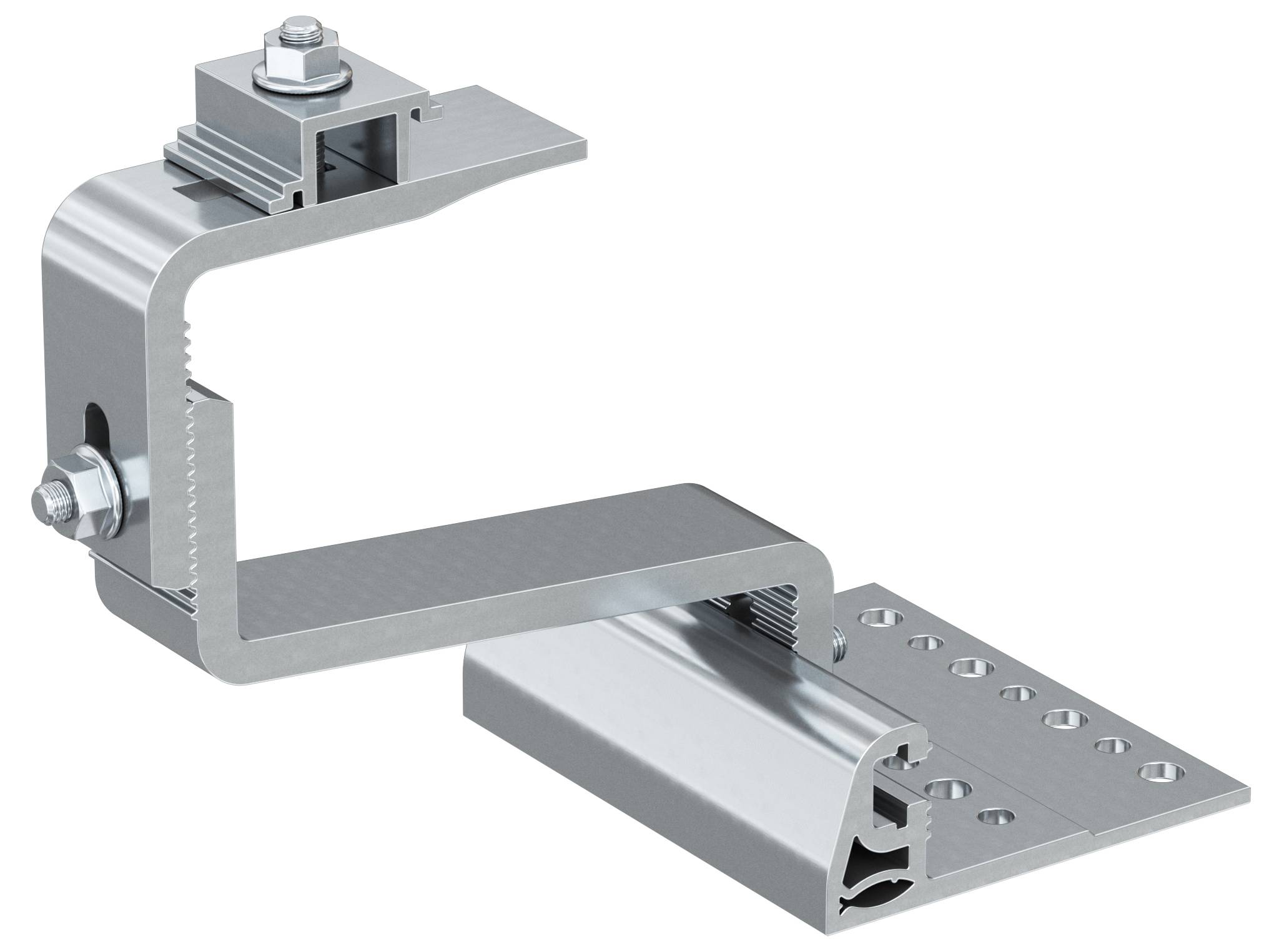

Fischer RH 40-52 HB aluminum roof hook
- The roof hook has four adjustment elements: The horizontal adjustment on the base plate enables the adaptation to the roof tiles, the lower the adaptation to different brick thicknesses, the middle vertical makes it possible to adjust the distance profile to the top of the brick, the upper one allows the rail to be aligned horizontally
- Suitable for roofing tiles with a total thickness of 40 to 52 mm (571745) or 52 to 67 mm (571747)
- The quick hook / rail coupler does not require any additional screws
- The wide base plate provides a variable mounting on the counter plate
- Numerous holes increase the selection in the fastening arrangement
- The large load capacity allows the use of fewer roof hooks
- Determine the axle distance of the roof hooks according to the snow and wind loads on site and determine the position depending on the supporting structure and local conditions
- Lift the roof tile and fit the hook base with the appropriate mounting
- Make the height and width adjustments necessary for the type of roof and tighten the bolts of the adjustable joints to secure the hook in position

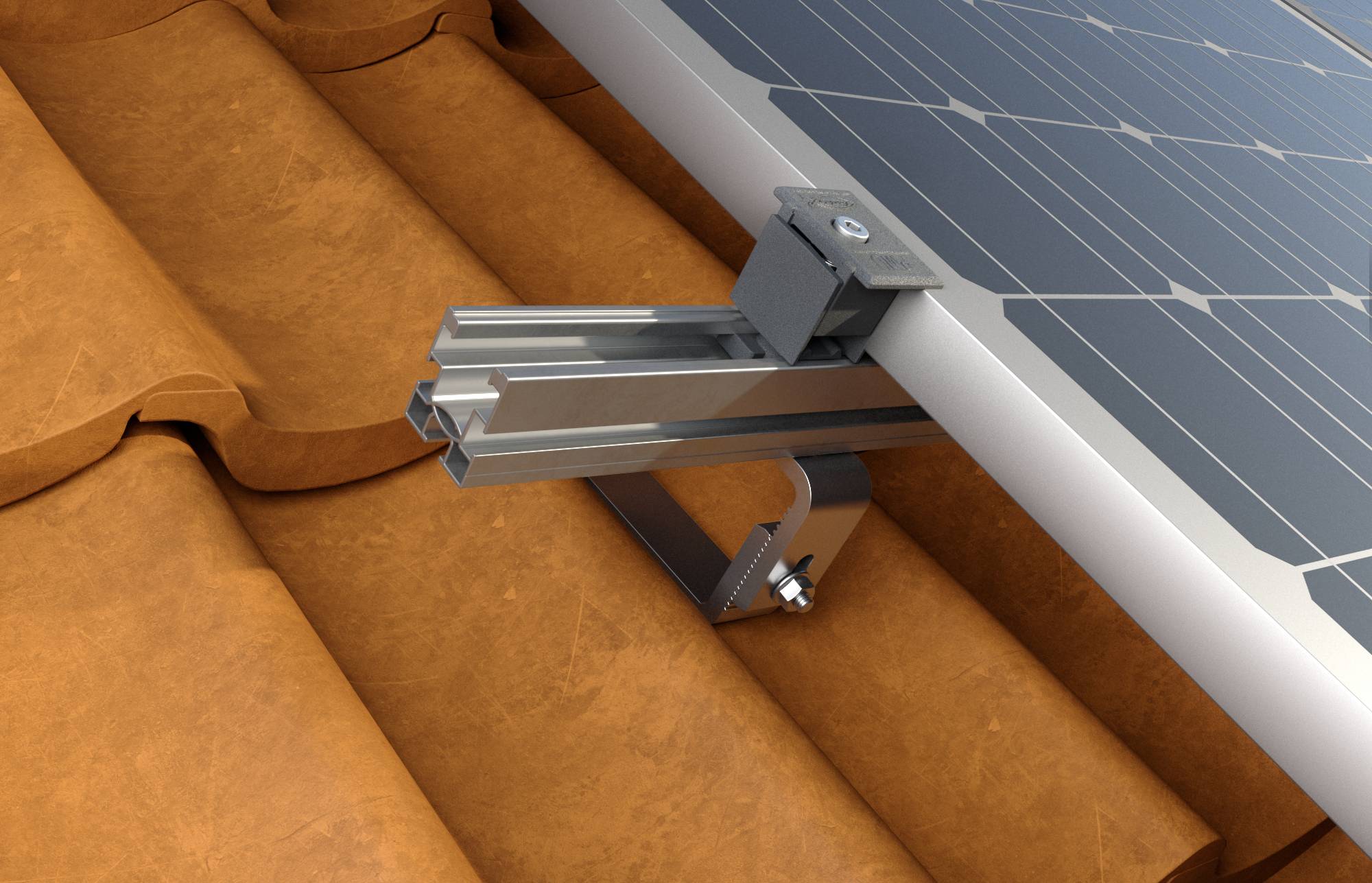

- Insert the joint at the top of the hook into the side groove of the rail used. The joint can be rotated for adjustment at SolarLight or SolarFish rails
- Pitched roof with brick of different thickness
Technical specifications
- Setting range 40 52 mm
- Product type
Roofing bracket
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3028834 Fischer 571745 RH 40-52 HB AL Roofing bracket
Description
The aluminum hook RH HB AL is suitable for the construction of photovoltaic systems on pitched roofs with different thicknesses of roofing tiles. Due to the horizontal adjustment at the base plate the roof hook can be adjusted exactly to the roof tile. The lower adjustment position allows the roof hook to be adjusted to different brick thicknesses. The upper adjustment position allows to adjust the distance of the rail from the top of the roof tile. The shape of the hook is designed in such a way that it can withstand the legally prescribed snow and wind loads without damaging the brick. The roof hook offers several adjustment elements: The lower allows adjustment to the brick thickness, the vertical adjustment element at the top allows adjustment of the distance between the profile and the top of the brick. The upper adjustment possibility enables the alignment of the rail parallel to the Traute / First mounting with A2-PowerFast screws, either three screws Ø6 or two screws Ø8. The high load-carrying capacity allows the use of fewer roof hooks The roof hook has a controlled deformation and is designed so that it does not bend or damage the bricks The roof hook is pre-assembled and can be mounted without any additional accessories The roof hook is sturdy, light and made of aluminum. to ensure the long life of the system Turning the joint makes the roof hook compatible with both SolarLight and SolarFish rails.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 pcs.
