Fischer 571748 RH 52-67 VB AL Roofing bracket
EAN:
Part number:
Item no:
Highlights & Details

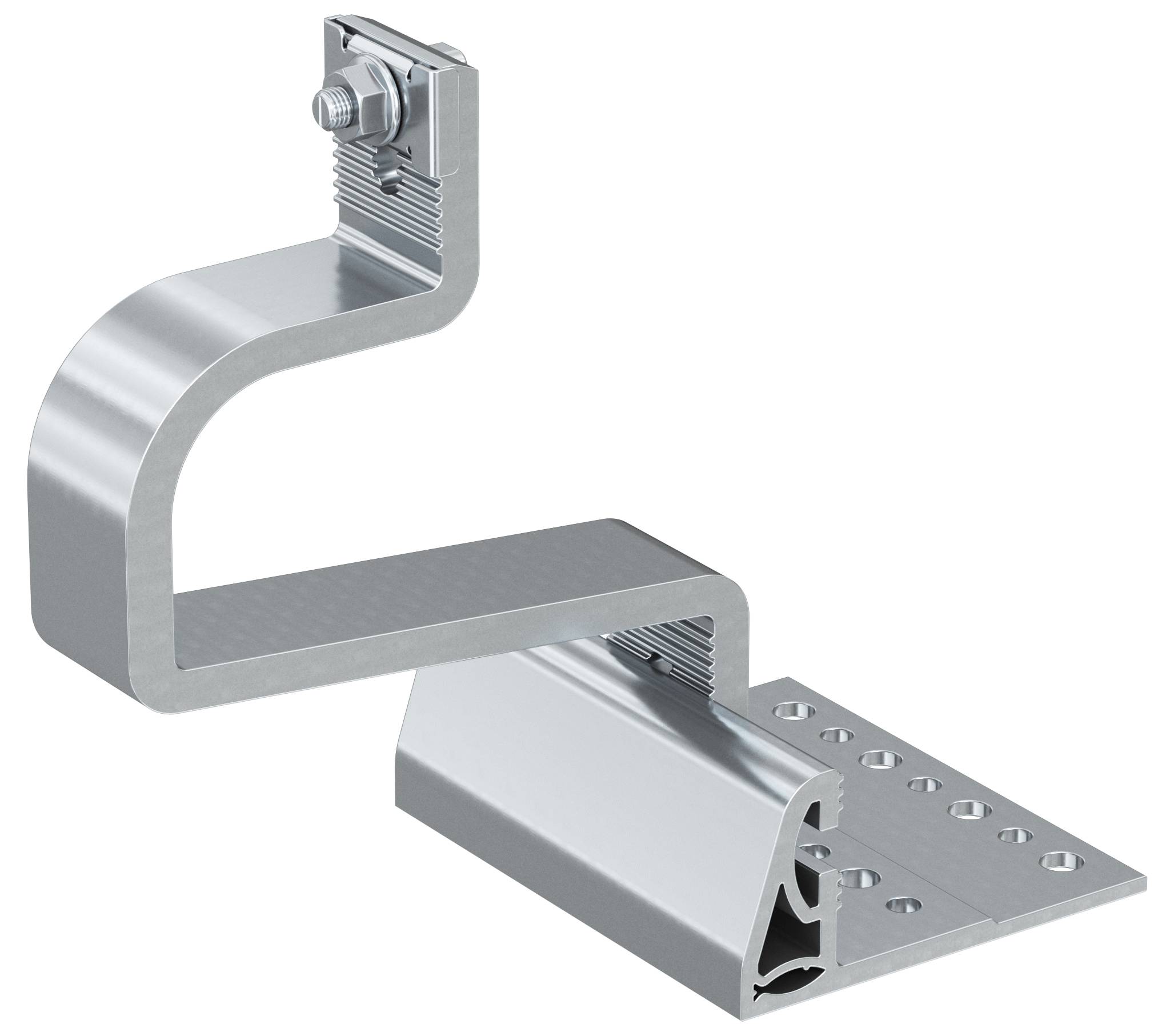

Fischer RH 52-67 VB aluminum roof hook
- The roof hook has three adjustment elements: The horizontal adjustment on the base plate allows the adjustment to the roof tile shape, the lower the adjustment to different brick thicknesses, the middle vertical makes it possible to adjust the distance between the profile and the top of the brick
- The roof hook allows installations in both portrait and landscape format (thanks to the LAB angle bracket)
- Suitable for roofing tiles with a total thickness of 40 to 52 mm (571746) or 52 to 67 mm (571748)
- The hook/rail quick connection does not require additional screws
- The wide base plate provides a variable mounting on the counter plate
- Many different holes increase the selection when fixing
- The large load capacity allows the use of fewer roof hooks
- Determine the axle distance of the roof hooks according to the snow and wind loads on site and determine the position depending on the supporting structure and local conditions
- Lift the roof tile and fit the hook base with the appropriate mounting
- Make the height and width adjustments necessary for the type of roof and tighten the bolts of the adjustable joints to secure the hook in position
- Insert the joint at the top of the hook into the side groove of the rail used. The joint can be rotated for adjustment at SolarLight or SolarFish rails

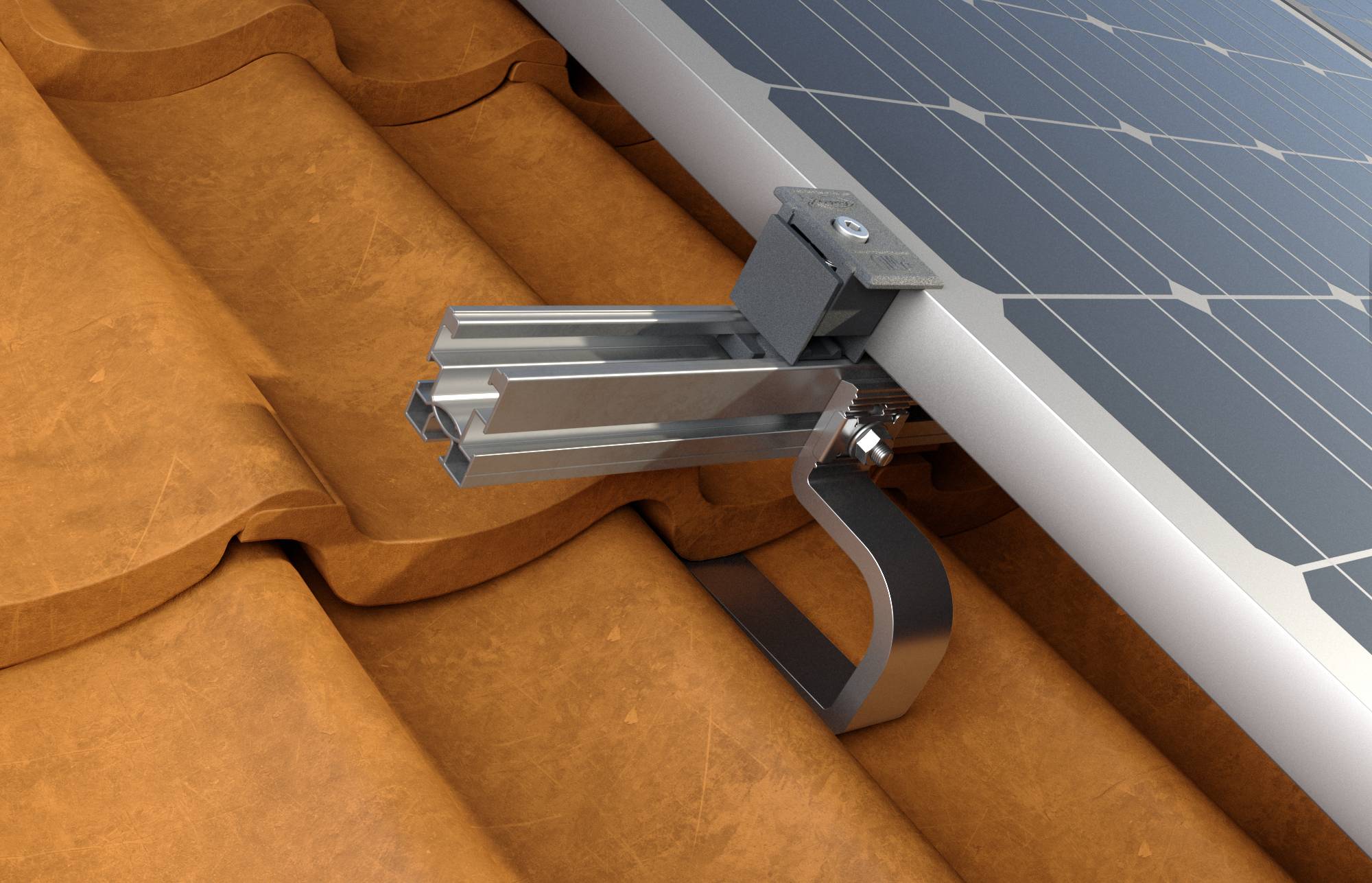

- Pitched roof with brick of different thickness
Technical specifications
- Setting range 52 67 mm
- Product type
Roofing bracket
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3028837 Fischer 571748 RH 52-67 VB AL Roofing bracket
Description
The aluminum hook RH AL is suitable for the construction of photovoltaic systems on pitched roofs with roof tiles of different thicknesses. Due to the horizontal adjustment at the base plate the roof hook can be adjusted exactly to the roof tile. The lower adjustment position allows the roof hook to be adjusted to different brick thicknesses. The upper adjustment position allows to adjust the distance of the rail from the top of the roof tile. The shape of the hook is designed in such a way that it can withstand the legally prescribed snow and wind loads without damaging the brick. The roof hook offers several adjustment elements: The lower allows adjustment to the brick thickness, the vertical adjustment element at the top allows adjustment of the distance between profile and brick top fixing with A2-PowerFast screws, either three screws Ø6 or two screws Ø8. The large base plate allows an exact adjustment to the shape of the roof tile. The large load capacity allows the use of fewer roof hooks. The roof hook has a controlled deformation and is designed not to damage the bricks. Since the roof hook is pre-assembled, it can be mounted without any additional accessories. The roof hook is sturdy, lightweight and made of aluminum to ensure the long service life of the system. The roof hook can be compatible with SolarLight as well as with SolarFish rails by rotating the joint.
