Name: Fischer 573055 Spax screw 45 mm TX 500 pc(s)
Brand: Fischer
SKU: 3552936

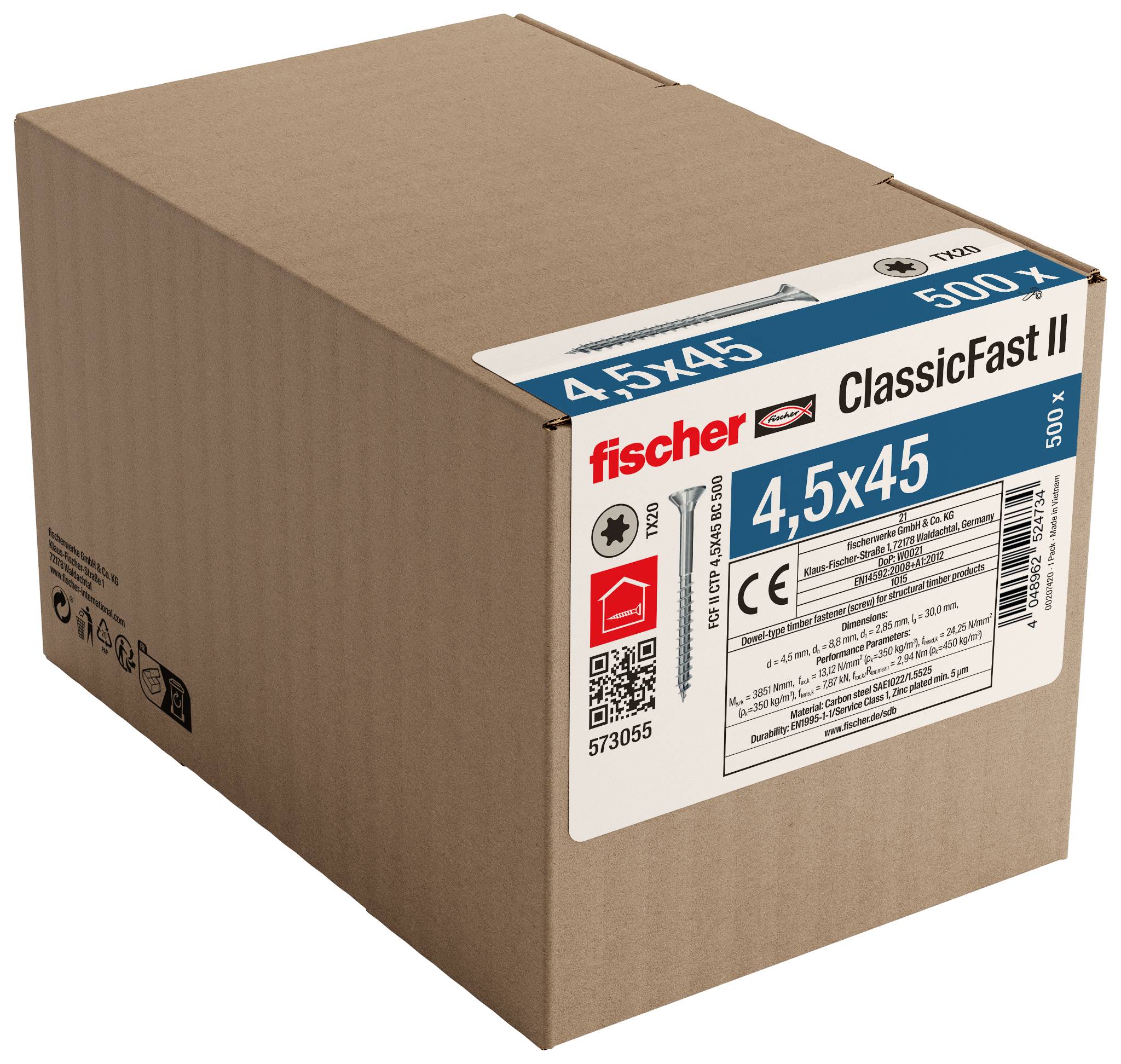

Cardboard box of Fischer ClassicFast II screws, labeled '4,5x45' and '500 x'.

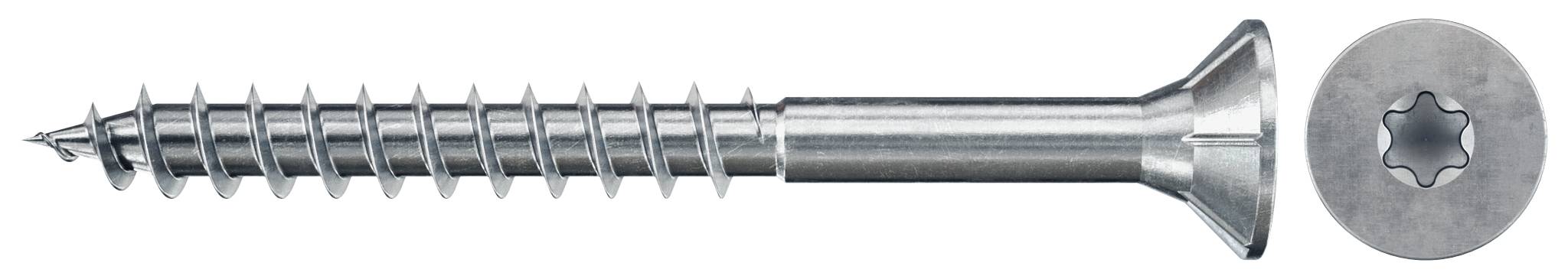

Metal screw shown in side view with a flat head; end view at right shows a star-shaped drive recess.

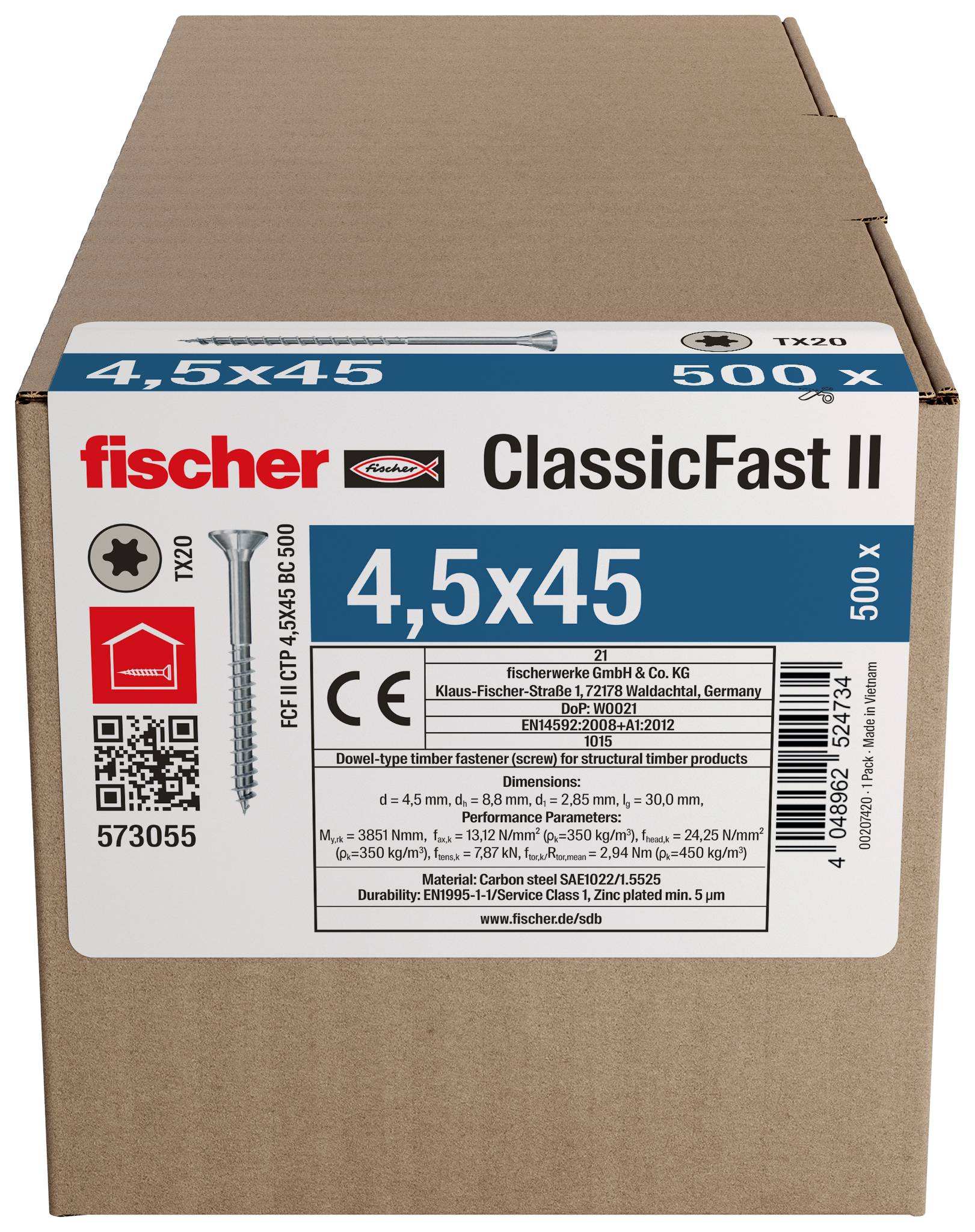

Box of Fischer ClassicFast II 4.5x45 screws, labeled 500 pieces, shown on a cardboard shipping carton.

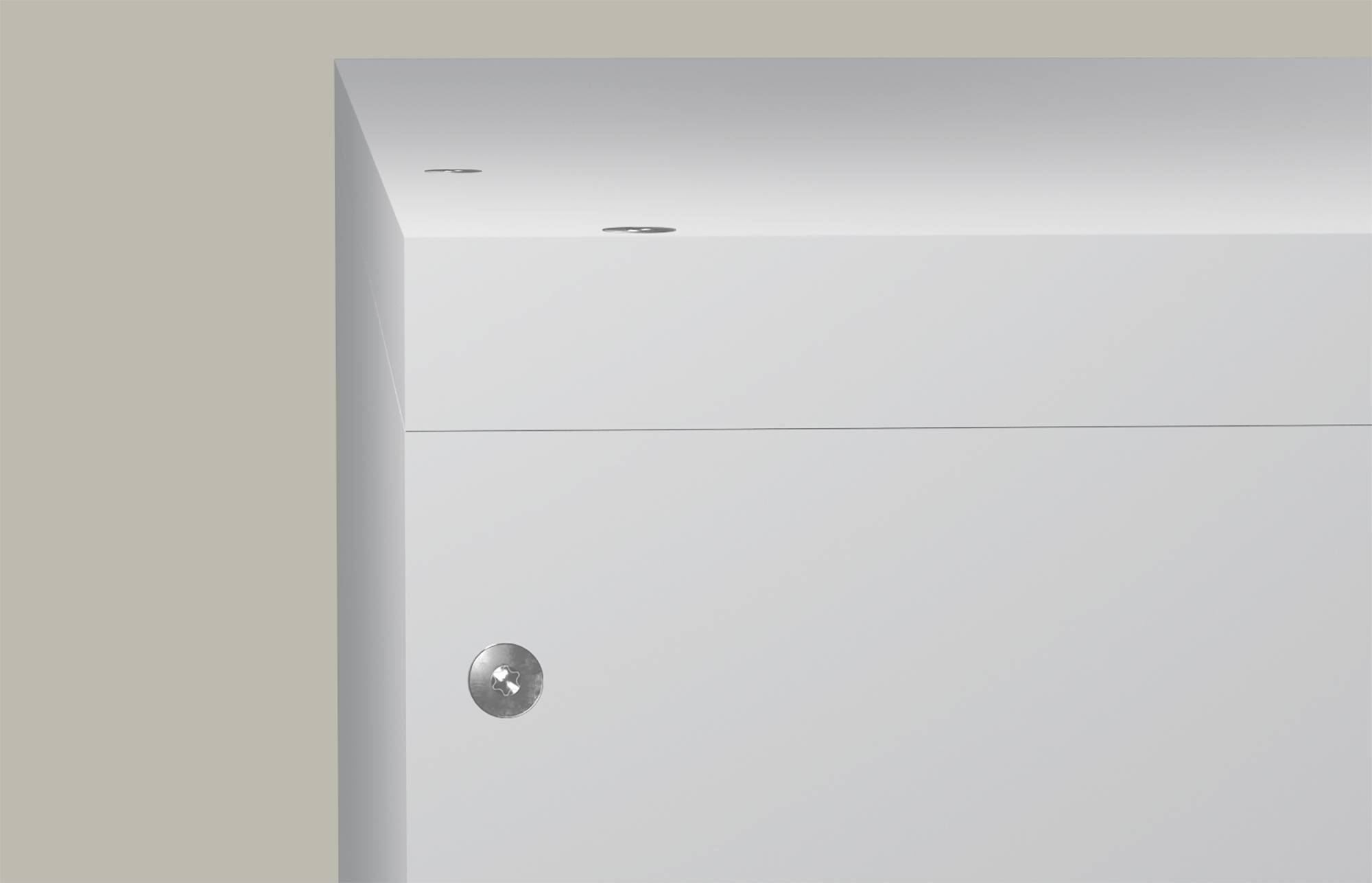

Close-up of a white cabinet or appliance corner with a visible round metal screw on the front panel.

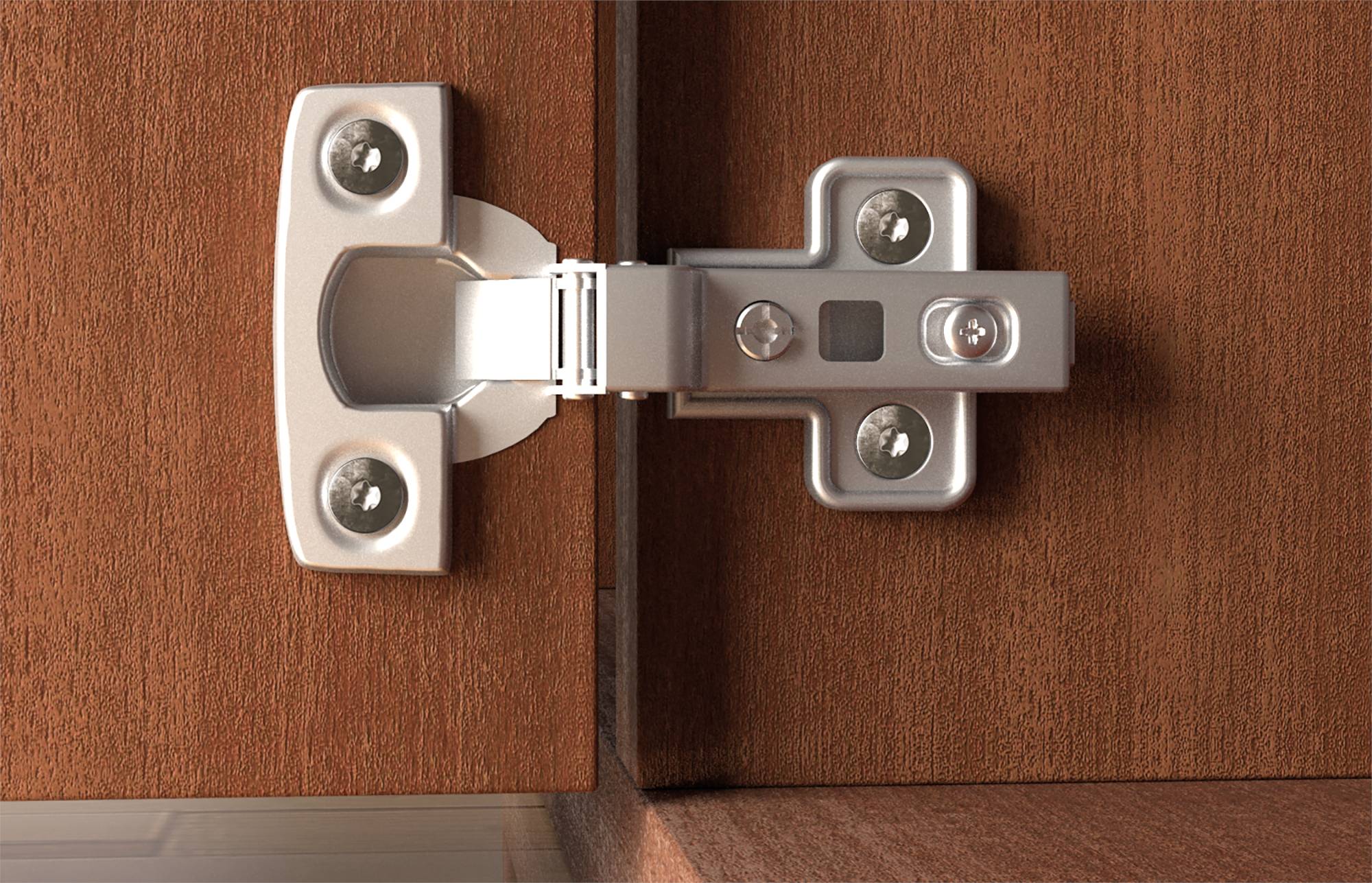

Close-up of a concealed cabinet hinge connecting two wooden doors, showing the metal hardware mounted between the panels.

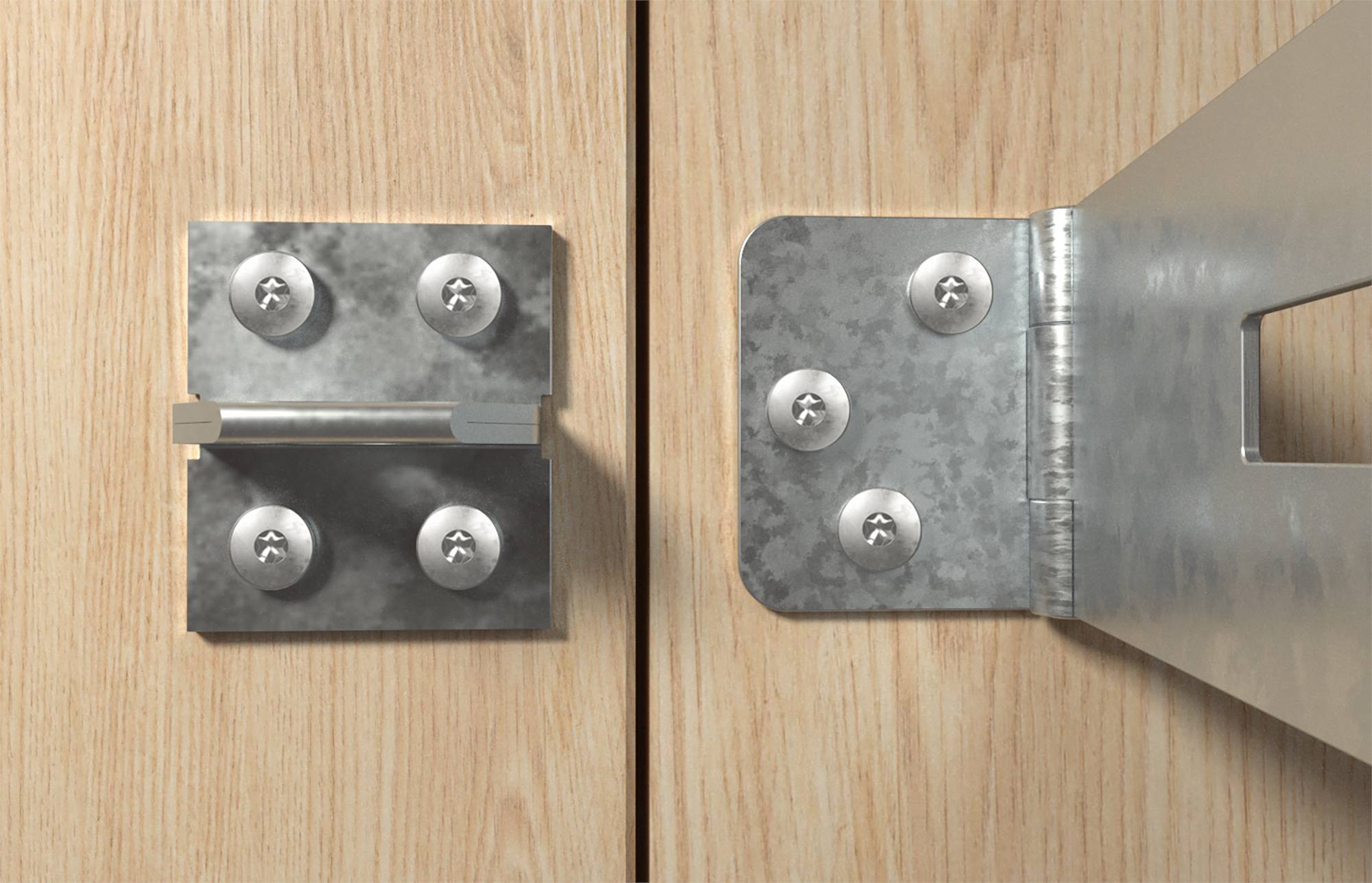

Close-up of a metal door hinge and latch plate mounted on a wooden cabinet door.

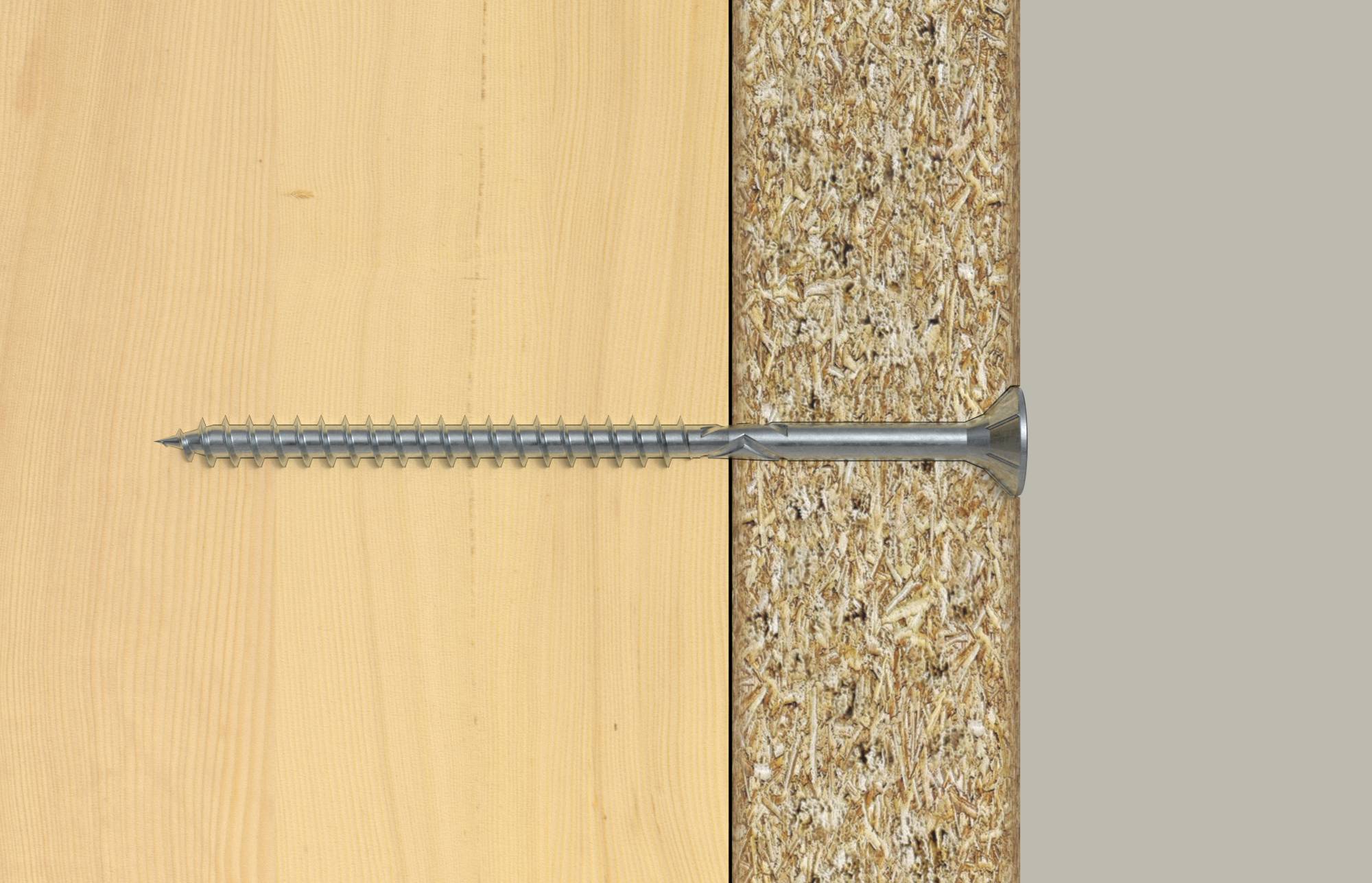

Cross-section of a screw driven through a wood board into particleboard, showing the fastener anchoring the materials together.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Fischer 573055 Wood Screws 4.5x45mm TX20 Countersunk Zinc plated

4.5mm shank with partial thread delivers firm pull-in and shear resistance for timber and panel joins
TX20 drive reduces cam‑out and permits efficient installation with powered drivers
Countersunk head provides a flush finish to mating surfaces for neat assembly
Zinc-plated surface offering corrosion protection for general interior and light exterior use

Technical specifications

Product type: Spax screw

Drive: TX

Length: 45 mm

Head shape: Countersunk

Content: 500 pc(s)

Documents & Downloads

Datasheet

Datasheet 3552936 Fischer 573055 Spax screw 45 mm TX 500 pc(s)

User & Safety Instructions

User & Safety Instructions 3552936 Fischer 573055 Spax screw 45 mm TX 500 pc(s)

Description

This wood screw is designed to join timber components and chipboard panels using a screw-in fastening method. The partially threaded shank pulls two members together while the threaded portion secures into the receiving material, providing clamping force and lateral stability. Installation is performed with a TX20 bit; the drive geometry helps maintain engagement during rapid or repetitive fixing. The countersunk head seats into a prepared or self‑countersunk hole to create a level surface, reducing protrusion and interference with subsequent finishes. The metallic coating assists in resisting surface corrosion, making the fastener suitable for typical furniture, joinery and fixture assembly tasks where mechanical retention and a flush appearance are required.
