Fischer 573056 Spax screw 50 mm TX 500 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

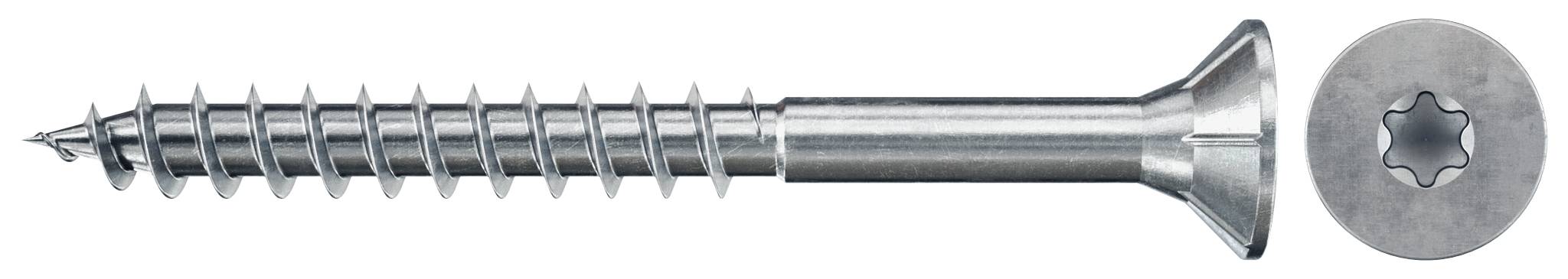

Fischer 573056 Wood Screws 4.5x50mm TX20 Countersunk Zinc plated
- 4.5mm shank diameter provides firm axial retention for timber connections
- 30mm threaded length concentrates grip in the timber profile for reduced splitting risk
- TX20 recess improves torque transfer and lowers likelihood of cam‑out during powered driving
- Countersunk head permits flush seating for neat joints and concealed fixings
Technical specifications
- Product type
Spax screw
- Drive
TX
- Length
50 mm
- Head shape
Countersunk
- Content
500 pc(s)
Documents & Downloads
Datasheet
Datasheet 3552937 Fischer 573056 Spax screw 50 mm TX 500 pc(s)
User & Safety Instructions
User & Safety Instructions 3552937 Fischer 573056 Spax screw 50 mm TX 500 pc(s)
Description

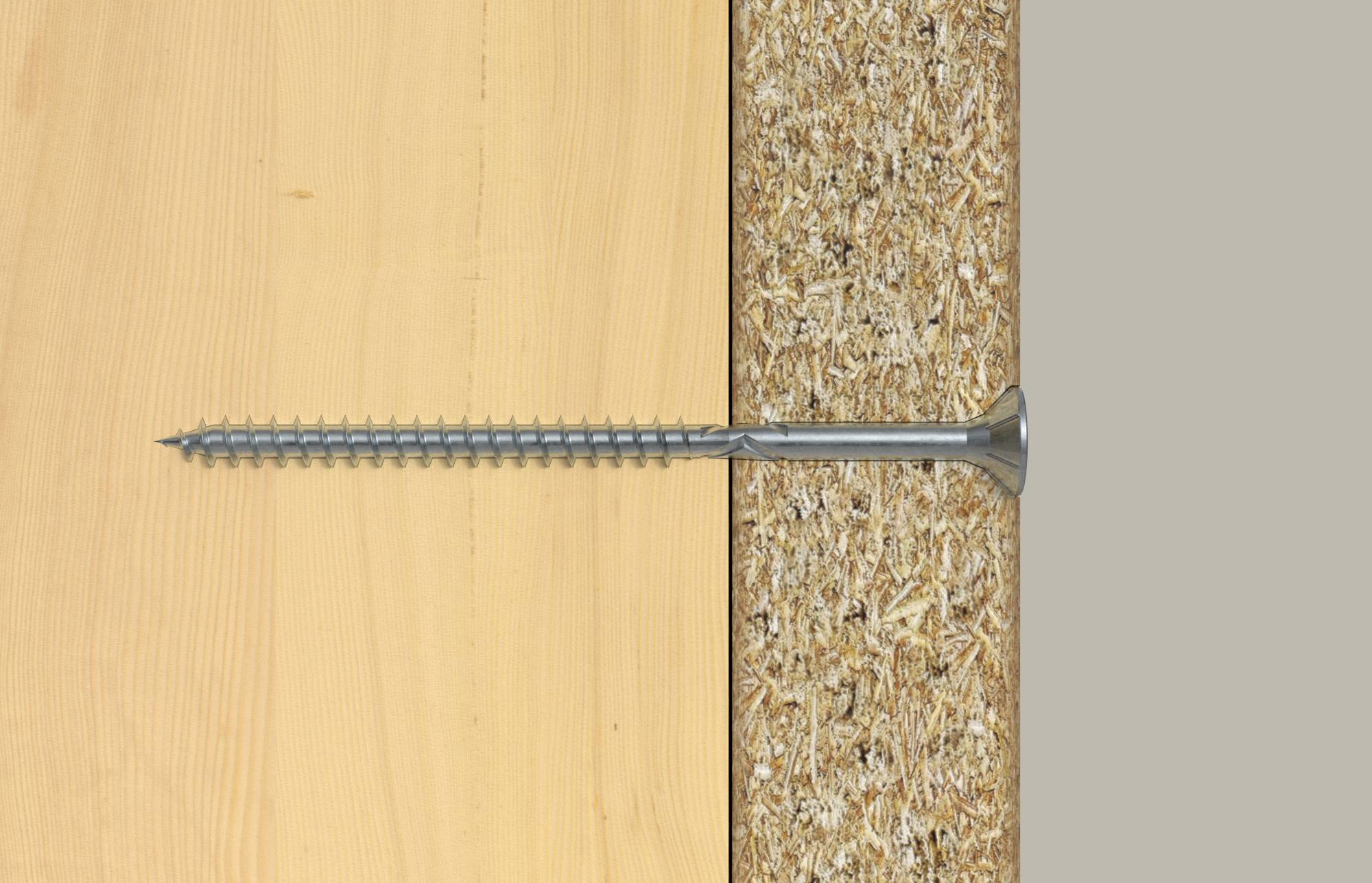

This product functions as a timber fastener designed to join and secure wood components by converting rotational torque into axial clamping force. The partially threaded shank allows the unthreaded portion to act as a dowel, drawing two members together as the threaded portion bites into the substrate. Installation is performed with a TX20 driver bit; the drive geometry supports powered or manual insertion while the countersunk head seats flush with the surface to enable unobtrusive finishes. Typical use includes general joinery and decking applications where a reliable mechanical hold and discreet head profile are required.
Features
- Diameter: 4.5mm
- Length: 50mm
- Thread length: 30mm
- Drive type: TX20
- Head type: Countersunk
- Finish: Zinc‑plated
