Name: Fischer 573080 Spax screw 180 mm TX 100 pc(s)
Brand: Fischer
SKU: 3552959

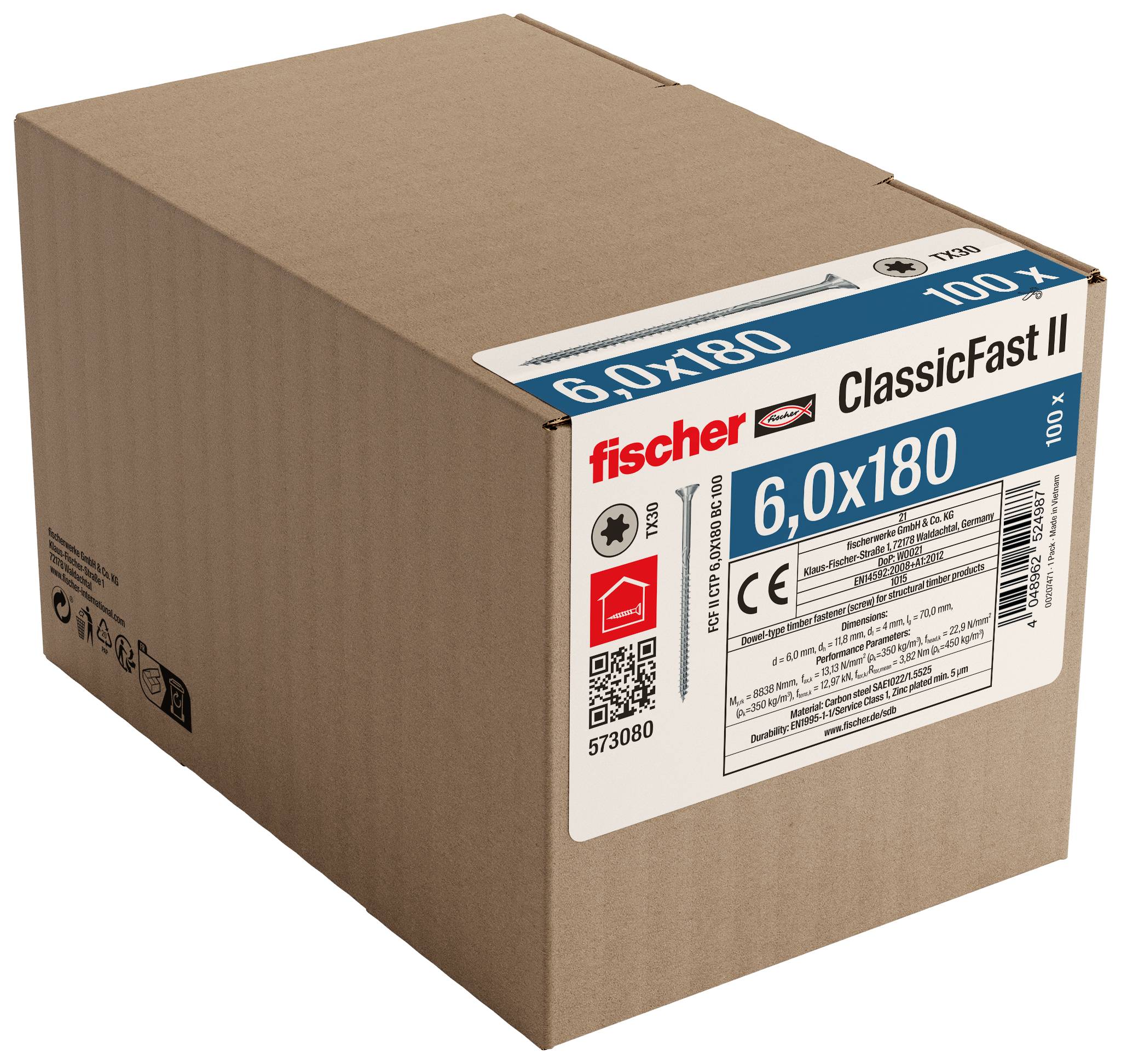

Cardboard shipping box labeled 'fischer ClassicFast II 6,0x180' with product label and quantity '100 x' on the front.<br>

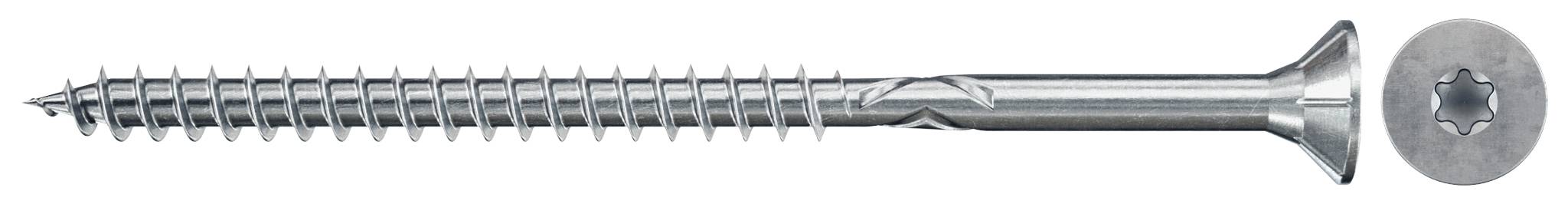

Silver screw with a flat, countersunk head shown horizontally on a white background, with a separate close-up of the screw head at right.

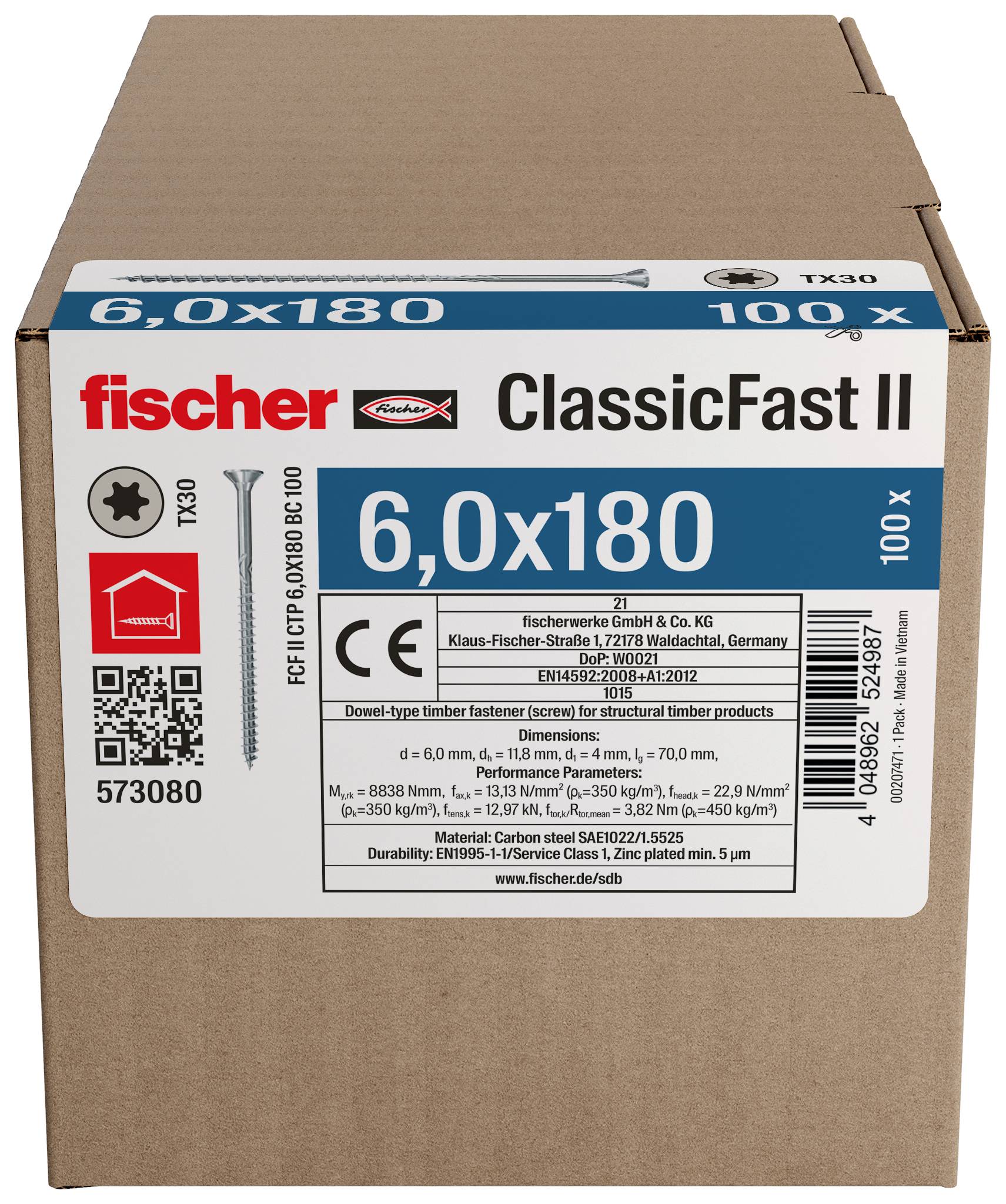

Cardboard box labeled 'fischer ClassicFast II 6,0x180' with 100 screws for timber fastening.

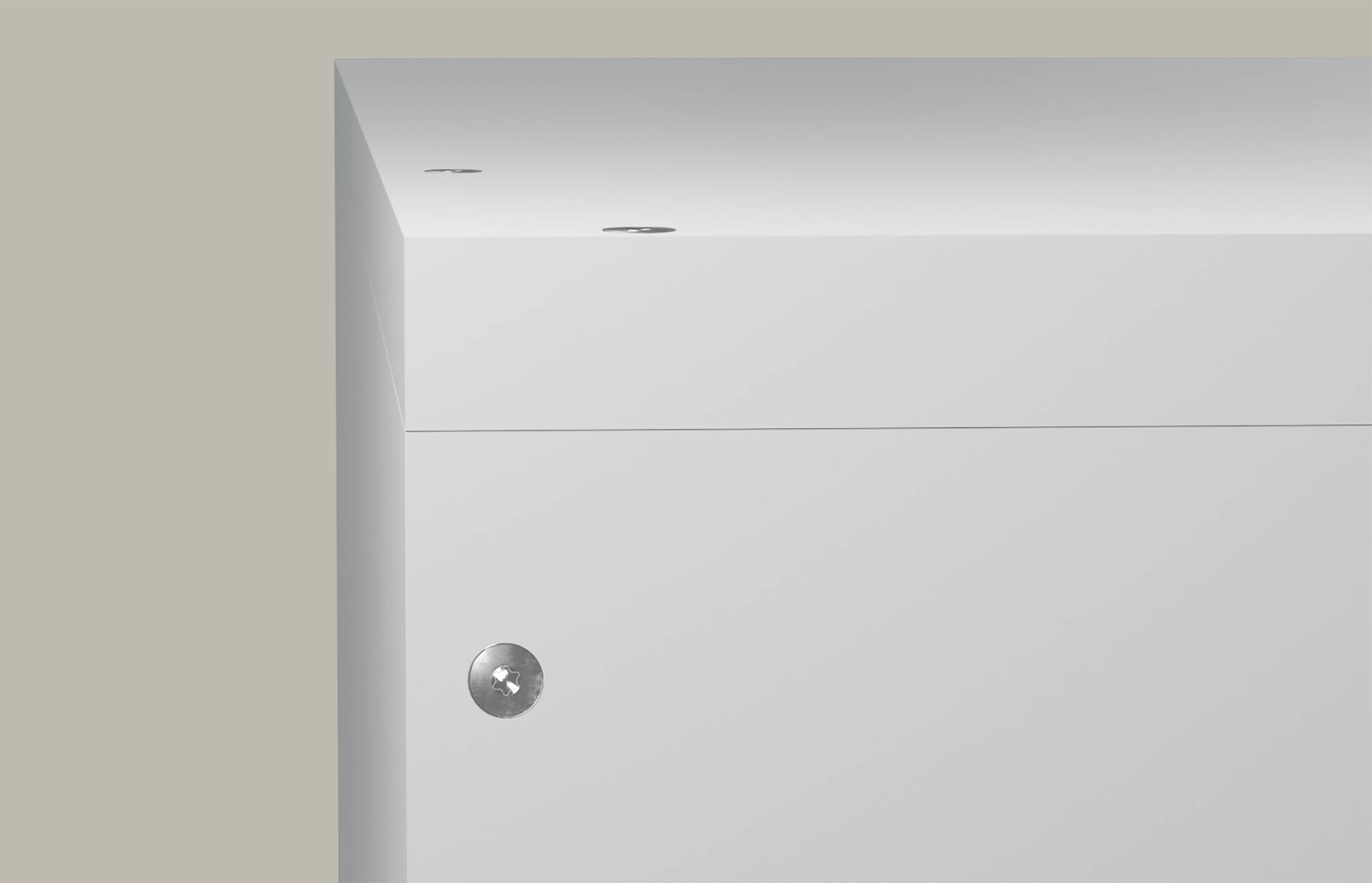

Close-up of a white wall-mounted cabinet or box with a round metal knob on the left side and two small holes on the top edge.

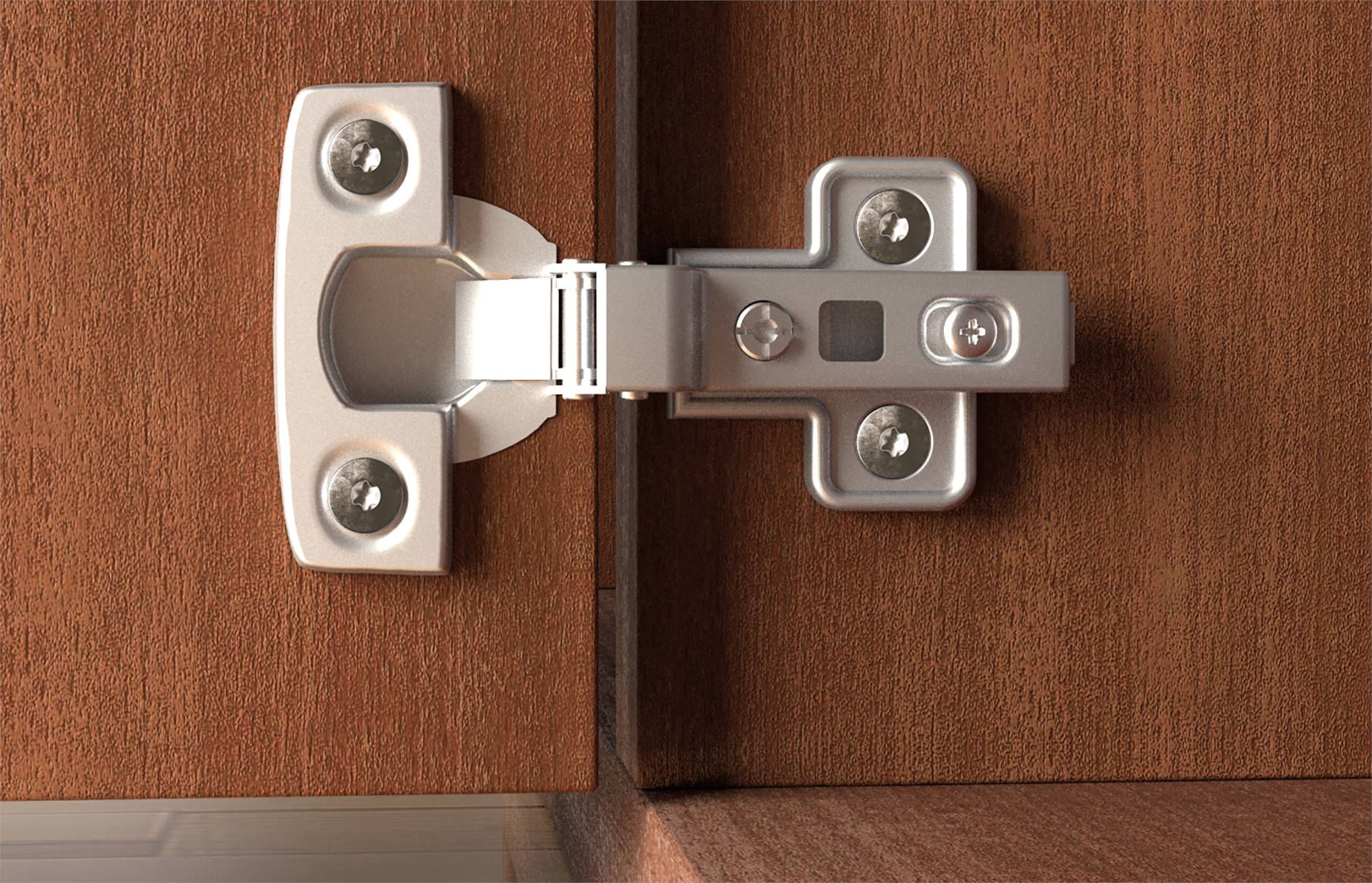

Close-up of a metal cabinet hinge joining two wooden doors, showing the hardware that lets one door open and close.

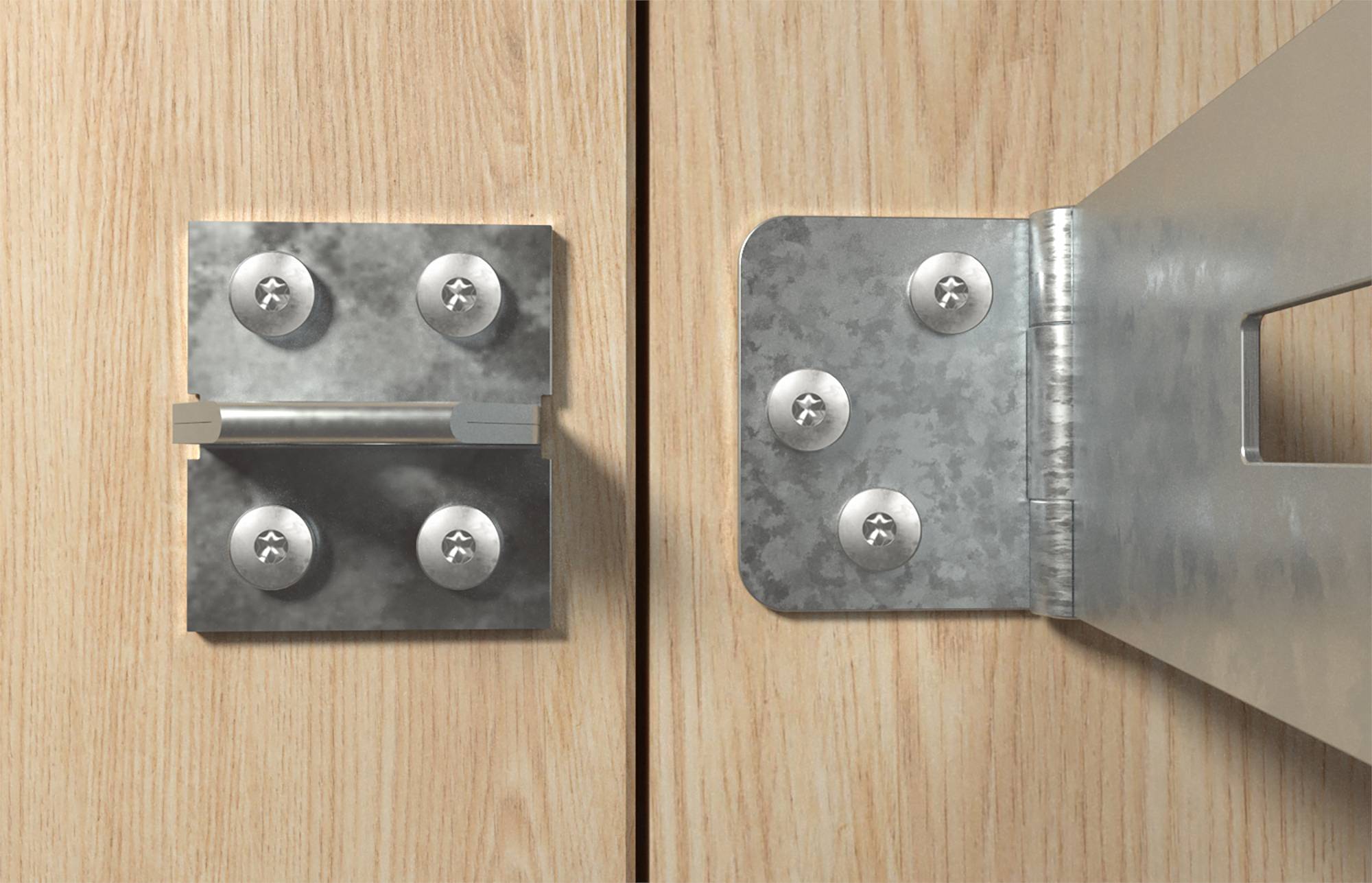

Close-up of a metal door latch and hinge mounted on a light wood cabinet, showing the hardware securing two panels together.

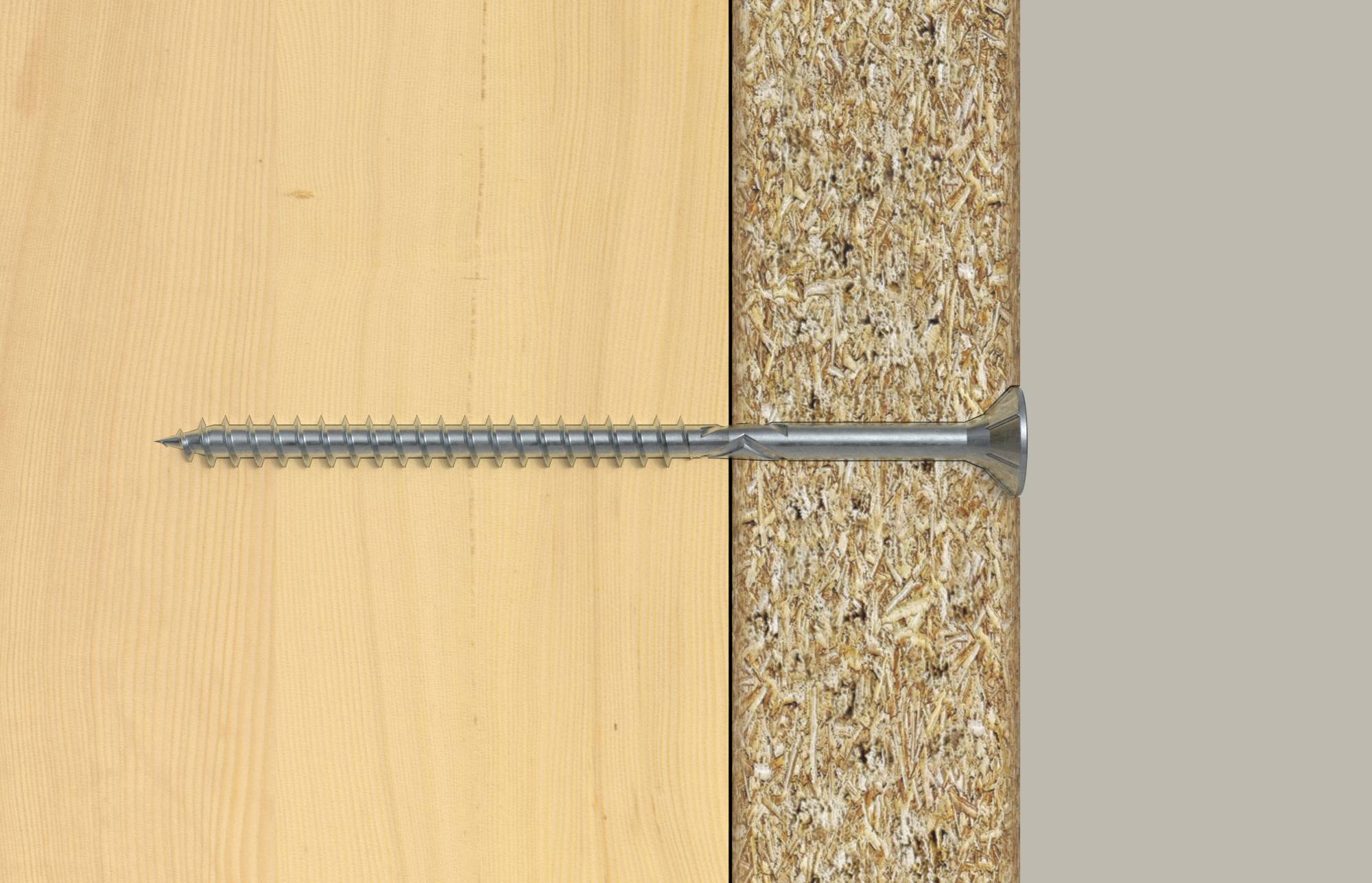

Metal screw driven through a wooden board into a particleboard panel, showing how the fastener joins the two materials.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Fischer 573080 Wood Screws 6x180mm TX30 Countersunk Zinc plated

Long shank and substantial diameter provide deep engagement for structural timber connections
TX30 drive reduces cam‑out when using powered drivers, improving installation speed
Countersunk head permits flush seating for neat joints and surface alignment
Partial thread length concentrates clamping force while allowing free-running under the head for tight assemblies

Technical specifications

Product type: Spax screw

Drive: TX

Length: 180 mm

Head shape: Countersunk

Content: 100 pc(s)

Documents & Downloads

Datasheet

Datasheet 3552959 Fischer 573080 Spax screw 180 mm TX 100 pc(s)

User & Safety Instructions

User & Safety Instructions 3552959 Fischer 573080 Spax screw 180 mm TX 100 pc(s)

Description

This product is a long timber fastener designed to draw and secure wooden elements by converting rotational torque into axial pull. Installation is typically performed with a TX30 driver; the coarse shank advances through the substrate while the threaded portion bites into the receiving member to create clamping pressure. The countersunk head seats flush with the surface, allowing subsequent finishes or overlays to sit level. The zinc-plated surface provides basic corrosion resistance suited to general construction contexts. Use cases include heavy joinery, framing and structural connections where deep penetration and sustained clamping are required.
