Fischer 574154 Spax screw 5 mm 60 mm TX Non-corrosive steel 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

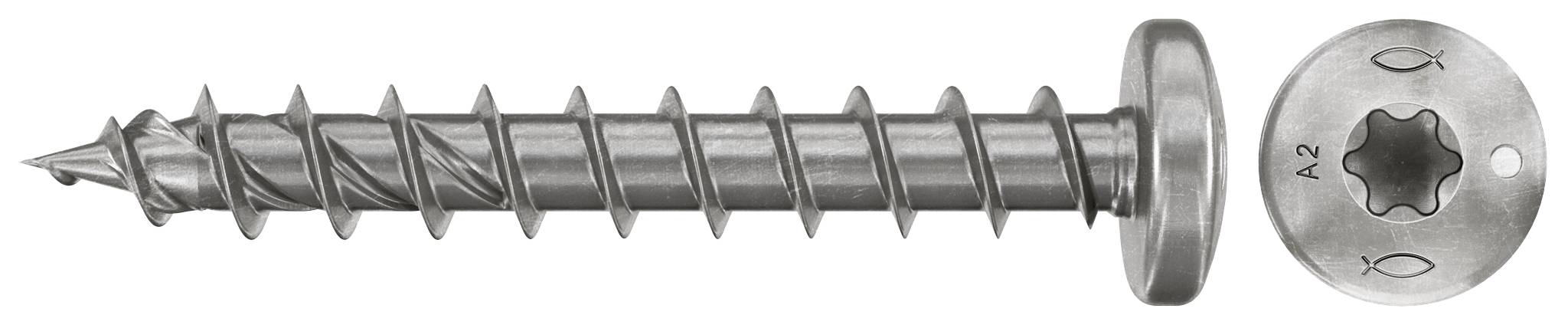

Fischer Powerfast FPF II PTF 5.0 x 60 A2 50 chipboard screw, half-head, TX drive, full thread, A2 stainless steel, 50 pieces
- The increased thread pitch of the screw reduces the screw-in time considerably.
- The screw tip with the three ribs ensures quick bite action and pre milling.
- The core milling geometry noticeably reduces the screw-in resistance.
- The PowerFast II is a screw with tested loads in the fischer plug (e.g. DuoPower or UX).
Technical specifications
- Shaft diameter: 3.7 mm
- Screw dimensions 5.0 x 60 mm
- Thread distribution: Full thread
- Thread type: Coarse
- Tip form: Sharp
- Material quality A2
- Thread length: 54 mm
- High-performance sliding coating: Yes
- Stainless steel category according to ISO 3506: A2
- Kern diameter 3.25 mm
- Head height 3.4 mm
- Head diameter 10 mm
- Bit size (numeric): 20
- Drive: TX20
- Combination thread: No.
- Head hole: No.
- Fixing thread: No.
- With hole-enlarging wings: No.
- With pin in screw slot: No.
- Shaft milling ribs: Yes
- Tip with milling ribs: Yes
- Distance thread: No.
- Different drilling tip material: No.
- Strip magazine package: No.
- Test mark / Approvals: ETA - European Technical Assessment
- Product type
Spax screw
- Drive
TX
- Material
Non-corrosive steel
- (Ø)
5 mm
- Length
60 mm
- Head shape
Pan head
- Dim
(Ø x L) 5 mm x 60 mm
- Content
50 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3760766 Fischer 574154 Spax screw 5 mm 60 mm TX Non-corrosive steel 50 pc(s)
Description

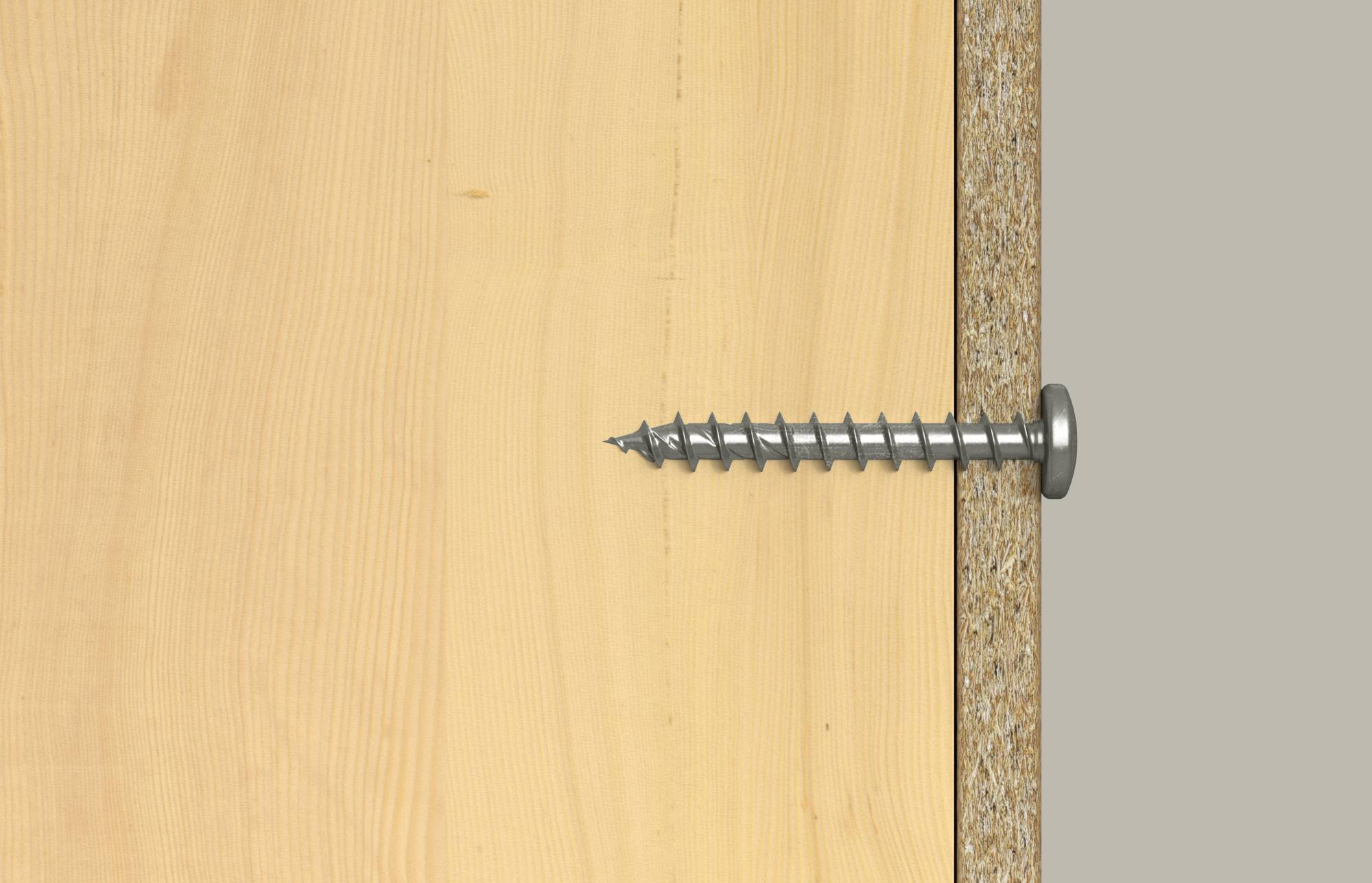

The Fischer PowerFast FPF II PTF A2 is a A2stainless steel screw with full thread and inner star TX mount. With the semi-round head it is suitable for joints of metal on wood, for instance, when fixing metal fittings, brackets or wooden beams. The consistent thread over the entire length of the screw provides for an optimal force transmission.
