Fischer 575231 TherMax II 16/250 M12 HWK NV Spacer fittings 380 mm 16 mm 1 Set
EAN:
Part number:
Item no:
Highlights & Details
Fischer TherMax II 16/250 M12 HWK NV spacer installation system

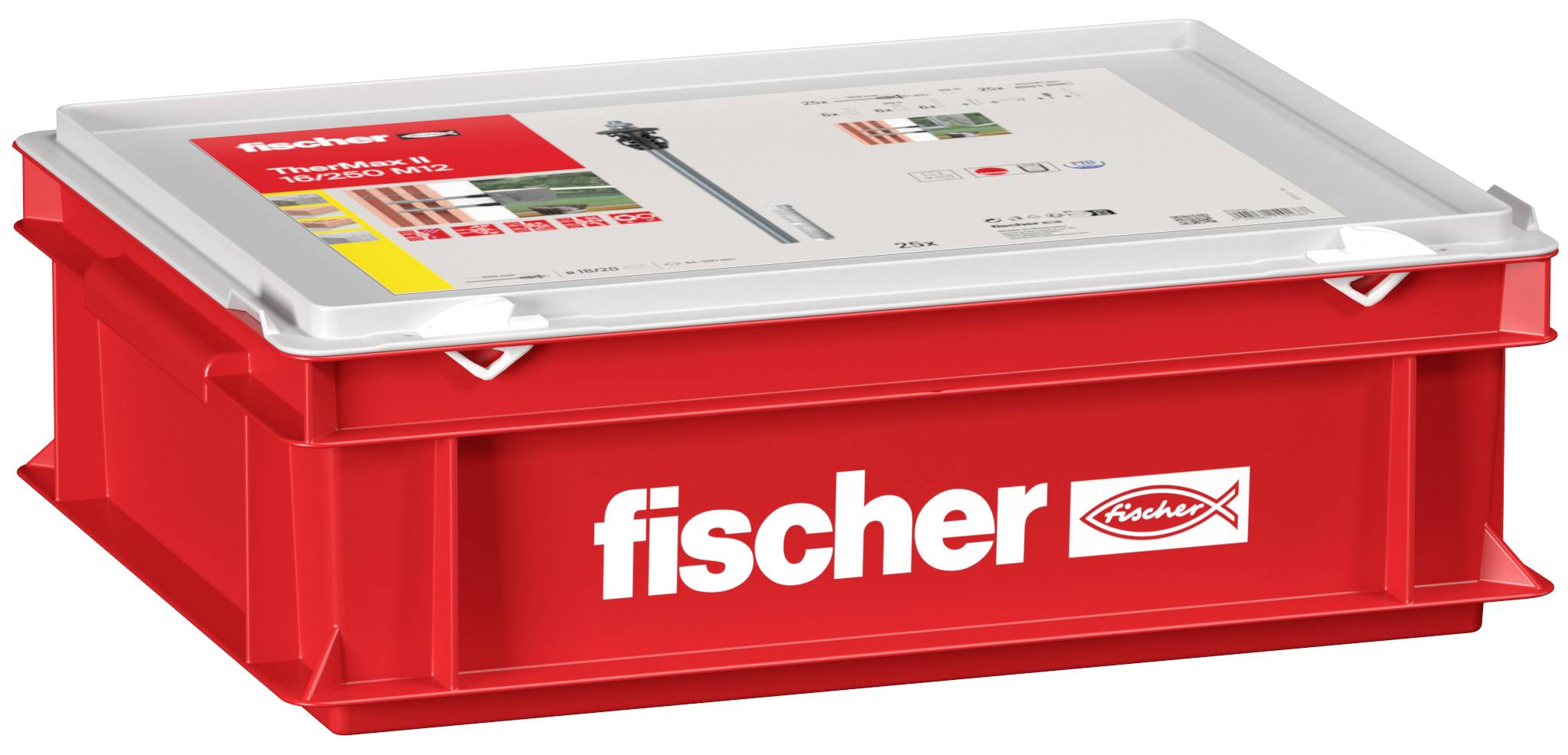

- 25 TherMax II in the convenient stackable manual suit-case
- Real impact resistance and long-term protection against moisture
- Unique compensation of tapered bore holes of up to 5°
- Maximum security and flexibility through permitted adjustment without expensive special tools
- Cone geometry for precise and easy trimming without tearing the surface of the plaster
- No heat bridge thanks to the anti-cold cone
- Holds high loads, and is very easy to install
Technical specifications
- (Ø)
16 mm
- Product type
Spacer fittings
- Length
380 mm
- Dim
(Ø x L) 16 mm x 380 mm
- Suitable for
Concrete
Cored bricks
Structural lightweight concrete hollow block
Flintlime hollow bricks
Flintlime bricks
Solid brick
Foamed concrete wall
- Content
1 Set
- Outside Ø
16
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3835557 Fischer 575231 TherMax II 16/250 M12 HWK NV Spacer fittings 380 mm 16 mm 1 Set
Description
You can now secure the practical tool case with 25 TherMax II GVZ. The Fischer TherMax II spacer installation system is a solution for fixing without thermal bridges to insulated facades. The system consists of a special anchor rod made of electroplated steel with a glass-fiber reinforced cone, a cover cap with EPDM-sealing ring and a threaded pin. The anti-cold cone on the anchor rod milled itself automatically through the plaster in the insulating material and interrupts the thermal bridge. The system is approved for a wide range of building materials in combination with various fischer injection mortar. An anchor sleeve is included in the delivery for a mortar-saving fixing in hollow stone masonry. The separate cover cap with EPDM-sealing ring together with the rounded head of the cone balances angled drilling holes. The EPDM seal protects against penetration humidity and blows. The TherMax II attaches heavy loads such as awnings, air conditioners and satellite systems in concrete, porous concrete and masonry from perforated and solid stone.
This text is machine translated.
This text is machine translated.
Features
- 25 x TherMax II M16
- 25 x sieve sleeve 20 x 130
- 6 x bit
- 6 x Milling blade
- 6 x extension tube for static mixers
- 6 x installation instructions
Scope of delivery
- Fischer TherMax II 16/250 M12 HWK NV spacer installation system
