Fischer 575232 Spacer mounting kit (L) 380 mm 10 pc(s)
EAN:
Part number:
Item no:
Product type
Spacer mounting kit
Length
380 mm
Content
10 pc(s)
Suitable for
Concrete
Nut included
Yes
Datasheet (PDF)
Highlights & Details

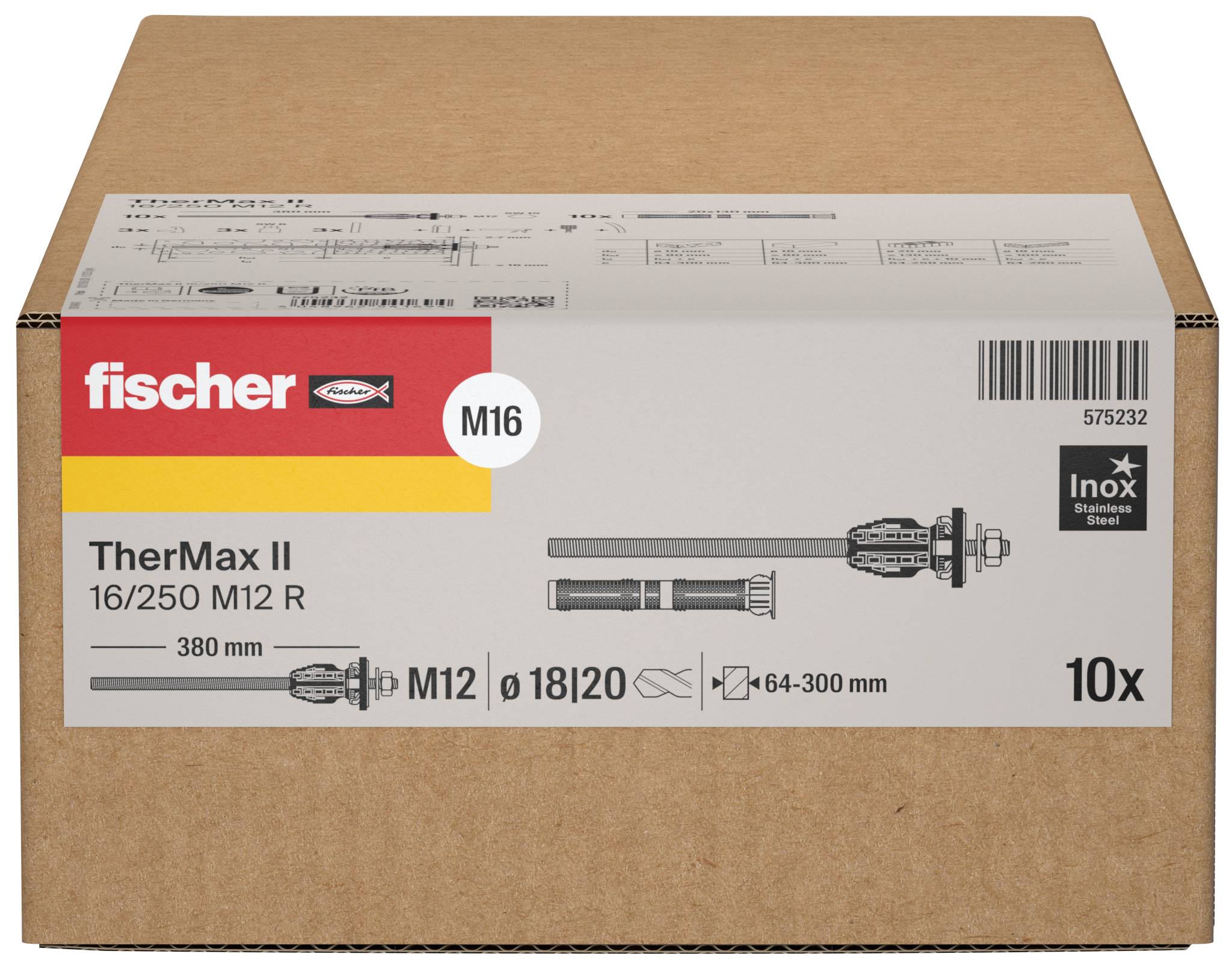

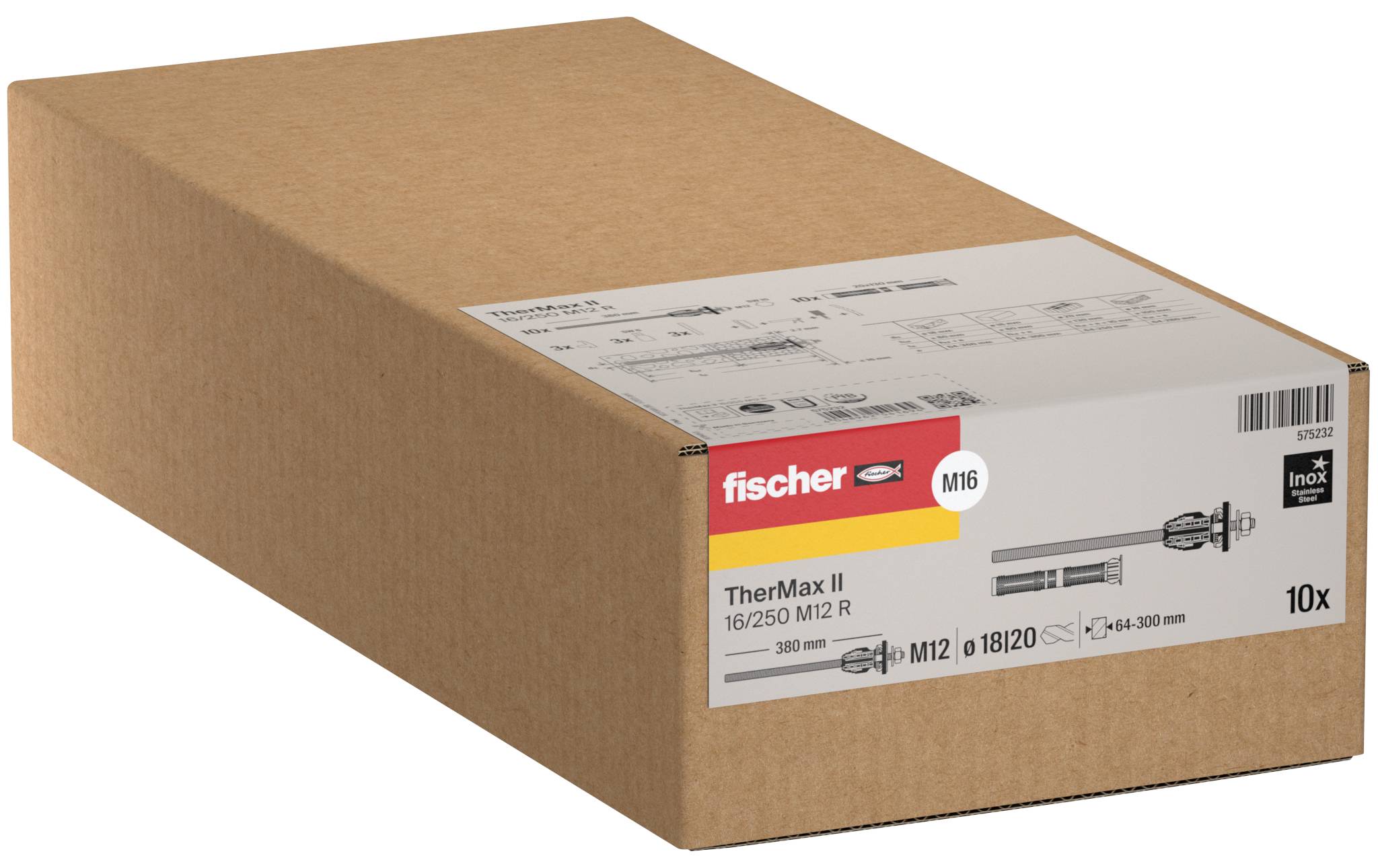

Fischer TherMax II 16/250 M12 R stainless steel spacer installation system
- Real impact resistance and long-term protection against moisture.
- Unique compensation of tapered bore holes of up to 5°.
- Maximum security and flexibility through permitted adjustment without expensive special tools.
- Cone geometry for precise and easy trimming without tearing the surface of the plaster.
- No heat bridge thanks to the anti-cold cone.
- Holds high loads, and is very easy to install.
Technical specifications
- Application area: Awnings
- Thread: M16
- Thread 16 mm
- Threaded rod M16 x 344 mm
- Installation torque: 20 Nm
- Connector thread M12
- Thickness of non-supporting layer: 64 - 300 mm
- With cover: Yes
- With anchor: No.
- With washer: Yes
- Test mark / Approvals: ETA - European Technical Assessment
- Surroundings: Damp room/outdoor area
- Product type
Spacer mounting kit
- Length
380 mm
- Content
10 pc(s)
- Suitable for
Concrete
- Nut included
Yes
Documents & Downloads
Datasheet
Datasheet 3760690 Fischer 575232 Spacer mounting kit (L) 380 mm 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3760690 Fischer 575232 Spacer mounting kit (L) 380 mm 10 pc(s)
Description

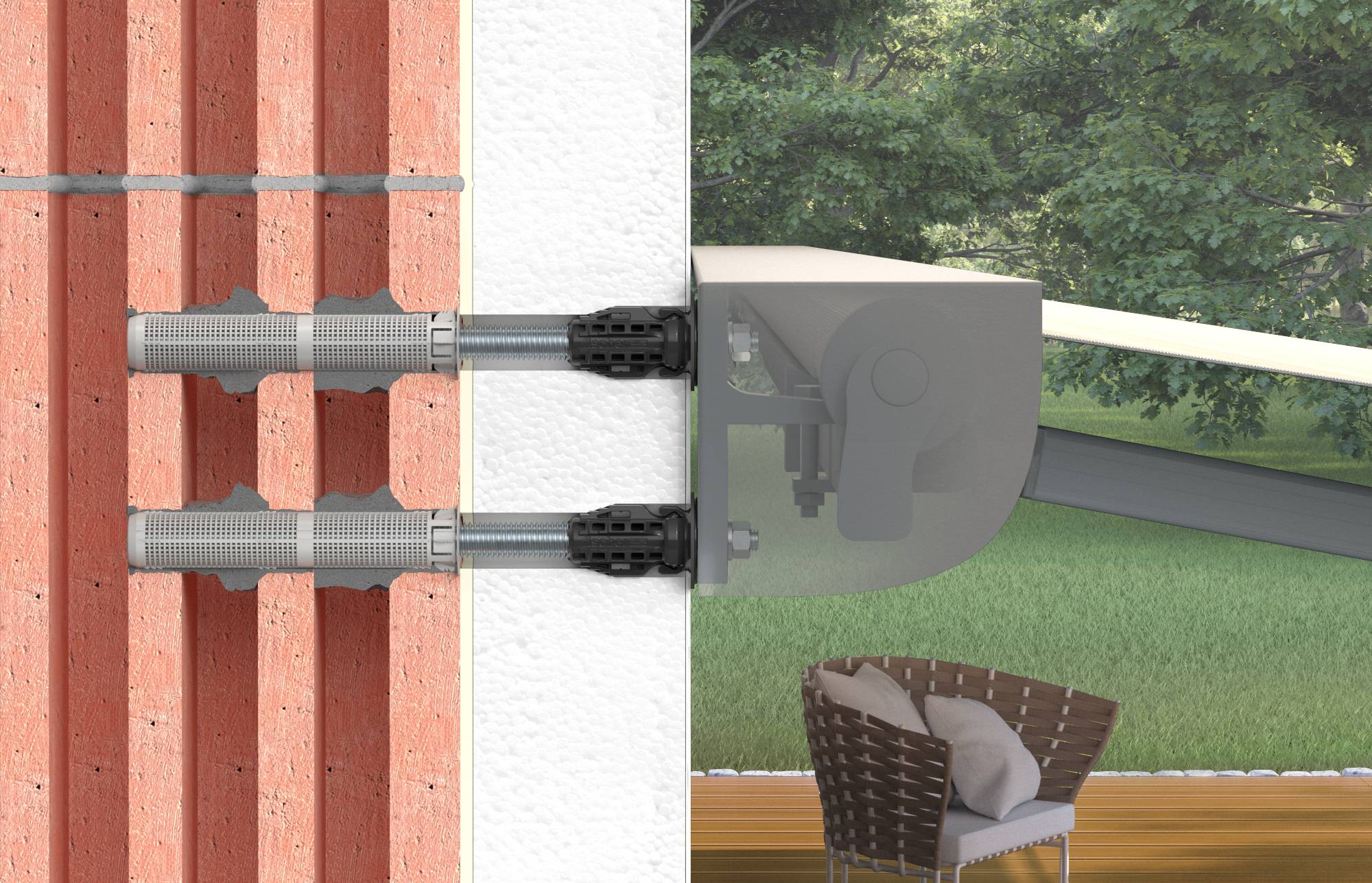

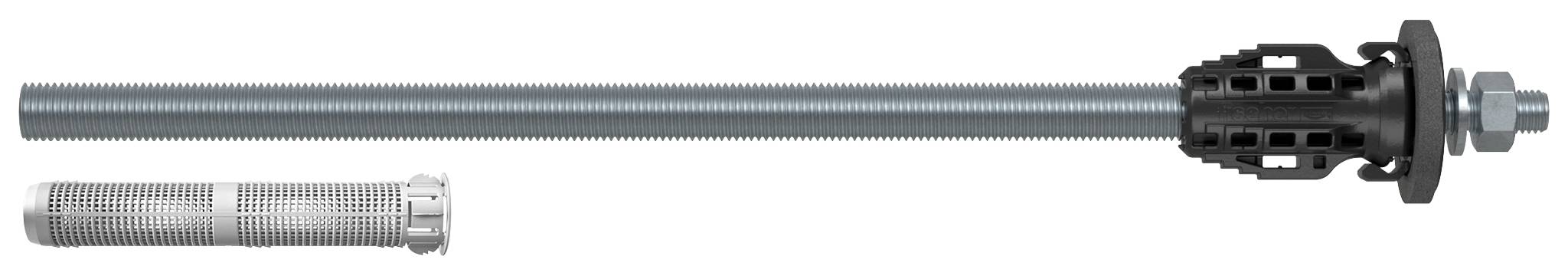

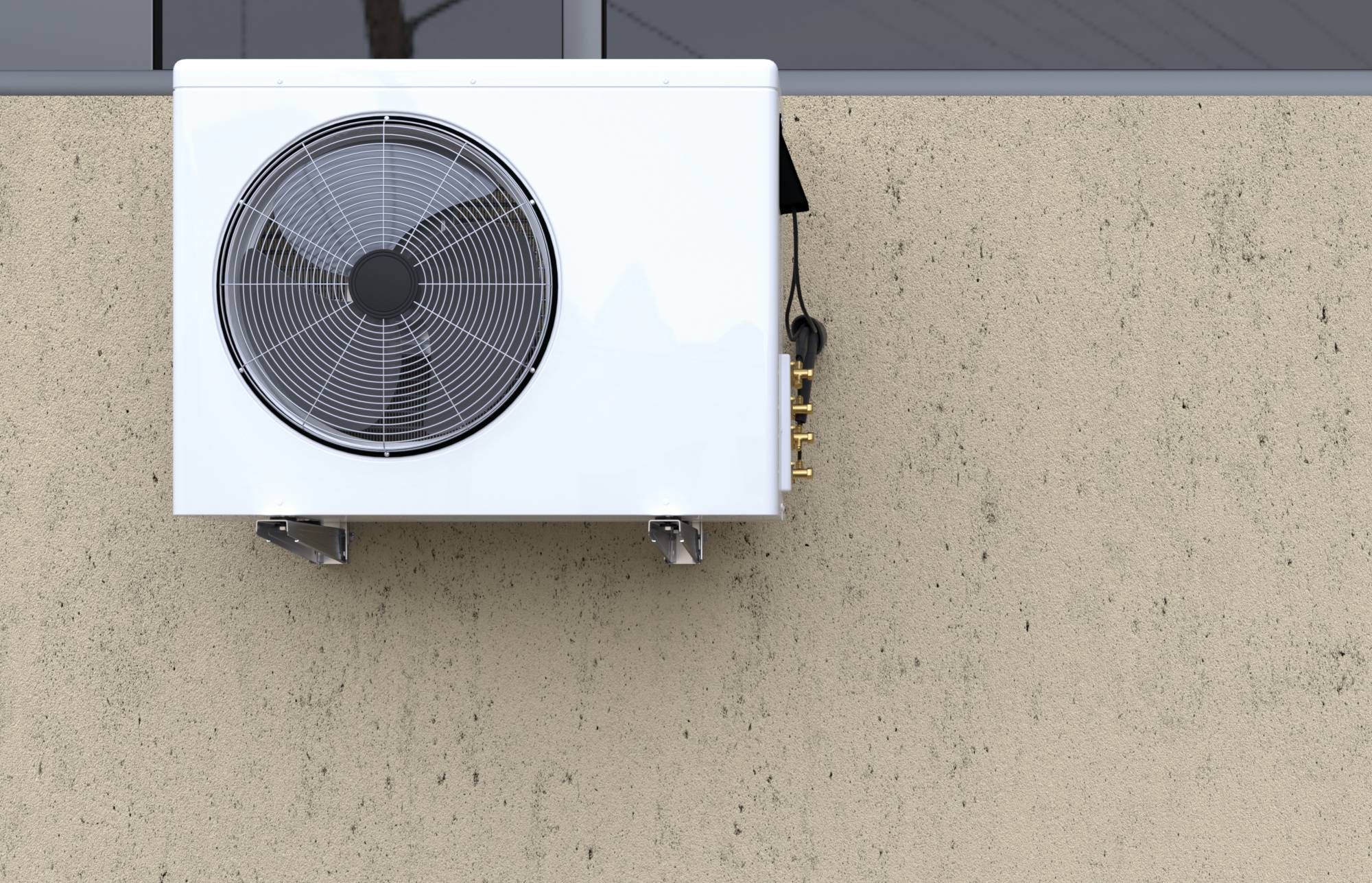

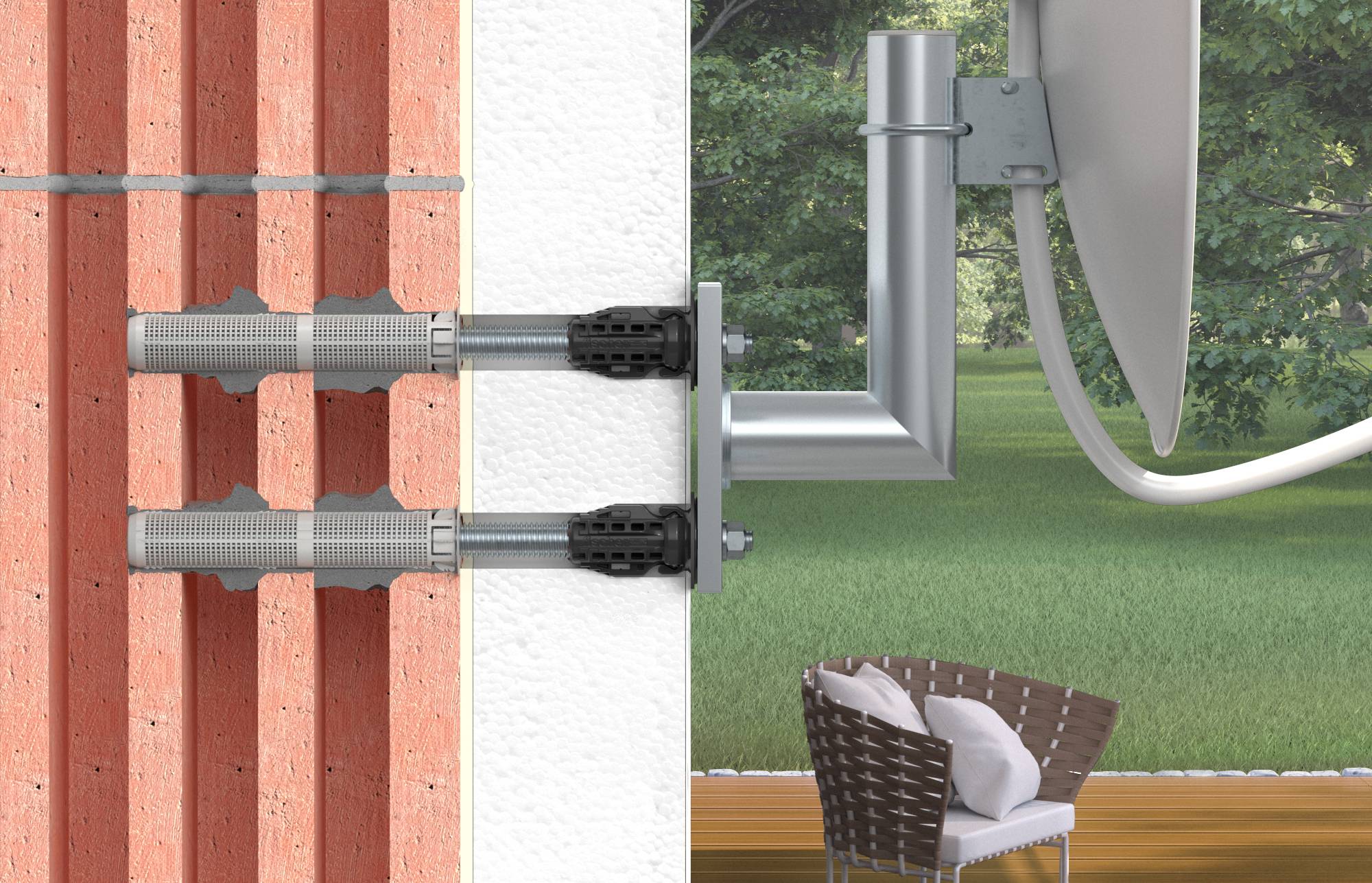

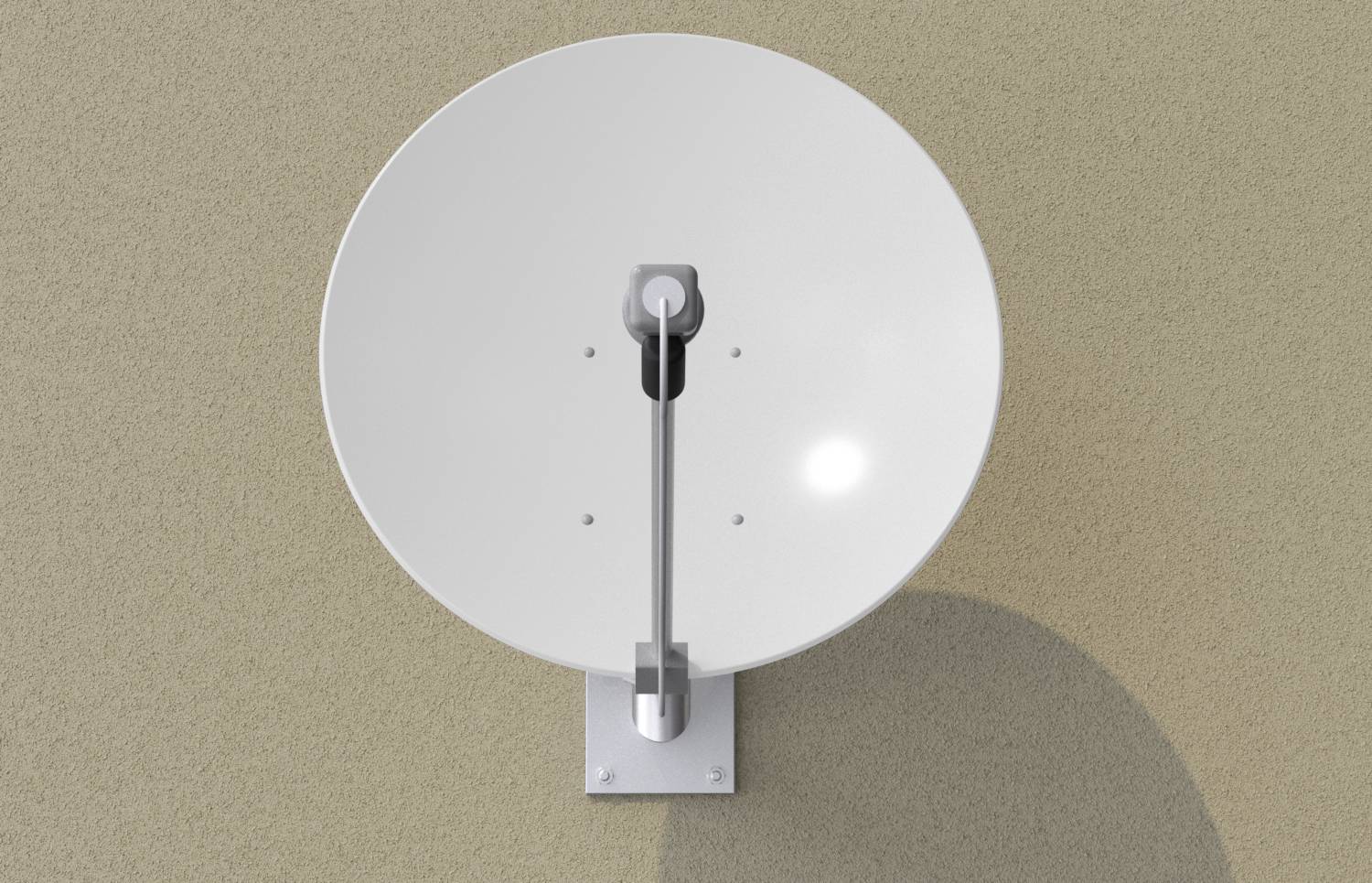

The Fischer TherMax II spacer installation system is a solution for fixing without thermal bridges to insulated facades. The system consists of a special non-stainless steel anchor rod with a glass-fiber reinforced cone, a cover cap with an EPDM seal ring and a threaded pin. The anti-cold cone on the anchor rod milled itself automatically through the plaster in the insulating material and interrupts the thermal bridge. The system is approved for a wide range of building materials in combination with various fischer injection mortar. An anchor sleeve is included in the delivery for a mortar-saving fixing in hollow stone masonry. The separate cover cap with EPDM-sealing ring together with the rounded head of the cone balances angled drilling holes. The EPDM seal protects against penetration humidity and blows. The TherMax II attaches heavy loads such as awnings, air conditioners and satellite systems in concrete, porous concrete and masonry from perforated and solid stone.
