Fischer 577191 Pipe clamp Fischer FRS inch 83-91, 1/2" pipe clamp, two-screw, galvanized steel 20 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

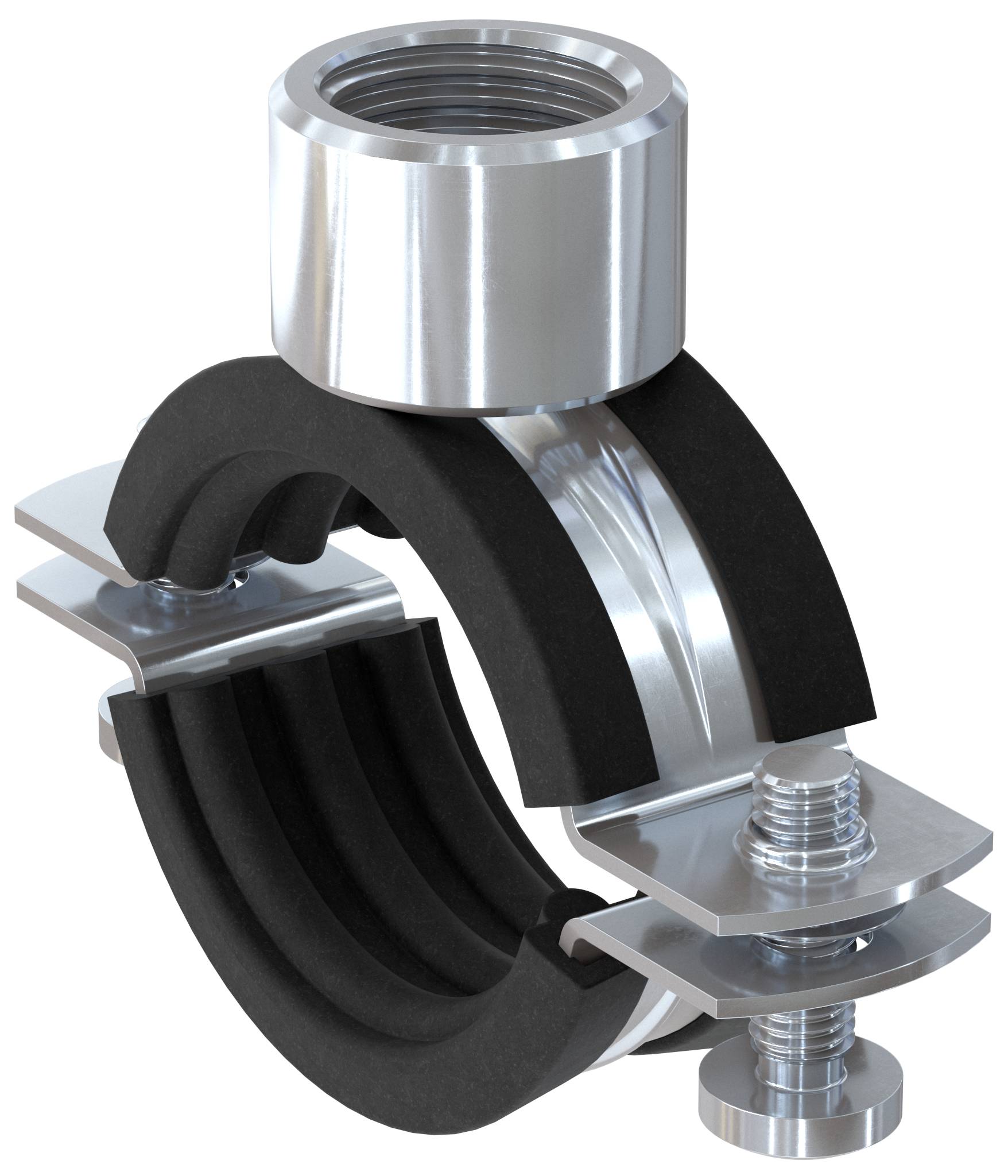

Fischer FRS inch 83-91, 1/2" pipe clamp, two-screw, galvanized steel
- The inch screw nut allows pipe mounting with higher bending strength.
- High tested loads guarantee the safe function of the FRS customs even in civil protection buildings.
- The sound absorption ensures the sound reduction and prevents contact corrosion.
- Two-screw thread enables optimum adaptation to the outer diameter of the pipe.
- The loss protection of the screws ensures an easy installation.
Technical specifications
- Product type
Pipe clamp
- Content
20 pc(s)
- Material
Steel
- Clamping range
83 up to 91 mm
- DIN standard
DIN 4109
- Thread
1/2"
- Material properties
zinc galvanized
- Width
138 mm
- Range (max.)
91 mm
- Clamping range (min.)
83 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729041 Fischer 577191 Pipe clamp Fischer FRS inch 83-91, 1/2" pipe clamp, two-screw, galvanized steel 20 pc(s)
Description
The Fischer FRS Zoll tube clamp is a two-screw pipe clamp with a 1/2" connection nut. The FRS inch in galvanized galvanically suitable for use in dry indoor locations. The design with two screws enables optimum adaptation to the outer diameter of the pipe. This allows pipes with an external diameter of 15-219 mm with threaded pipe and base plate to be securely fastened. The authorization for civil protection spaces in accordance with the Swiss Directive allows the use in this application. The pipe clamp conforms to the requirements of DIN 4109 with a chlorine and silicone-free soundproofing. The Fischer FRS inch is suitable for applications in the temperature range from -40 °C to +100 °C.
