Fischer 577199 GPMR 1/2" Base 188 mm 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

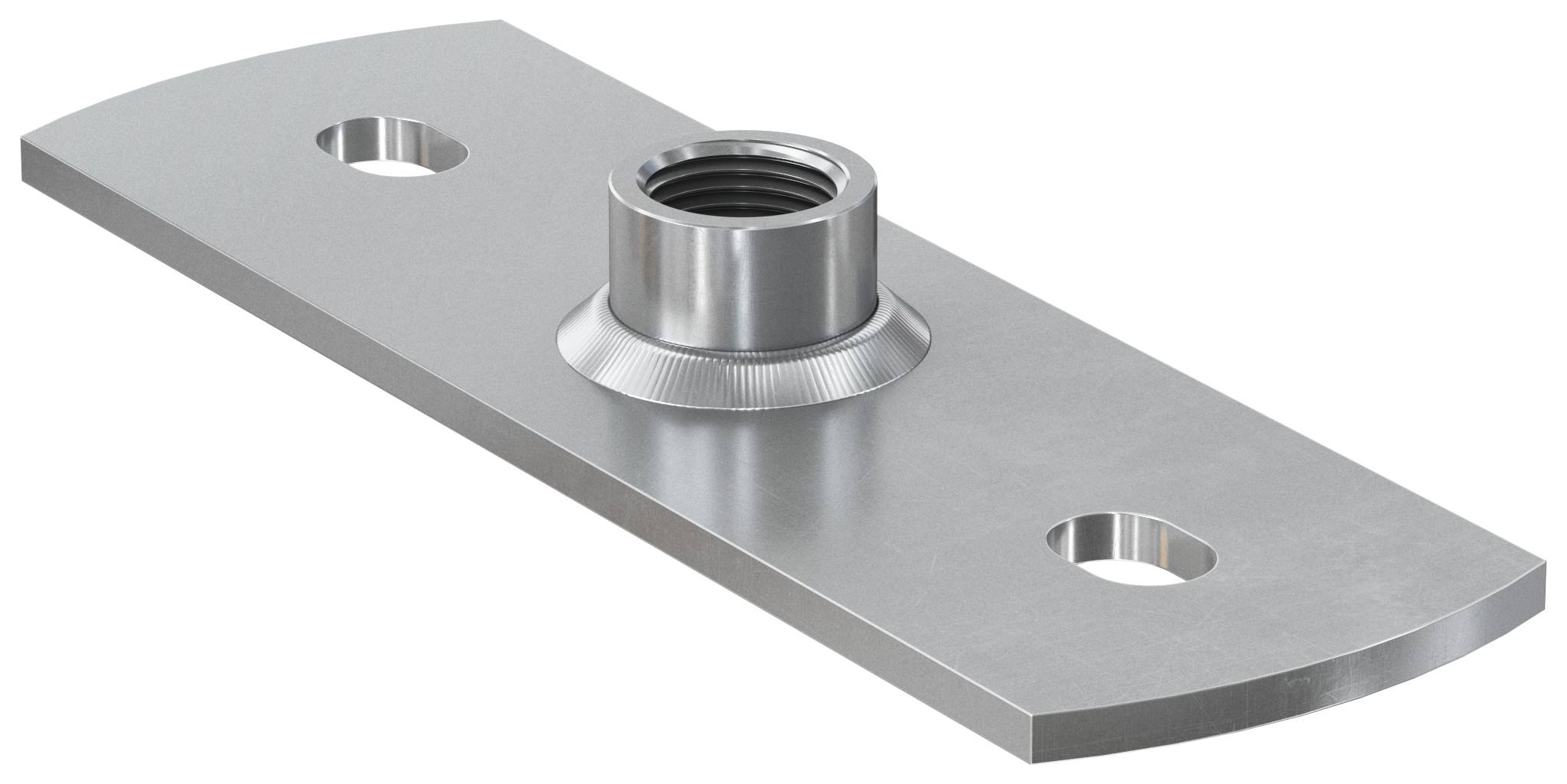

Fischer base plate GPMR 1/2" solid
- The oblong holes of the base plates allow easy alignment on the surface.
- GPSR with a round weld-on nut for a rigid connection of threaded rods to the ground.
Technical specifications
- Product type
Base
- Material
Steel
- Length
188 mm
- Screw diameter
8 mm
- Dim
(L x W) 188 mm x 60 mm
- Content
10 pc(s)
- Material properties
zinc galvanized
- Width
60 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729049 Fischer 577199 GPMR 1/2" Base 188 mm 10 pc(s)
Description

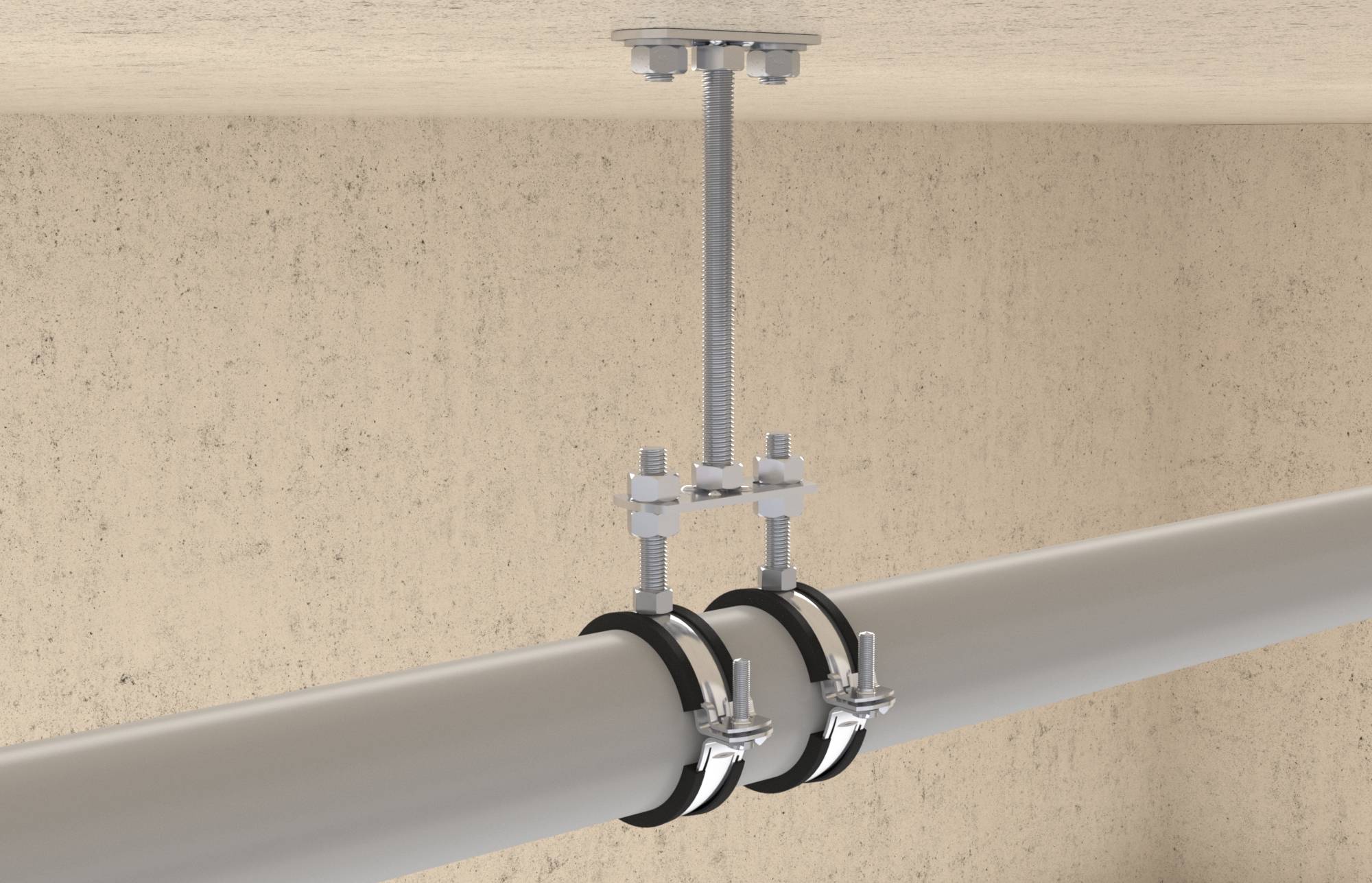

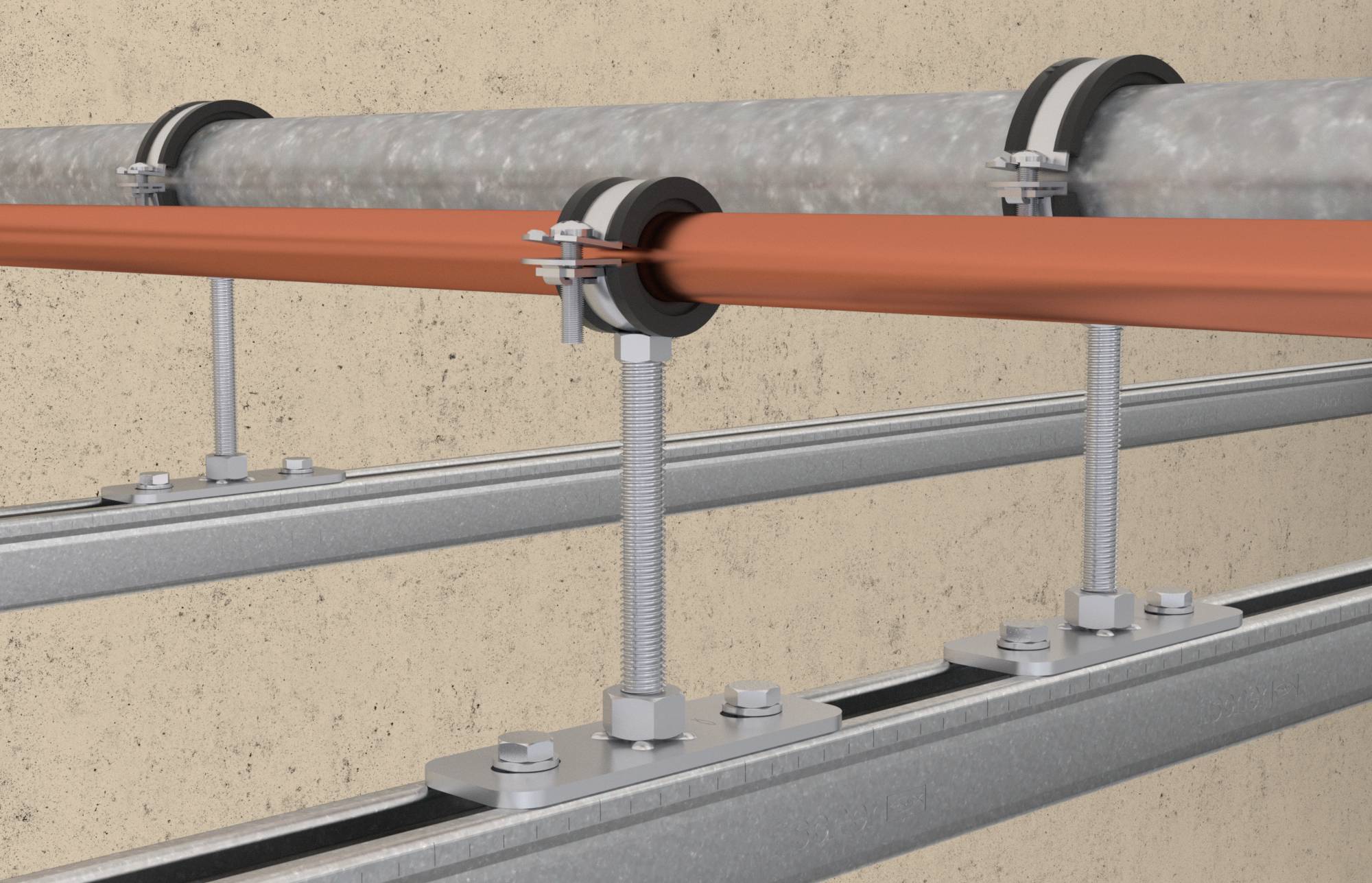

The Fischer GPL / GPS / GPSR / GPR / GPMR base plates allow for a dimensionally stable connection between the underground and the pipe using the appropriate pipe clamps. The GPL is suitable for light to medium loads, the GPS version for heavy loads. The base plates can be directly mounted on the ground or indirectly on the FUS rail system. The welded-on threaded sleeves in various sizes (M 8 to 3/4") offer the appropriate nominal diameter for various loads. The galvanic zinc version is suitable for installations in buildings, the versions of hot-dip galvanized and stainless steel for installation outdoors and in highly corrosive environments.
