Fischer 578988 Foamed concrete anchor 50 mm 15 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

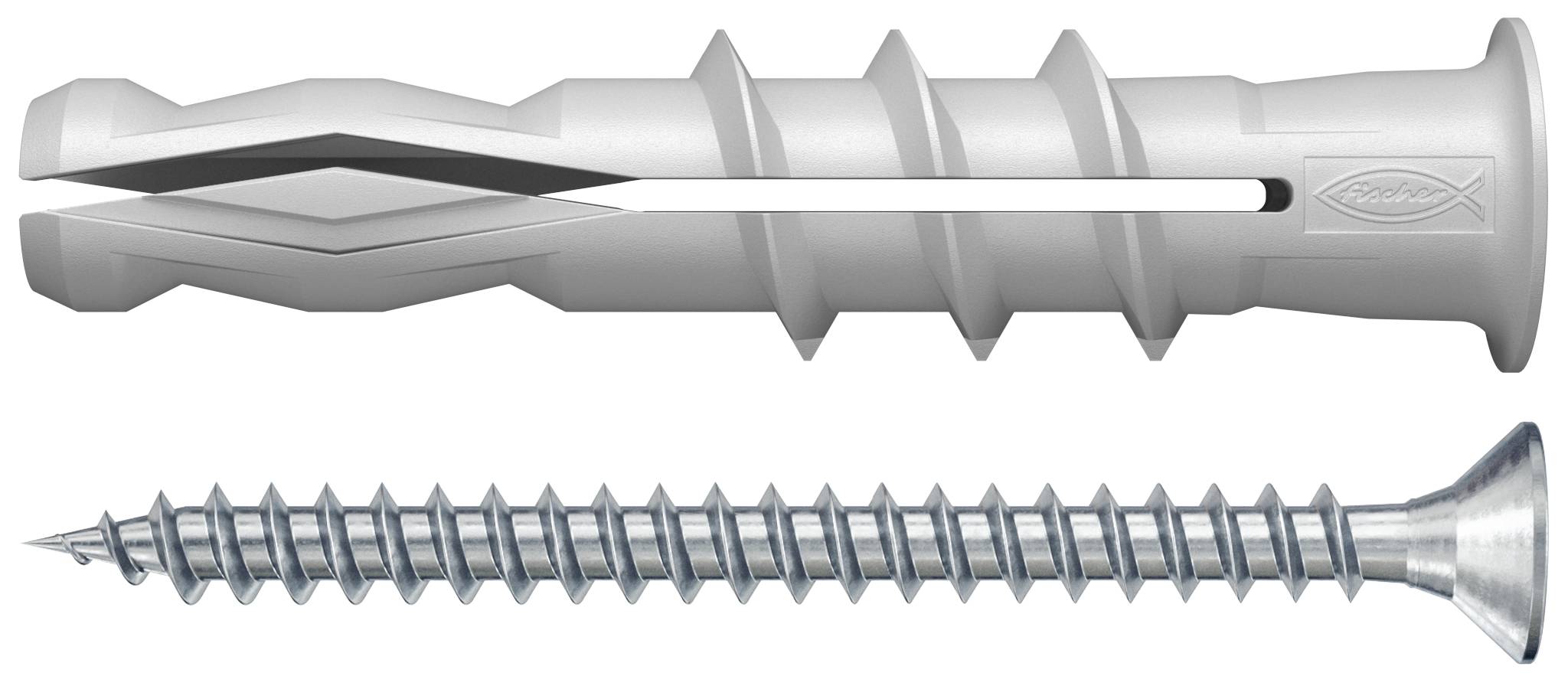

Fischer FFA 8 S aerated concrete plug with screw
- Easy mounting without setting tools.
- Secure and strong anchoring in the building material.
Technical specifications
- Suitable for concrete: No.
- Suitable for aerated concrete: No.
- Suitable for plasterboard: No.
- Suitable for perforated tiles: No.
- Suitable for wood: No.
- Suitable for lime sandstone: No.
- Suitable for lime sandstone: No.
- Suitable for natural stone: No.
- Suitable for chipboard: No.
- Suitable for solid bricks: No.
- Max. Thickness of attachment 5 mm
- Min Drill depth 60 mm
- Screw dimensions 5.0 x 60 mm
- Material quality: Nylon
- Suitable for min. Screw length 4 mm
- 8 mm drill nominal diameter
- Dowel drive: TX40
- Drive: TX20
- Colour: grey.
- Suitable for hexagon wood screw: Yes
- Through-hole mounting: No.
- Suitable for mounting with cable ties: No.
- With border: Yes
- With screw: Yes
- Pre-plug mounting: Yes
- Distance mounting: No.
- Product type
Foamed concrete anchor
- Material
Plastic
- Length
50 mm
- Suitable for
Foamed concrete wall
- Content
15 pc(s)
- Features
incl. screw
- Drive
TX
Documents & Downloads
Datasheet
Datasheet 3760695 Fischer 578988 Foamed concrete anchor 50 mm 15 pc(s)
User & Safety Instructions
User & Safety Instructions 3760695 Fischer 578988 Foamed concrete anchor 50 mm 15 pc(s)
Description

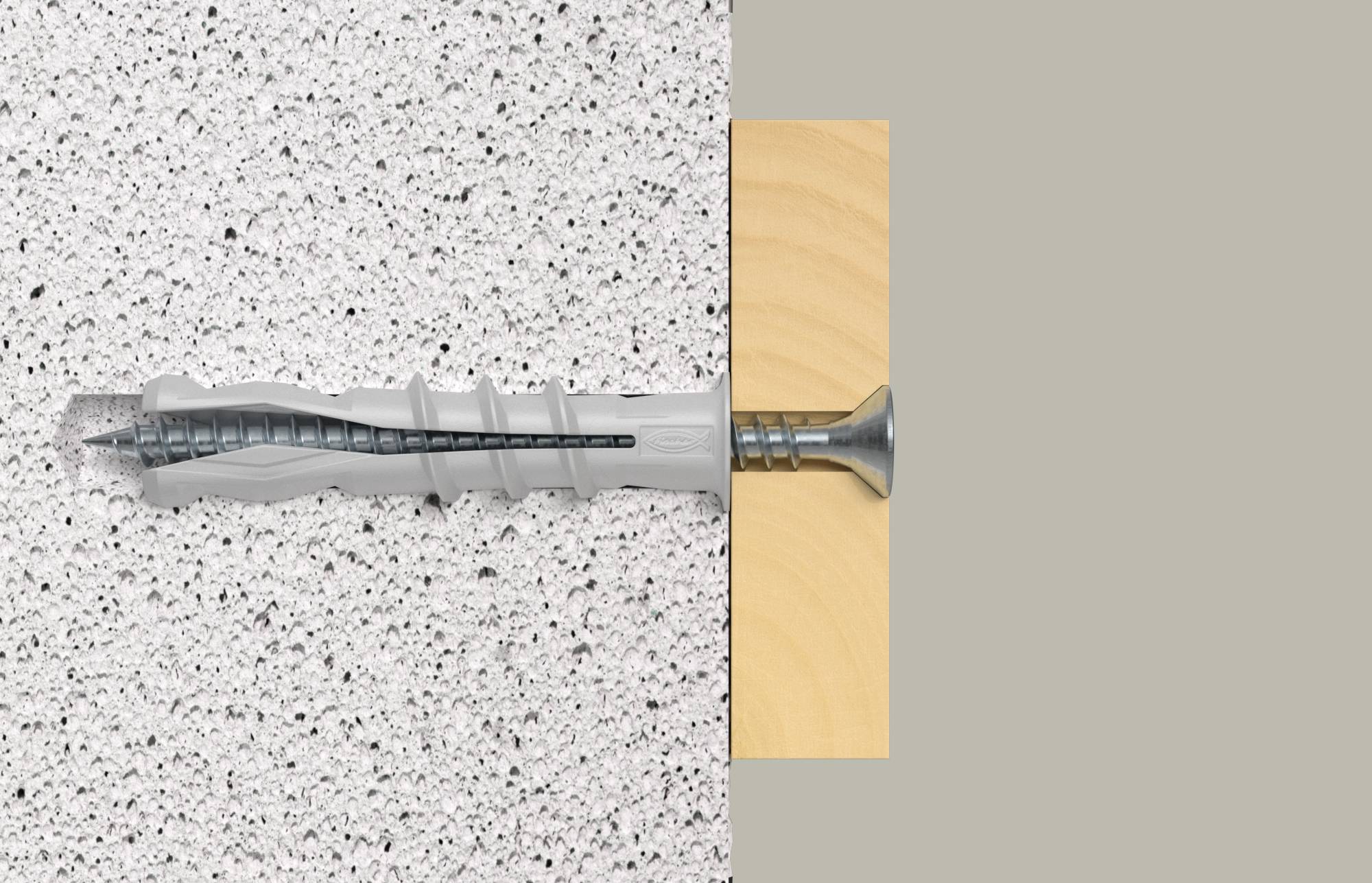

The Fischer Foamed concrete plug FFA is a special plug for attachment in porous concrete. It is best suitable for safely fixing shelves, pictures, lights as well as radiators in porous concrete. The plug made of high-quality nylon is used after pre-drilling in the pre-mounting. The spiral outer thread cuts securely into the porous concrete. In addition, the plug expands when the screw is inserted. A high load-carrying capacity and thus a plus in safety is ensured.
