Fischer 580831 HybridPower 10x110 FUS Universal dowel 110 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Fischer Hybrid Power 10 x 110 FUS, hex screw with U-disc
- Safe as steel, simply mounted as Kunststoff
- The plastic sheath of the dowel allows simple and fast mounting without the use of tool
- The metal portion guarantees the highest carrying capacity
- With the added safety, approved for single point fixing in concrete and for multiple mounting of non-load systems in masonry and porous concrete
- Can be used universally: Suitable for all building materials and a multiplicity at applications
- Safe in case of fire: Due to the metal component, the wall plug will also keep under fire conditions
Technical specifications
- (Ø)
10 mm
- Product type
Universal dowel
- Material
Plastic
Steel
- Length
110 mm
- Screw diameter
7 mm
- Dim
(Ø x L) 10 mm x 110 mm
- Suitable for
Concrete
Flintlime bricks
Solid brick
Cored bricks
Flintlime hollow bricks
Structural lightweight concrete hollow block
Foamed concrete wall
- Content
50 pc(s)
- Outside Ø
10 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3835374 Fischer 580831 HybridPower 10x110 FUS Universal dowel 110 mm 10 mm 50 pc(s)
Conformity certificate
Conformity certificate 3835374 Fischer 580831 HybridPower 10x110 FUS Universal dowel 110 mm 10 mm 50 pc(s)
Description
The Fischer Hybrid Power combines the advantages of a classic plastic anchor with the safety of a steel anchor. By combining the two materials, the Hybrid Power is set like a classic plastic dowel and can be used in all building materials. The Hybrid Power is approved for single point attachments in cracked and untorn concrete, as well as for multiple attachments of non-load-bearing systems in masonry and porous concrete. At the same time it offers high carrying capacity and a secure anchoring, even in case of a fire. The assortment is suitable for metal and wood-attachment parts up to 30 mm.
This text is machine translated.
This text is machine translated.
Features
- 2-component universal plug with screw
Scope of delivery

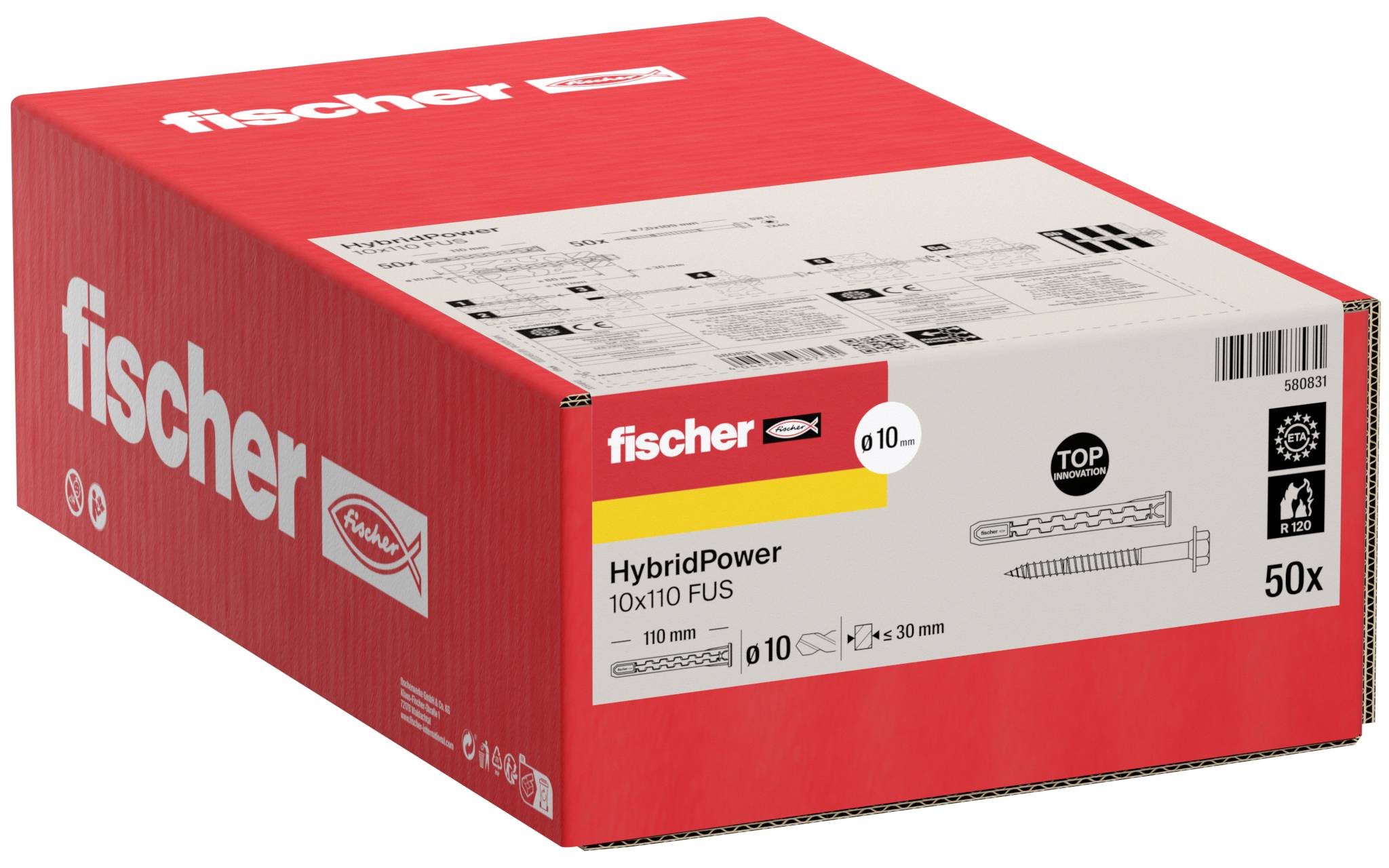

- Fischer Hybrid Power 10 x 110 FUS, hex screw with U-disc
