Fischer 59063 ASL Spacer 6 mm 120 mm Star 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Spacer
- Drive
Star
- Material
Steel
- (Ø)
6 mm
- Length
120 mm
- Dim
(Ø x L) 6 mm x 120 mm
- Content
100 pc(s)
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479270 Fischer 59063 ASL Spacer 6 mm 120 mm Star 100 pc(s)
Description

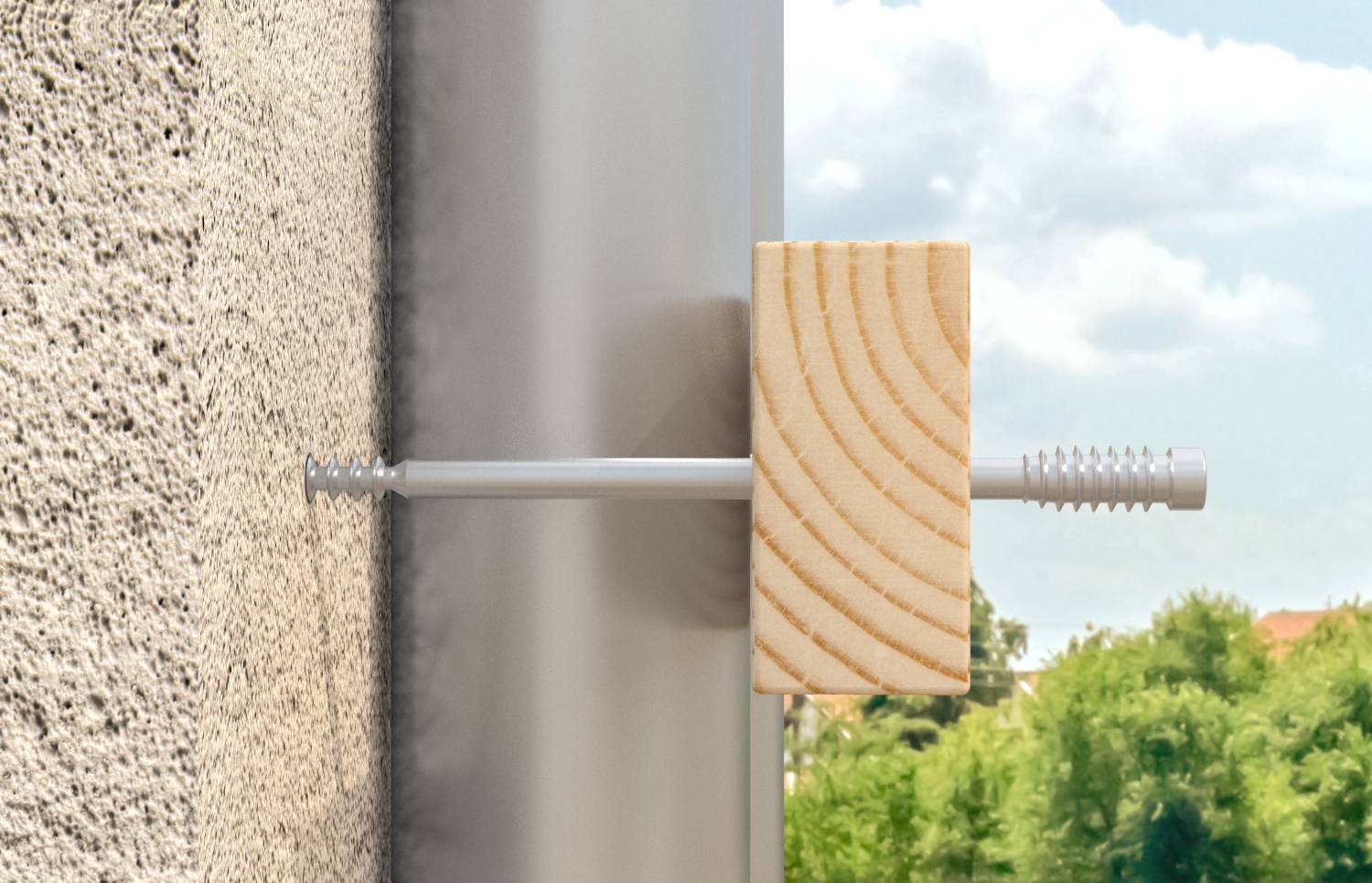

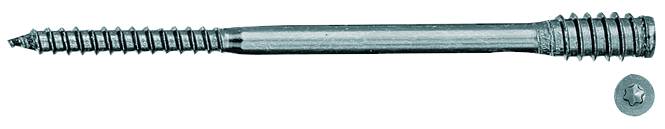

The fischer spacer ASL is a special screw from galvanically zinc-plated steel with two gradient coordinated threads for the exact distance and time-saving assembly. The special screw in the through-hole mounting. When the screw cuts the outer thread into the pre-drilled mounting part and fixed this. If the screw is set at an angle of 15 - 30° angle, you can higher cross-loads to be recorded. The fischer spacer ASL is ideal, for without the need for wall plugs in wood and wooden materials window and door frames, panels and substructures made of wood.
This text is machine translated.
This text is machine translated.
Features
- Mounting in solid substrates with fischer wedge anchor SX and hole in the building materials with Fischer UX universal plug
- Simple Distance between mounting with two threads with the same gradient

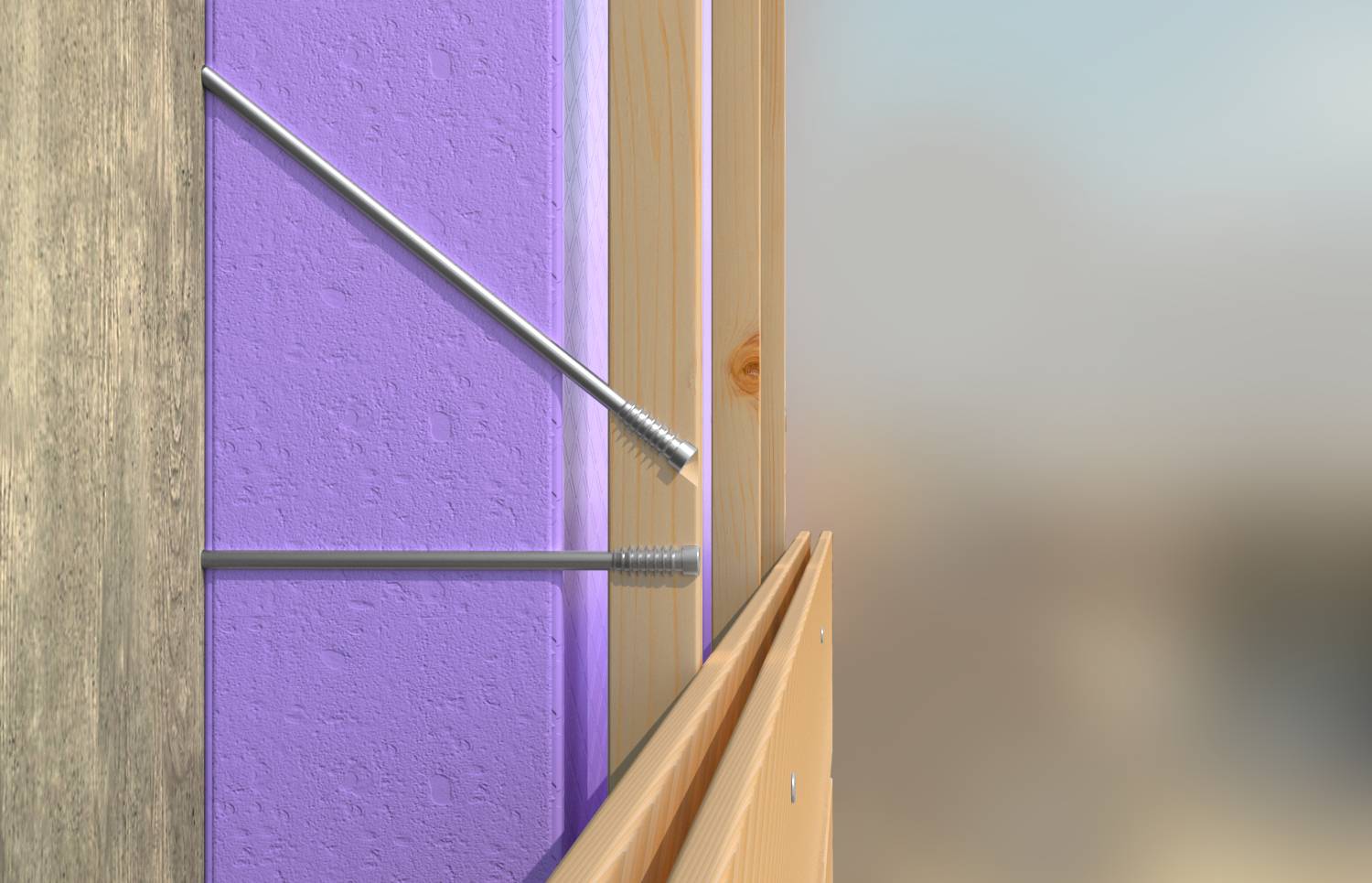

- Exact mounting even in the oblique installed add-on parts
- Flexible applications in wood and wooden materials and mineral full-hole and construction materials.
