Fischer 59187 S 16 H 100 R Dowel 100 mm 16 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
16 mm
- Product type
Dowel
- Material
Polyamide
- Length
100 mm
- Dim
(Ø x L) 16 mm x 100 mm
- Suitable for
Concrete
Cored bricks
Hollow bricks
- Content
50 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479279 Fischer 59187 S 16 H 100 R Dowel 100 mm 16 mm 50 pc(s)
Description

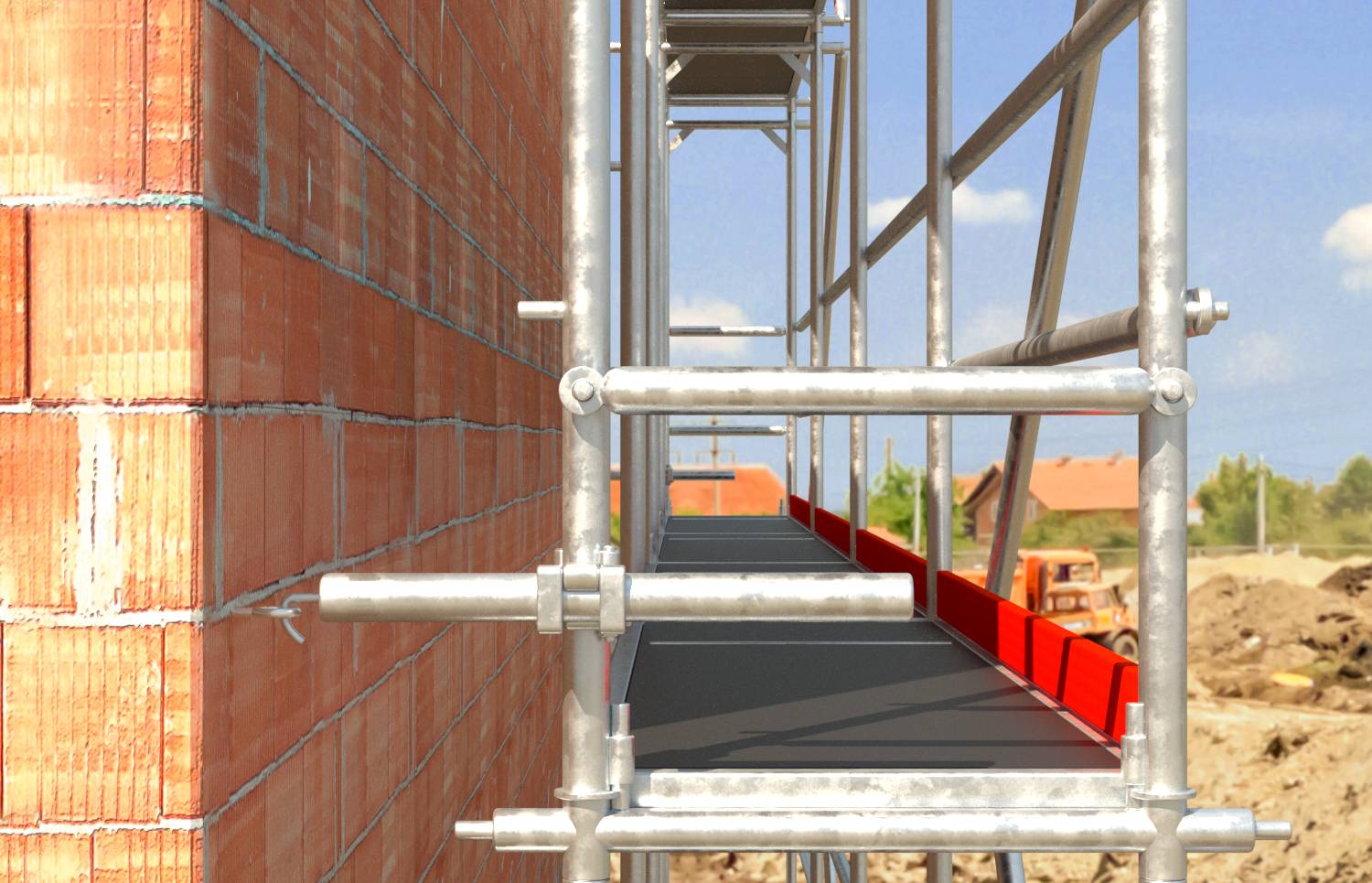

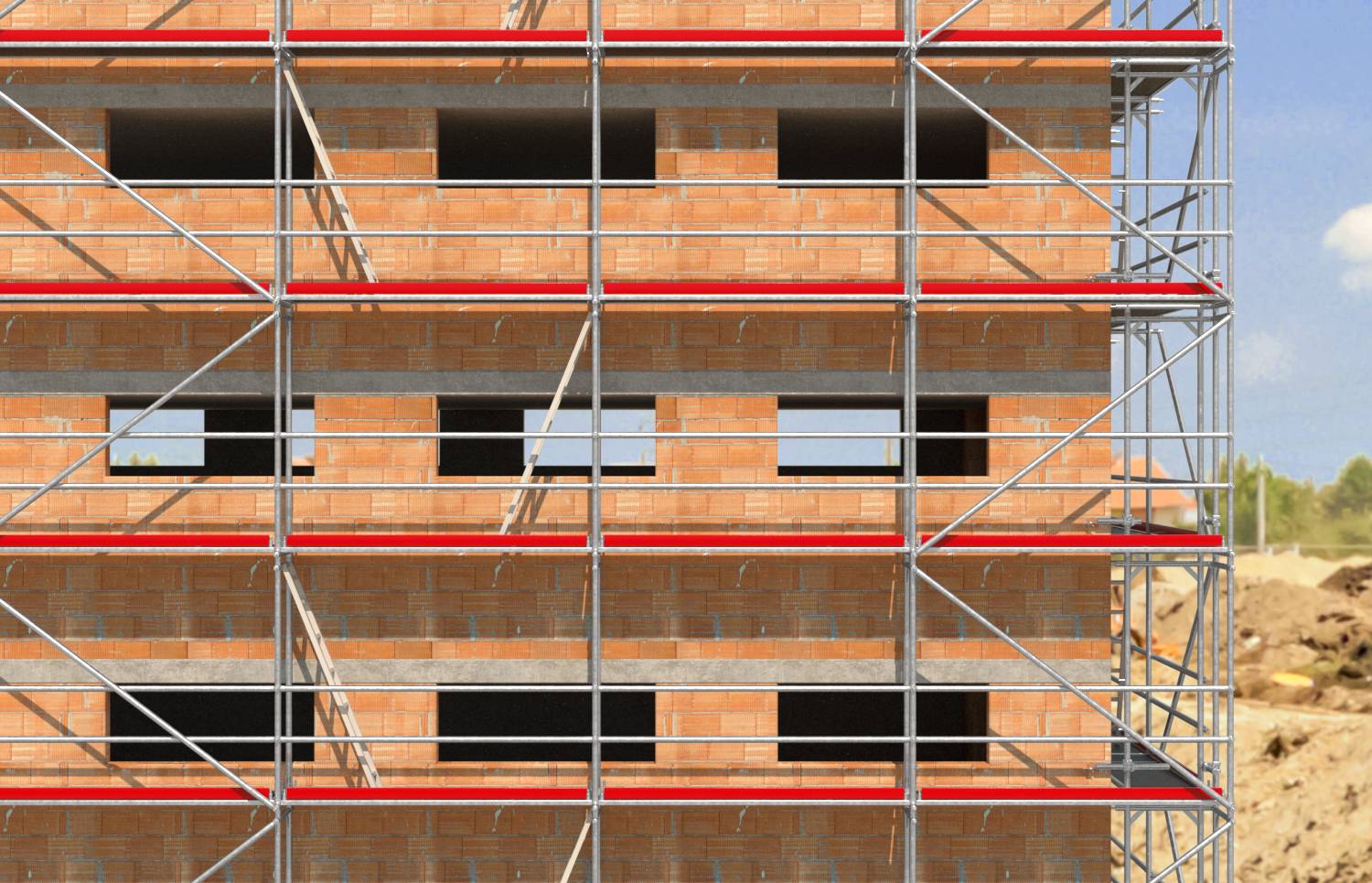

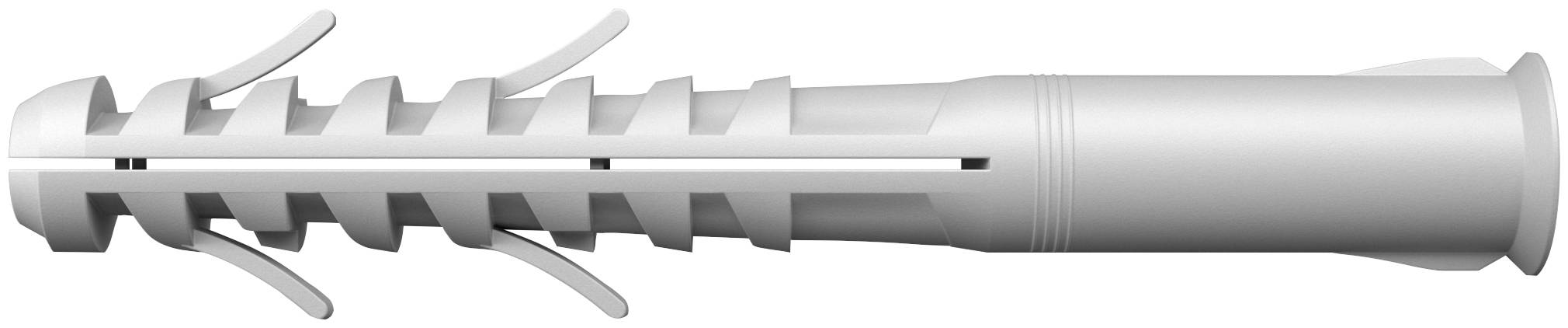

the fischer S 16 H R plug is a spring plug made of high-quality polyamide to accommodate the fischer GS 12 scaffold. The expanding wings prevent twisting and facilitate mounting. When the scaffold is screwed in, the spread zone expands and firmly anchored in the building material. When mounted near the edge, turn the dowel so that the spreading force acts parallel to the edge.
This text is machine translated.
This text is machine translated.
Features
- Made from high-quality polyamide
- suitable for fixing in perforated building materials and aerated concrete
- optimal holding values together with fischer GS 12 framework
- Edge prevents lower slides and chipping
- Close to the edges thanks to slim expansion geometry.
